Colder Products

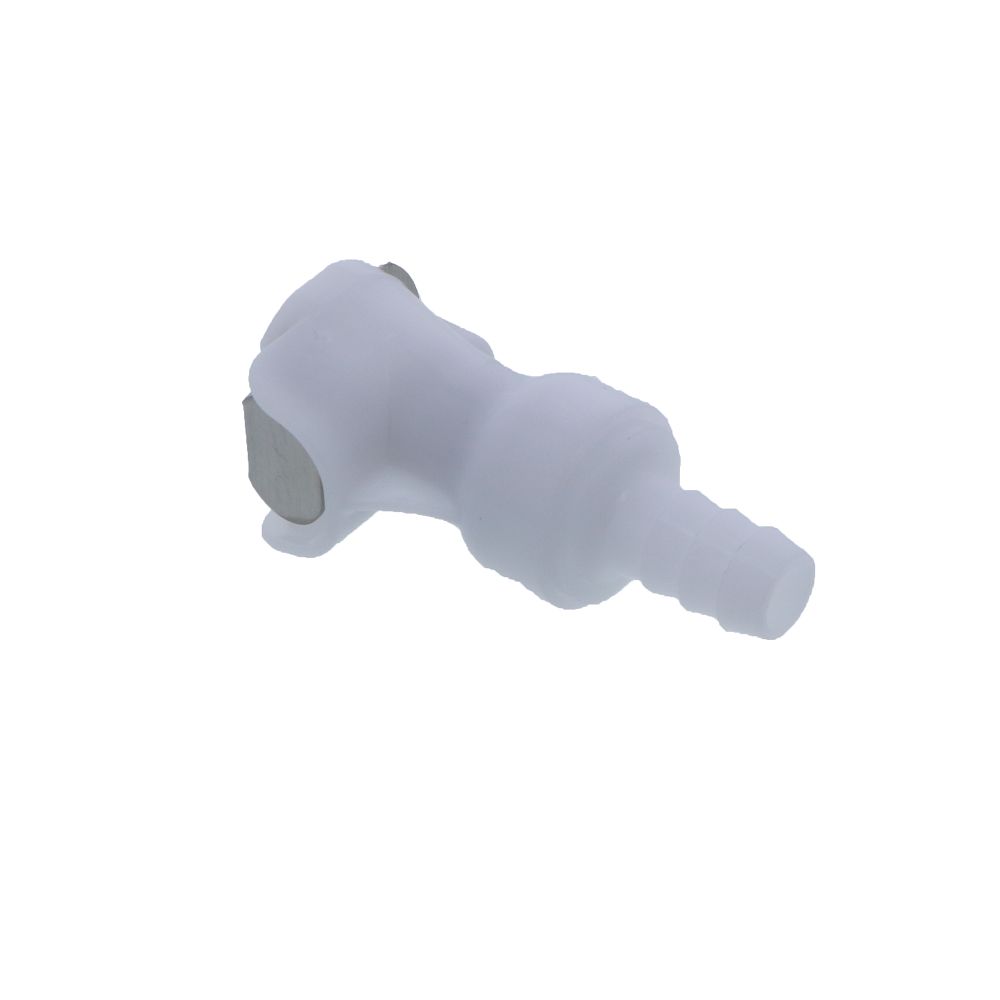

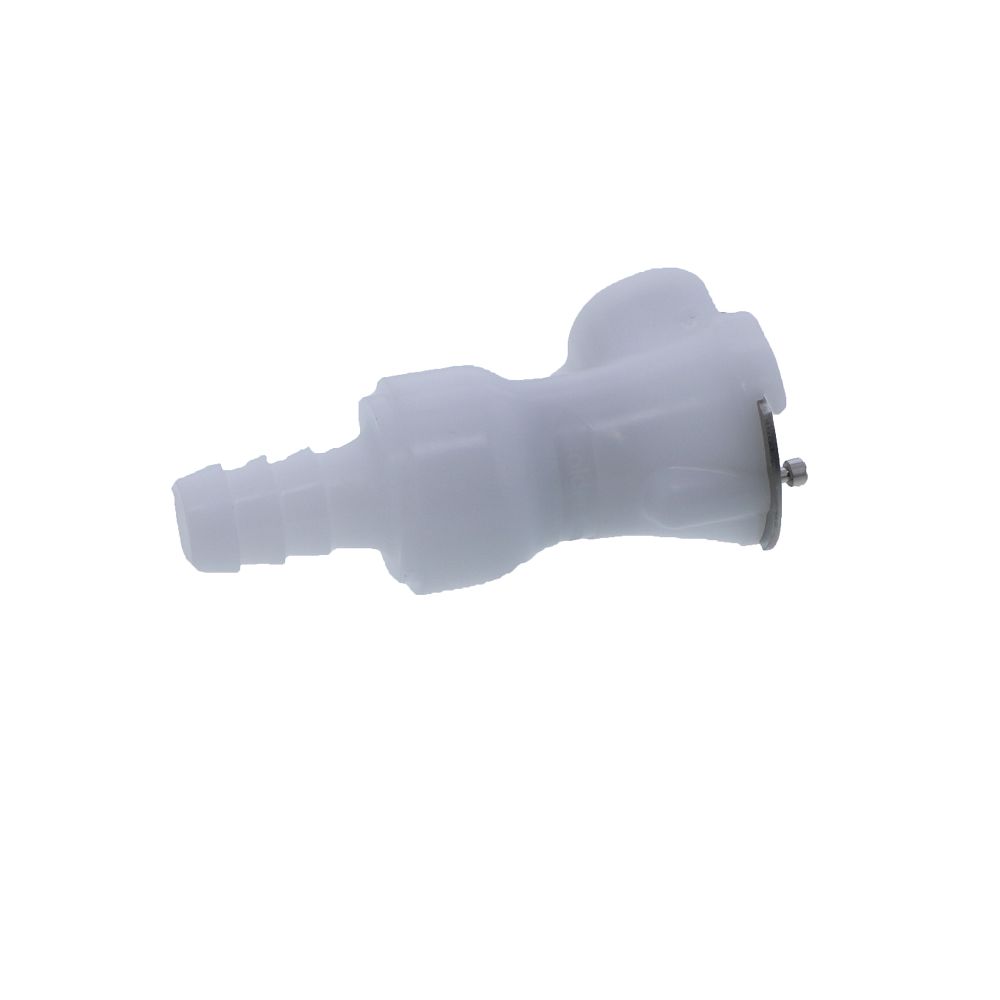

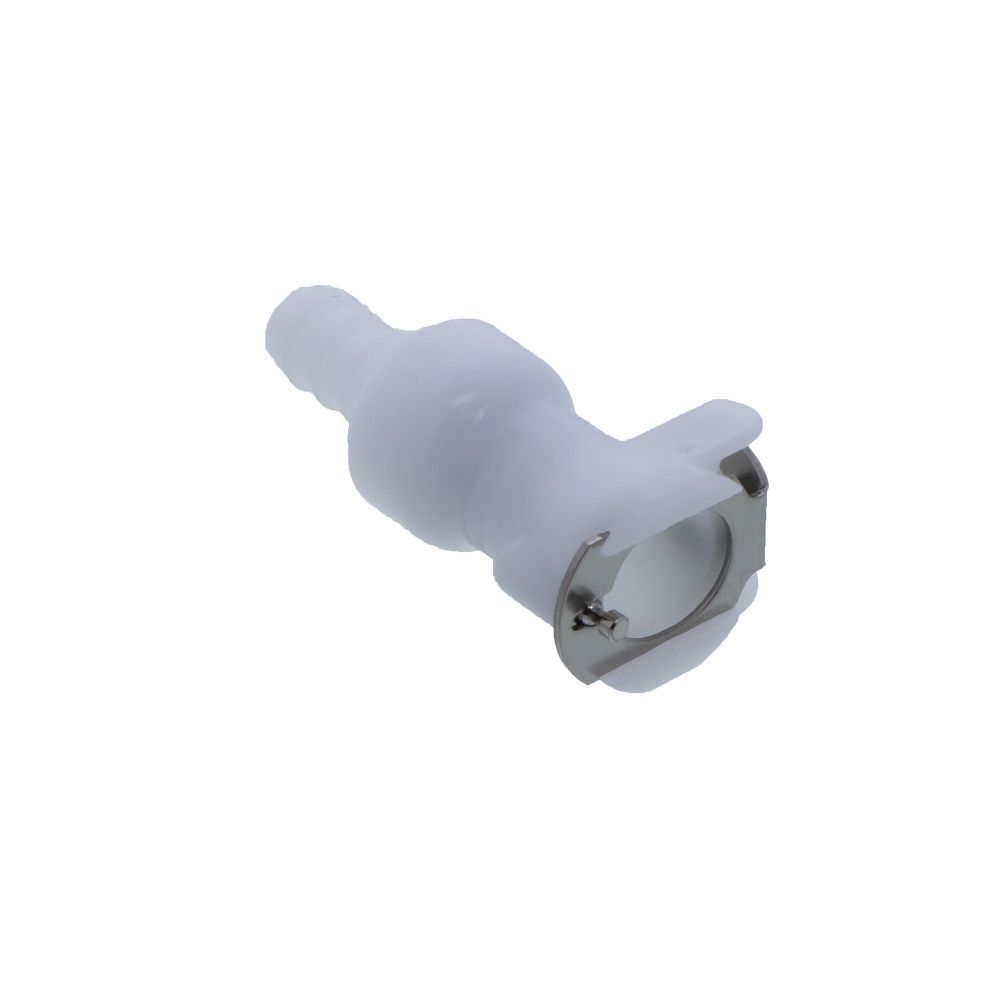

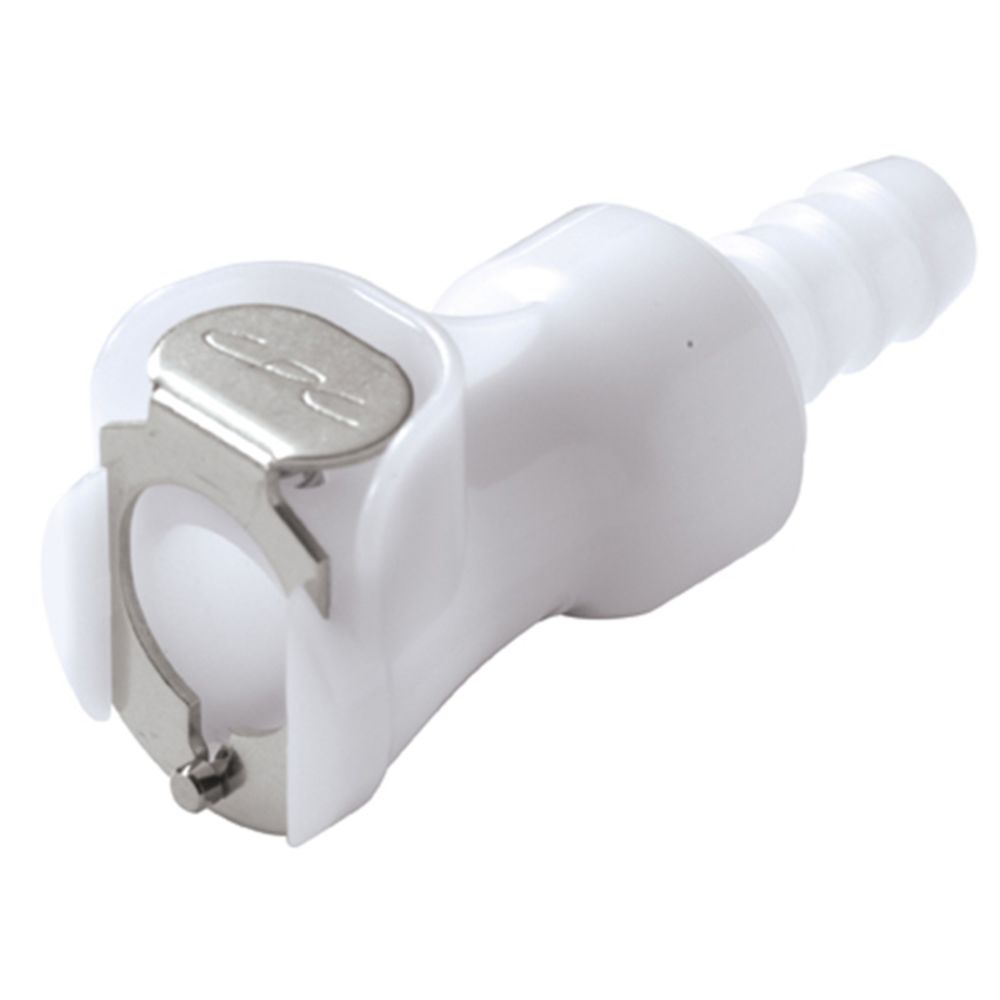

PLCD17005 Valved In-Line Hose Barb Coupling Body 5/16 ID Barb

Part Number: PLCD17005

In Stock

out of stock

In Stock

$16.19

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Weight & Dimensions

Height (inches)

0.75

Length (inches)

2

Weight (lbs)

0.091

Width (inches)

1

Details

Application

Water

Barb Size

5/16" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

PLC

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

White

Origin

USA

Type

Coupling Body


PLCD17005




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Weight & Dimensions

Height (inches)

0.75

Length (inches)

2

Weight (lbs)

0.091

Width (inches)

1

Details

Application

Water

Barb Size

5/16" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

PLC

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

White

Origin

USA

Type

Coupling Body

Documentation
PLCD17005
Reviews
