Colder Products

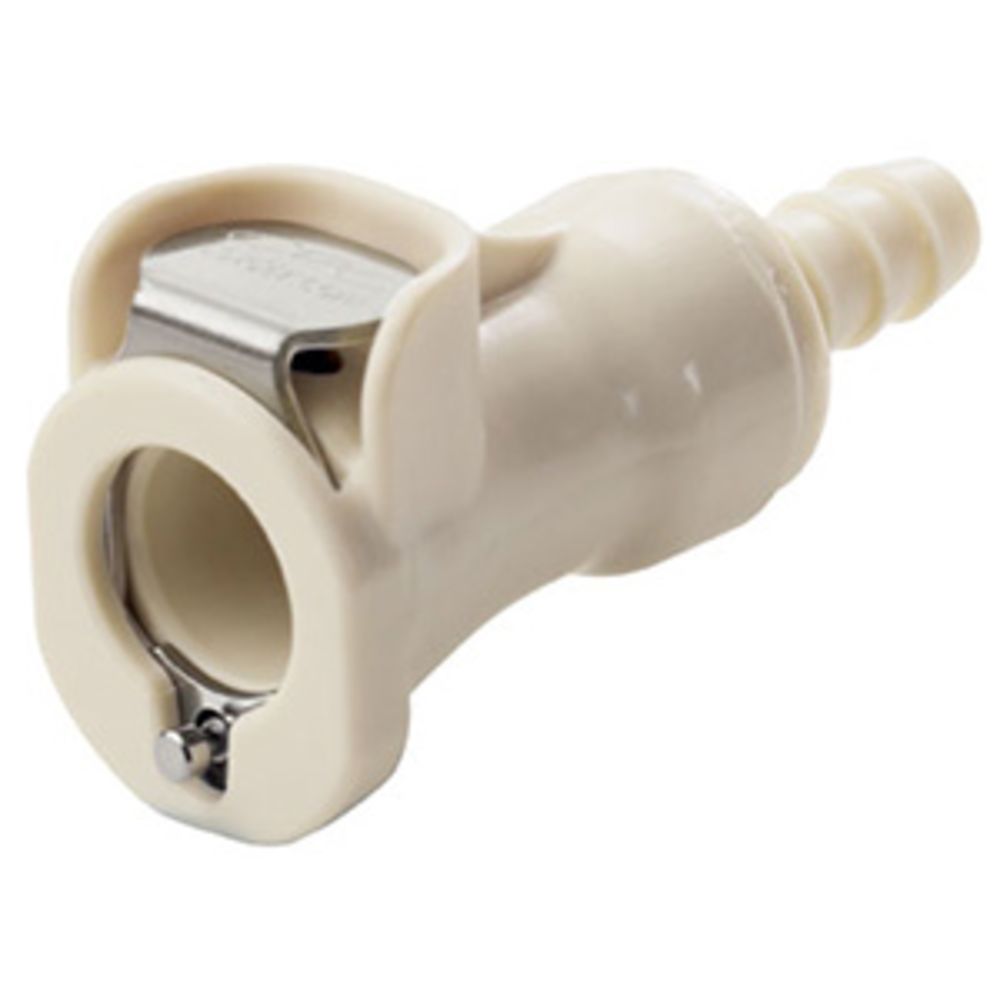

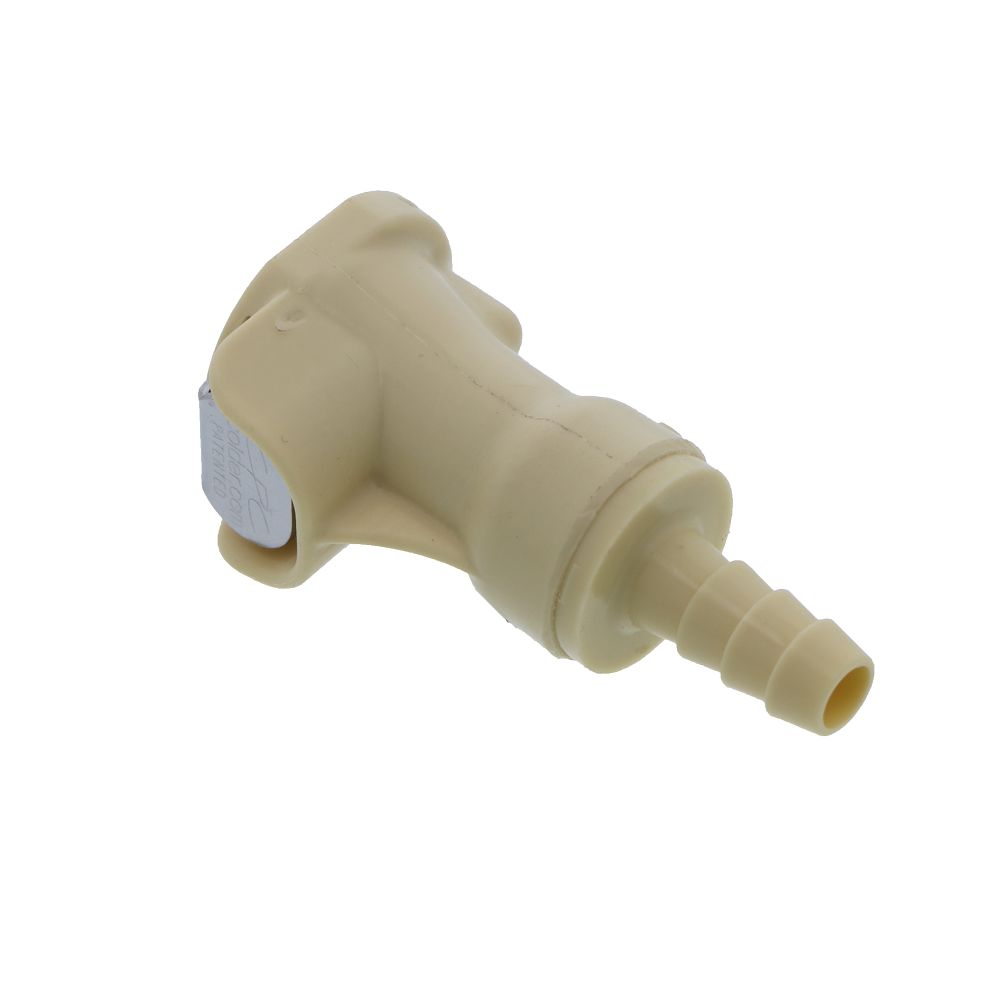

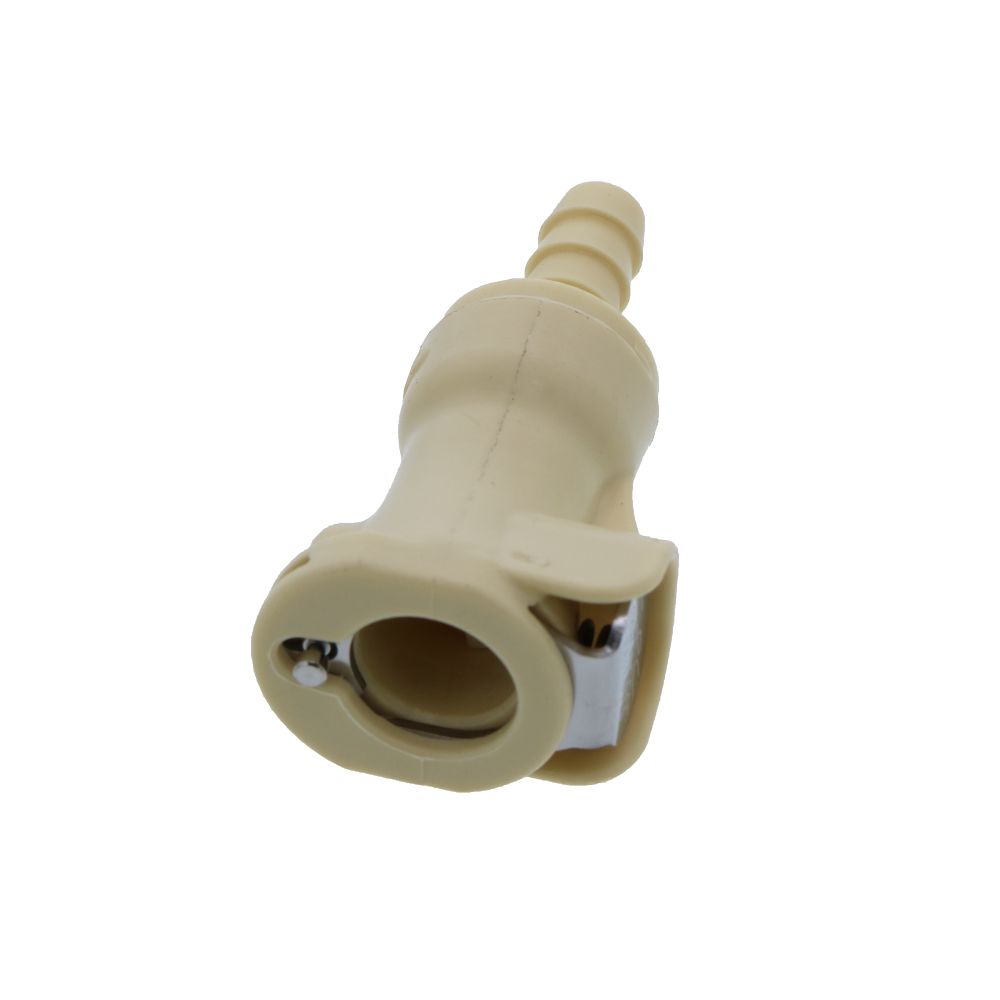

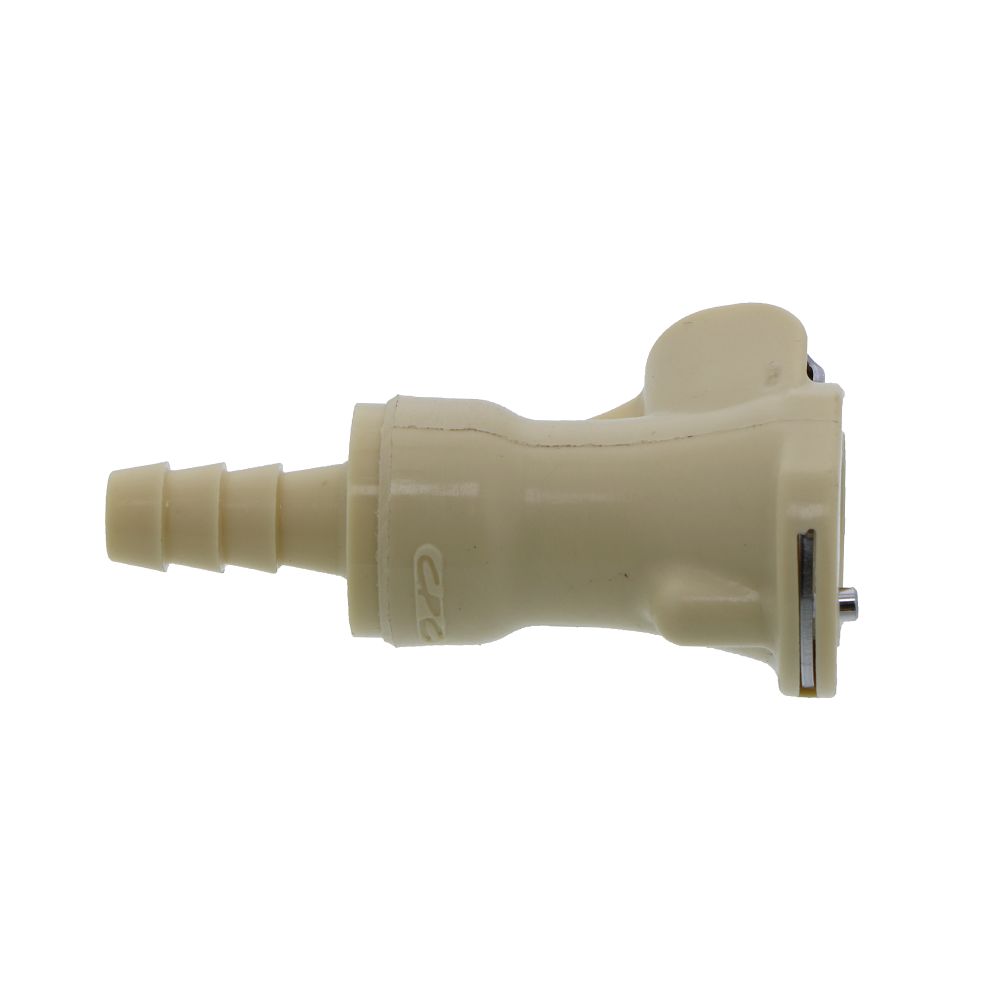

PLCD1700412 Valved In-Line Hose Barb Coupling Body 1/4 ID Barb

Part Number: PLCD1700412

In Stock

out of stock

In Stock

$10.66

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units




Details

Series

PLC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel


PLCD1700412




The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units



Details

Series

PLC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel
