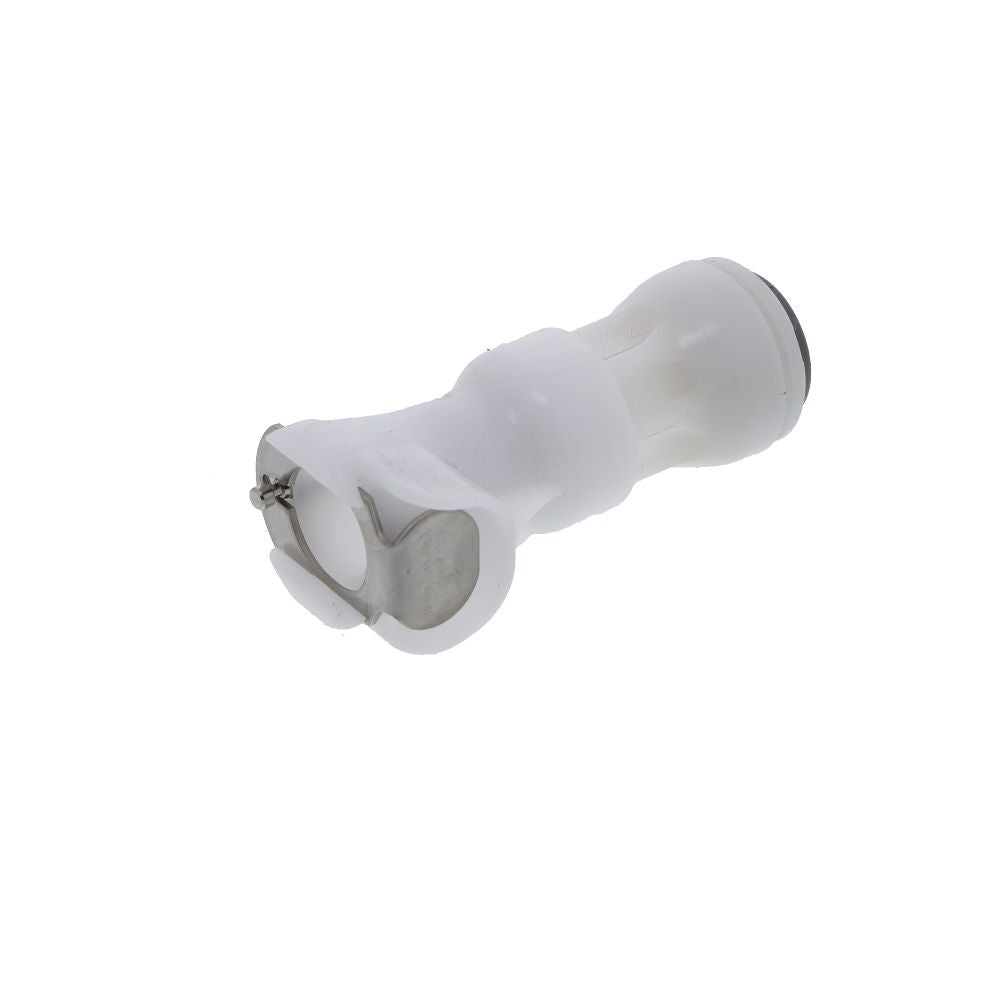

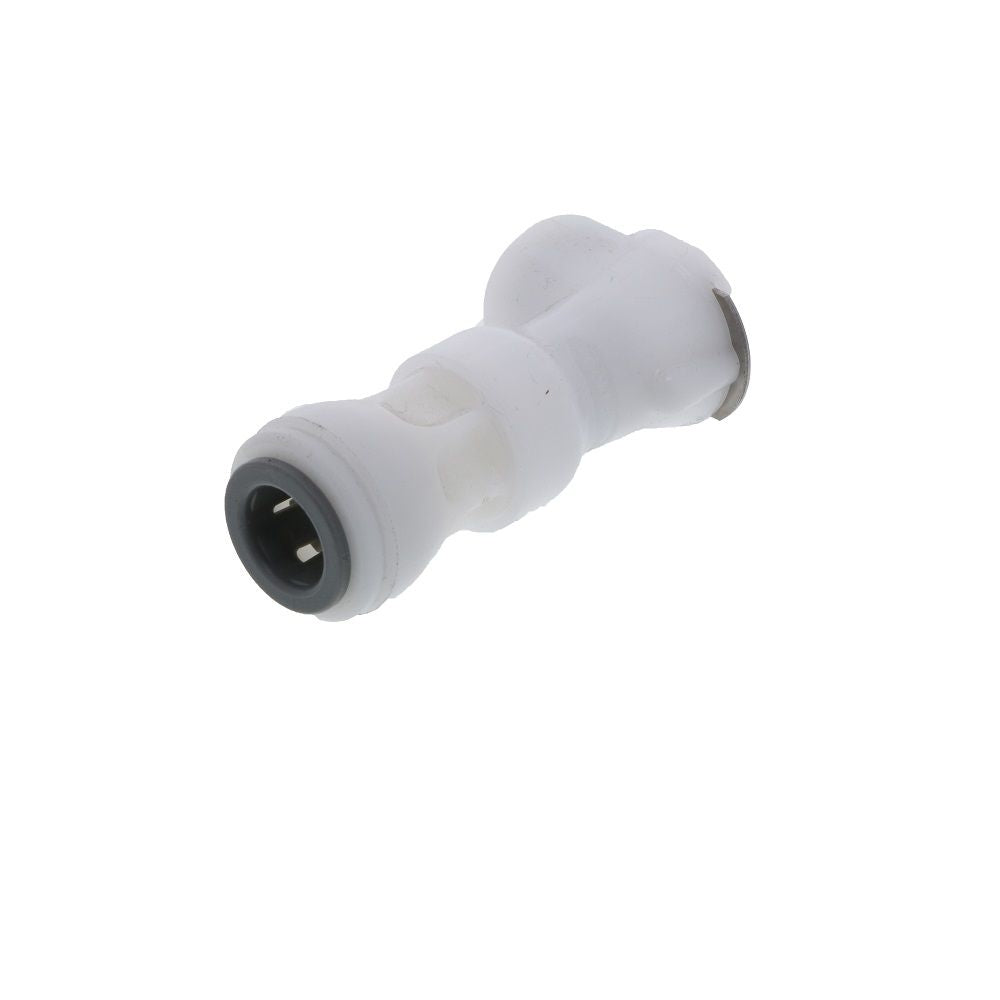

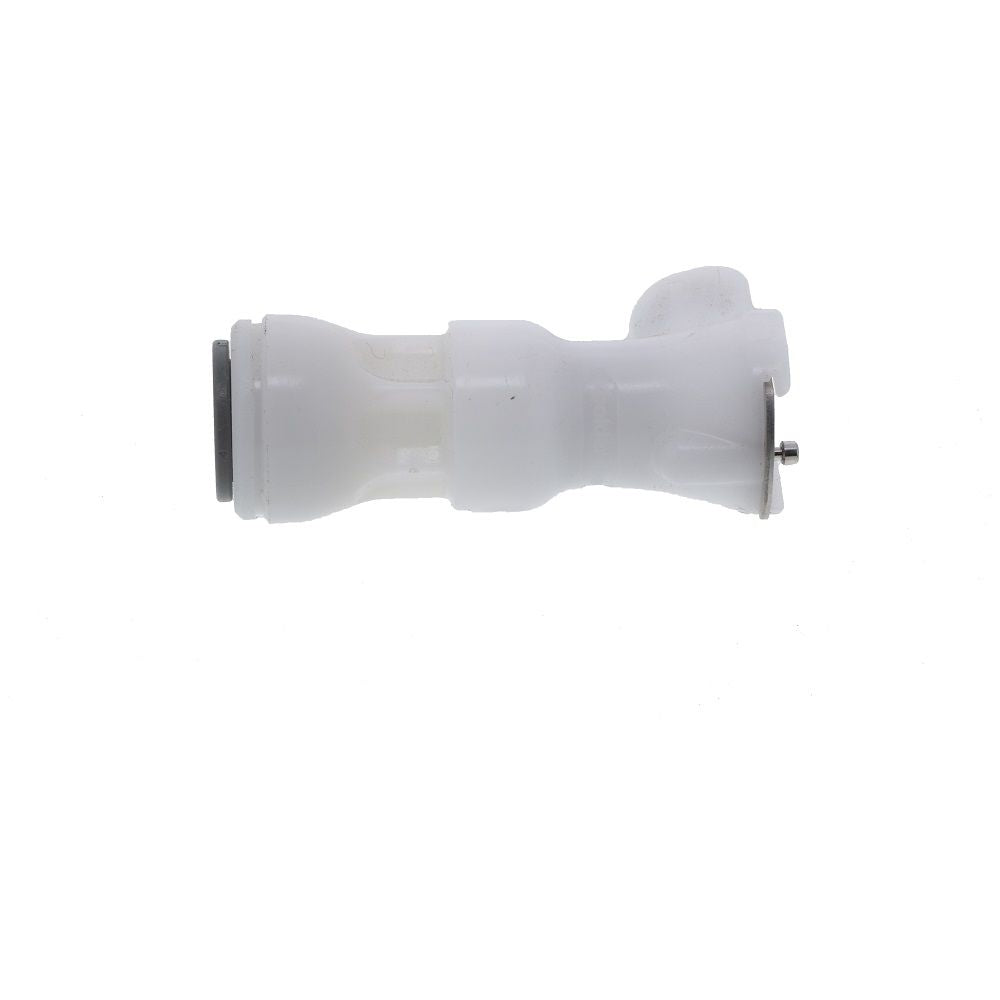

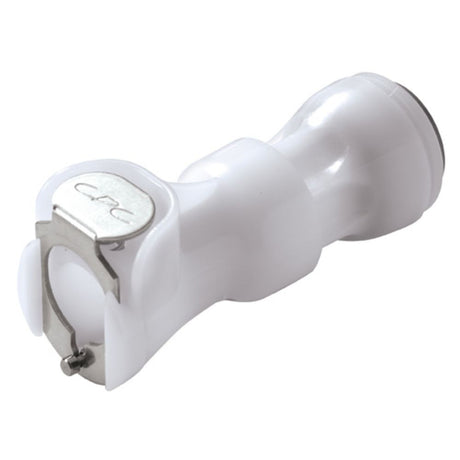

PLCD14006 NSF Valved In-Line Quick Connect Coupling Body 3/8 JG
Part Number: 22300
Alt. Part Number: PLCD14006
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- NSF Listed
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Tubing Size: .25" ID, 3/8" OD
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: FDA Buna-N
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 1 |
Push-In Size | 3/8" OD |
Seal Material | FDA Buna-N |
Series | PLC |
Shape | Straight |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 1 |
Push-In Size | 3/8" OD |
Seal Material | FDA Buna-N |
Series | PLC |
Shape | Straight |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Push-In Size | 3/8" OD |
Seal Material | FDA Buna-N |
Series | PLC |
Shape | Straight |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
Specifications:
- NSF Listed
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Tubing Size: .25" ID, 3/8" OD
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: FDA Buna-N
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 1 |
Push-In Size | 3/8" OD |
Seal Material | FDA Buna-N |
Series | PLC |
Shape | Straight |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Number Of Seals | 1 |
Push-In Size | 3/8" OD |
Seal Material | FDA Buna-N |
Series | PLC |
Shape | Straight |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nsf Version | Yes |
Push-In Size | 3/8" OD |
Seal Material | FDA Buna-N |
Series | PLC |
Shape | Straight |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Body |
| Warranty & Certifications | |
Certifications | NSF 169 |
