Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet/Outlet Connection | 10mm PTF |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Push-In Size | 10mm OD |
Seal Material | Buna-N |
Series | PLC |
Size | 10mm |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White, Natural |
Connection Type | PTF |
Type | Coupling Body |

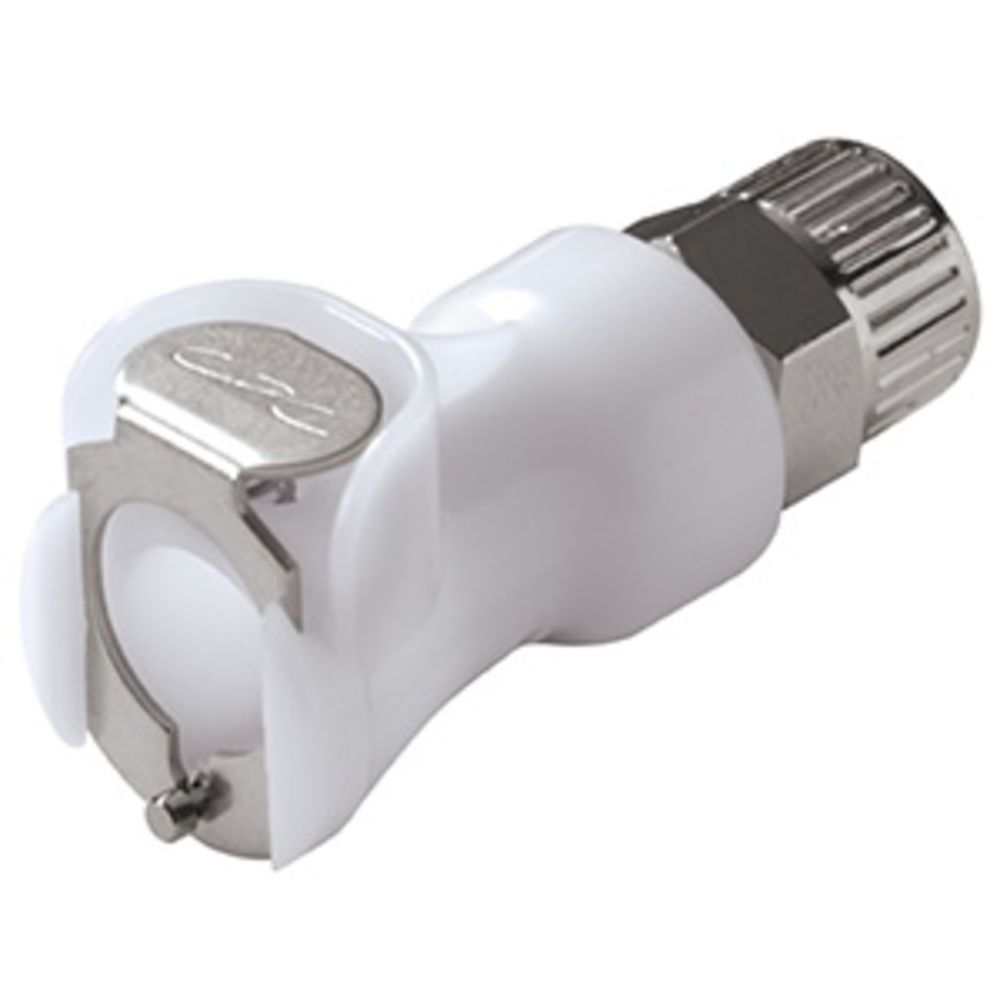

The PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet/Outlet Connection | 10mm PTF |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Push-In Size | 10mm OD |
Seal Material | Buna-N |
Series | PLC |
Size | 10mm |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless steel |
Valve Type | Valved |
Color / Finish | White, Natural |
Connection Type | PTF |
Type | Coupling Body |
