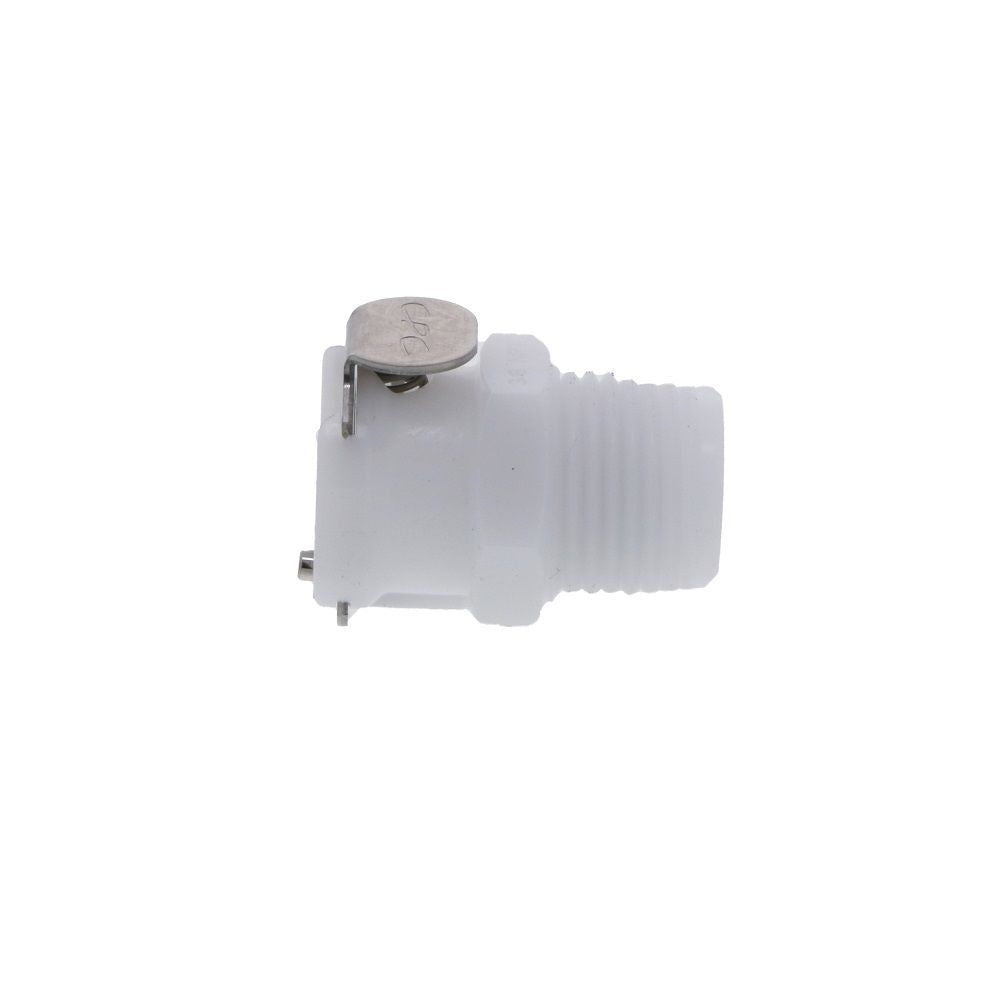

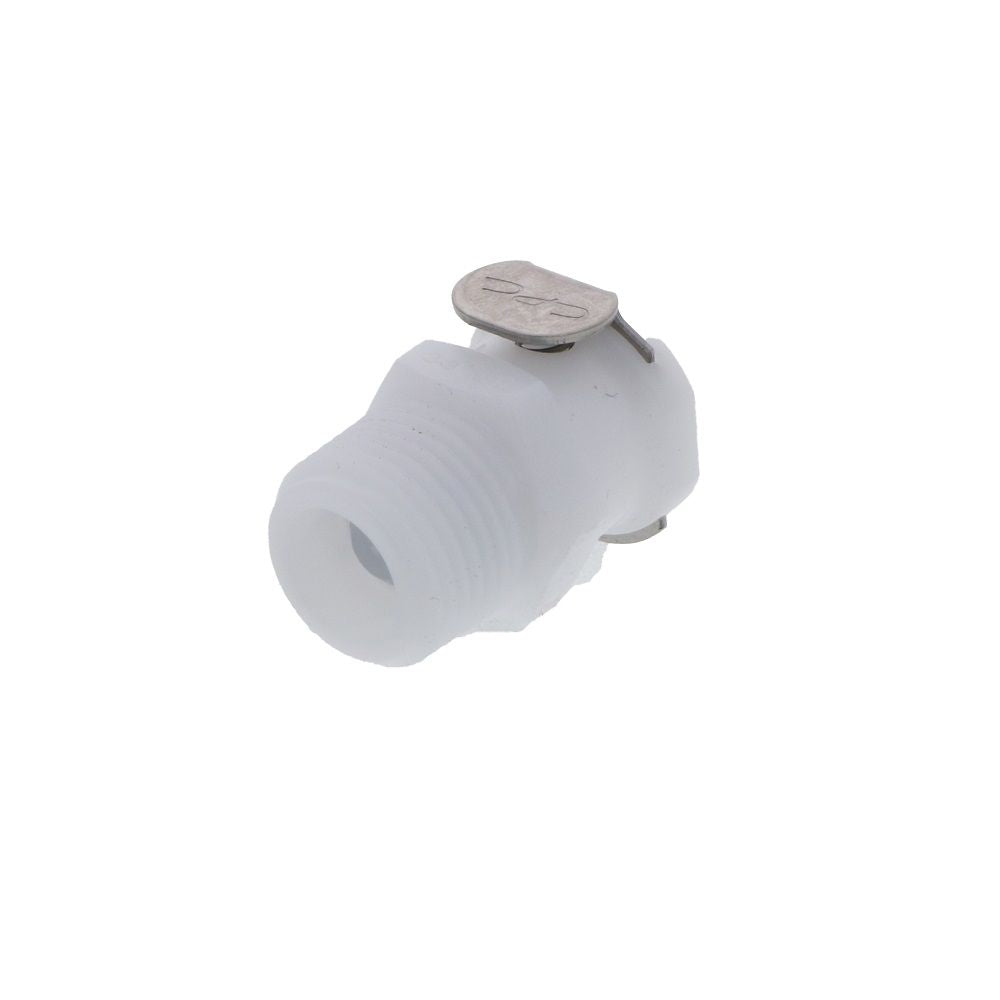

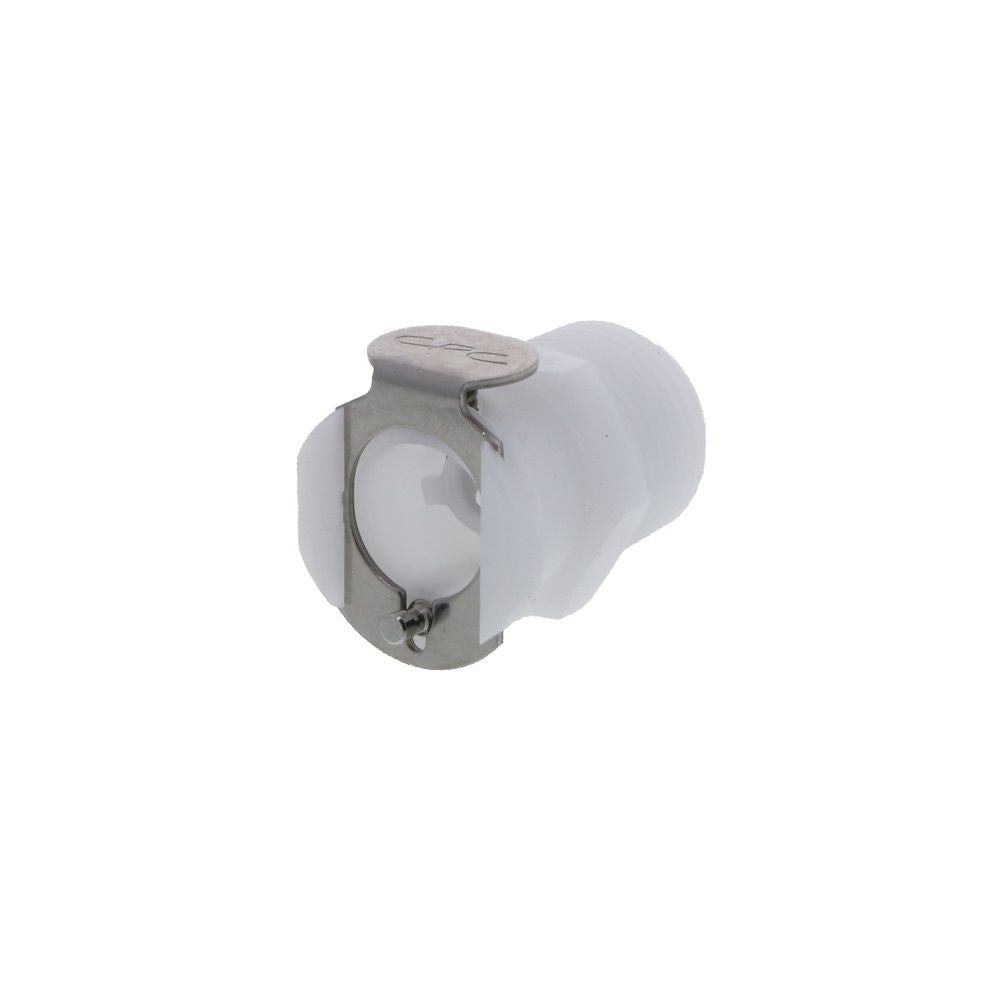

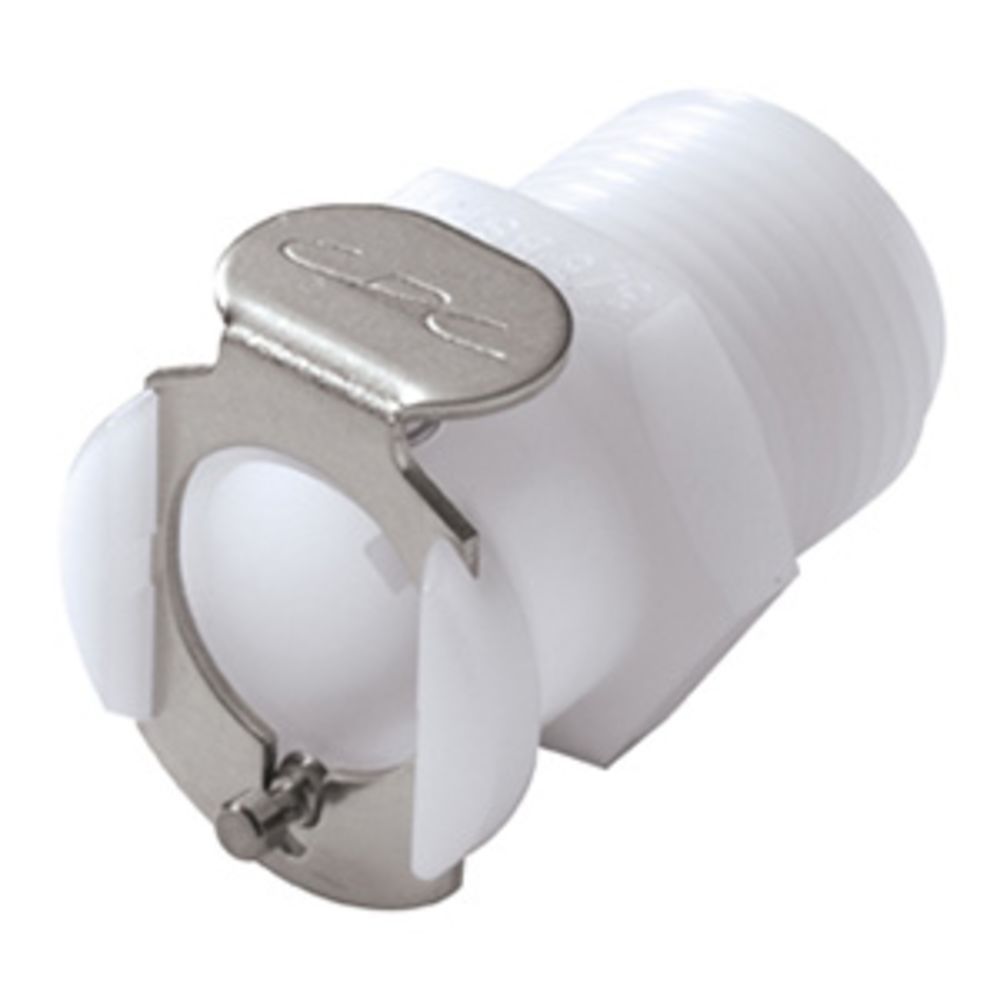

PLCD10006 Valved Male Thread Coupling Body 3/8 NPT

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units
NSF Listed Version (part # 20600) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	Buna-N
Series	PLC
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	White
Connection Type	Male (MPT)
Type	Coupling
Shipping Dimensions
Shipping Length	1.06 in.
Shipping Width	0.81 in.
Shipping Height	0.81 in.
Product Weight & Dimensions
Product Height	0.81 in.
Product Length	1.06 in.
Product Width	0.81 in.
Product Weight (lbs)	0.000625

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	Buna-N
Series	PLC
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	White
Connection Type	Male (MPT)
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.5

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	Buna-N
Series	PLC
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	White
Connection Type	Male (MPT)
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15
