Colder Products

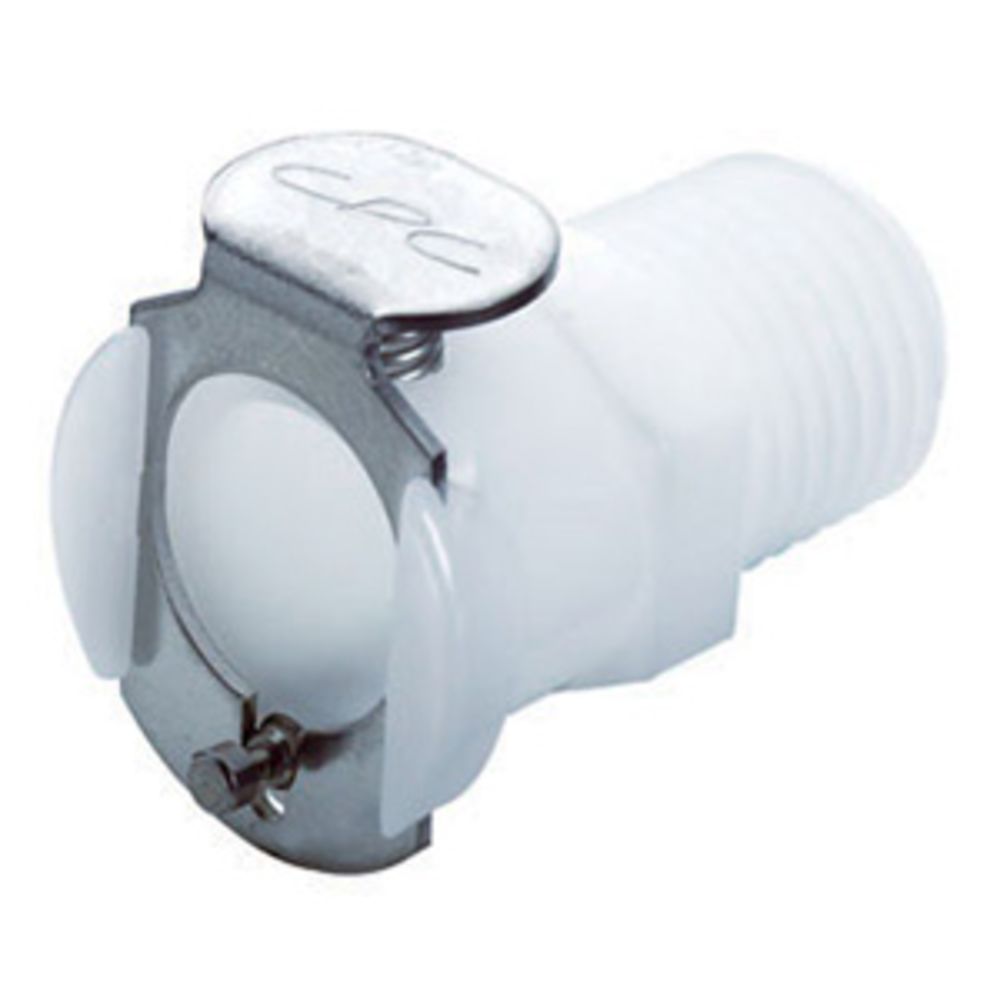

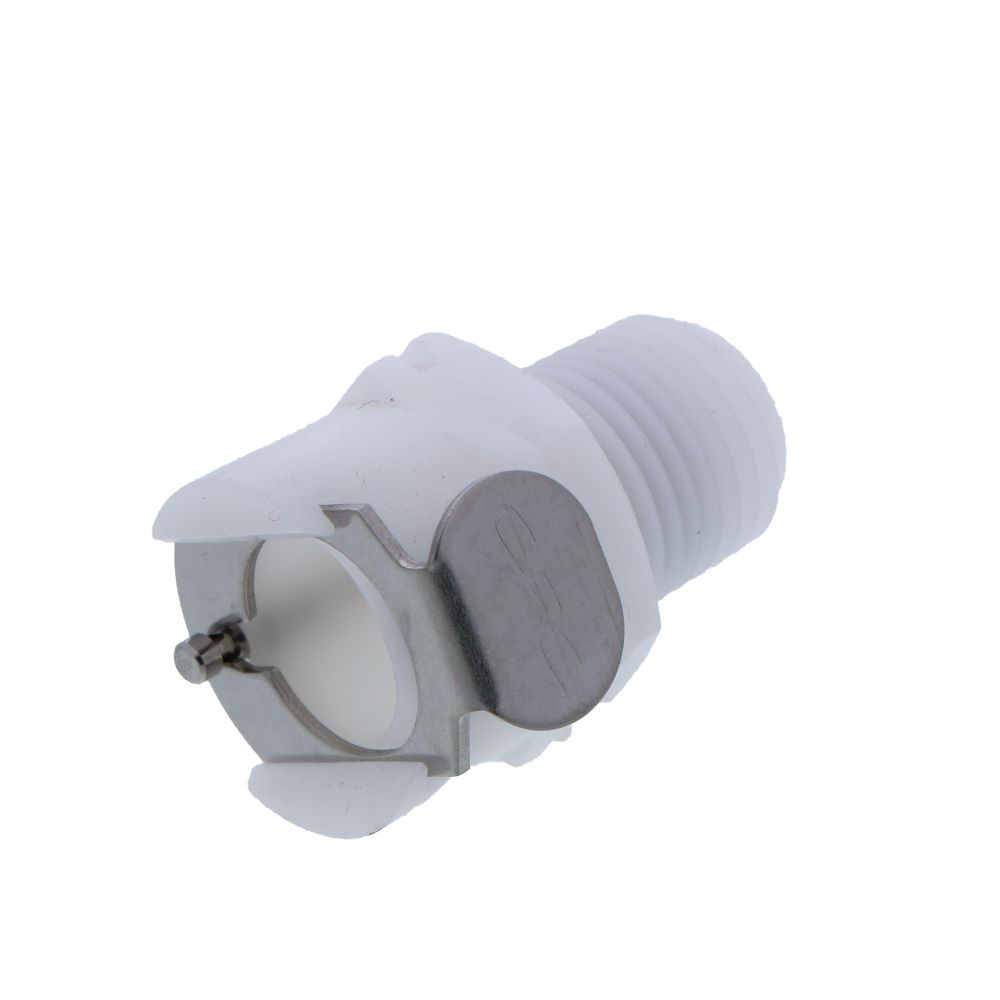

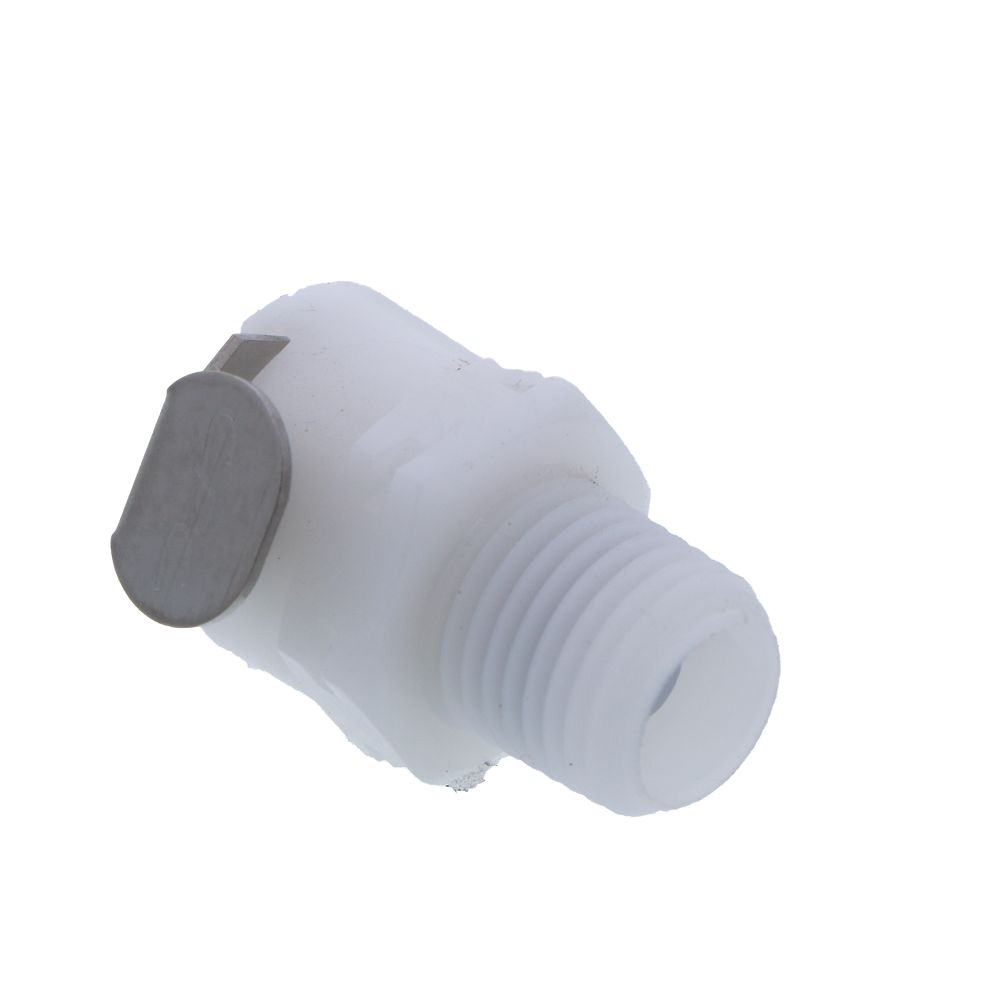

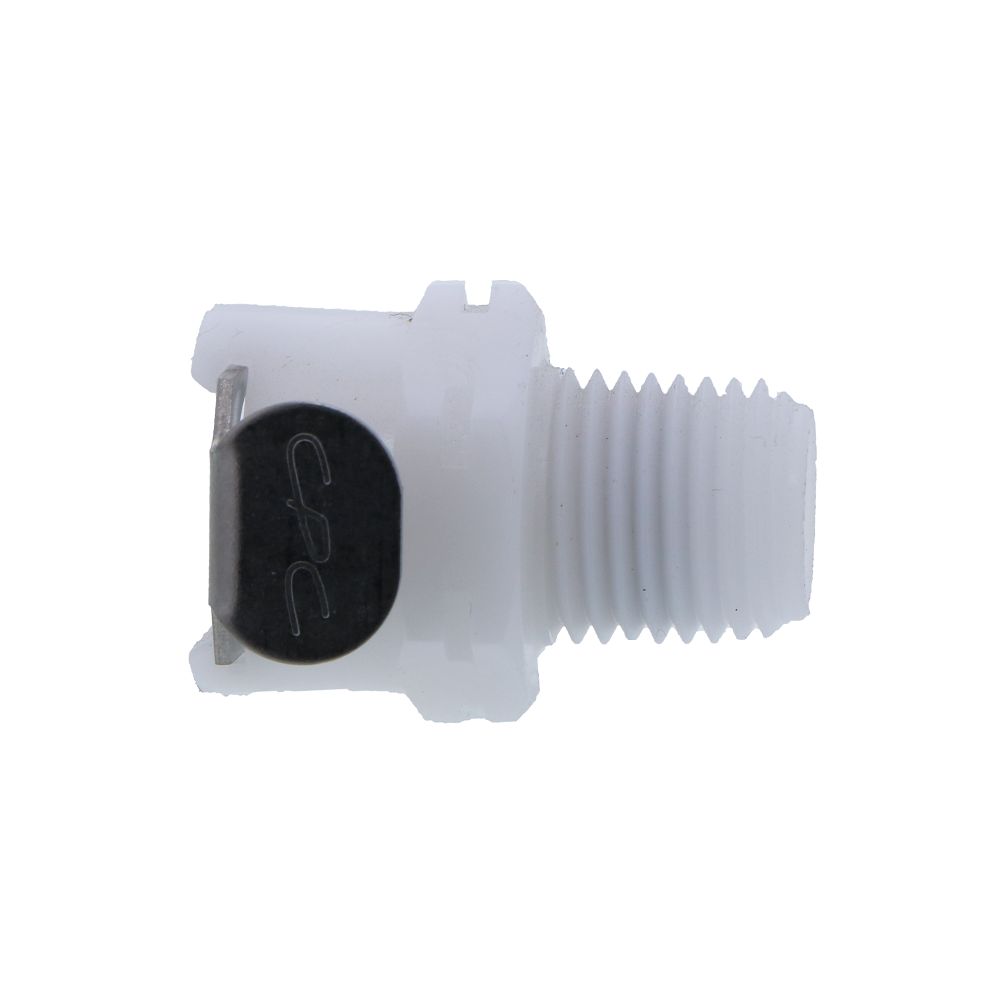

PLCD10004BSPT Valved Male Thread Coupling Body 1/4 BSPT

Part Number: PLCD10004BSPT

In Stock

out of stock

In Stock

$17.25

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 31600) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" BSP

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PLC

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Natural

Connection Type

BSP

Origin

USA

Type

Coupling Body


PLCD10004BSPT




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 31600) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" BSP

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PLC

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Natural

Connection Type

BSP

Origin

USA

Type

Coupling Body

Documentation
PLCD10004BSPT
