Colder Products

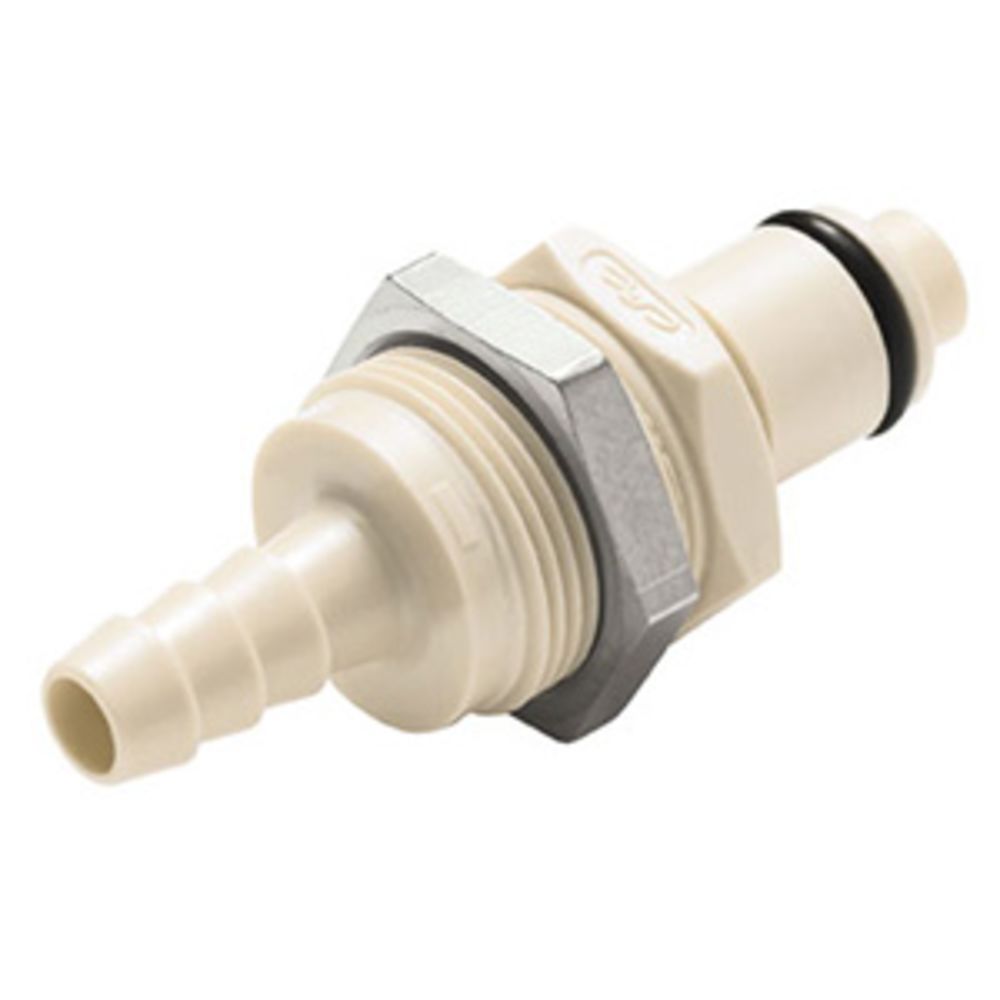

PLC4200612 Panel Mount Hose Barb Coupling Insert 3/8 ID Barb

Part Number: PLC4200612

In Stock

out of stock

In Stock

$7.06

PLC4200612 Panel Mount Hose Barb Coupling Insert 3/8 ID Barb - Single. PLC12 Non-Valved Panel Mount Hose Barb Coupling Insert - 3/8 ID Barb The 3/8 flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. Specifications Material: Polypropylene Color: Almond Pressure Range: Vacuum to 120 psi 8.3 bar Mounting Option: Panel Mount Valve Option: Non-Valved Temperature Range: 32F to 160F Seal Options: EPDM Available in Bags of 25 units Colder PLC12 Series Coupling Specifications PLC12 Non-Valved Panel Mount Hose Barb Coupling Insert Non-Valved Panel Mount Hose Barb Coupling Inserts


Details

Series

PLC

Barb Size

3/8" ID

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Panel Mount

O Rings

EPDM

Operating Temperature Range

32-160 °F

Origin

USA

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Warranty & Certifications

Certifications

FDA Approved


PLC4200612




PLC4200612 Panel Mount Hose Barb Coupling Insert 3/8 ID Barb - Single. PLC12 Non-Valved Panel Mount Hose Barb Coupling Insert - 3/8 ID Barb The 3/8 flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. Specifications Material: Polypropylene Color: Almond Pressure Range: Vacuum to 120 psi 8.3 bar Mounting Option: Panel Mount Valve Option: Non-Valved Temperature Range: 32F to 160F Seal Options: EPDM Available in Bags of 25 units Colder PLC12 Series Coupling Specifications PLC12 Non-Valved Panel Mount Hose Barb Coupling Insert Non-Valved Panel Mount Hose Barb Coupling Inserts

Details

Series

PLC

Barb Size

3/8" ID

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Panel Mount

O Rings

EPDM

Operating Temperature Range

32-160 °F

Origin

USA

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Warranty & Certifications

Certifications

FDA Approved
