Colder Products

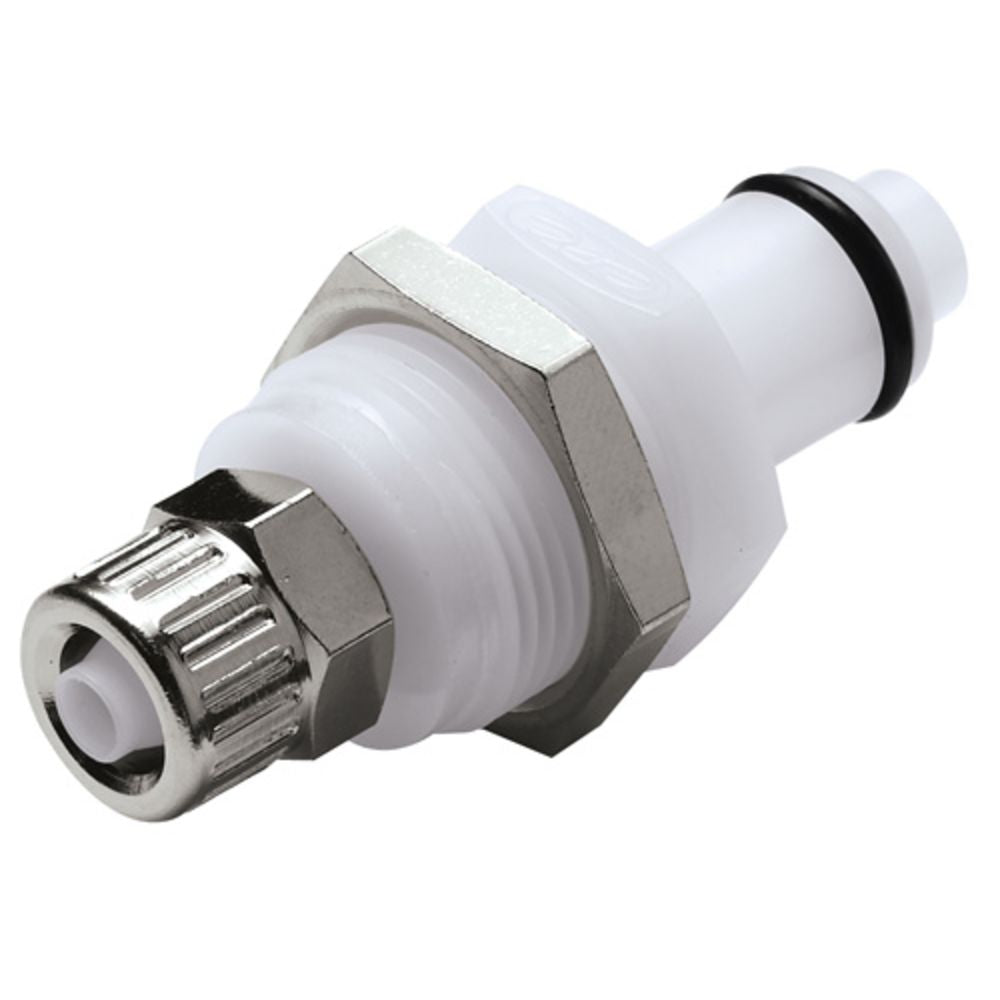

PLC400M10 Panel Mount 10 MM PTF Coupling Insert 3/8 PTF

Part Number: PLC400M10

In Stock

out of stock

In Stock

$8.05

The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

PLC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

10mm OD

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Panel Mount

Seal Material

Buna-N

Size

3/8"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" FPT


PLC400M10




The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

PLC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

10mm OD

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Panel Mount

Seal Material

Buna-N

Size

3/8"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" FPT
