Colder Products

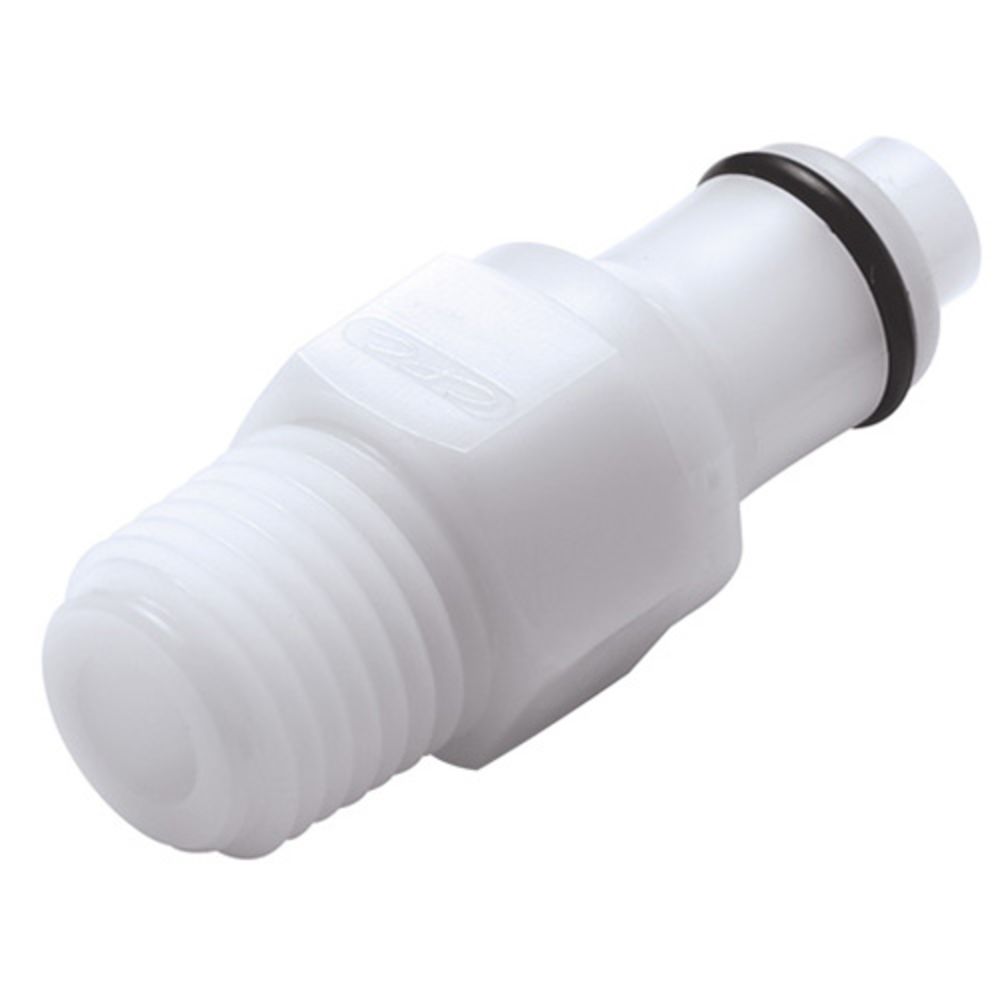

PLC24006BSPT Male Thread Coupling Insert 3/8 BSPT

Part Number: PLC24006BSPT

In Stock

out of stock

In Stock

$6.31

The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" BSP

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PLC

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

BSP

Type

Coupling Insert


PLC24006BSPT




The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" BSP

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PLC

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

BSP

Type

Coupling Insert

Documentation
PLC24006BSPT
