Colder Products

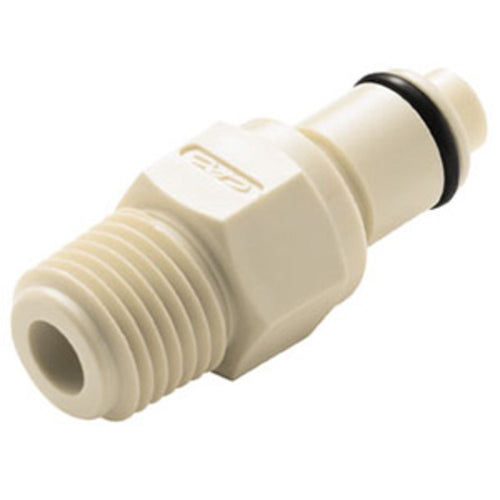

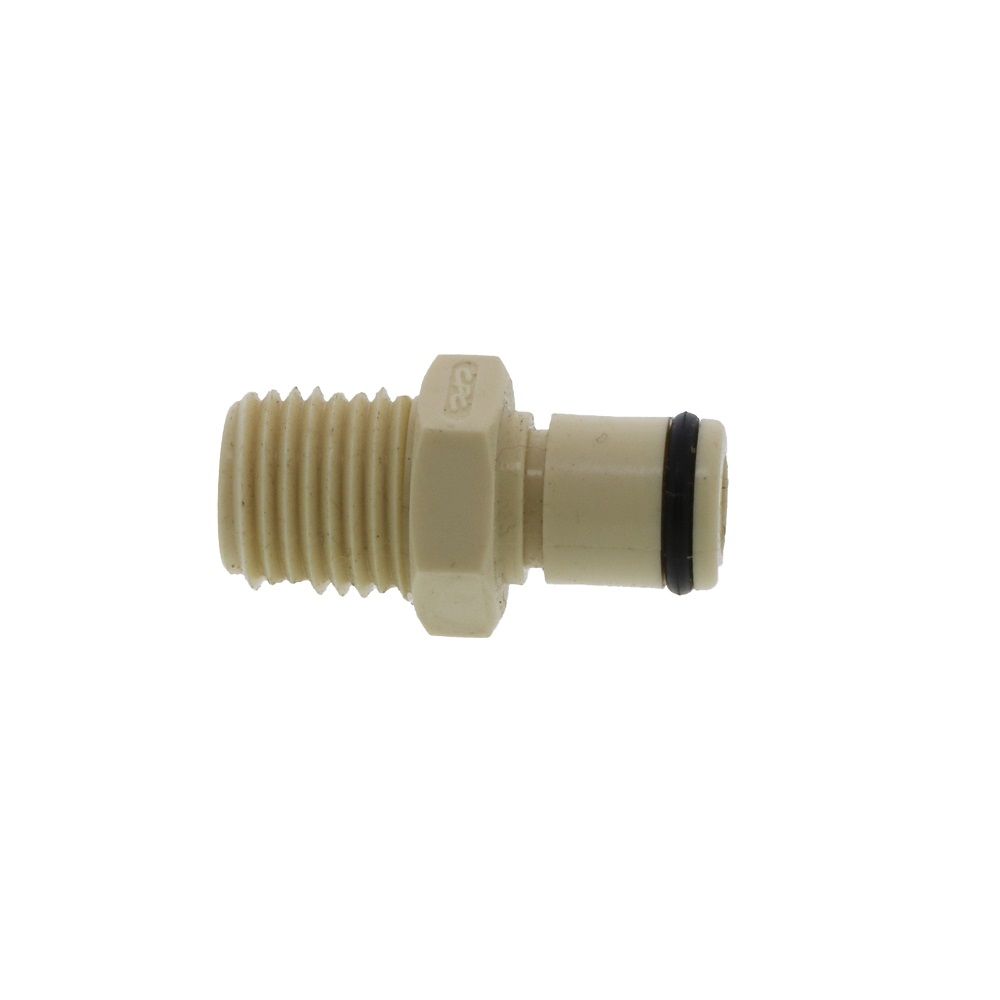

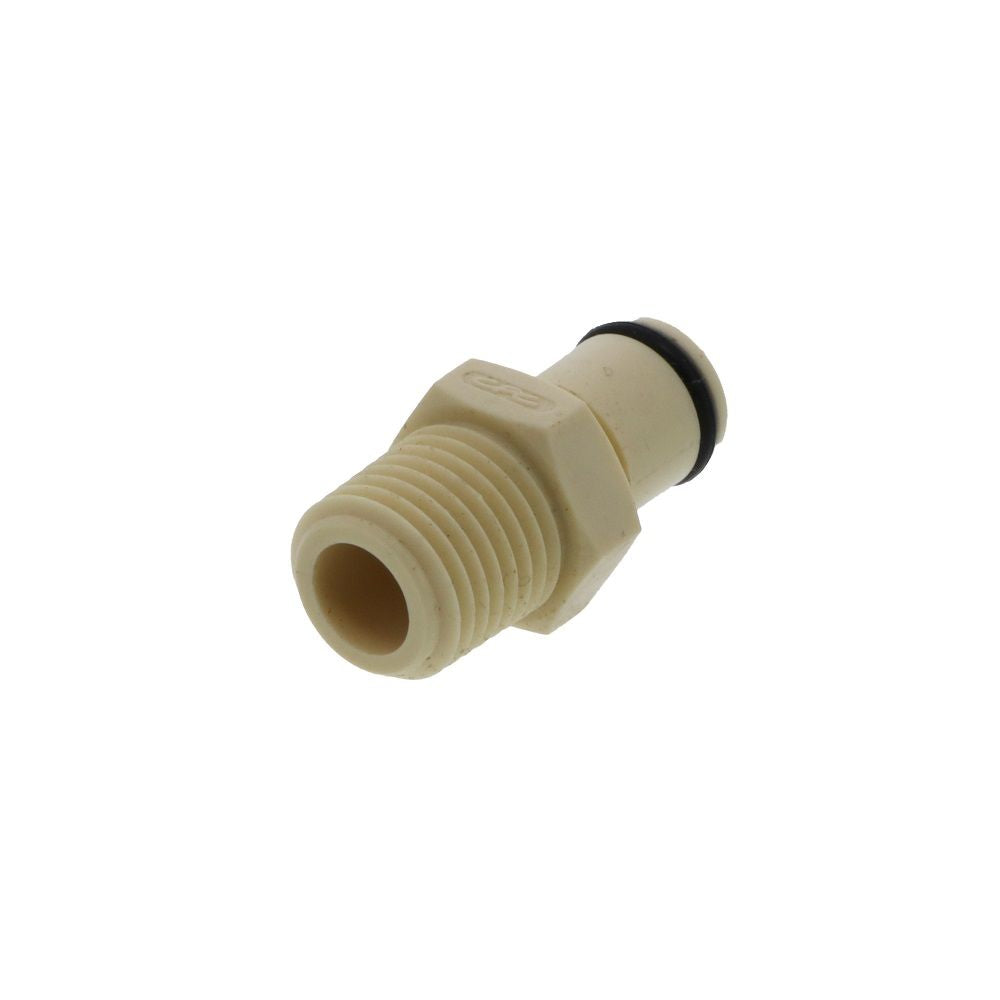

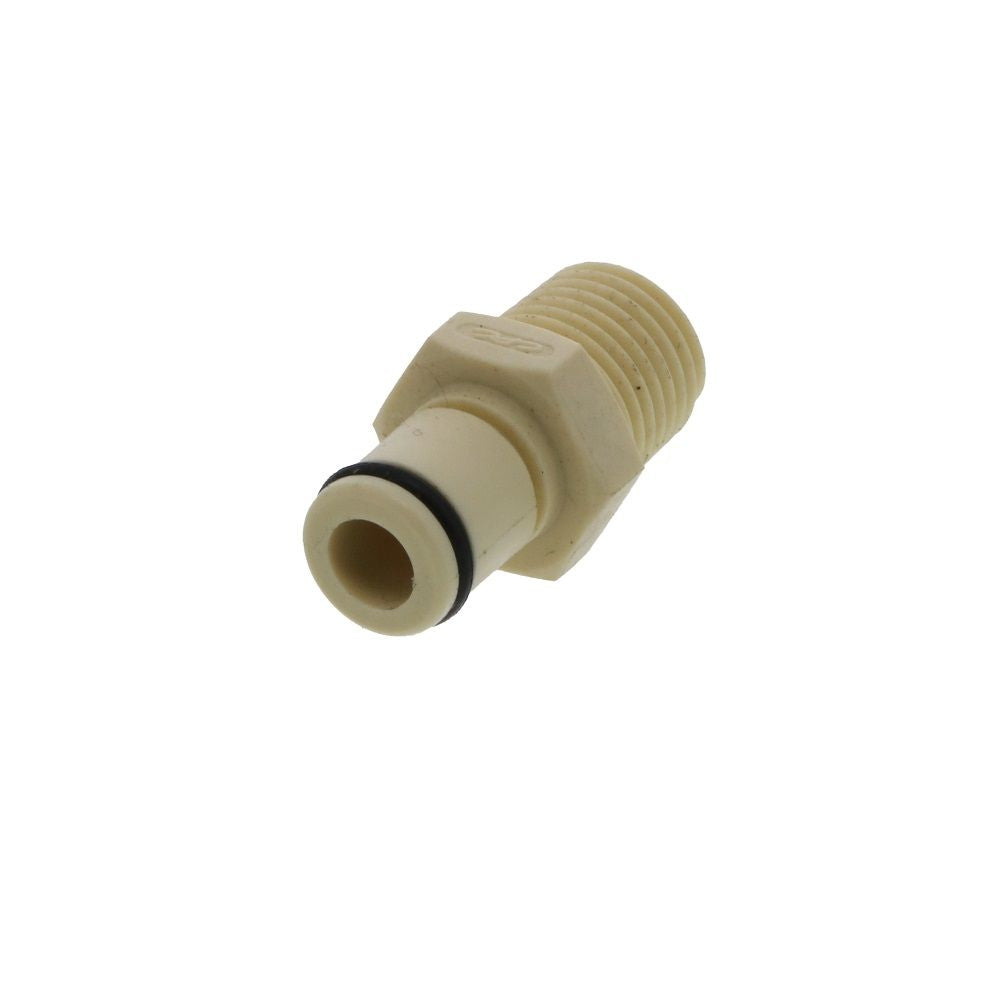

PLC2400412 Male Thread Coupling Insert 1/4 NPT

Part Number: PLC2400412

In Stock

out of stock

In Stock

$5.33

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units




Details

Application

Water

Body Material

Polypropylene

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PLC12

Size

1/4"

Valve Type

Non-Valved

Color / Finish

Almond

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert


PLC2400412




The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units



Details

Application

Water

Body Material

Polypropylene

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PLC12

Size

1/4"

Valve Type

Non-Valved

Color / Finish

Almond

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert

Documentation
PLC2400412
