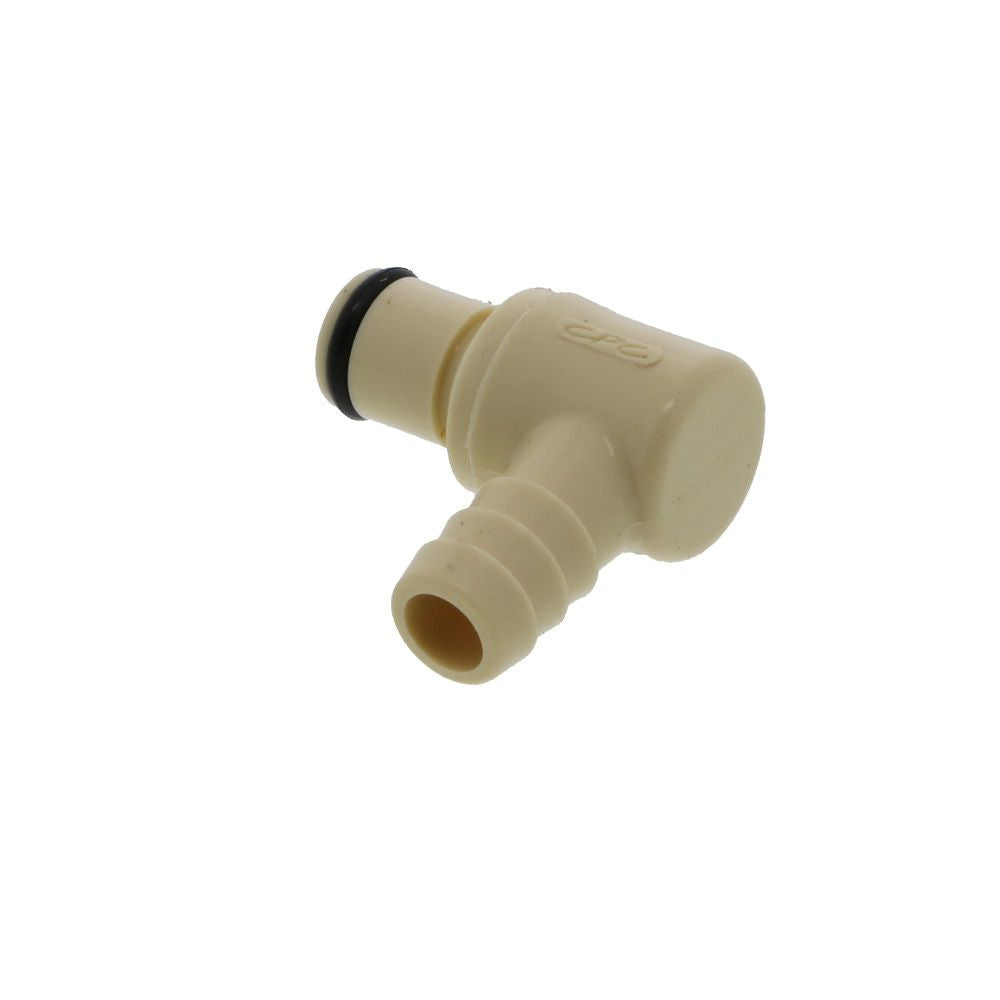

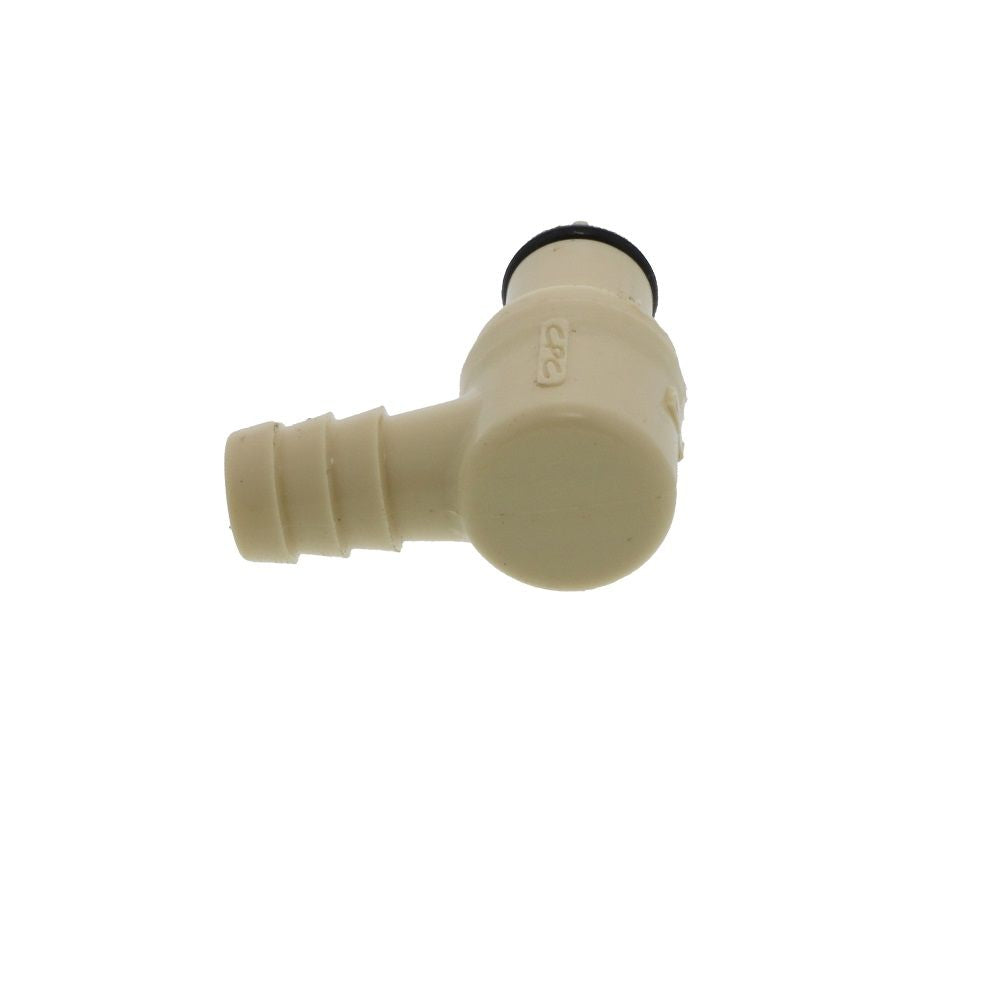

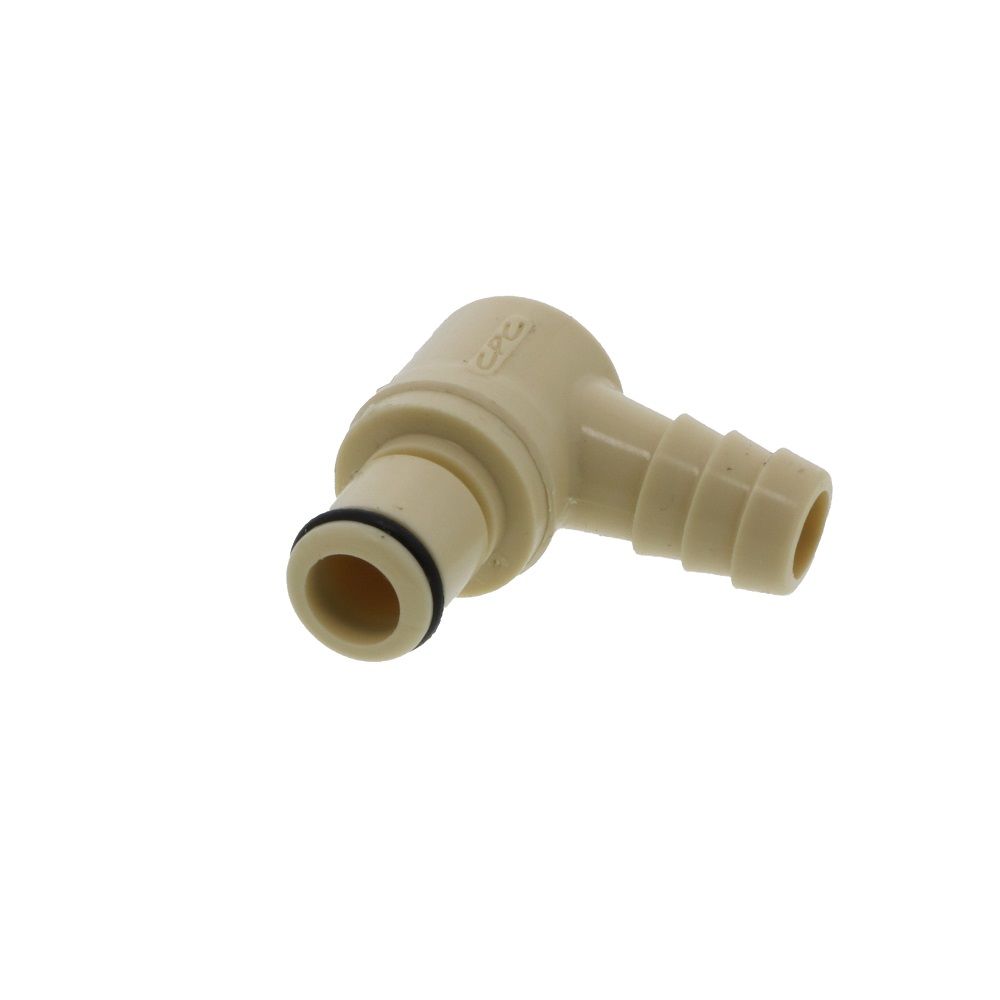

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.
Specifications:
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Non-Valved
- Temperature Range: 32ºF to 160ºF
- Seal Options: EPDM
- Sterilization: Gamma (up to 50 kGy irradiation)
- Available in Bags of 25 units
Weight & Dimensions
Height (inches) | 1.19 |
Length (inches) | 1.56 |
Weight (lbs) | 0.000625 |
Width (inches) | 1.06 |
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | PLC12 |
Valve Type | Non-Valved |
Color / Finish | Almond |
Origin | USA |
Type | Coupling Insert |
The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Non-Valved
- Temperature Range: 32ºF to 160ºF
- Seal Options: EPDM
- Sterilization: Gamma (up to 50 kGy irradiation)
- Available in Bags of 25 units
Weight & Dimensions
Height (inches) | 1.19 |
Length (inches) | 1.56 |
Weight (lbs) | 0.000625 |
Width (inches) | 1.06 |
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | PLC12 |
Valve Type | Non-Valved |
Color / Finish | Almond |
Origin | USA |
Type | Coupling Insert |
