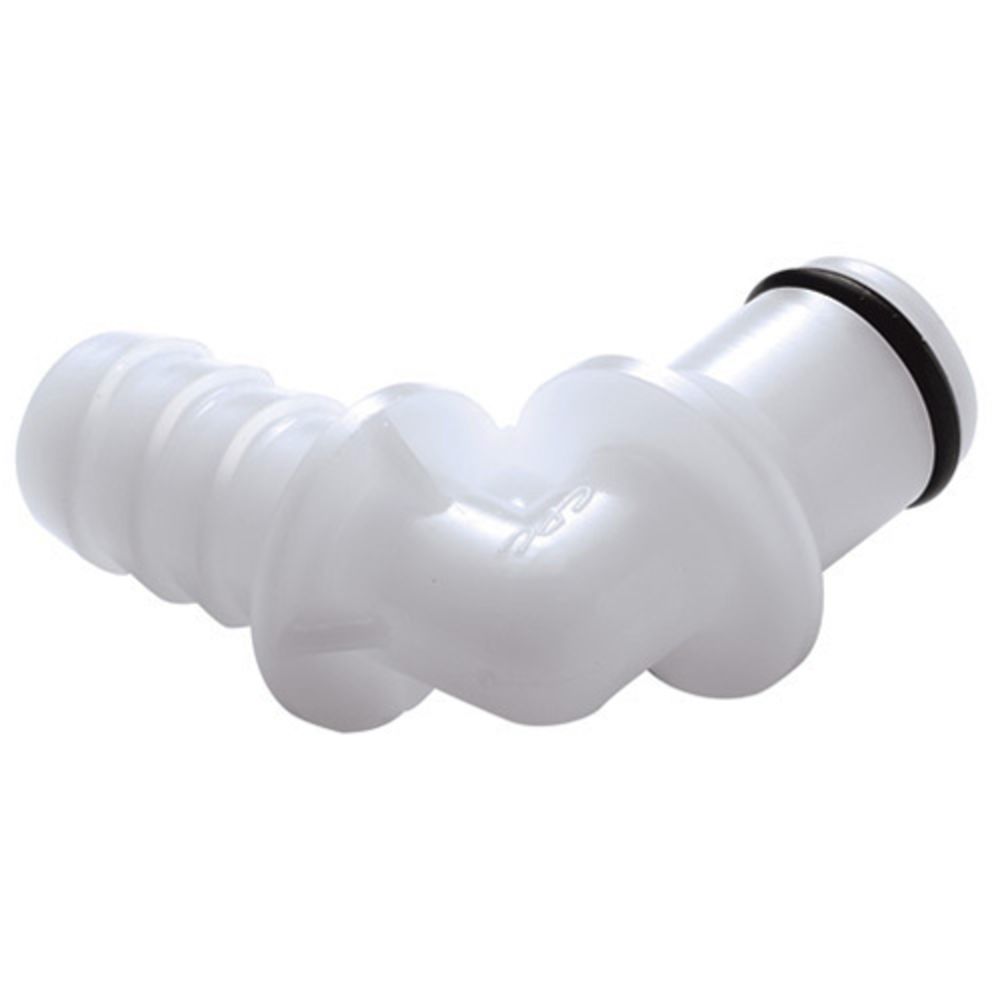

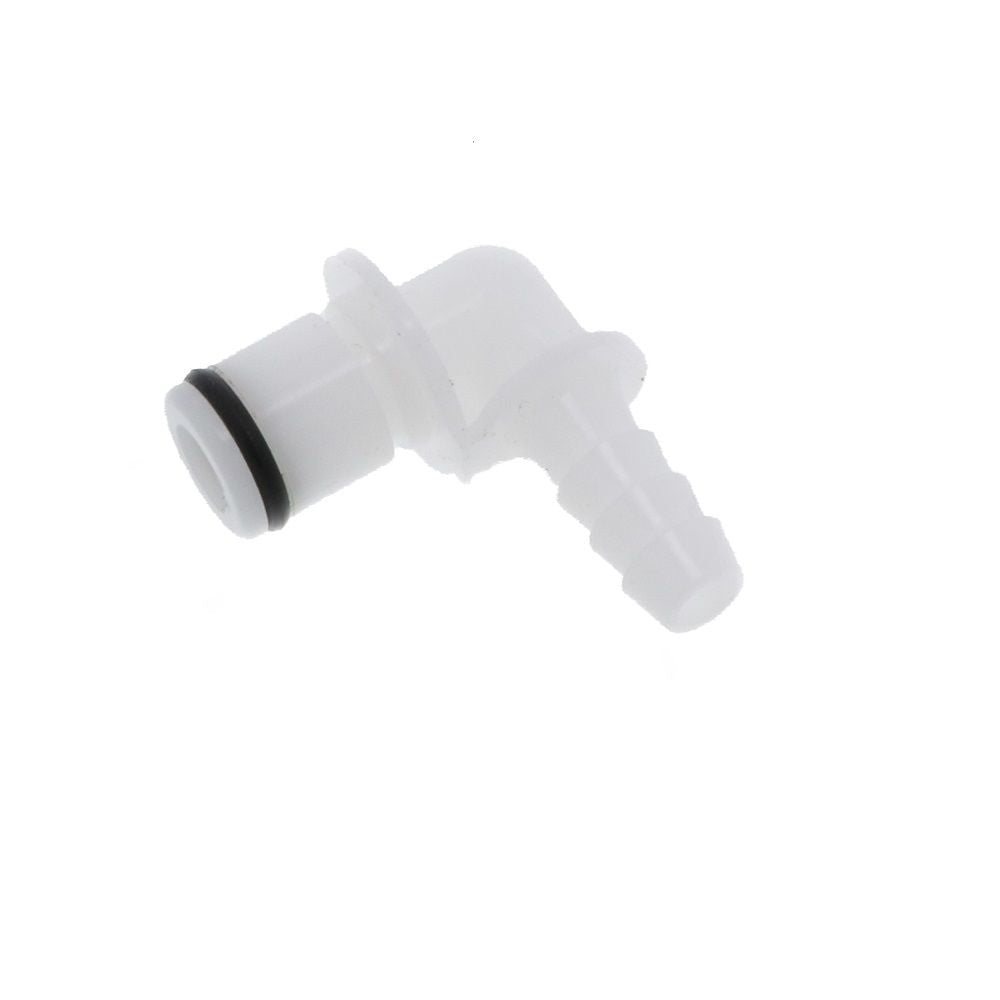

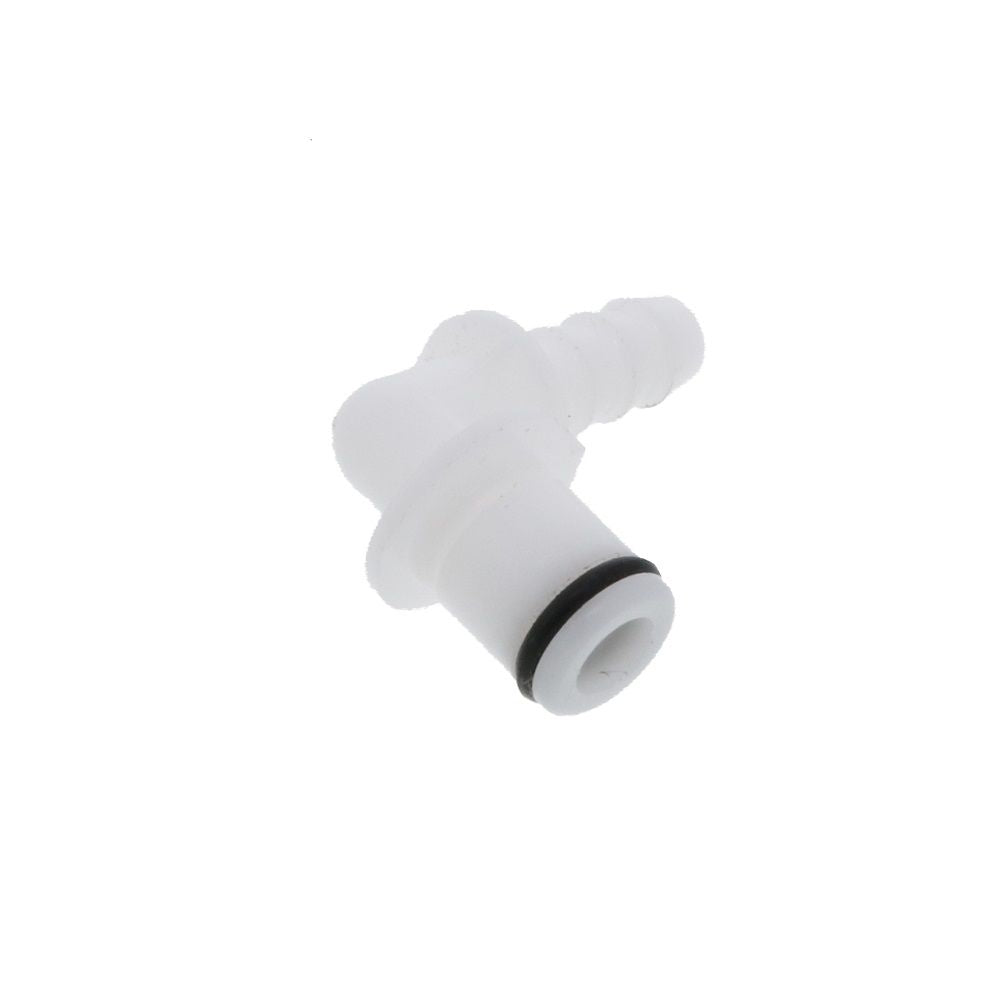

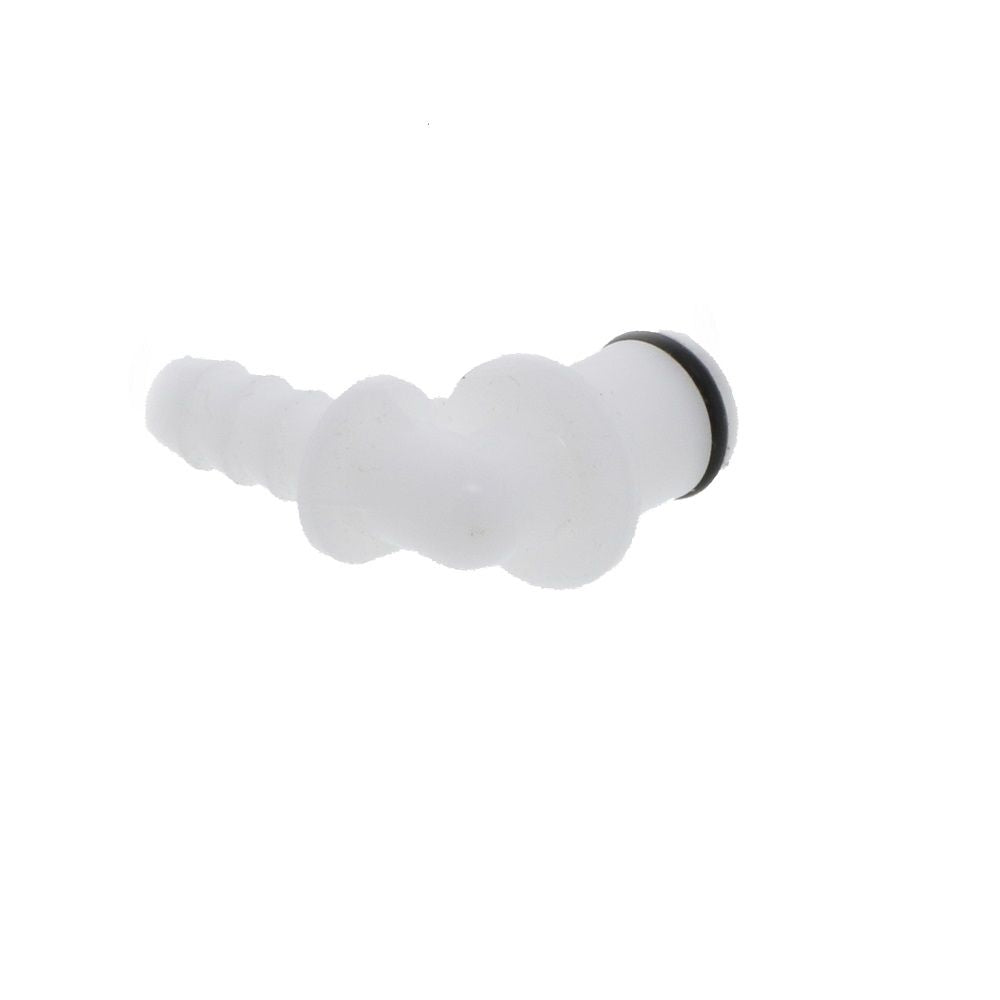

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 180ºF
- Seal Options: Buna-N
- Available in Bags of 25 units
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | PLC |
Spring | 316 stainless steel |
Thumb Latch | Stainless steel |
Valve Type | Non-Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Insert |
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 180ºF
- Seal Options: Buna-N
- Available in Bags of 25 units
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | PLC |
Spring | 316 stainless steel |
Thumb Latch | Stainless steel |
Valve Type | Non-Valved |
Color / Finish | White |
Origin | USA |
Type | Coupling Insert |
