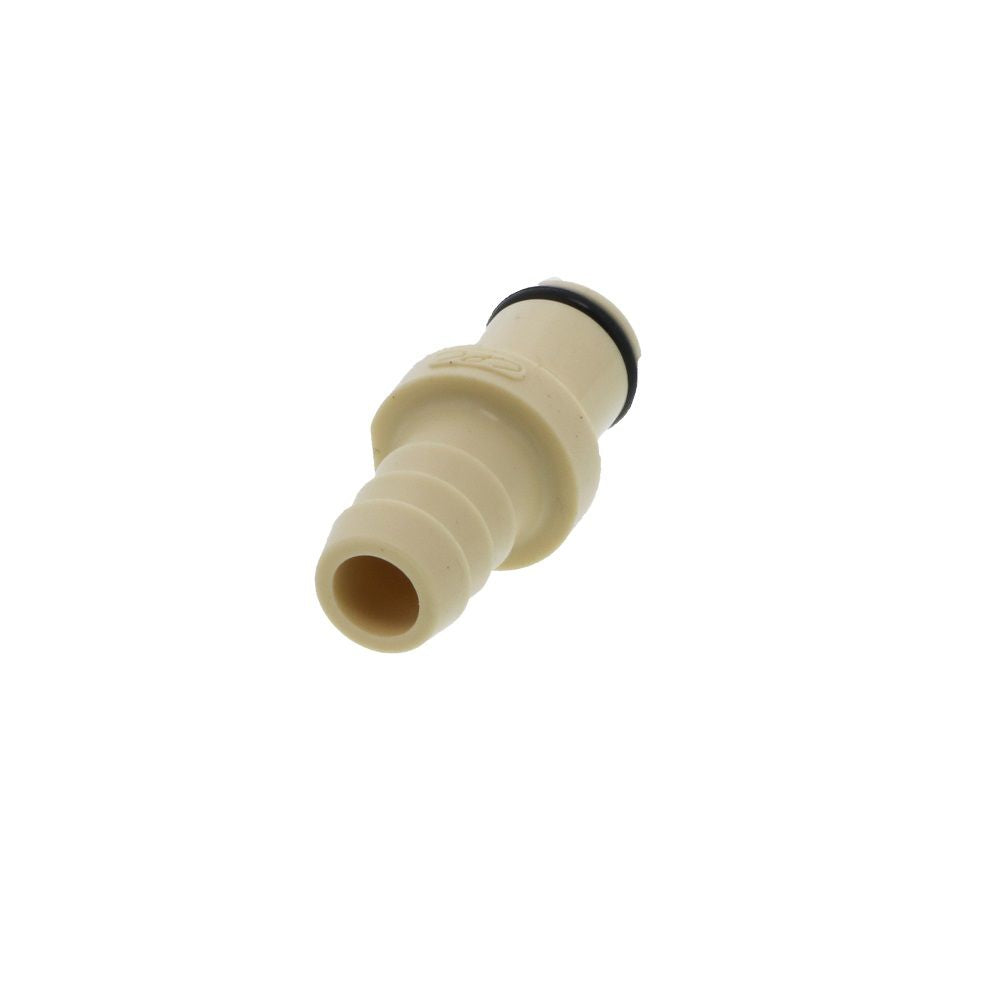

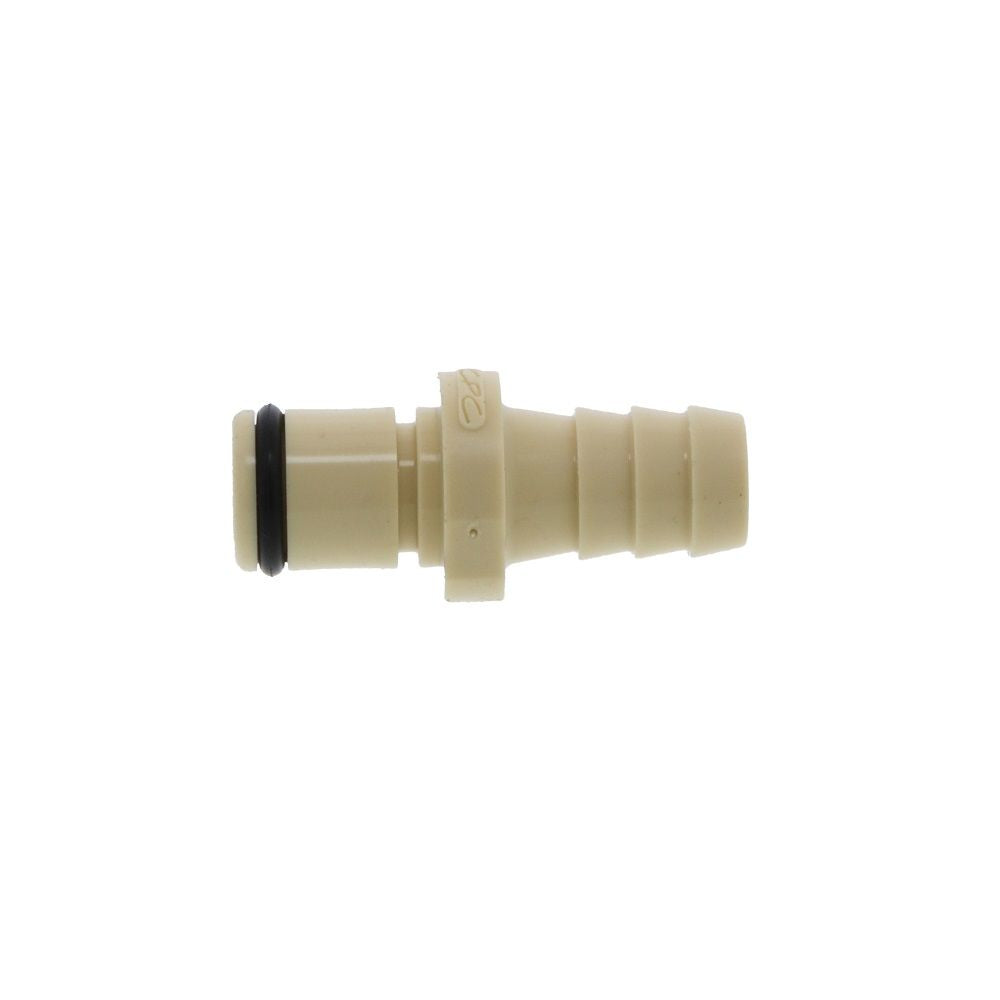

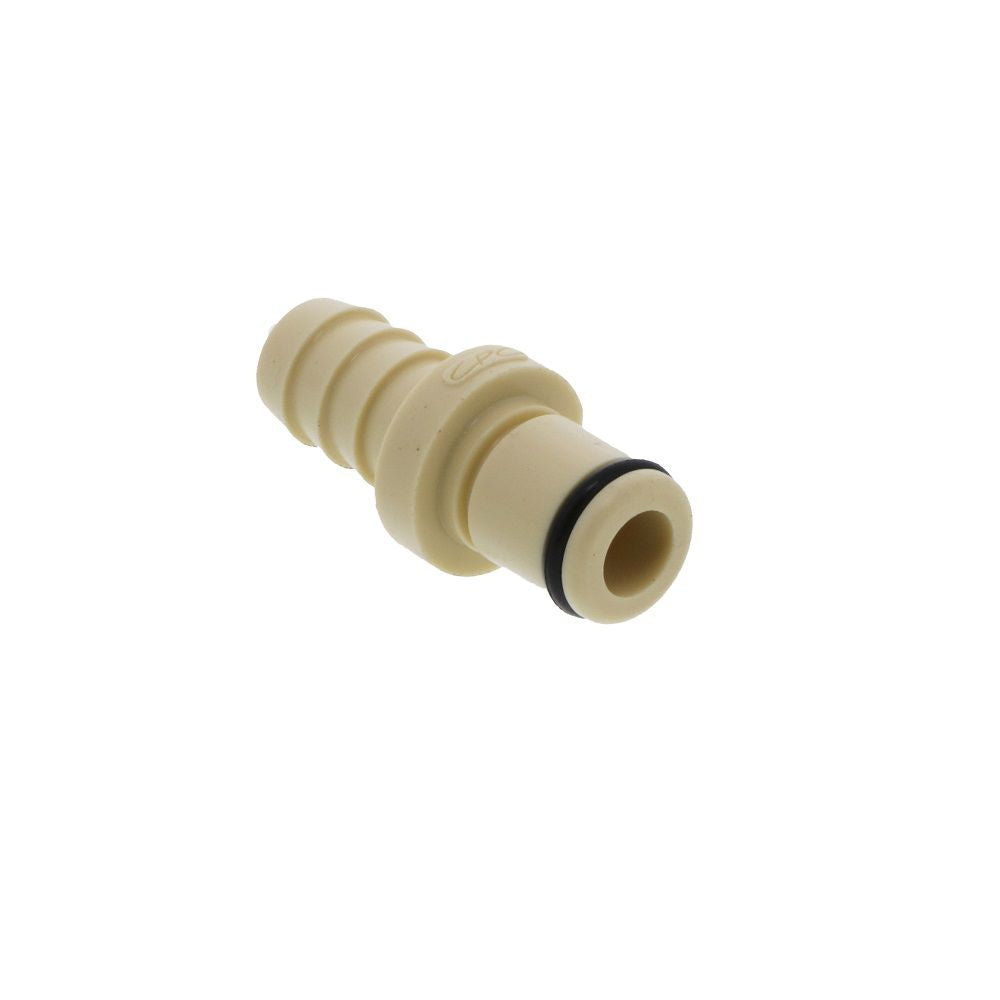

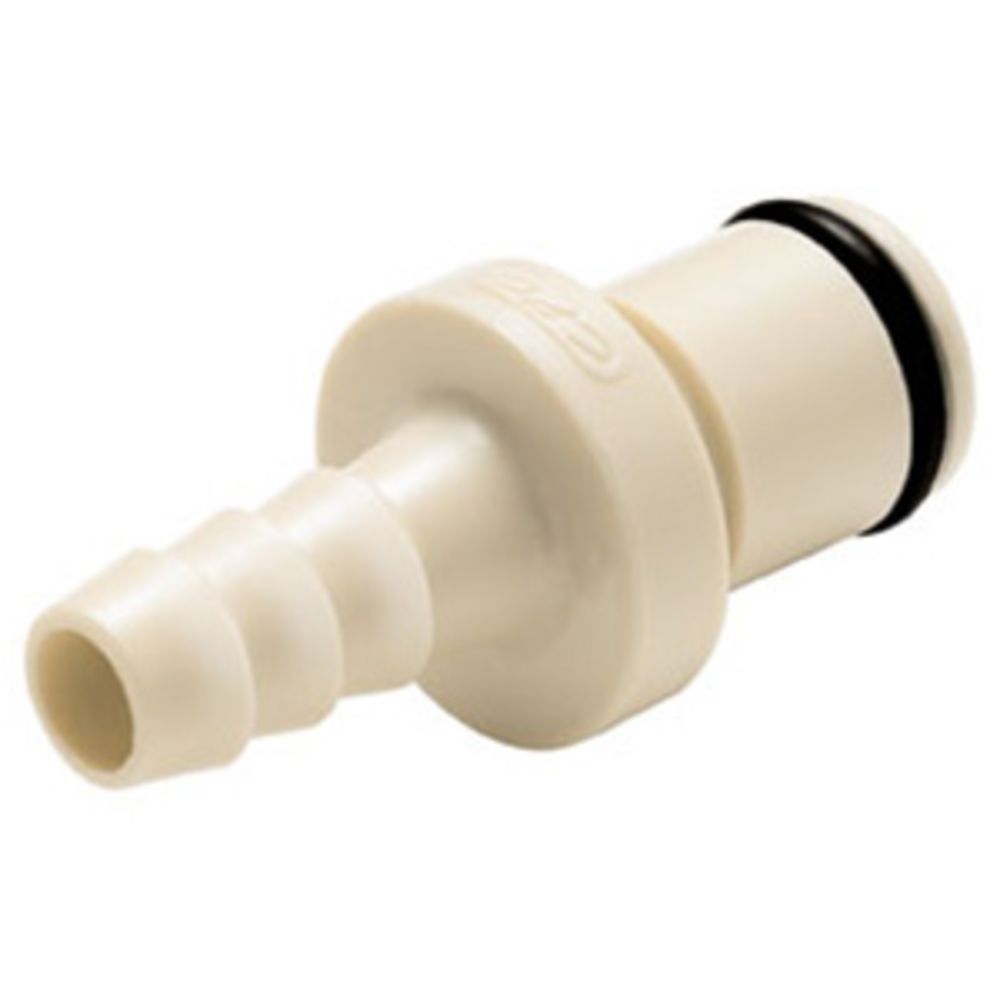

PLC2200612 In-Line Hose Barb Coupling Insert 3/8 ID Barb

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Non-Valved
Temperature Range: 32ºF to 160ºF
Seal Options:EPDM
Sterilization: Gamma (up to 50 kGy irradiation)
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Number Of Seals	1
Seal Material	EPDM
Series	PLC12
Shape	Straight
Valve Type	Non-Valved
Color / Finish	Almond
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Number Of Seals	1
Seal Material	EPDM
Series	PLC12
Shape	Straight
Valve Type	Non-Valved
Color / Finish	Almond
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.21

Product Details
Application	Water
Barb Size	3/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	PLC12
Shape	Straight
Valve Type	Non-Valved
Color / Finish	Almond
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15
