Colder Products

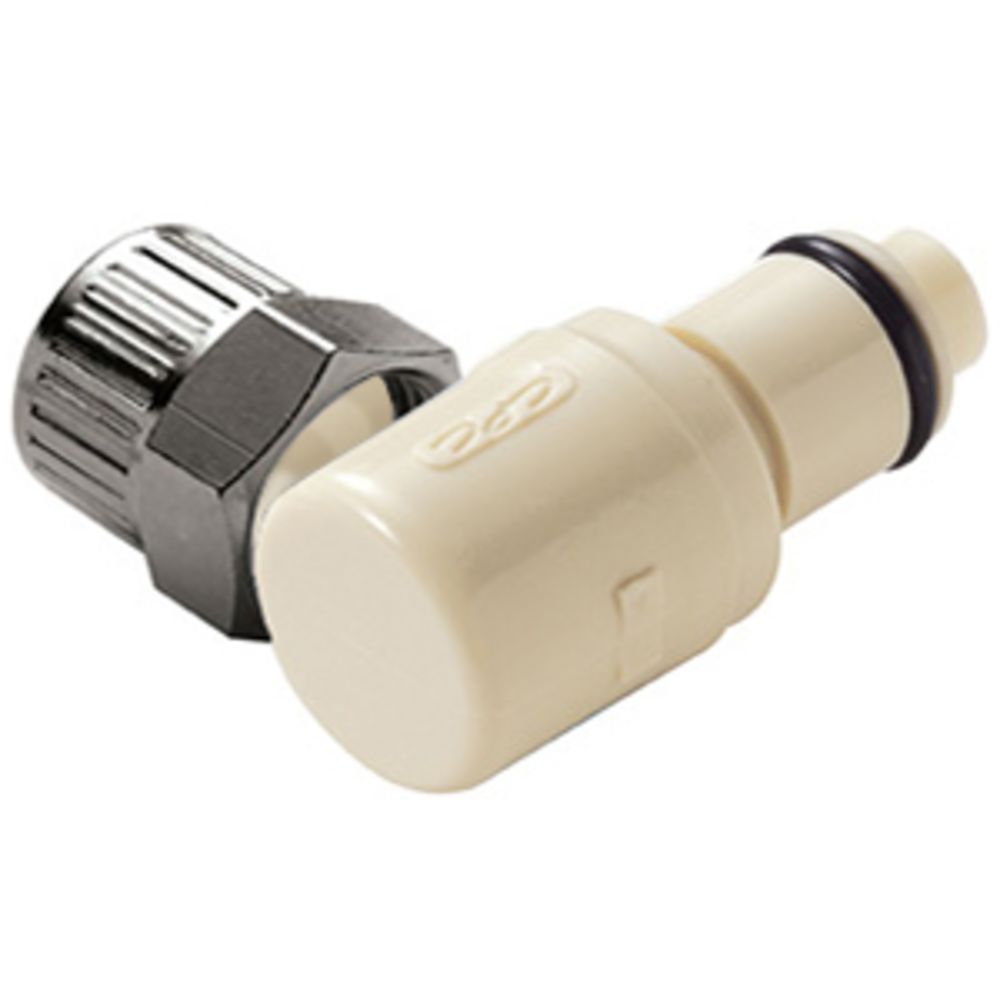

PLC2100612 Elbow PTF Coupling Insert 3/8 PTF

Part Number: PLC2100612

In Stock

out of stock

In Stock

$5.60


The 3/8" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units


Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Origin

USA

Outer Diameter

3/8 Inches

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


PLC2100612





The 3/8" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units

Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Origin

USA

Outer Diameter

3/8 Inches

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel
