Colder Products

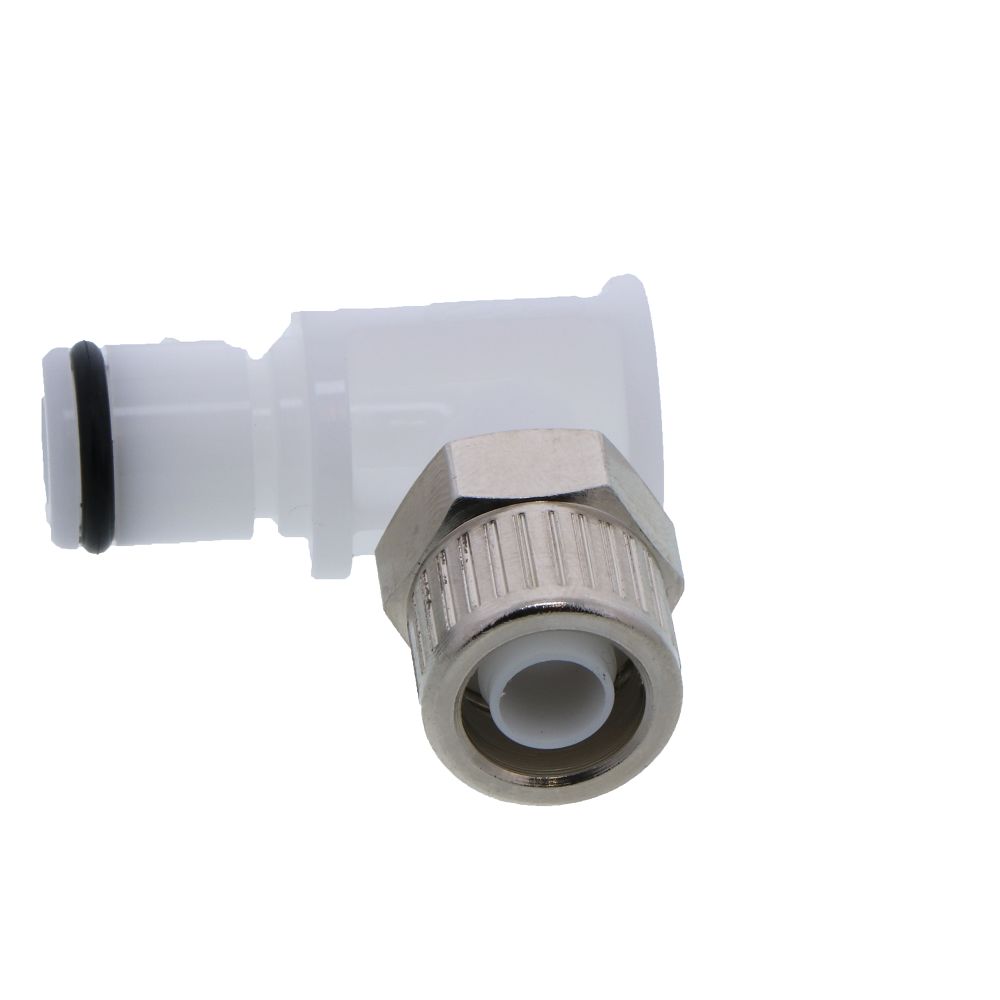

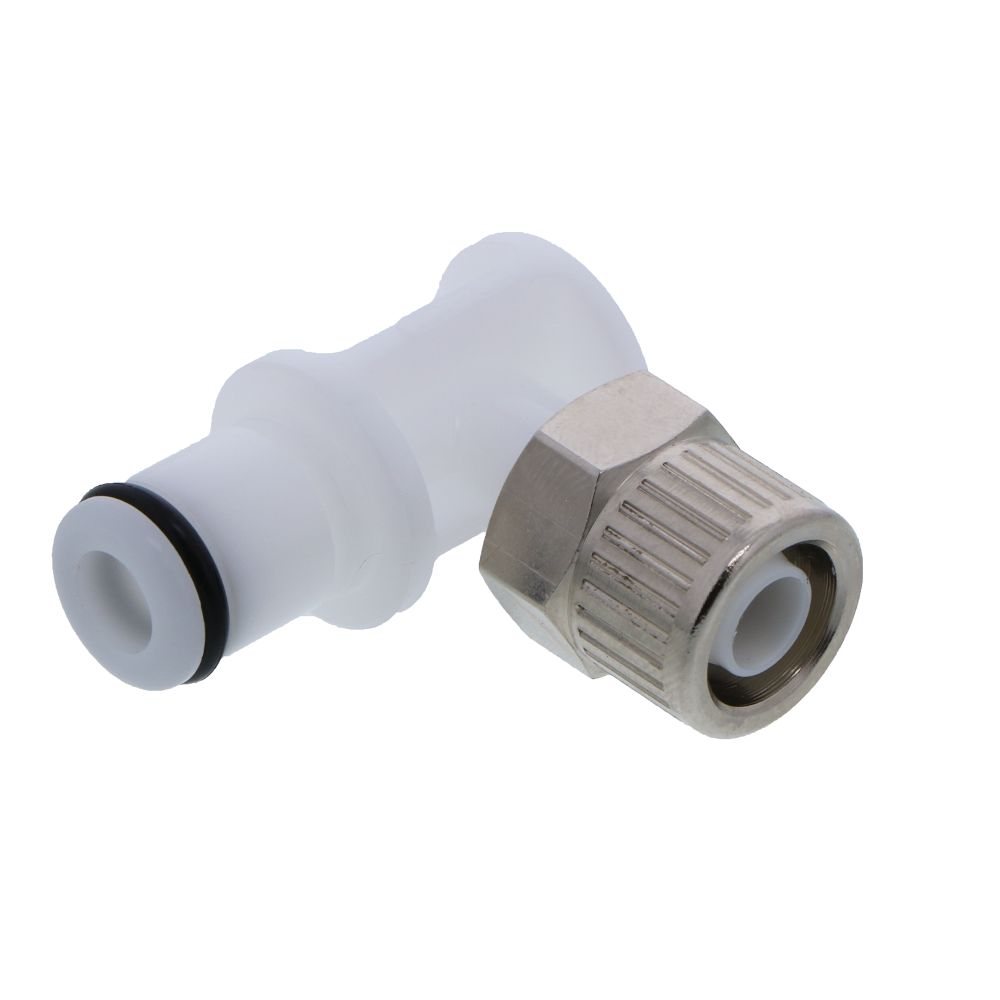

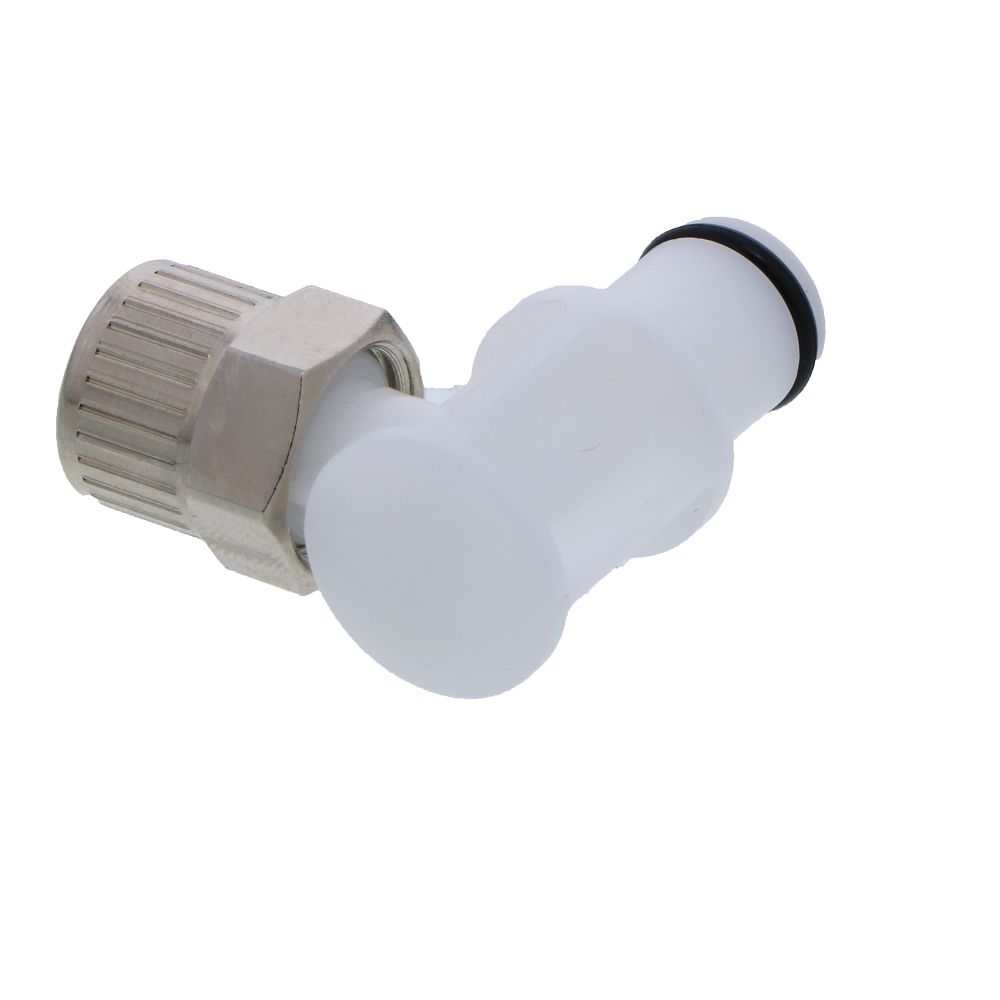

PLC21006 Elbow PTF Coupling Insert 3/8 PTF

Part Number: PLC21006

In Stock

out of stock

In Stock

$4.95

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Weight & Dimensions

Height (inches)

0.25

Length (inches)

1.13

Weight (lbs)

0.000625

Width (inches)

0.25

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

PLC

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Non-Valved

Color / Finish

White, Chrome

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert


PLC21006




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Weight & Dimensions

Height (inches)

0.25

Length (inches)

1.13

Weight (lbs)

0.000625

Width (inches)

0.25

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

PLC

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Non-Valved

Color / Finish

White, Chrome

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert

Documentation
PLC21006
Reviews
