Colder Products

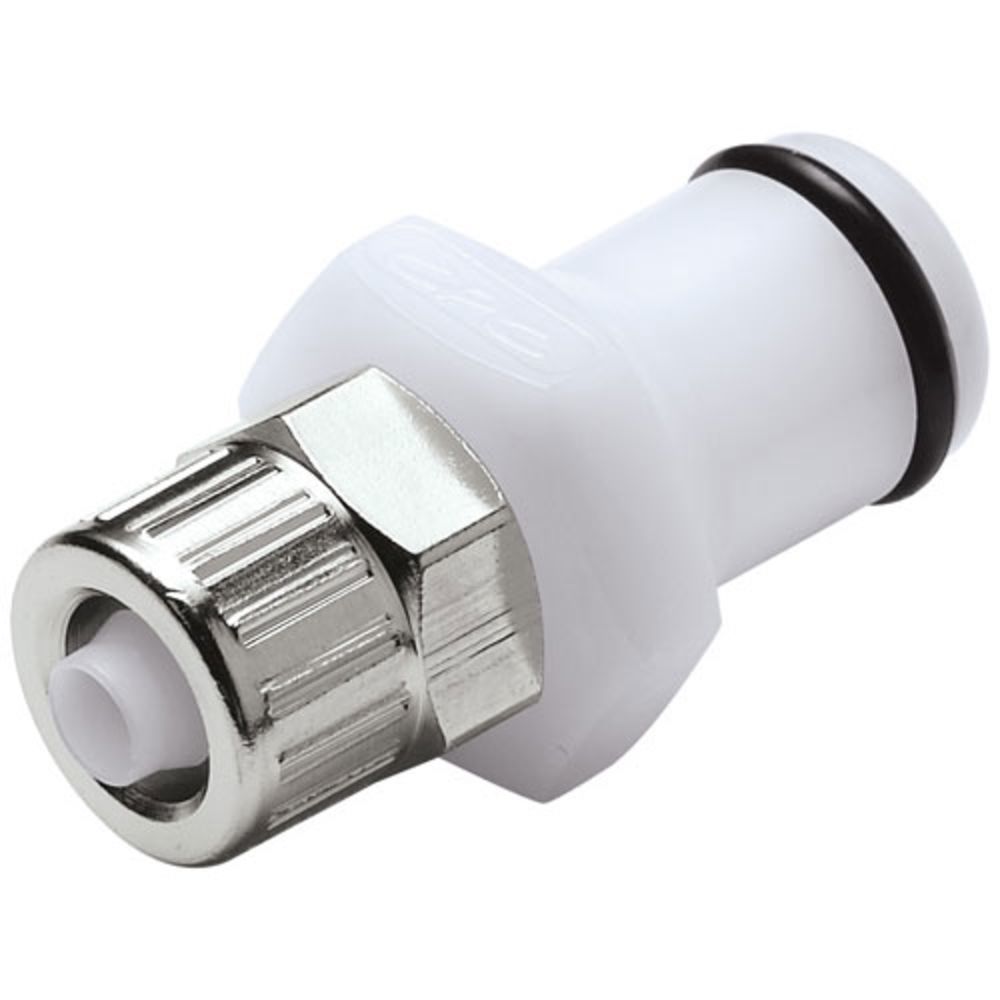

PLC200M10 In-Line 10 MM PTF Coupling Insert

Part Number: PLC200M10

In Stock

out of stock

In Stock

$6.68

The 10 mm flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Tubing Size: .17" ID, 10 mm OD
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 23300) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

10mm FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

10mm OD

Seal Material

Buna-N

Series

PLC

Size

10mm

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Insert


PLC200M10
