Colder Products

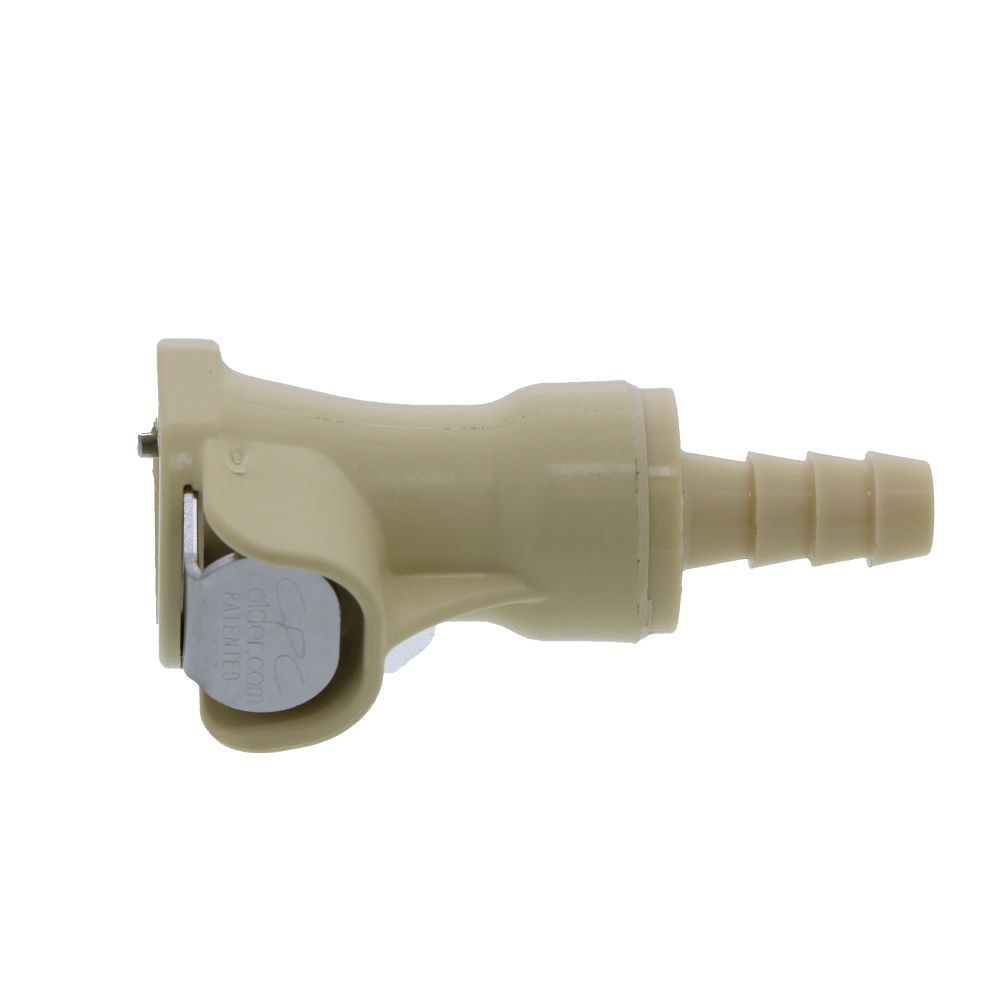

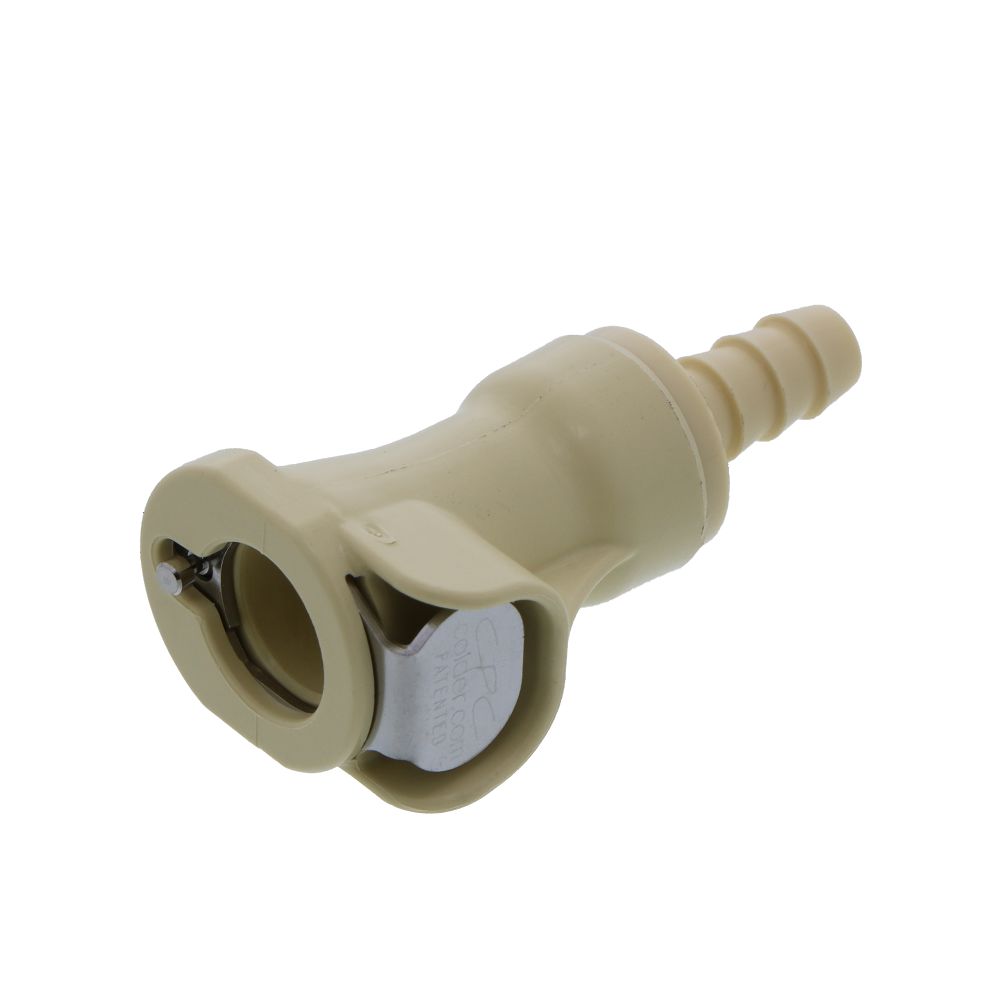

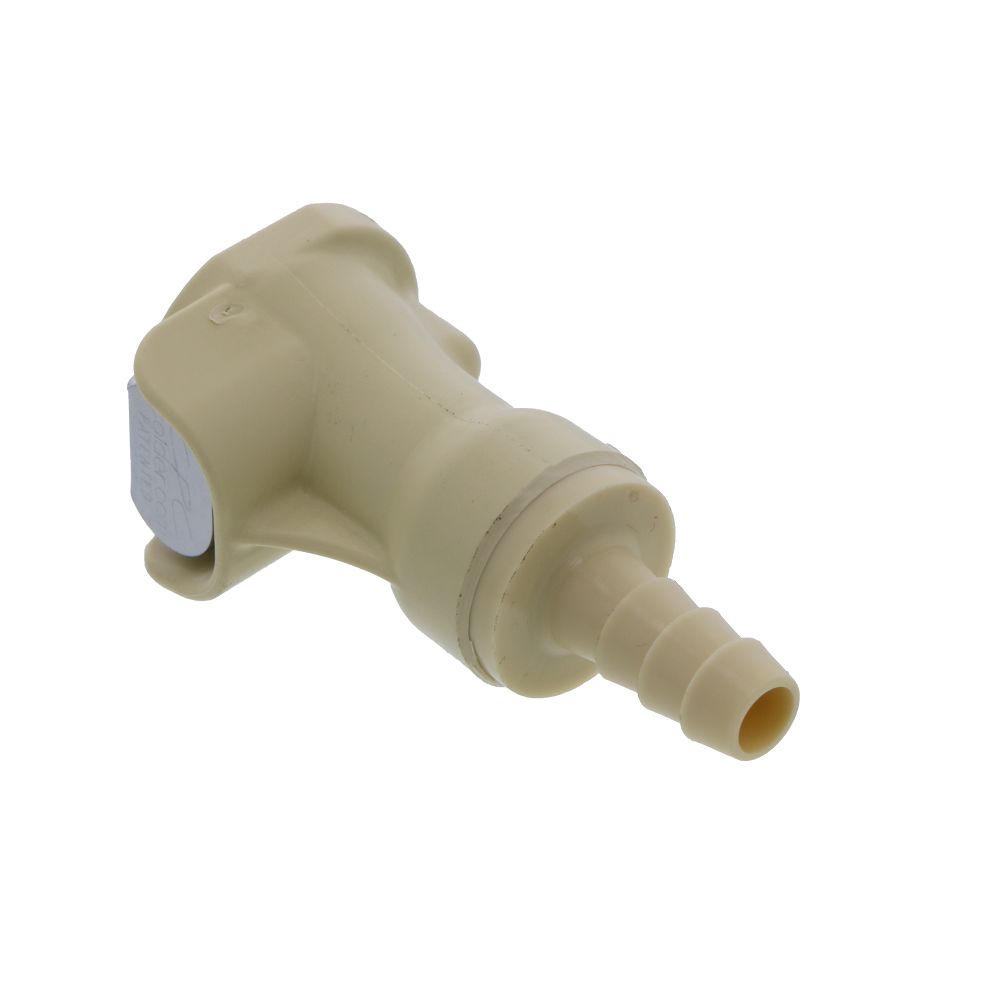

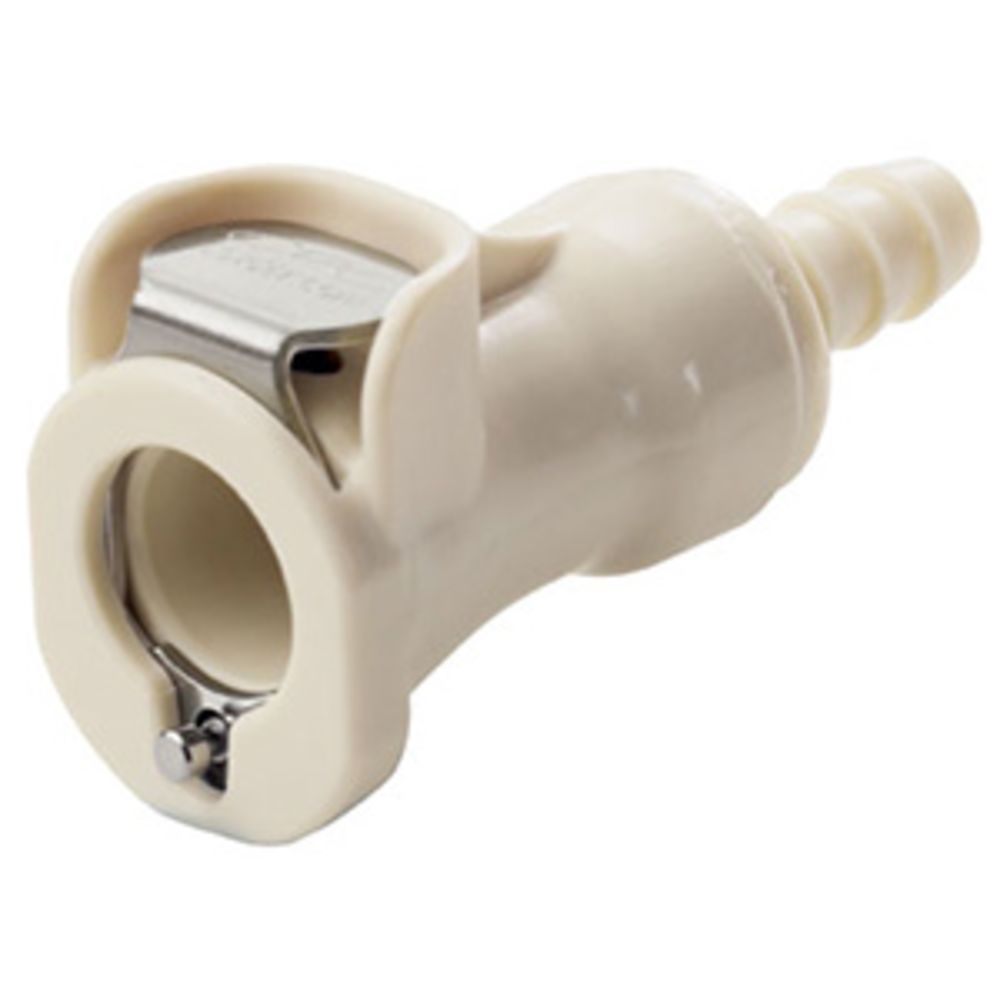

PLC1700412 In-Line Hose Barb Coupling Body 1/4 ID Barb

Part Number: PLC1700412

In Stock

out of stock

In Stock

$8.79

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units




Details

Application

Water

Barb Size

1/4" ID

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Series

PLC12

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Almond

Origin

USA

Type

Coupling Body


PLC1700412




The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units



Details

Application

Water

Barb Size

1/4" ID

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Series

PLC12

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Almond

Origin

USA

Type

Coupling Body
