Colder Products

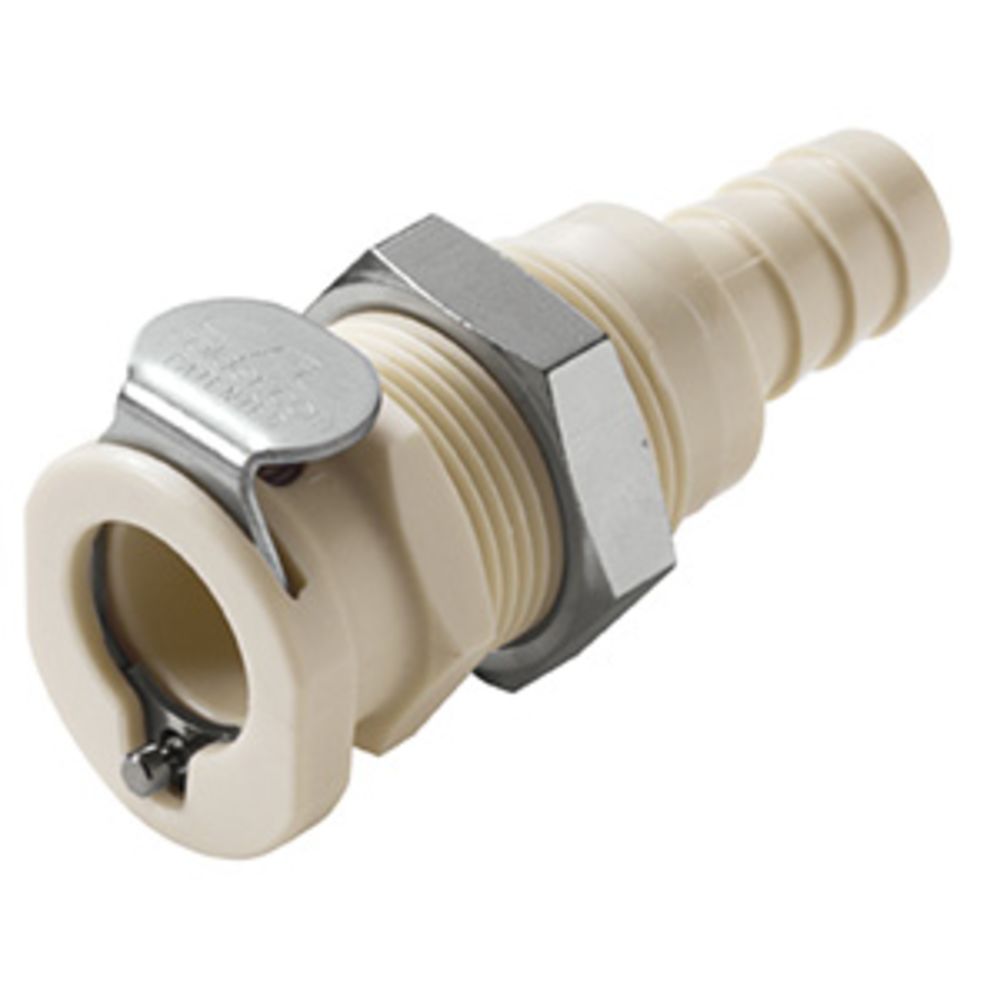

PLC1600612 Panel Mount Hose Barb Coupling Body 3/8 ID Barb

Part Number: PLC1600612

In Stock

out of stock

In Stock

$12.68

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options:EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units




Details

Series

PLC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

vacuum

Barb Size

3/8" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Panel Mount

Origin

USA

Spring

316 stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel


PLC1600612




The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options:EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units



Details

Series

PLC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

vacuum

Barb Size

3/8" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Panel Mount

Origin

USA

Spring

316 stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel
