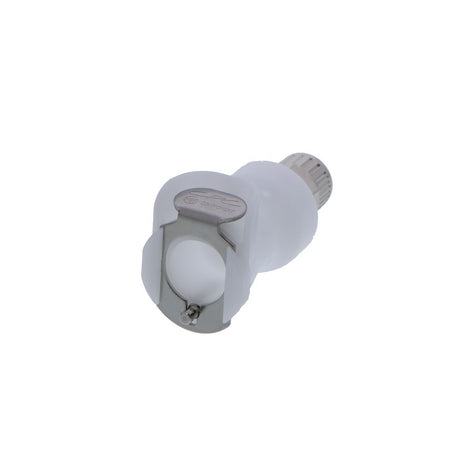

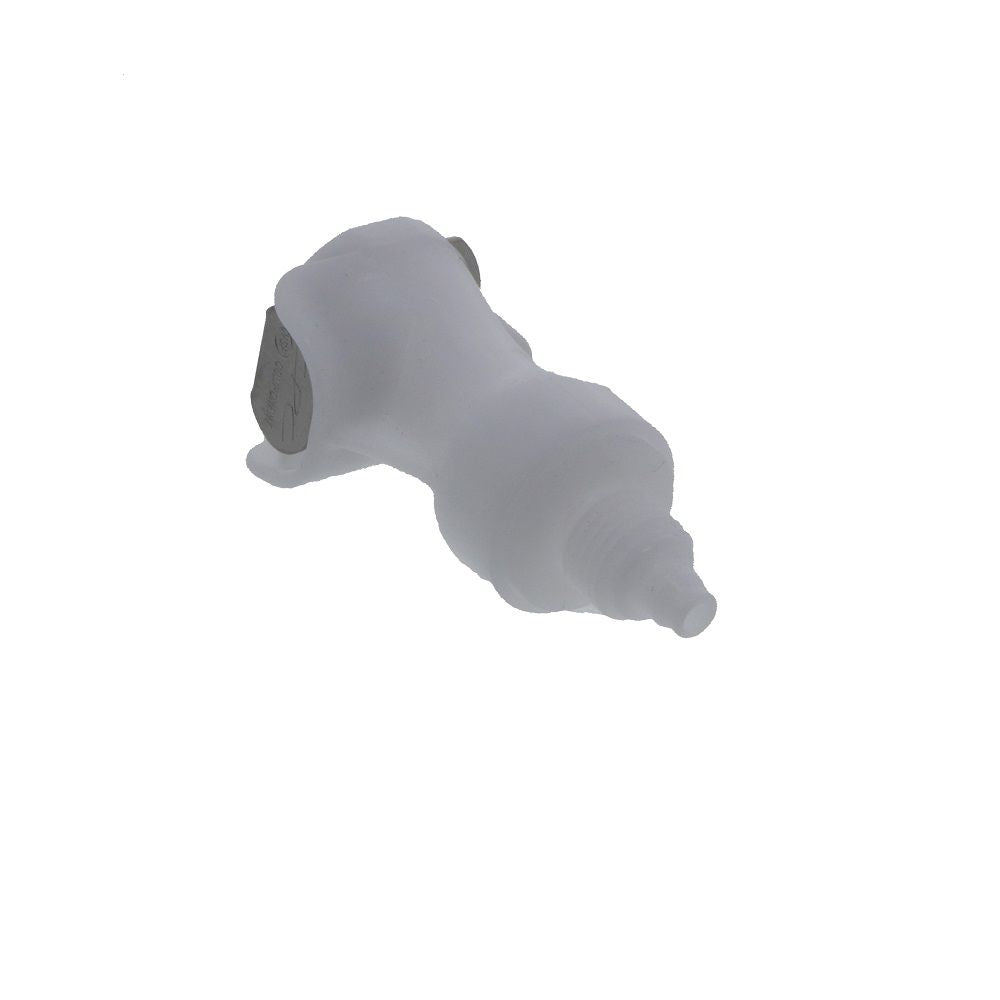

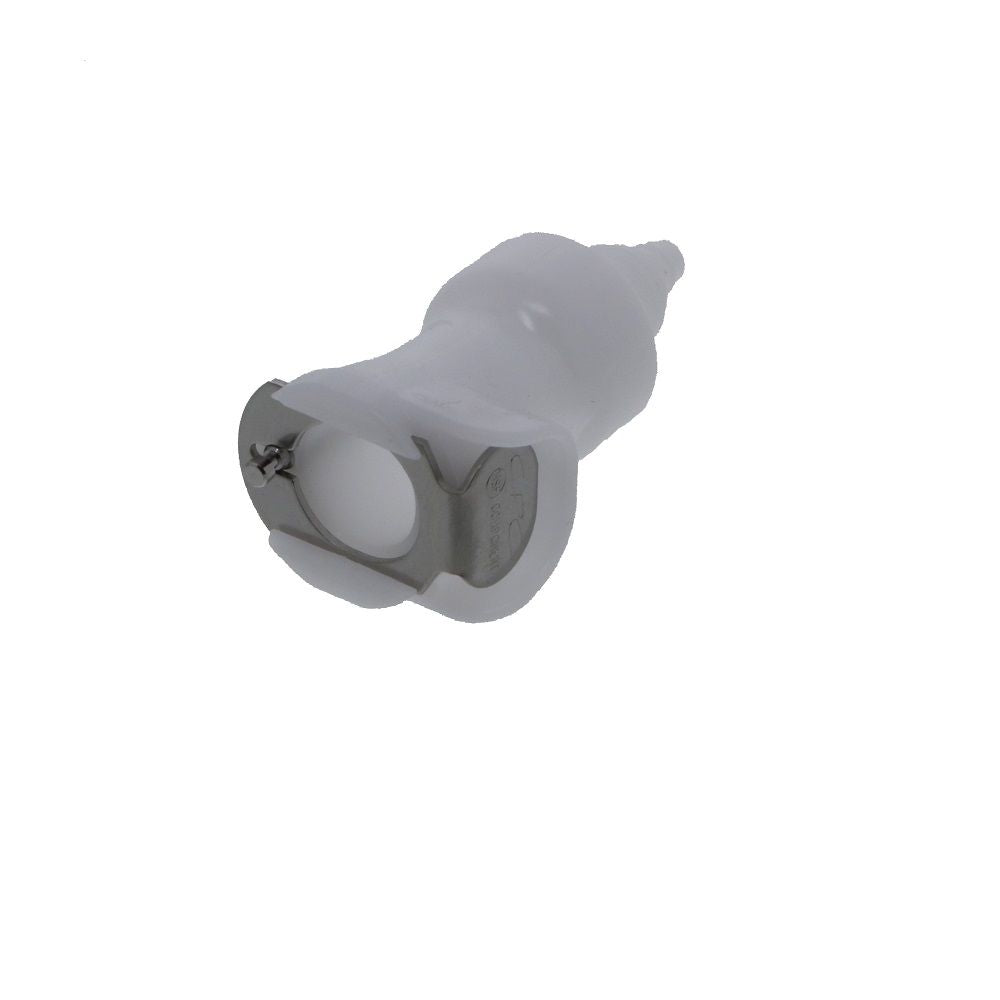

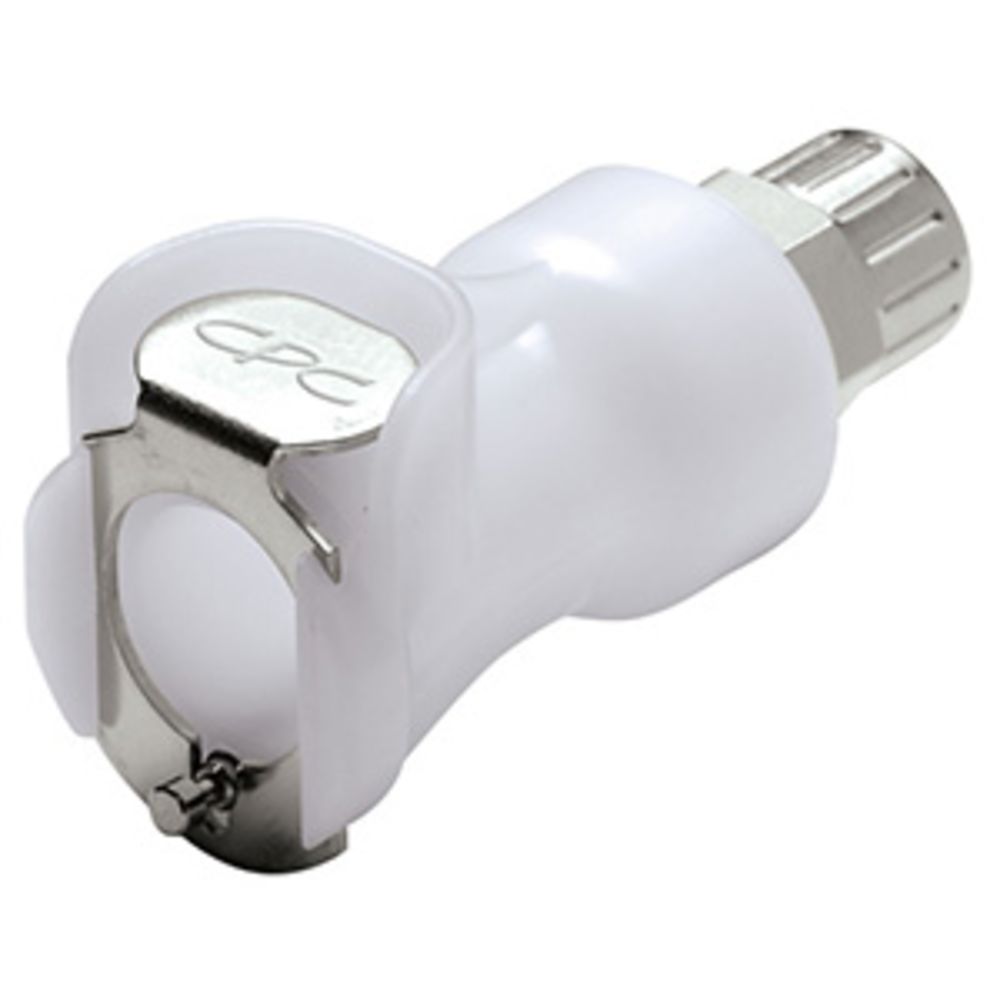

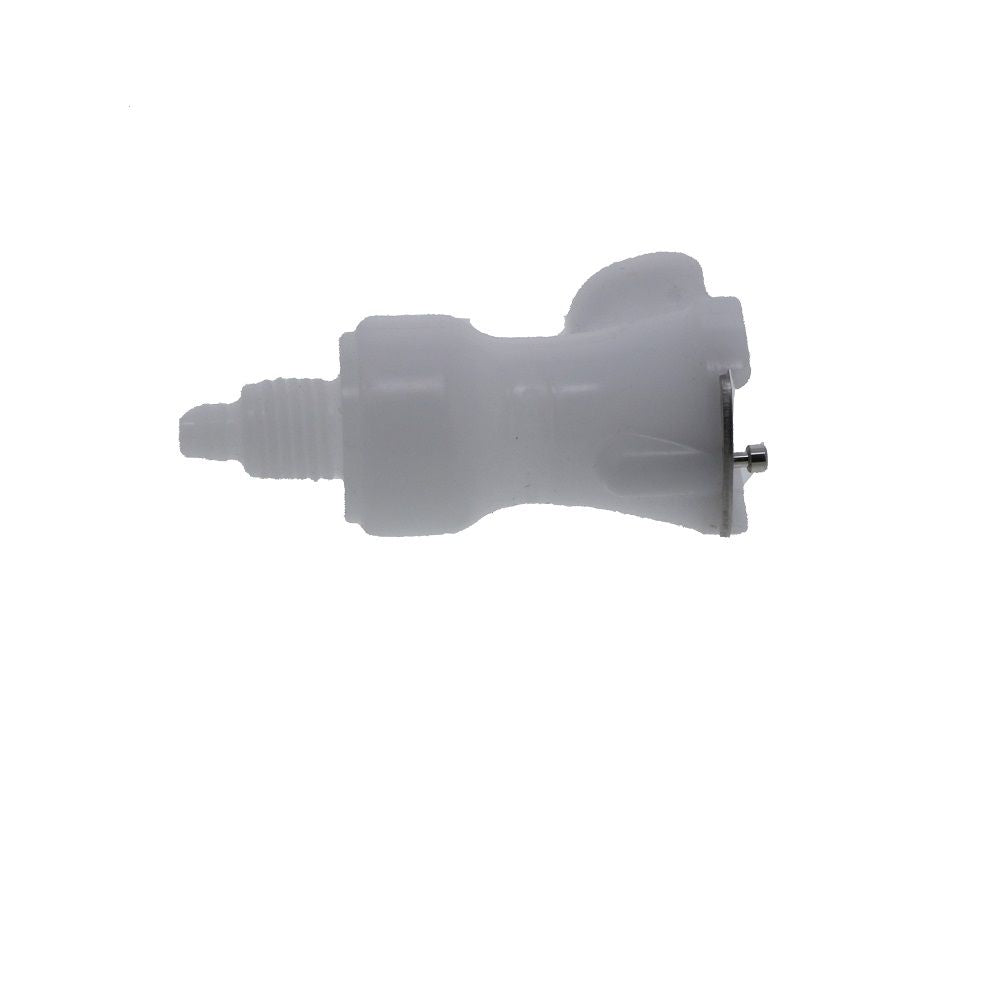

PLC13004 In-Line PTF Coupling Body 1/4 PTF

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Non-Valved
Tubing Size: .17" ID, 1/4" OD
Temperature Range: -40ºF to 180ºF
Seal Options: Buna-N
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Acetal Copolymer
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	PLC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	White
Connection Type	Female (FPT)
Type	Coupling Body

Product Details
Application	Water
Body Material	Acetal Copolymer
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	PLC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	White
Connection Type	Female (FPT)
Type	Coupling Body
