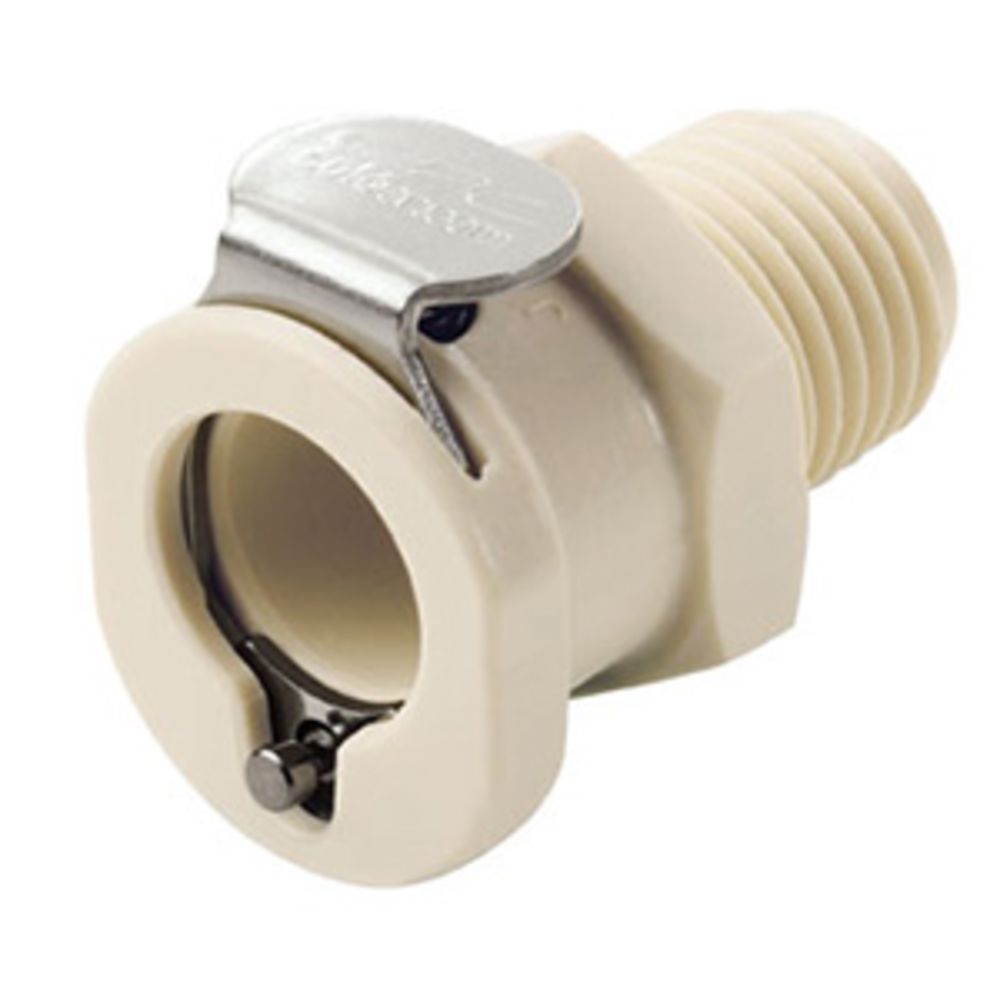

PLC1000612BSPT Male Thread Coupling Body 3/8 BSPT

The 1/4" flow PLC12 Series offers many of the same configuration options as the PLC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Non-Valved
Temperature Range: 32ºF to 160ºF
Seal Options:EPDM
Sterilization: Gamma (up to 50 kGy irradiation)
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polypropylene
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" BSP
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" BSP
Series	PLC12
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	Almond
Connection Type	BSP
Type	Coupling Body

Product Details
Application	Water
Body Material	Polypropylene
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" BSP
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" BSP
Series	PLC12
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	Almond
Connection Type	BSP
Type	Coupling Body

PLC1000612BSPT Male Thread Coupling Body 3/8 BSPT Manual
