Polyethylene Tubing

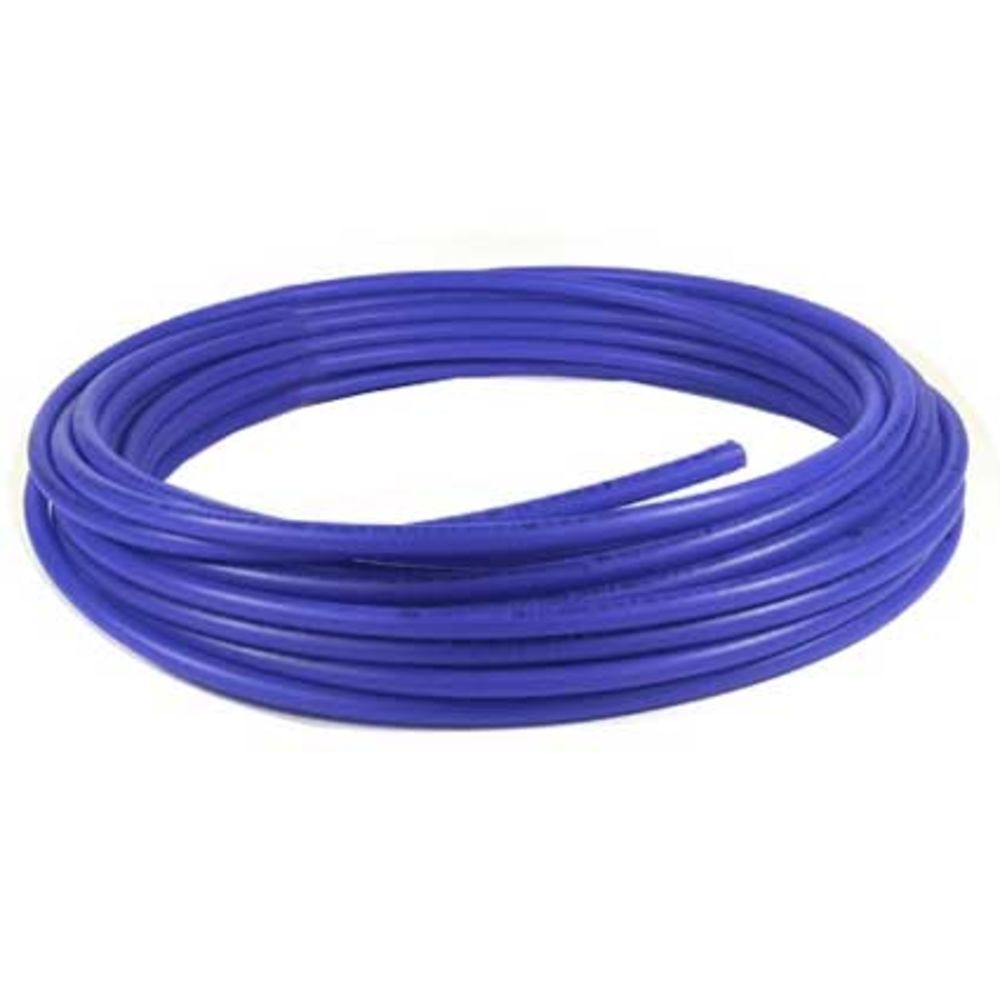

PEX-B Tubing - 3/8" CTS (ID) BLUE

Part Number: PEXB06-BLUE

Alt. Part Number: B1210, 81903400, Q2PC100XBLUE

In Stock

out of stock

In Stock

$0.60


SeaTech PEX tubing is produced from a high performance, cross-linked polyethylene material. SeaTech PEX tubing is formulated and manufactured in 3/8" CTS (1/2" OD), 1/2" CTS (5/8" OD), 3/4" CTS (7/8" OD), and 1" CTS (9/8" OD) sizes. SeaTech PEX Tubing is NSF listed, FDA recognized and available in multiple colors for ease of water line identification.

Tubing Performance Rating:
  • Operating Pressure Vacuum to 160 psi
  • Max Temperature: 180º F @ 100 psi
  • Max Temperature:   72º F @ 160 psi
  • Coil Length: 100'*
  • Also Known As: Watts 81903400
Notes:
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
** Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.


Weight & Dimensions

Approx Height (Inches)

1 Inches

Approx Width (Inches)

1 Inches

Cord Length

100 Feet

Details

Application

Potable Water

Color / Finish

Blue

Material Of Construction

Cross linked polyethylene

Max Operating Temperature

180 Degrees Fahrenheit

Operating Pressure Range

160psi @ 73.4º F, 100psi @ 180º F, 80psi @ 200º F

Outer Diameter

1/2"; 15mm

Thickness

0.62 Inches

Inner Diameter

3/8"

Warranty & Certifications

Warranty

25-year warranty




SeaTech PEX tubing is produced from a high performance, cross-linked polyethylene material. SeaTech PEX tubing is formulated and manufactured in 3/8" CTS (1/2" OD), 1/2" CTS (5/8" OD), 3/4" CTS (7/8" OD), and 1" CTS (9/8" OD) sizes. SeaTech PEX Tubing is NSF listed, FDA recognized and available in multiple colors for ease of water line identification.

Tubing Performance Rating:
  • Operating Pressure Vacuum to 160 psi
  • Max Temperature: 180º F @ 100 psi
  • Max Temperature:   72º F @ 160 psi
  • Coil Length: 100'*
  • Also Known As: Watts 81903400
Notes:
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
** Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

Weight & Dimensions

Approx Height (Inches)

1 Inches

Approx Width (Inches)

1 Inches

Cord Length

100 Feet

Details

Application

Potable Water

Color / Finish

Blue

Material Of Construction

Cross linked polyethylene

Max Operating Temperature

180 Degrees Fahrenheit

Operating Pressure Range

160psi @ 73.4º F, 100psi @ 180º F, 80psi @ 200º F

Outer Diameter

1/2"; 15mm

Thickness

0.62 Inches

Inner Diameter

3/8"

Warranty & Certifications

Warranty

25-year warranty
