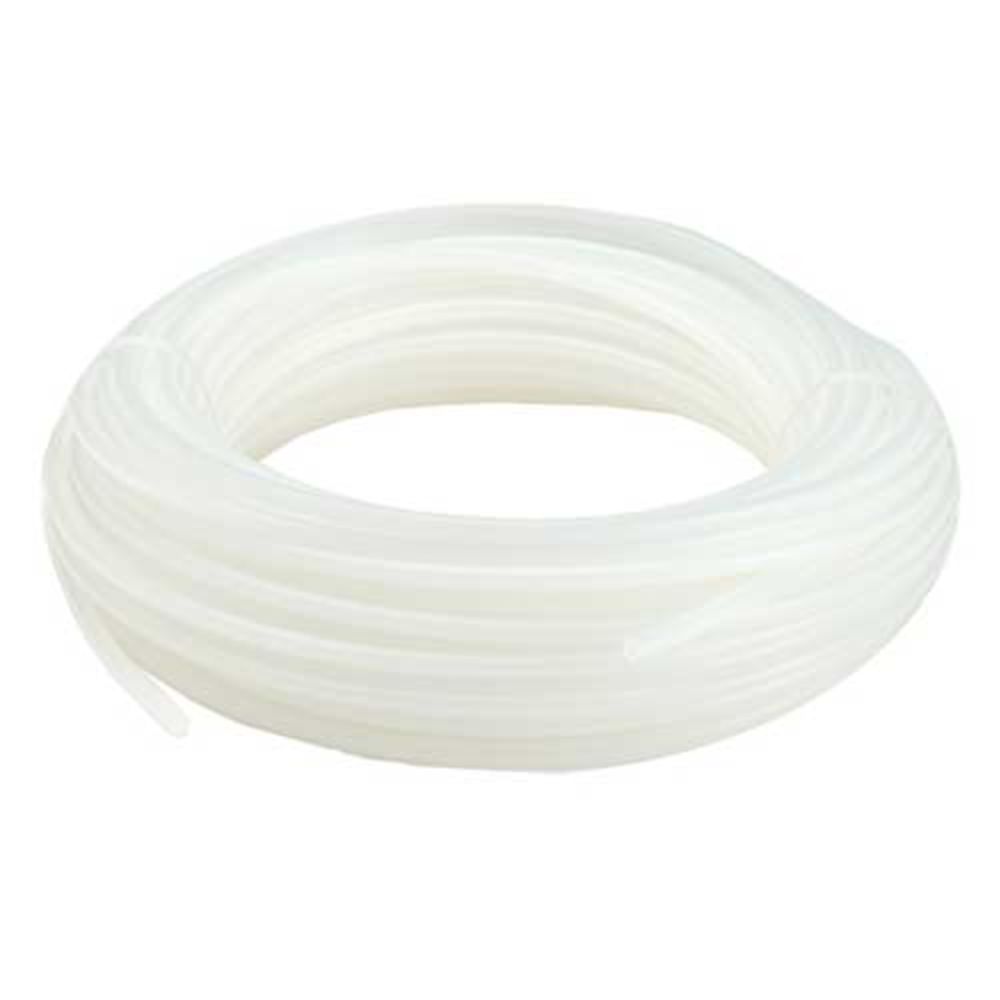

PEX-B Tubing - 1" CTS (ID) WHITE

Part Number: PEXB16-WHITE:25FT

Alt. Part Number: Q5PC100X, PX5C1

Your price:

Choose

25 Feet

50 Feet

100 Foot Roll

Quantity

CANPEX™ UV PLUS tubing is produced from a high performance, cross-linked polyethylene material. The advanced formulation ensures that when the product is exposed to UV radiation, it will retain both its physical properties, as well as its long term Chlorine/ORP resistance at the highest level in the industry today. The single layer product is provided in the colors red, white and blue for easy identification of hot and cold lines.

Specifications:

NSF-PW PEX 5306 certification for maximum protection against UV radiation and chlorine resistance.
100% continuous hot water recirculation up to 140°F.
Includes metal deactivation additive to protect against polymer degradation.
Max Temperature: 180º F @ 100 psi
Max Temperature: 73º F @ 160 psi
ASTM F876/F877/F2023

Note:Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment. Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	1/8"
Color / Finish	White
Diameter	1-1/8"
Inner Diameter	1"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25 Years
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	1.5 in.
Product Length	12 in.
Product Width	1.5 in.
Product Weight (lbs)	0.25

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	1/8"
Color / Finish	White
Diameter	1-1/8"
Inner Diameter	1"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25 Years
Product Weight & Dimensions
Product Weight (lbs)	12.5

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	180
Thickness	1/8"
Tubing Roll Length	100
Color / Finish	White
Diameter	1-1/8"
Inner Diameter	1"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	25 Years
Product Weight & Dimensions
Product Weight (lbs)	25

Specifications:

NSF-PW PEX 5306 certification for maximum protection against UV radiation and chlorine resistance.
100% continuous hot water recirculation up to 140°F.
Includes metal deactivation additive to protect against polymer degradation.
Max Temperature: 180º F @ 100 psi
Max Temperature: 73º F @ 160 psi
ASTM F876/F877/F2023

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
