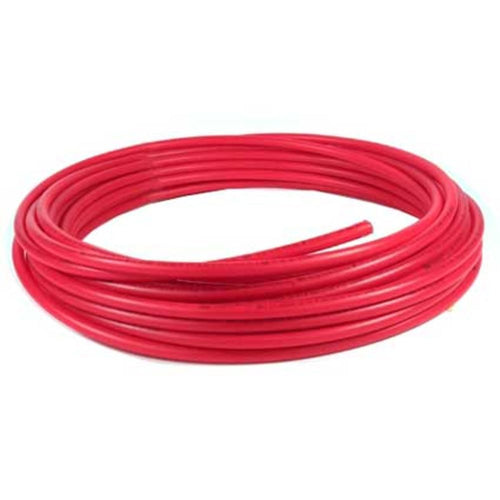

PEX-B Tubing - 1/2" CTS (ID) RED
Part Number: PEXB08-RED:25FT
Alt. Part Number: 81904322, R5810, Q3PC100XRED, PXR3C1
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
CANPEX™ UV PLUS tubing is produced from a high performance, cross-linked polyethylene material. The advanced formulation ensures that when the product is exposed to UV radiation, it will retain both its physical properties, as well as its long term Chlorine/ORP resistance at the highest level in the industry today. The single layer product is provided in the colors red, white and blue for easy identification of hot and cold lines.
Specifications:
- NSF-PW PEX 5306 certification for maximum protection against UV radiation and chlorine resistance.
- 100% continuous hot water recirculation up to 140°F.
- Includes metal deactivation additive to protect against polymer degradation.
- Max Temperature: 180º F @ 100 psi
- Max Temperature: 73º F @ 160 psi
- ASTM F876/F877/F2023
** Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
WARNING!
| Product Details | |
|---|---|
Application | Potable Water |
Material Of Construction | Cross-Linked Polyethylene |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 180 |
Thickness | 1/16" |
Tubing Roll Length | 25 |
Color / Finish | Red |
Diameter | 5/8" |
Inner Diameter | 1/2" |
Origin | USA |
| Warranty & Certifications | |
Warranty | 25-yr warranty |
| Shipping Dimensions | |
Shipping Length | 12 in. |
Shipping Width | 0.63 in. |
Shipping Height | 0.63 in. |
| Product Weight & Dimensions | |
Product Height | 0.63 in. |
Product Length | 12 in. |
Product Width | 0.63 in. |
Product Weight (lbs) | 0.1007 |
| Product Details | |
|---|---|
Application | Potable Water |
Material Of Construction | Cross-Linked Polyethylene |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 180 |
Thickness | 1/16" |
Tubing Roll Length | 50 |
Color / Finish | Red |
Diameter | 5/8" |
Inner Diameter | 1/2" |
Origin | USA |
| Warranty & Certifications | |
Warranty | 25-yr warranty |
| Product Weight & Dimensions | |
Product Weight (lbs) | 12.5 |
| Product Details | |
|---|---|
Application | Potable Water |
Material Of Construction | Cross-Linked Polyethylene |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 180 |
Thickness | 1/16" |
Tubing Roll Length | 100 |
Color / Finish | Red |
Diameter | 5/8" |
Inner Diameter | 1/2" |
Origin | USA |
| Warranty & Certifications | |
Warranty | 25-yr warranty |
| Product Weight & Dimensions | |
Product Weight (lbs) | 25 |
CANPEX™ UV PLUS tubing is produced from a high performance, cross-linked polyethylene material. The advanced formulation ensures that when the product is exposed to UV radiation, it will retain both its physical properties, as well as its long term Chlorine/ORP resistance at the highest level in the industry today. The single layer product is provided in the colors red, white and blue for easy identification of hot and cold lines.
Specifications:
- NSF-PW PEX 5306 certification for maximum protection against UV radiation and chlorine resistance.
- 100% continuous hot water recirculation up to 140°F.
- Includes metal deactivation additive to protect against polymer degradation.
- Max Temperature: 180º F @ 100 psi
- Max Temperature: 73º F @ 160 psi
- ASTM F876/F877/F2023
** Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
