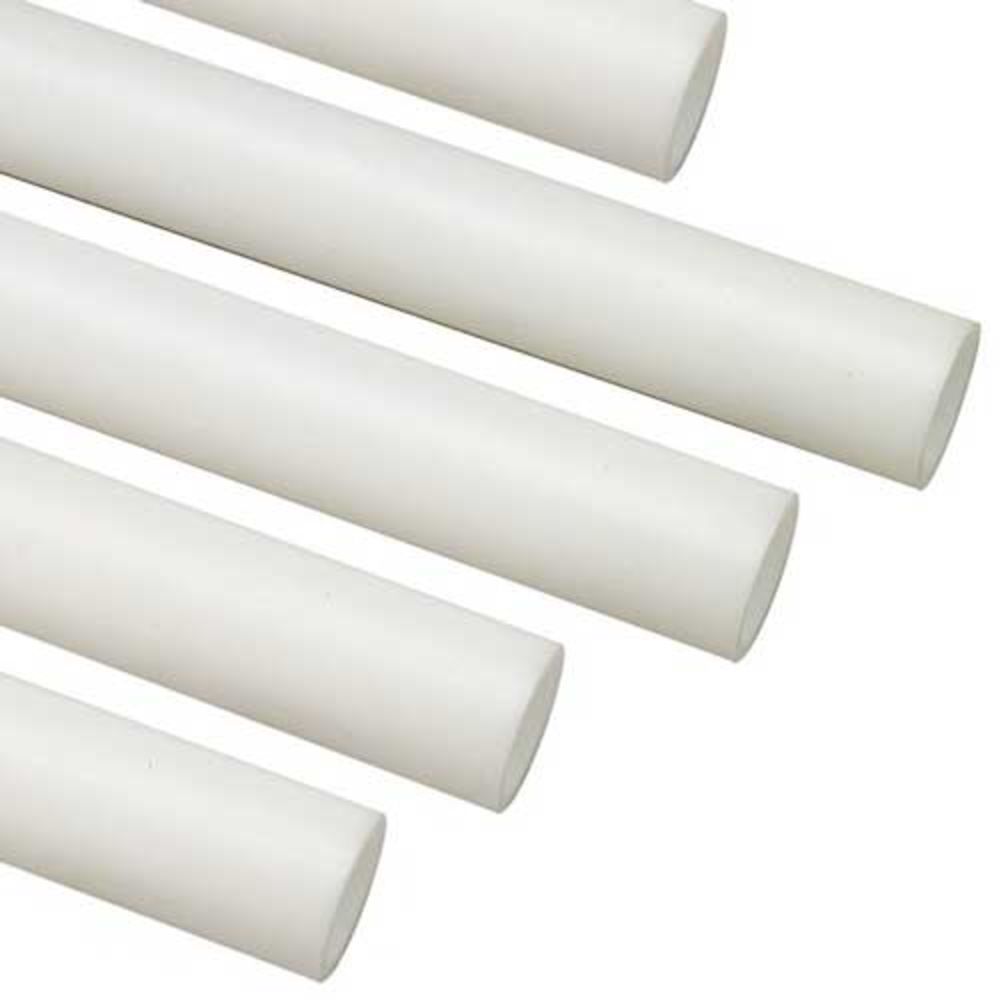

Watts PEX Non-Barrier Tubing is a flexible, low-lead compliant tubing that is suitbable for potable water plumbing applications. Produced from a high performance, cross-linked polyethylene material, Watts PEX is easy to install and requires fewer fittings than rigid pipe. It is also resistant to mineral build-up and freeze damage.

Tubing Performance Rating:

Operating Pressure Vacuum to 160 psi
Max Temperature: 200º F @ 80 psi
Max Temperature: 73º F @ 160 psi
Coil Length: 100'*

Notes:
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.

** Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

Operating Pressure Vacuum to 160 psi
Max Temperature: 200º F @ 80 psi
Max Temperature: 73º F @ 160 psi
Coil Length: 100'*

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200
Thickness	.18"
Color / Finish	White
Diameter	1-5/8"
Inner Diameter	1-1/2"
Origin	USA
Warranty & Certifications
Certifications	NSF Standard 14 & 61
Warranty	25-year warranty
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	1.9 in.
Shipping Height	1.9 in.
Product Weight & Dimensions
Product Height	1.9 in.
Product Length	12 in.
Product Width	1.9 in.
Product Weight (lbs)	0.65

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200
Thickness	.18"
Color / Finish	White
Diameter	1-5/8"
Inner Diameter	1-1/2"
Origin	USA
Warranty & Certifications
Certifications	NSF Standard 14 & 61
Warranty	25-year warranty
Product Weight & Dimensions
Product Height	1"
Product Width	1"
Product Weight (lbs)	32.5

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200
Thickness	.18"
Color / Finish	White
Diameter	1-5/8"
Inner Diameter	1-1/2"
Origin	USA
Warranty & Certifications
Certifications	NSF Standard 14 & 61
Warranty	25-year warranty
Product Weight & Dimensions
Product Height	1"
Product Width	1"
Product Weight (lbs)	65

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200
Thickness	.18"
Color / Finish	White
Diameter	1-5/8"
Inner Diameter	1-1/2"
Origin	USA
Warranty & Certifications
Certifications	NSF Standard 14 & 61
Warranty	25-year warranty
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	1.9 in.
Shipping Height	1.9 in.
Product Weight & Dimensions
Product Height	1.9 in.
Product Length	12 in.
Product Width	1.9 in.
Product Weight (lbs)	0.65

Product Details
Application	Potable Water
Material Of Construction	Cross-Linked Polyethylene
Max Pressure (Psi)	160
Max Temp (°F)	200
Thickness	.18"
Color / Finish	White
Diameter	1-5/8"
Inner Diameter	1-1/2"
Origin	USA
Warranty & Certifications
Certifications	NSF Standard 14 & 61
Warranty	25-year warranty
Product Weight & Dimensions
Product Height	1"
Product Width	1"
Product Weight (lbs)	32.5
