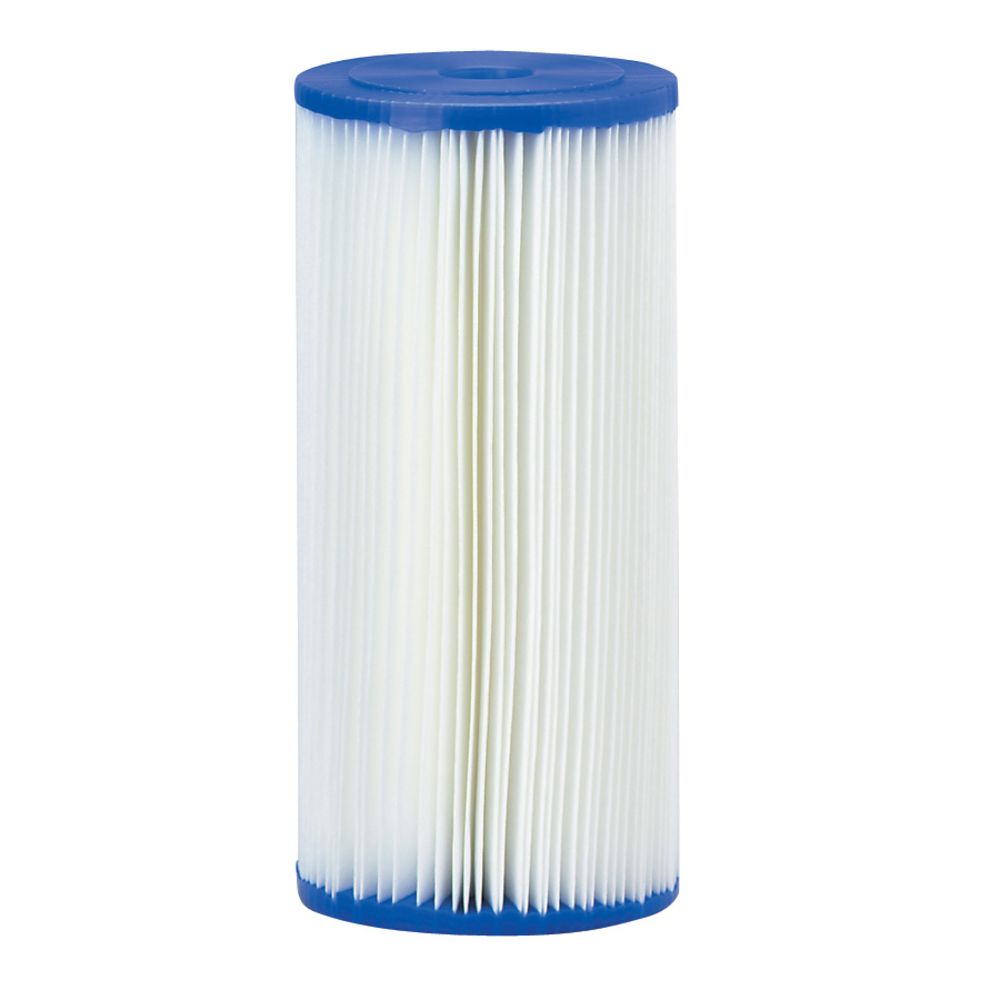

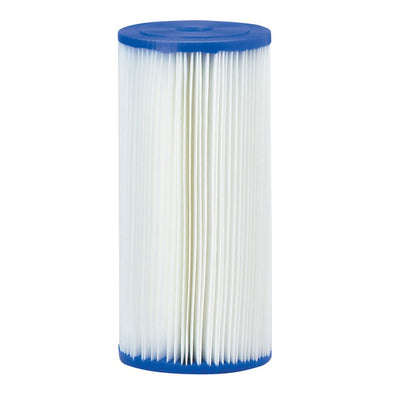

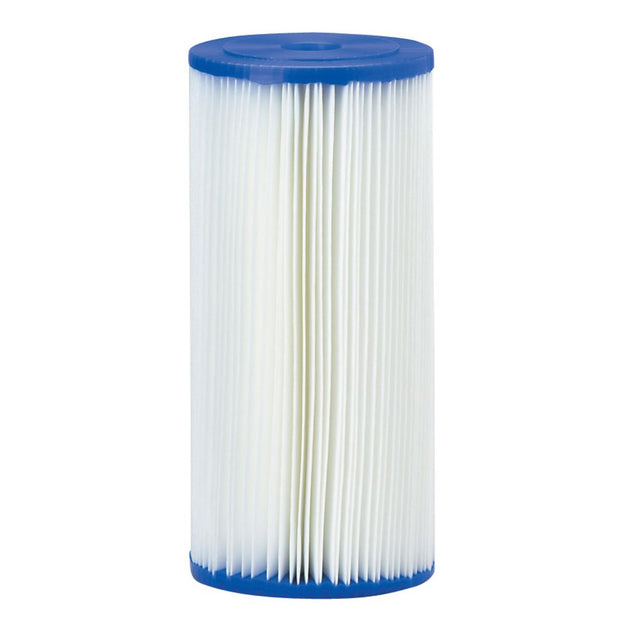

Pentek R50-BB Whole House Pleated Polyester 50 mic Filter
Part Number: 155053
Alt. Part Number: 155053-43, 155053-06, R50BB
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The 10" Pentek R Series water filter cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The Pentek R50BB filter media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.
Features:
- Replacement Filter for Culligan HD-950 & most other 10" Big Blue Filter Housings
- Produces healthier, better-tasting drinking water
- Pleated design maximizes dirt-holding capacity
- Versatile and reusable, allowing for a variety of uses
- Durable non-woven polyester media is bacteria and chemical resistant
- R50BB Filter Applications: potable water, light industrial applications, swimming pool and spa, and well water applications
WARNING!
| Product Details | |
|---|---|
Core Material | Polypropylene |
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 50 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psid @ 10 GPM |
Recommended Flow Rate | 10 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 10 GPM |
Media Type | Non-Woven Polyester |
Micron Rating | 50 µm |
| Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
| Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions | |
Product Height | 4.625 |
Product Length | 9.5 |
Product Width | 4.625 |
Product Weight (lbs) | 1.5 |
| Product Details | |
|---|---|
Core Material | Polypropylene |
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 50 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psid @ 10 GPM |
Recommended Flow Rate | 10 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 10 GPM |
Media Type | Non-Woven Polyester |
Micron Rating | 50 µm |
| Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
| Shipping Dimensions | |
Shipping Length | 19.75 in. |
Shipping Width | 10 in. |
Shipping Height | 11 in. |
| Product Weight & Dimensions | |
Product Height | 11 |
Product Length | 19.75 |
Product Width | 10 |
Product Weight (lbs) | 6.995 |
The 10" Pentek R Series water filter cartridges are manufactured from a durable, non-woven and reusable polyester fabric that is suitable for a wide range of filtration uses. The Pentek R50BB filter media is pleated around a polypropylene core for added strength and the ends are are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unified end cap and gasket. The overlap seam is sonically welded to reduce internal bypass improving filtration efficiency.
Features:
- Replacement Filter for Culligan HD-950 & most other 10" Big Blue Filter Housings
- Produces healthier, better-tasting drinking water
- Pleated design maximizes dirt-holding capacity
- Versatile and reusable, allowing for a variety of uses
- Durable non-woven polyester media is bacteria and chemical resistant
- R50BB Filter Applications: potable water, light industrial applications, swimming pool and spa, and well water applications
WARNING!
| Product Details | |
|---|---|
Core Material | Polypropylene |
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 50 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psid @ 10 GPM |
Recommended Flow Rate | 10 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 10 GPM |
Media Type | Non-Woven Polyester |
Micron Rating | 50 µm |
| Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
| Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions | |
Product Height | 4.625 |
Product Length | 9.5 |
Product Width | 4.625 |
Product Weight (lbs) | 1.5 |
| Product Details | |
|---|---|
Core Material | Polypropylene |
Initial Pressure Drop | 1 PSI Differential |
Max Temp (°F) | 125 |
Micron Rating (Nominal) | 50 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | < 1 psid @ 10 GPM |
Recommended Flow Rate | 10 GPM |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 4-1/2" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Flow Rate | 10 GPM |
Media Type | Non-Woven Polyester |
Micron Rating | 50 µm |
| Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
| Shipping Dimensions | |
Shipping Length | 19.75 in. |
Shipping Width | 10 in. |
Shipping Height | 11 in. |
| Product Weight & Dimensions | |
Product Height | 11 |
Product Length | 19.75 |
Product Width | 10 |
Product Weight (lbs) | 6.995 |
