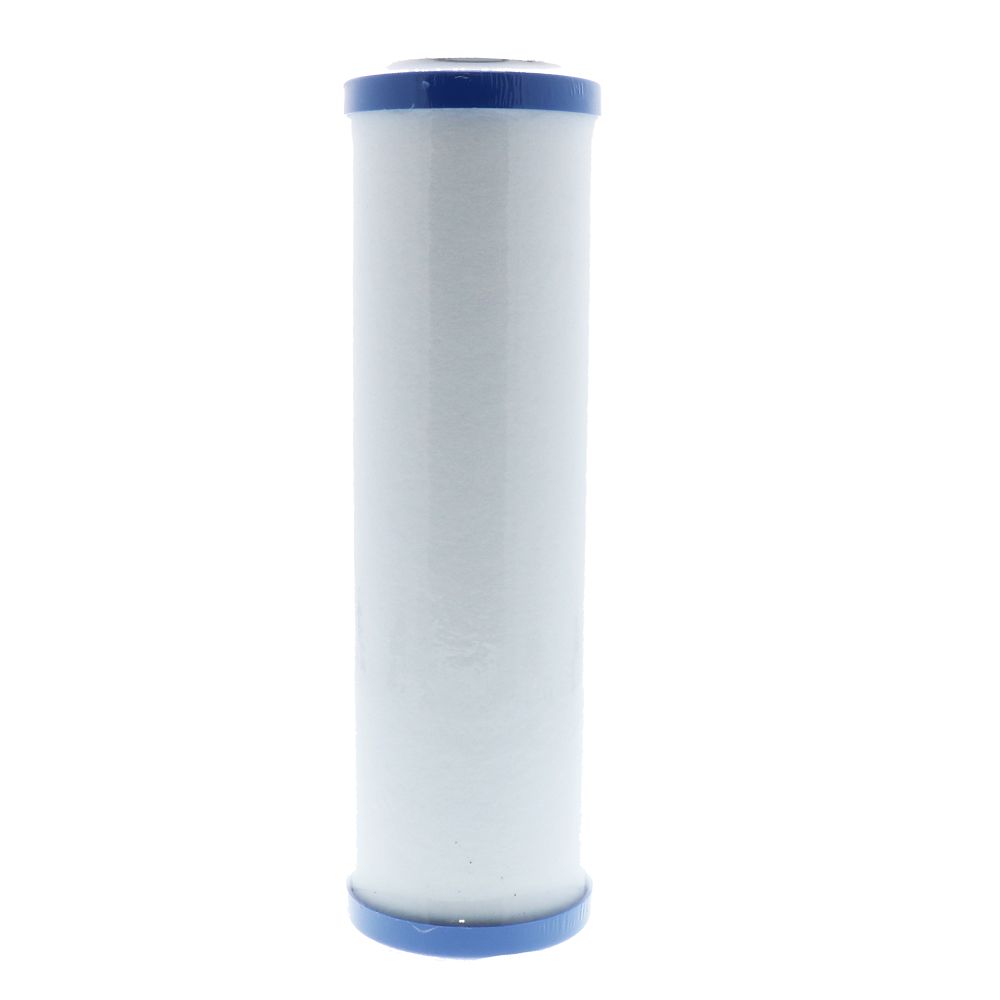

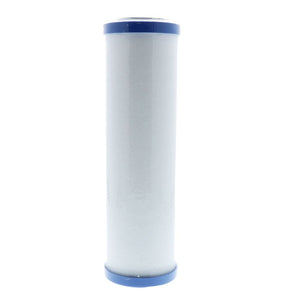

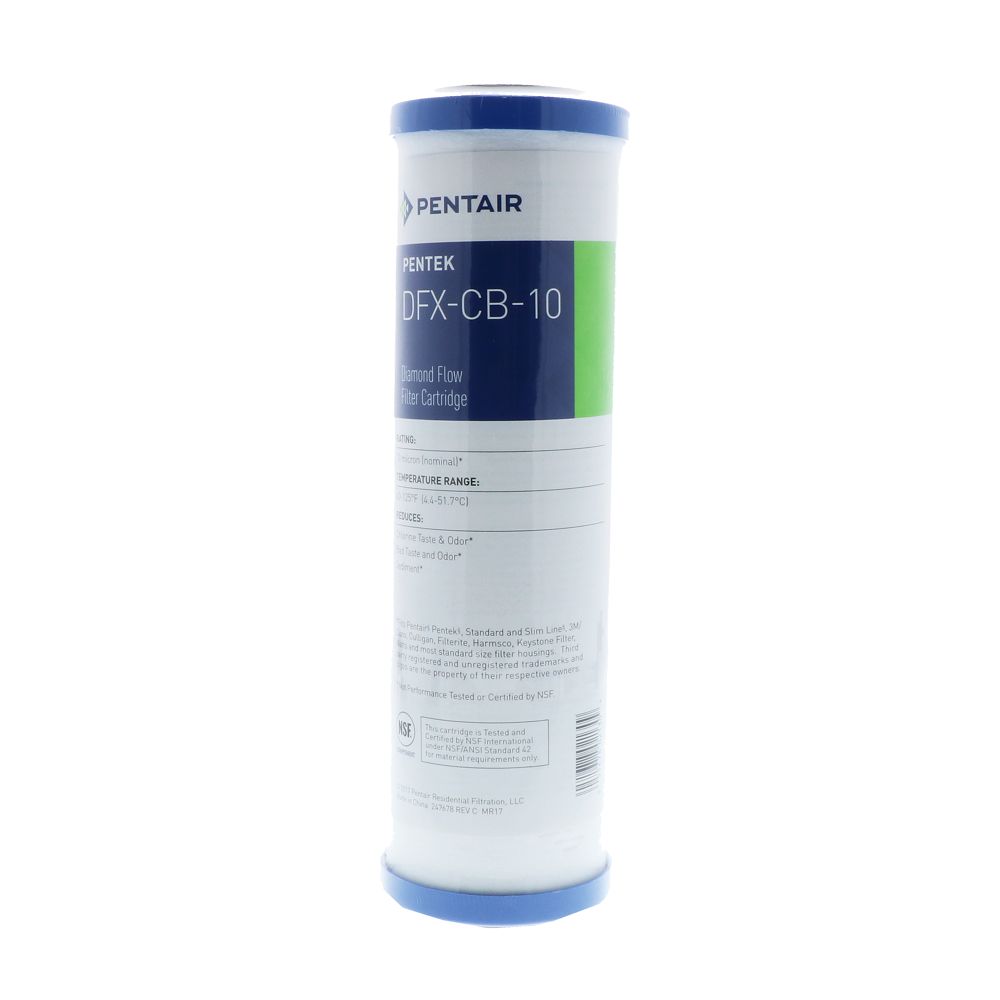

Pentek DFX-CB-10 Diamond Flow Polyspun/Carbon Block 10 mic Filter

The Pentek DFX-CB-10 offers very effective chlorine, taste, and odor reduction, coupled with superior sediment reduction. This makes it twice as resistant to premature particulate plugging than standard carbon blocks. These dual-purpose cartridges have high dirt-holding capacity with low pressure drop in POU applications. The DFX-CB-10 is well suited for both well and city water.

Specifications:

Micron Rating: 10 µm
Change Frequency: 6-12 months
Endcaps: Polypropylene
Gaskets: Buna-N
Temperature Rating: 40°F - 125°F
Dimensions: 2-7/8" x 9-7/8"
Initial Pressure Drop: 1.0 psi @ 1.0 gpm
Exterior Filter Media: Polypropylene polyspun
Interior Filter Media: Carbon block
Chlorine Reduction: 2,500 gal @ 1.0 gpm

Compatible with:

Hague®

200851

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Food & Beverage
Capacity	2,500 Gallons
Gaskets	Buna-N
Initial Pressure Drop	1.0 psi @ 1.0 Gallons Per Minute
Max Temp (°F)	125 °F
Micron Rating (Nominal)	10 µm
Min Temp (°F)	40 °F
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust Chlorine/Taste/Odor
Diameter	2-7/8"
End Cap Type	Double Open Ended (DOE)
Filter Type	Carbon Block
Flow Rate	1 GPM
Media Type	Carbon Block and Polypropylene Polyspun
Micron Rating	10 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.875
Product Length	9.875
Product Width	2.875
Product Weight (lbs)	1.25

Product Details
Application	Food & Beverage
Capacity	2,500 Gallons
Gaskets	Buna-N
Initial Pressure Drop	1.0 psi @ 1.0 Gallons Per Minute
Max Temp (°F)	125 °F
Micron Rating (Nominal)	10 µm
Min Temp (°F)	40 °F
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust Chlorine/Taste/Odor
Diameter	2-7/8"
End Cap Type	Double Open Ended (DOE)
Filter Type	Carbon Block
Flow Rate	1 GPM
Media Type	Carbon Block and Polypropylene Polyspun
Micron Rating	10 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	13.25 in.
Shipping Width	10.25 in.
Shipping Height	11 in.
Product Weight & Dimensions
Product Height	11
Product Length	13.25
Product Width	10.25
Product Weight (lbs)	10.973
