Pentek

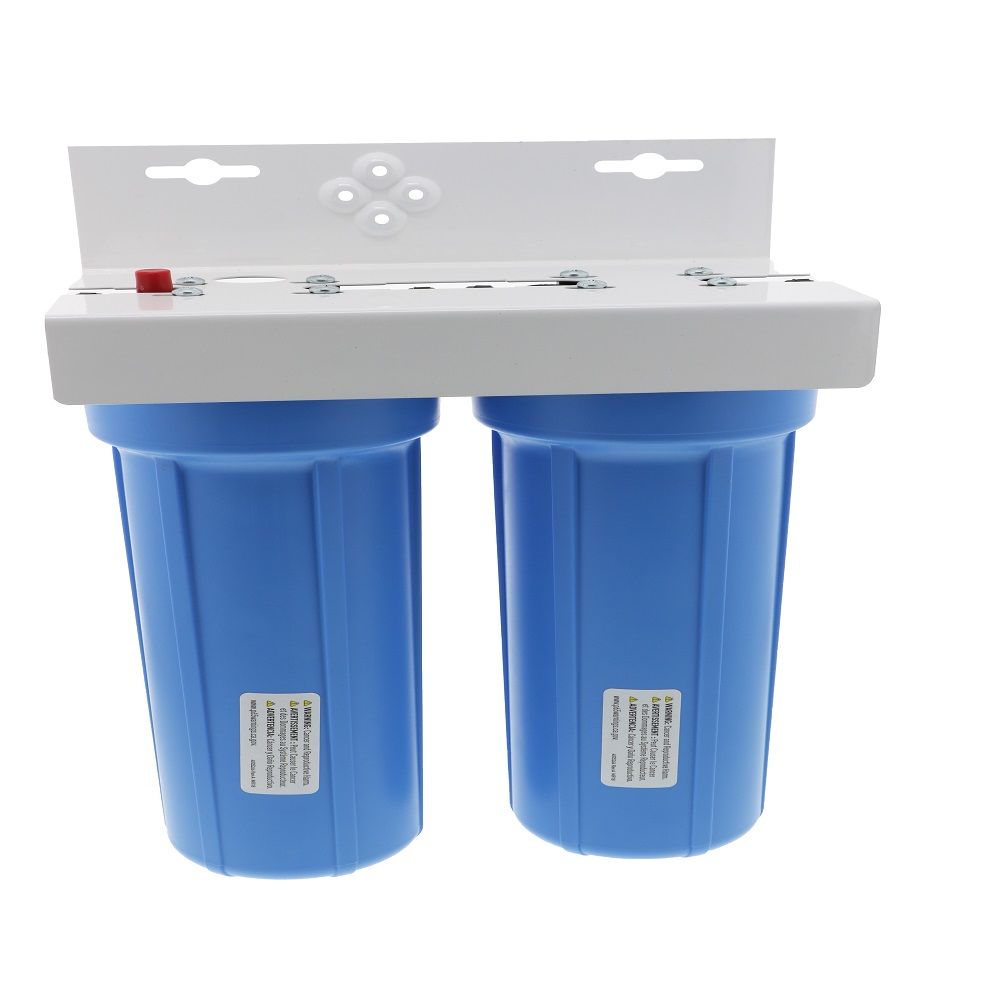

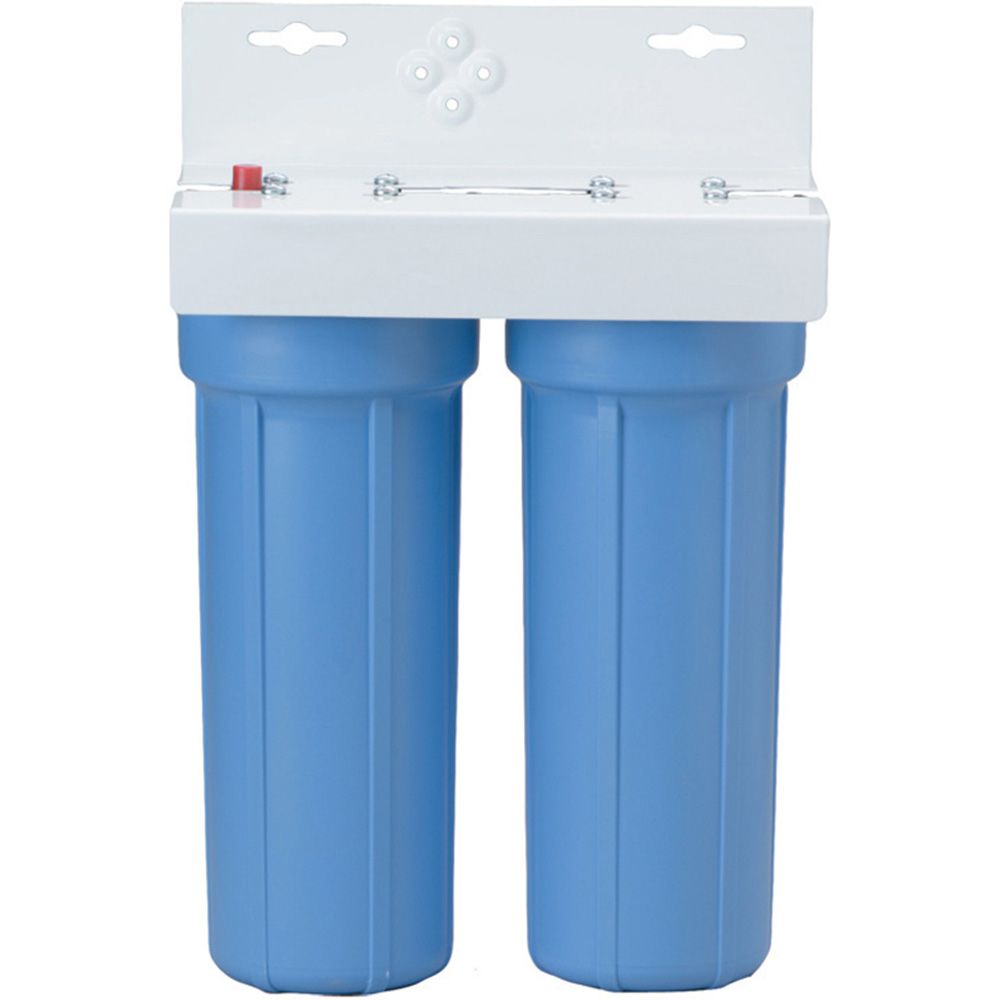

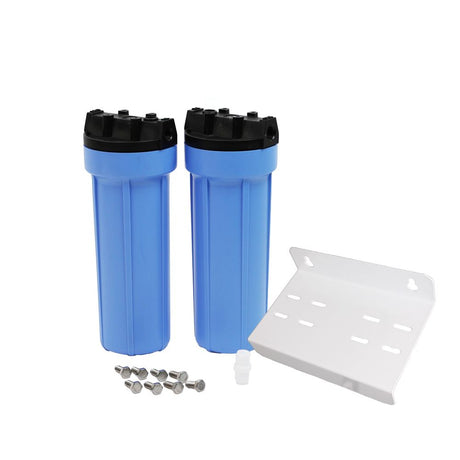

Pentek BFS-201 Slim Line Filter Housing System - 3/8" FPT

Part Number: 160196

In Stock

out of stock

In Stock

$59.95


The Pentek BFS-201 Slim Line Filter Housing System includes two 10" slim-line housings with 3/8" inlet and outlet ports. This housing system can be used with any combination of filters to provide the highest quality water for your specific application. Pentek BFS-201 Slim Line Filter Housing System is ideal for residential or small commercial applications.

Specifications:
  • Filters Not Included
  • Construction: Polypropylene
  • Two 10" Slim Line Housings
  • Inlet & Outlet Ports: 3/8"
  • Housing Quantity: 2
  • Pressure Relief Valve
  • Pre-assembled
  • Max Dimensions: 10-1/2" x 5-1/4" x 14"
  • Max Pressure: 125 psi
  • Max Flow Rate: 10 gpm
  • Max Temperature: 100° F
  • O-rings: Buna-N
  • Applications: Residential and commercial

The Pentek BFS-201 Housing System will accommodate any standard 10" filters, making it fully customizable to your filtration needs. See below for a few filter suggestions based on application.
Applications Filter Suggestions
Sediment Filtration PS-27097-05 Standard Efficiency Pleated Filter
Carbon Filtration CT01-2510 Carbon Block Cartridge
Deionization DI-3 Mixbed Cartridge
Fluoride Reduction AF-10-1091 Fluoride Reduction Filter
Water Softening WS-1-10 Water Softening Filter


Weight & Dimensions

Case Dimensions

10-1/2" x 5-1/4" x 14"

Details

Cap Color

White

Features

Pressure Relief; Includes Filters Not Included

Inlet/Outlet Size

3/8"

Material Of Construction

Polypropylene

Max Flow Rate

10 Gallons Per Minute

Max Operating Pressure

125 PSI

Max Operating Temperature

100 Degrees Fahrenheit

O Rings

Buna-N


Pentek





The Pentek BFS-201 Slim Line Filter Housing System includes two 10" slim-line housings with 3/8" inlet and outlet ports. This housing system can be used with any combination of filters to provide the highest quality water for your specific application. Pentek BFS-201 Slim Line Filter Housing System is ideal for residential or small commercial applications.

Specifications:
  • Filters Not Included
  • Construction: Polypropylene
  • Two 10" Slim Line Housings
  • Inlet & Outlet Ports: 3/8"
  • Housing Quantity: 2
  • Pressure Relief Valve
  • Pre-assembled
  • Max Dimensions: 10-1/2" x 5-1/4" x 14"
  • Max Pressure: 125 psi
  • Max Flow Rate: 10 gpm
  • Max Temperature: 100° F
  • O-rings: Buna-N
  • Applications: Residential and commercial

The Pentek BFS-201 Housing System will accommodate any standard 10" filters, making it fully customizable to your filtration needs. See below for a few filter suggestions based on application.
Applications Filter Suggestions
Sediment Filtration PS-27097-05 Standard Efficiency Pleated Filter
Carbon Filtration CT01-2510 Carbon Block Cartridge
Deionization DI-3 Mixbed Cartridge
Fluoride Reduction AF-10-1091 Fluoride Reduction Filter
Water Softening WS-1-10 Water Softening Filter

Weight & Dimensions

Case Dimensions

10-1/2" x 5-1/4" x 14"

Details

Cap Color

White

Features

Pressure Relief; Includes Filters Not Included

Inlet/Outlet Size

3/8"

Material Of Construction

Polypropylene

Max Flow Rate

10 Gallons Per Minute

Max Operating Pressure

125 PSI

Max Operating Temperature

100 Degrees Fahrenheit

O Rings

Buna-N
