Pentek

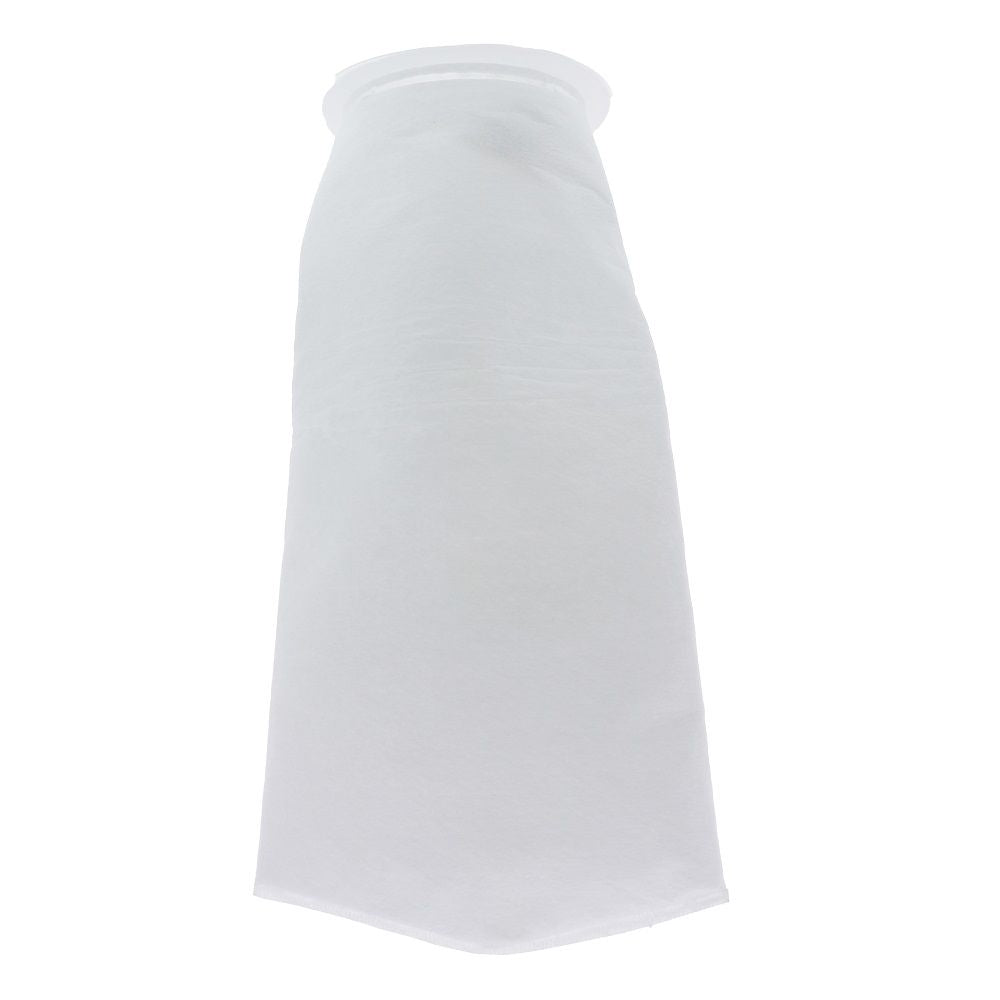

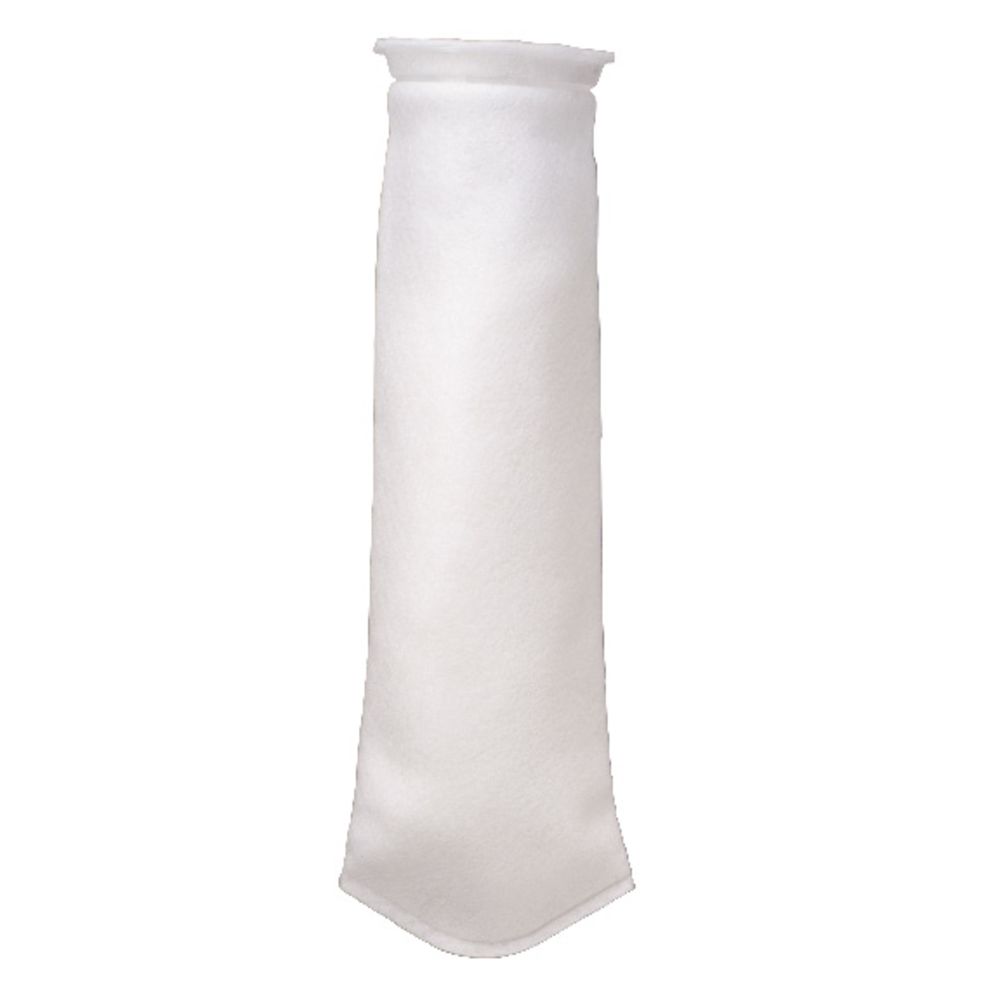

Pentek #420 Polypro Felt Bag 50 Micron

Part Number: 155392-03

Alt. Part Number: BP-420-50

In Stock

out of stock

In Stock

$5.45

Polypropylene bags are compatible with a broad range of corrosive fluids including organic solvents, oils, acids, alkalis and micro-organisms. BP Series (Polypropylene Felt) Bags. An assortment of filtration ratings is offered from 1 to 200 microns to comply with any filtration requirement. The bags are manufactured from felt because of its high solids loading capabilities, in comparison to similar mesh fabrics. The media is created by needle-punching two layers of synthetic fibers together in a supporting scrim. A glazed finish, created by melting the outermost surface fibers, is used to produce a bond that reduces the possibility of migration.

Specifications:
  • Dimensions: 4" x 18"
  • Filter Media: Glazed Polypropylene Felt
  • Micron: Available 1 to 200 micron
  • Max Temp: 200° F(93.3°C) (bags only)
  • Flow Rate: 40 gpm*
  • Sold As: 10 bag minimum purchase, 20 per case
NOTE:*Maximum flow rates for filter bags are guides only and are dependent on variables such as fluid viscosity, temperature, amount and type of contaminants, type and size of filter bag and micron rating. The maximum rates (gpm water @ 68 deg. F) are normally only achieved under ideal conditions.



Weight & Dimensions

Approx Length (Inches)

18" (45.7 cm)

Box Quantity

20

Cube Measurement

1.16876446759259

Height (inches)

10.7

Length (inches)

15.1

Weight (lbs)

3.8

Width (inches)

12.5

Details

Capacity

As Needed

Max Temp (°F)

200

Micron Rating (Nominal)

50 µm

Cartridge Style

Bag Filter

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4"

Filter Type

Bag Filter

Media Type

Polypropylene Felt

Micron Rating

50 µm

Product Length

18"

Top Ring

No Ring



Polypropylene bags are compatible with a broad range of corrosive fluids including organic solvents, oils, acids, alkalis and micro-organisms. BP Series (Polypropylene Felt) Bags. An assortment of filtration ratings is offered from 1 to 200 microns to comply with any filtration requirement. The bags are manufactured from felt because of its high solids loading capabilities, in comparison to similar mesh fabrics. The media is created by needle-punching two layers of synthetic fibers together in a supporting scrim. A glazed finish, created by melting the outermost surface fibers, is used to produce a bond that reduces the possibility of migration.

Specifications:
  • Dimensions: 4" x 18"
  • Filter Media: Glazed Polypropylene Felt
  • Micron: Available 1 to 200 micron
  • Max Temp: 200° F(93.3°C) (bags only)
  • Flow Rate: 40 gpm*
  • Sold As: 10 bag minimum purchase, 20 per case
NOTE:*Maximum flow rates for filter bags are guides only and are dependent on variables such as fluid viscosity, temperature, amount and type of contaminants, type and size of filter bag and micron rating. The maximum rates (gpm water @ 68 deg. F) are normally only achieved under ideal conditions.


Weight & Dimensions

Approx Length (Inches)

18" (45.7 cm)

Box Quantity

20

Cube Measurement

1.16876446759259

Height (inches)

10.7

Length (inches)

15.1

Weight (lbs)

3.8

Width (inches)

12.5

Details

Capacity

As Needed

Max Temp (°F)

200

Micron Rating (Nominal)

50 µm

Cartridge Style

Bag Filter

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

4"

Filter Type

Bag Filter

Media Type

Polypropylene Felt

Micron Rating

50 µm

Product Length

18"

Top Ring

No Ring
