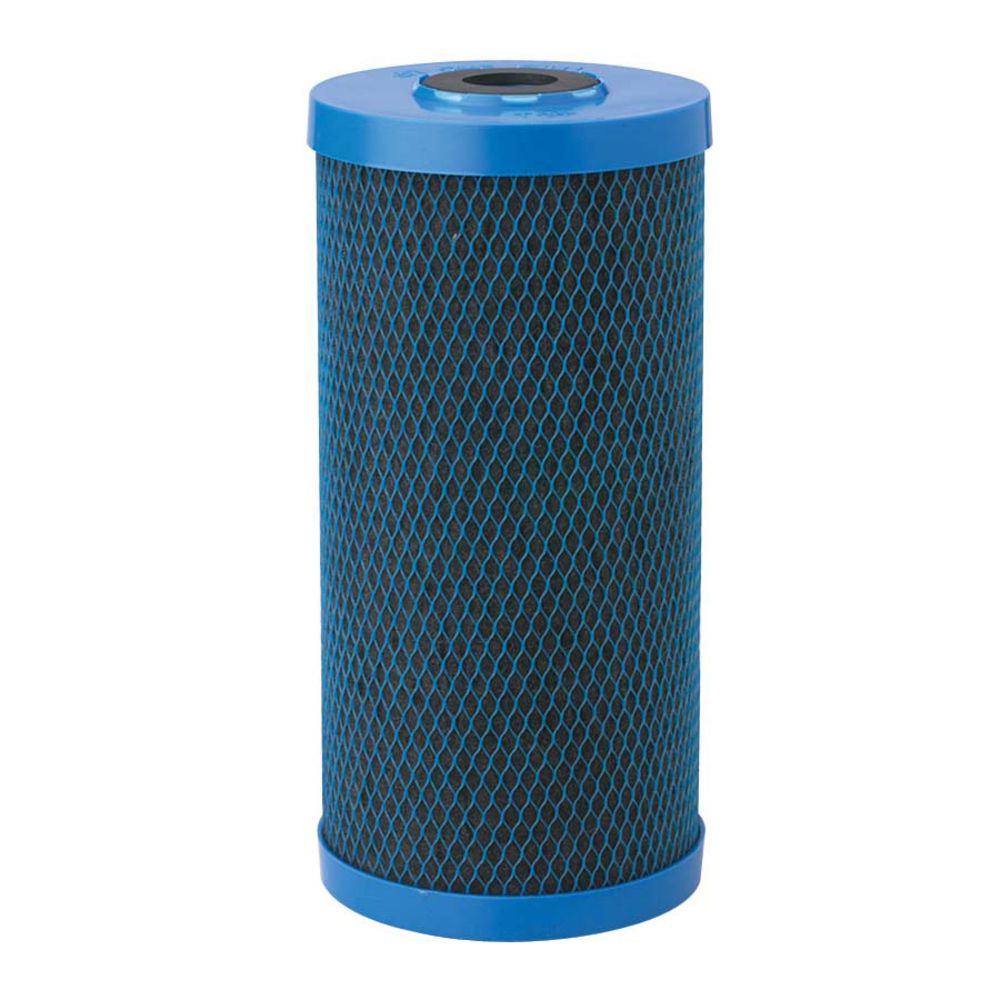

Pentek 255677-43 CFB-Plus10BB Fibredyne Modified Carbon Block 5 mic Filter

The Pentek CFB-Plus10BB Fibredyne big blue water filter cartridges are an enhanced version of our CFB product. It offers the same benefits with even greater chlorine taste & odor reduction and the highest sediment reduction found in a carbon cartridge.
CFB-Plus Series products are modified molded blocks manufactured using our proprietary Fibredyne technology. This technology creates a unique filter media by attaching powdered activated carbon onto a cellulose-free synthetic fiber matrix. The result is a single cartridge that combines the benefits of both a sediment filter and a carbon block into a single cartridge. Fibredyne's carbon block technology also offers up to two times the chlorine taste & odor reduction and dirt-holding capacity of traditional blocks.* In addition, this technology will not release fines into the effluent stream due to a unique post-filtration layer that is fused to the carbon/fiber media blend. CFB-Plus Series cartridges are manufactured entirely from FDA-compliant materials, making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.

Features:

Greater chlorine taste & odor reduction and the highest sediment reduction found in a carbon cartridge
Combines the benefits of both a sediment filter and a carbon block into a single cartridge
Offers up to two times the chlorine taste & odor reduction and dirt-holding capacity of traditional blocks
Will not release fines into the effluent stream
Manufactured entirely from FDA-compliant materials
Ideal choice for a wide range of residential, food service, commercial and industrial applications

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Capacity	25,000 Gallons
Gaskets	Santoprene
Initial Pressure Drop	2.5 PSI Differential
Max Temp (°F)	180 °F
Micron Rating (Nominal)	5 µm
Min Temp (°F)	40 °F
Netting	Polyethylene
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust Chlorine/Taste/Odor
Diameter	4-5/8"
End Cap Type	Double Open Ended (DOE)
Filter Type	Fibredyne
Flow Rate	2 GPM
Media Type	Bonded Powdered Activated Carbon (PAC)
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.625
Product Length	9.75
Product Width	4.625
Product Weight (lbs)	2

Product Details
Capacity	25,000 Gallons
Gaskets	Santoprene
Initial Pressure Drop	2.5 PSI Differential
Max Temp (°F)	180 °F
Micron Rating (Nominal)	5 µm
Min Temp (°F)	40 °F
Netting	Polyethylene
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Contaminants Reduced	Sediment/Dirt/Rust Chlorine/Taste/Odor
Diameter	4-5/8"
End Cap Type	Double Open Ended (DOE)
Filter Type	Fibredyne
Flow Rate	2 GPM
Media Type	Bonded Powdered Activated Carbon (PAC)
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	19.5 in.
Shipping Width	14.5 in.
Shipping Height	10.5 in.
Product Weight & Dimensions
Product Height	10.5
Product Length	19.5
Product Width	14.5
Product Weight (lbs)	17.356
