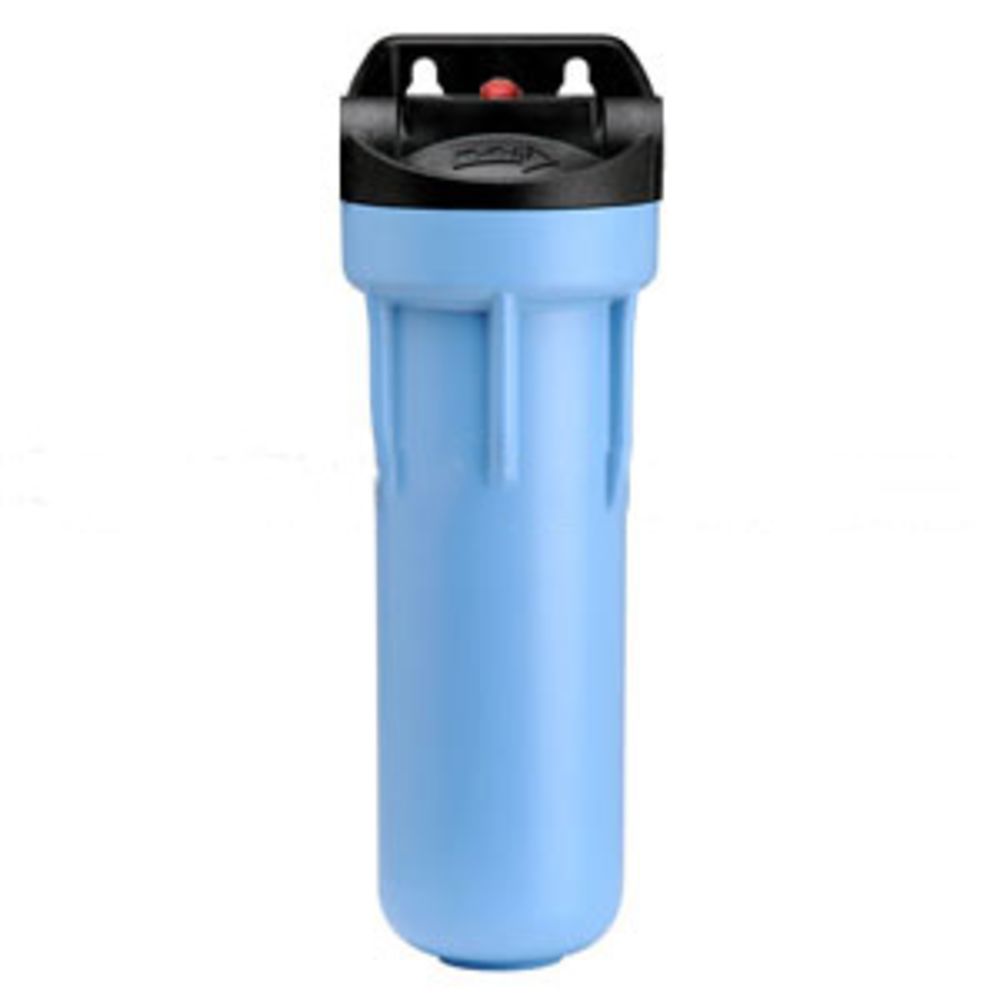

Pentek 158636 10" 3G Slim Line Filter Housing 1/4" Blue Sump IB w/ PR
Part Number: 158636
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Pentek 10" 3G Slim Line Filter Housings are the perfect choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications.
Features:
- Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
- Also accepts standard size DOE (double open end) cartridges
- Accepts variety of cartridges (2½ - 3 inches in diameter x 9 7/8" tall)
- Buttress threads for additional strength and easier cartridge changes
- Leak-proof sealing with top-seated Buna-N O-ring
- Thick walls for increased strength
- Excellent chemical resistance
- Cap has integrated bracket and pressure relief button
Refer to this chart for Filter Cartridge recommendations:
Size | Contaminant | Chlorine Reduction | VOC Reduction | Advanced* | Chloramine Reduction** |
---|---|---|---|---|---|
10" | Standard | CTO1-2510 | CTOV-2510 | CTOX-2510 | CHLM-2510 |
*Advanced: CTO/Cyst/Lead/VOC; also available in 20", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40"
Product Details | |
---|---|
Button Assembly | 300 Stainless Steel-EPDM-Polypropylene |
Cap Color | Black |
Features | Pressure Relief |
Housing Material | Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 125 |
Mounting Options | Integral Bracket |
O-Rings | Buna-N |
Outlet Connection | 1/4" FPT |
Psid@Flow Rate | 2 PSI @ 3 GPM |
Size | 1/4" |
Cap Material | Polypropylene |
Color / Finish | Blue |
Connection Type | Female (FPT) |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Product Weight & Dimensions | |
Product Height | 13-3/8" |
Product Width | 5-3/8" |
Product Weight (lbs) | 3.05 |
Pentek 10" 3G Slim Line Filter Housings are the perfect choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications.
Features:
- Housing accepts proprietary Seal-Safe double o-ring sealing cartridges
- Also accepts standard size DOE (double open end) cartridges
- Accepts variety of cartridges (2½ - 3 inches in diameter x 9 7/8" tall)
- Buttress threads for additional strength and easier cartridge changes
- Leak-proof sealing with top-seated Buna-N O-ring
- Thick walls for increased strength
- Excellent chemical resistance
- Cap has integrated bracket and pressure relief button
Refer to this chart for Filter Cartridge recommendations:
Size | Contaminant | Chlorine Reduction | VOC Reduction | Advanced* | Chloramine Reduction** |
---|---|---|---|---|---|
10" | Standard | CTO1-2510 | CTOV-2510 | CTOX-2510 | CHLM-2510 |
*Advanced: CTO/Cyst/Lead/VOC; also available in 20", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40"
Product Details | |
---|---|
Button Assembly | 300 Stainless Steel-EPDM-Polypropylene |
Cap Color | Black |
Features | Pressure Relief |
Housing Material | Polypropylene |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 125 |
Mounting Options | Integral Bracket |
O-Rings | Buna-N |
Outlet Connection | 1/4" FPT |
Psid@Flow Rate | 2 PSI @ 3 GPM |
Size | 1/4" |
Cap Material | Polypropylene |
Color / Finish | Blue |
Connection Type | Female (FPT) |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Product Weight & Dimensions | |
Product Height | 13-3/8" |
Product Width | 5-3/8" |
Product Weight (lbs) | 3.05 |
