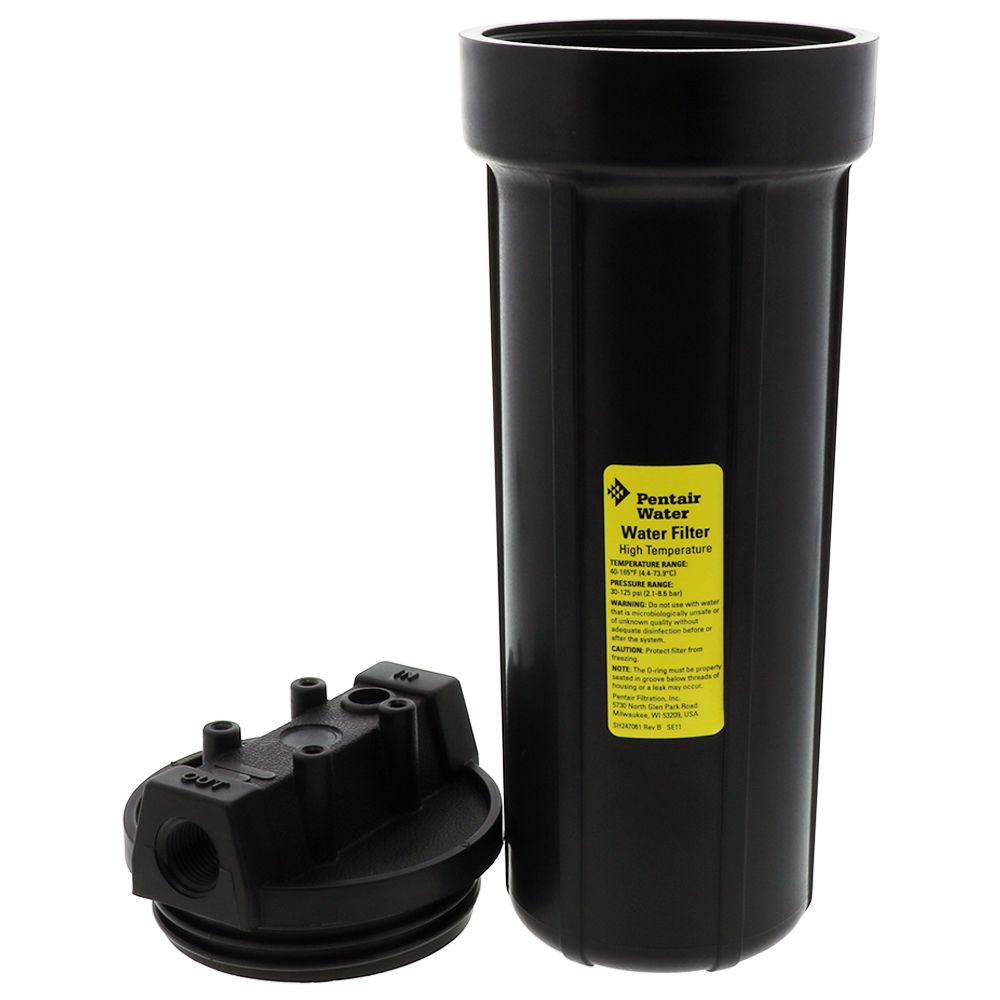

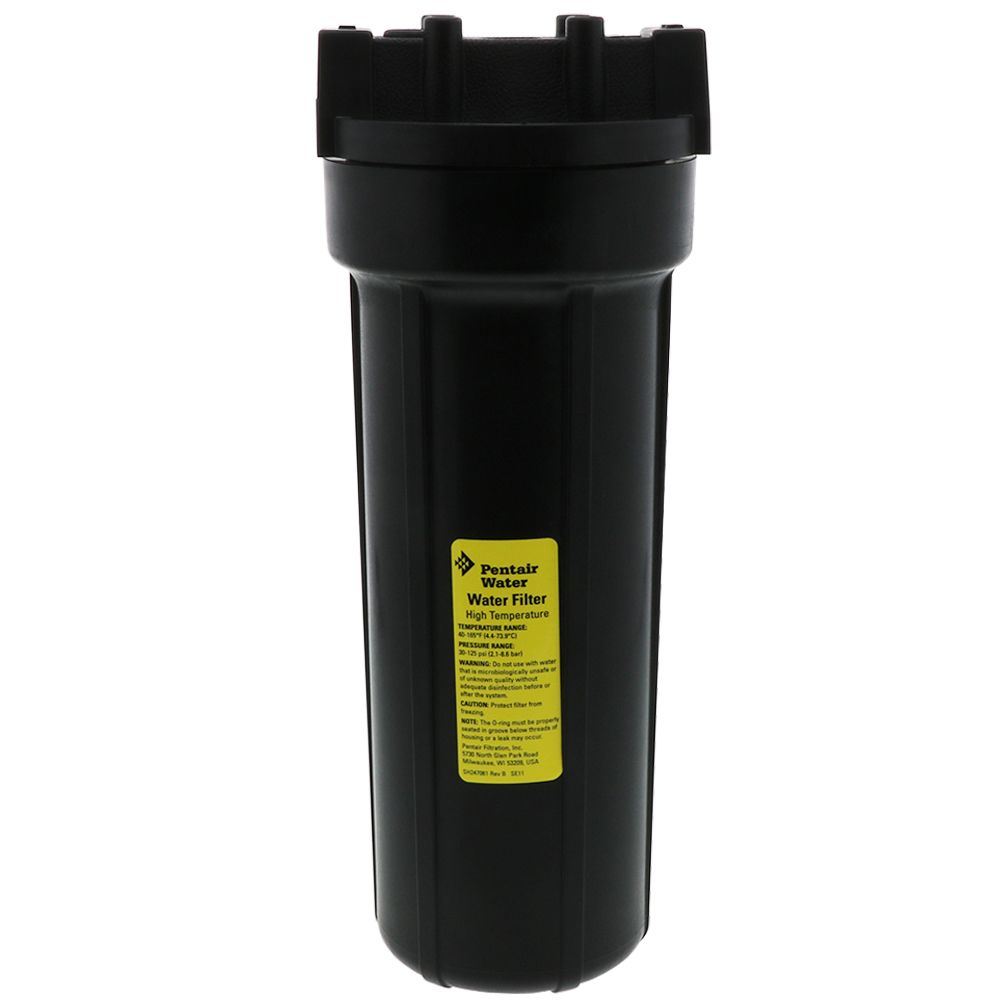

The Pentek 158319 10" Slim Line Water Filter Housing features a black glass-reinforced nylon cap and sump for high temperature applications. Pentek high temperature filter housings are an economical alternative to stainless or carbon steel housings. This 1/2" FPT housing is designed to withstand temperatures up to 160° F. The 158319 is an excellent choice for many commercial and industrial applications including those involvig organic solvents, sea water, alcohol, petroleum and vegetable oils.
Specifications:
Specifications:
- Body & Cap Material: Glass-reinforced Nylon
- O-ring Material: Viton
- Color/Finish: Black
- Pressure Relief: No
- Temperature Range: 40° - 160° F
- Max Operating Pressure: 125 PSI
Weight & Dimensions
Approx Height (Inches) | 0.1175 |
Approx Width (Inches) | 0.0438 |
Case Quantity | 12 |
Cube Measurement | 2.12681481481481 |
Height (inches) | 12.8 |
Length (inches) | 19.4 |
Weight (lbs) | 27.95 |
Width (inches) | 14.8 |
Details
Cap Color | Black |
Housing Material | Glass-reinforced Nylon |
Inlet/Outlet Connection | 1/2" FPT |
Max Temp (°F) | 160 |
Min Temp (°F) | 40 |
O-Rings | Viton |
Psid@Flow Rate | <5 PSI @ 8 GPM |
Size | 1/2" |
Color / Finish | Black |
Flow Rate | 15-20 GPM |
The Pentek 158319 10" Slim Line Water Filter Housing features a black glass-reinforced nylon cap and sump for high temperature applications. Pentek high temperature filter housings are an economical alternative to stainless or carbon steel housings. This 1/2" FPT housing is designed to withstand temperatures up to 160° F. The 158319 is an excellent choice for many commercial and industrial applications including those involvig organic solvents, sea water, alcohol, petroleum and vegetable oils.
Specifications:
- Body & Cap Material: Glass-reinforced Nylon
- O-ring Material: Viton
- Color/Finish: Black
- Pressure Relief: No
- Temperature Range: 40° - 160° F
- Max Operating Pressure: 125 PSI
Weight & Dimensions
Approx Height (Inches) | 0.1175 |
Approx Width (Inches) | 0.0438 |
Case Quantity | 12 |
Cube Measurement | 2.12681481481481 |
Height (inches) | 12.8 |
Length (inches) | 19.4 |
Weight (lbs) | 27.95 |
Width (inches) | 14.8 |
Details
Cap Color | Black |
Housing Material | Glass-reinforced Nylon |
Inlet/Outlet Connection | 1/2" FPT |
Max Temp (°F) | 160 |
Min Temp (°F) | 40 |
O-Rings | Viton |
Psid@Flow Rate | <5 PSI @ 8 GPM |
Size | 1/2" |
Color / Finish | Black |
Flow Rate | 15-20 GPM |
