Pentek

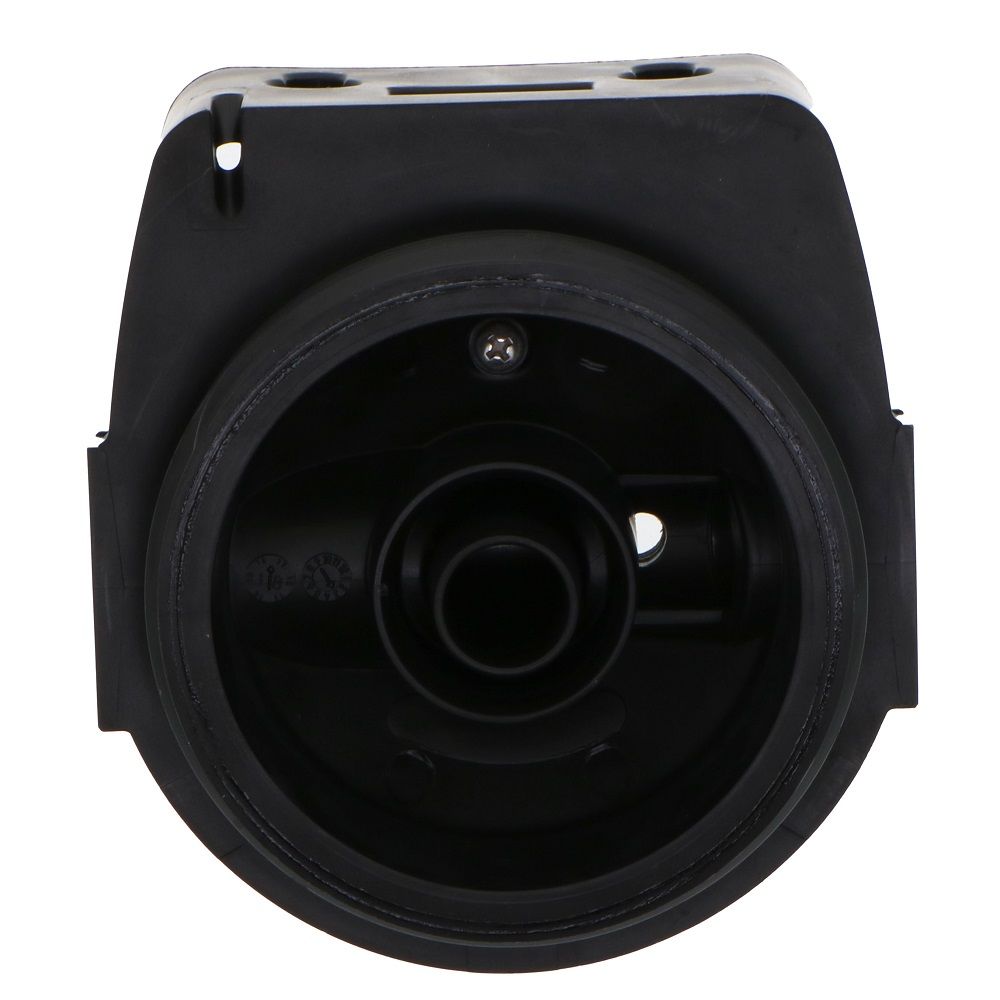

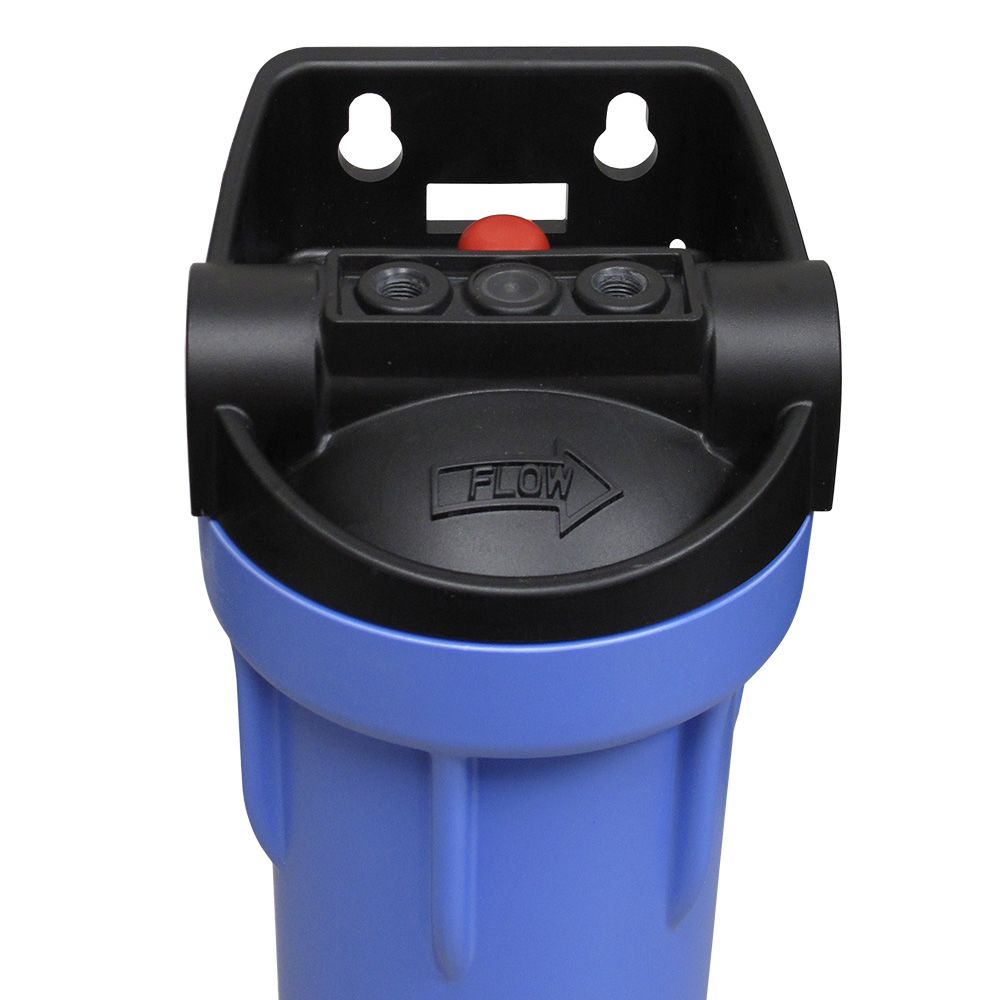

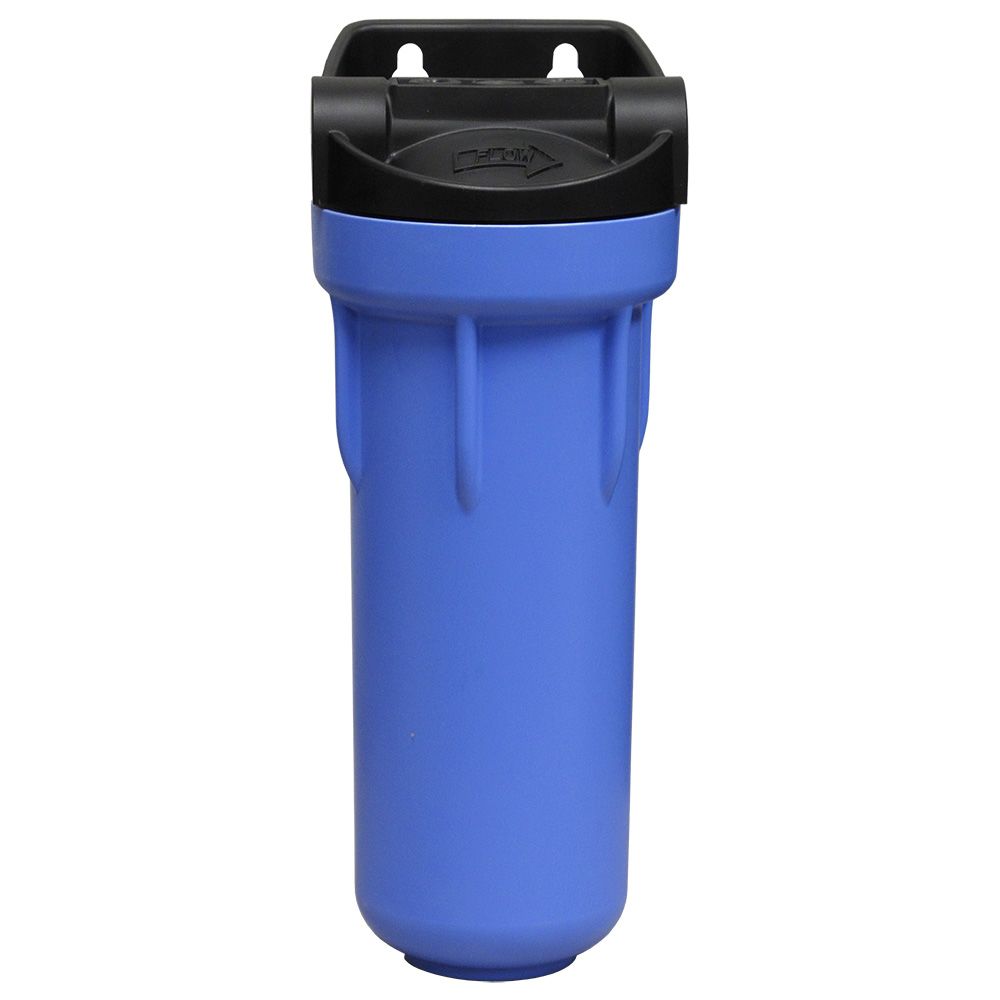

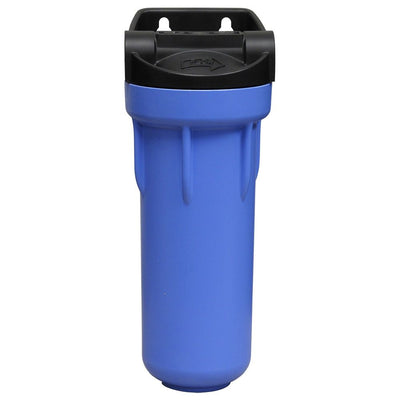

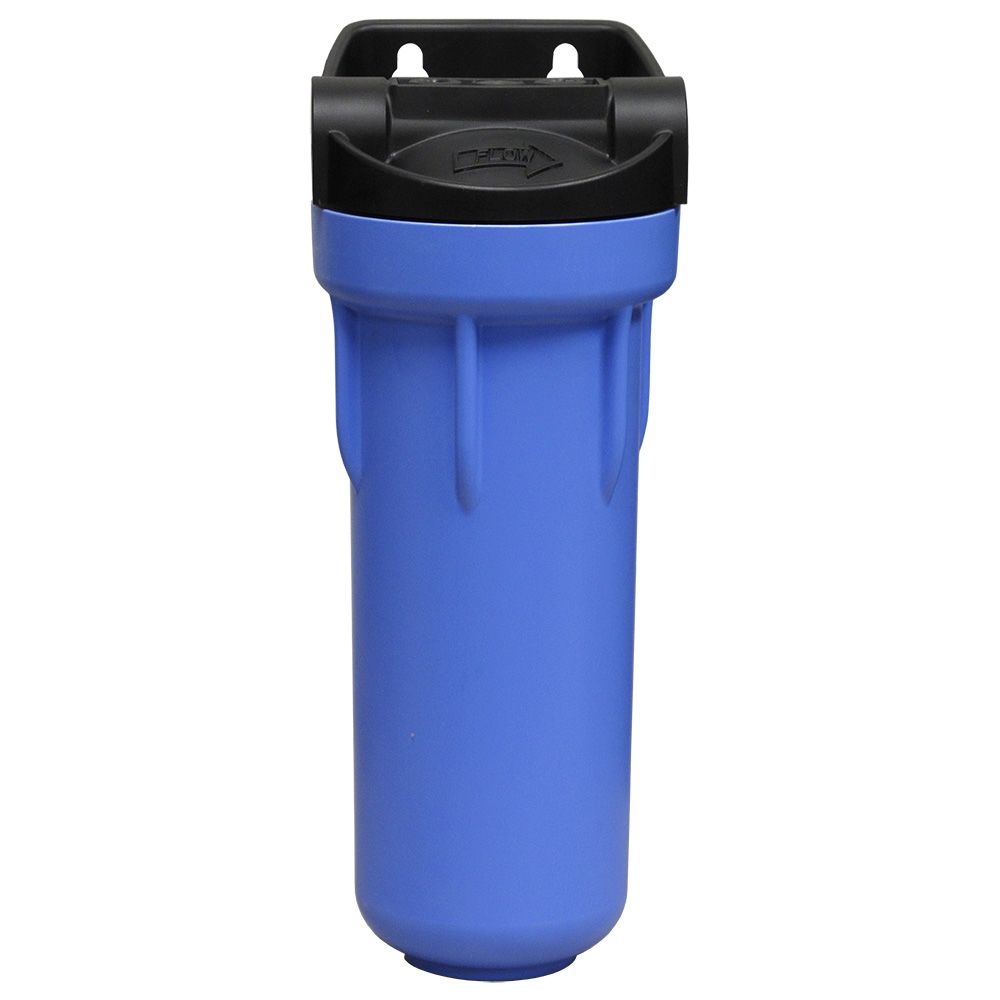

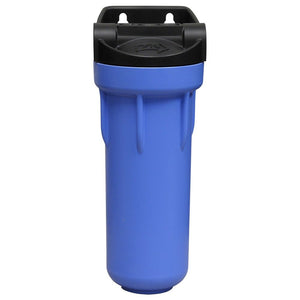

Pentek 150574 10" 3G Standard Filter Housing Black/Blue MM IB w/ PR - 3/4" FPT

Part Number: 150574

In Stock

out of stock

In Stock

$34.14

Pentek 3G Standard Filter Housings are made of durable polypropylene and features 3/4" inlet and outlet ports. Polypropylene housings offer excellent chemical resistance and accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges making them ideal for residential, commercial and industrial applications.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Buttress threads for additional strength and easier cartridge changes
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance

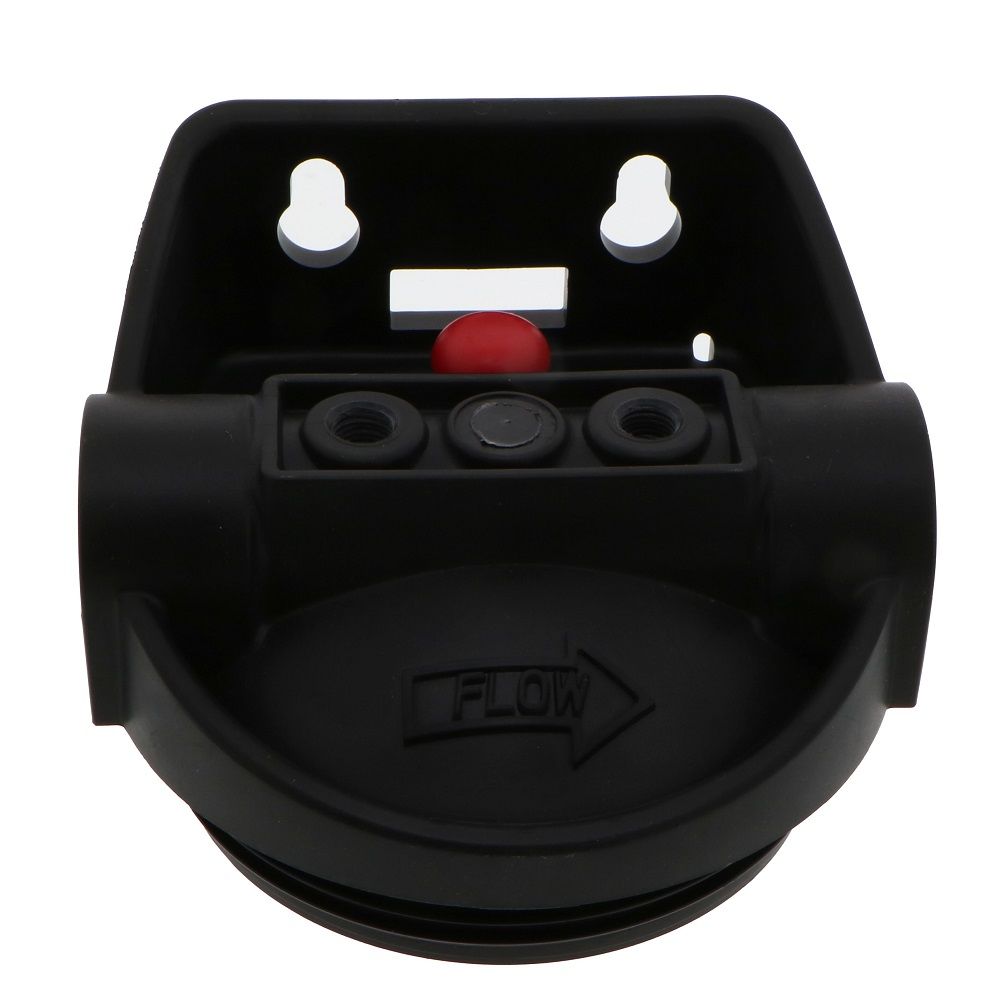

  • Integrated Mounting Bracket with Pressure Relief Button
  • Has meter mount with threaded mounting holes for pressure gauge
  • Must be used with one of the Pentek differential pressure gauges
A pressure gauge must be ordered separately. This housing will not work without a gauge installed. The Pentek 143549 or Pentek 143550 may be used.


Weight & Dimensions

Approx Length (Inches)

10 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Blue

Inlet/Outlet Size

3/4"

Material Of Construction

Polypropylene

Max Operating Pressure

125 psi (8.6 bar) PSI

Max Operating Temperature

40-125°F (4.4-51.7°C) Degrees Fahrenheit

O Rings

Buna-N

Type

3G Standard

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1 psi @ 10 gpm
