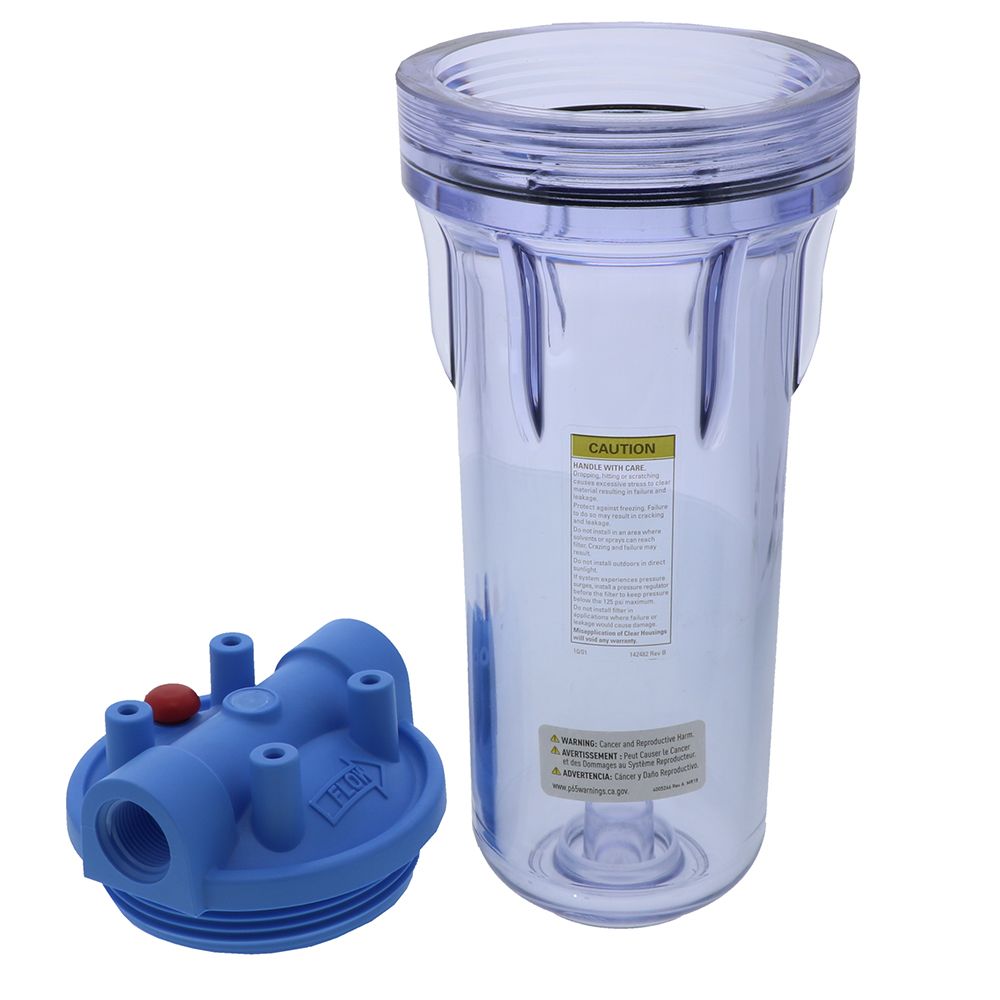

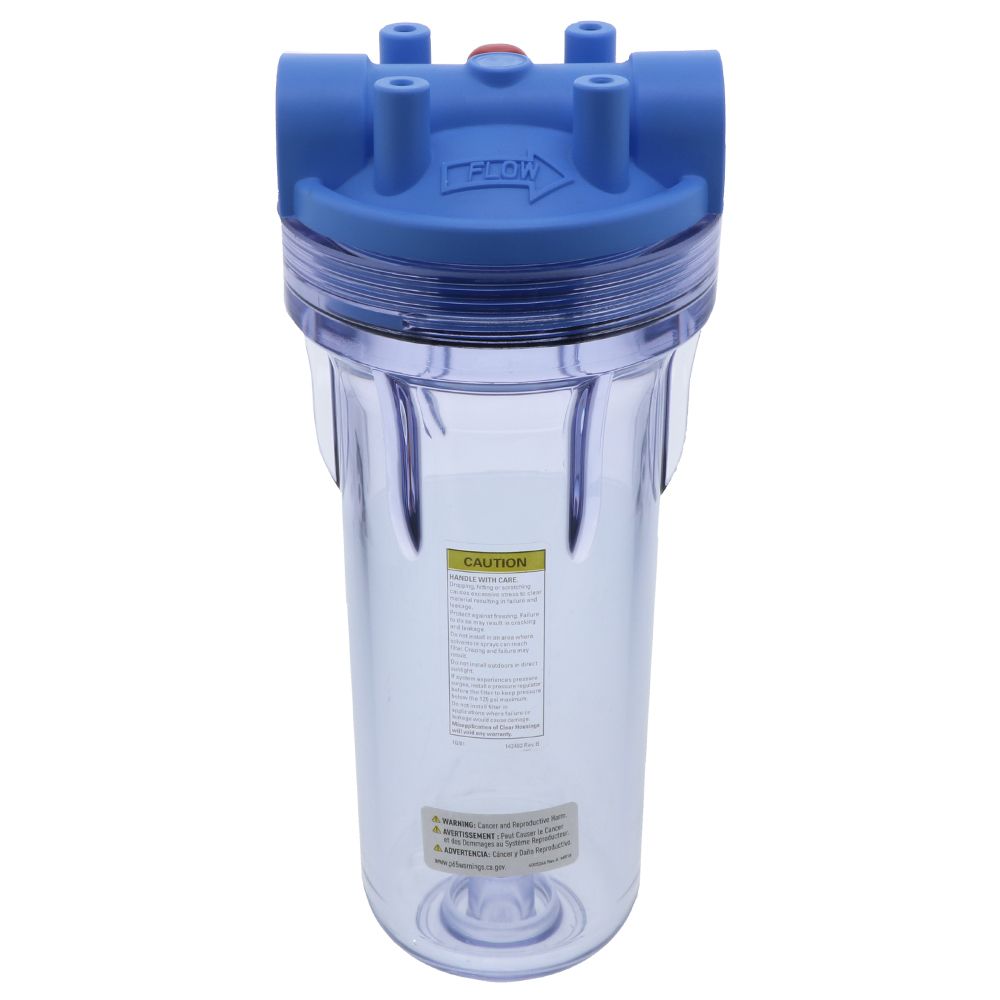

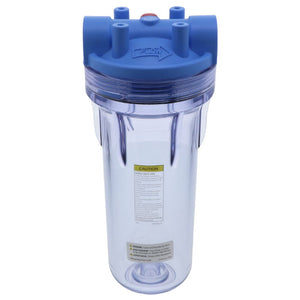

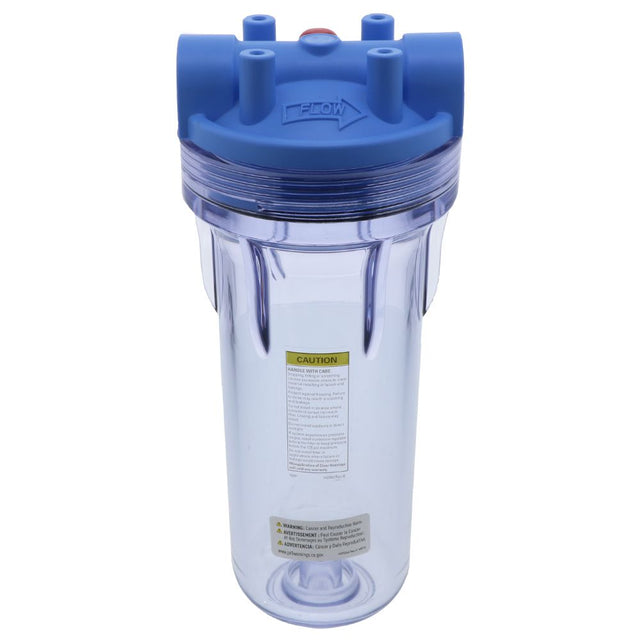

Pentek 150558 10" 3G Standard Filter Housing Blue/Clear MB w/ PR - 3/4" FPT

Part Number: 150558

In Stock

out of stock

In Stock

$29.15


Pentek 3G Standard Filter Housings are made of durable polypropylene cap and styrene-acrylonitrile (SAN) sump and features 3/4" inlet and outlet ports. Clear housings offer on-site examination of the cartridge and accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges making them ideal for residential, commercial and industrial applications.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Buttress threads for additional strength and easier cartridge changes
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance
  • Cap features mounting bosses for bracket (not included)
  • Filter cartridge sold separately
NOTE: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


Weight & Dimensions

Approx Height (Inches)

13-1/4 Inches

Approx Width (Inches)

5-3/4 Inches

Details

Cap Color

Blue

Cap Material

Polypropylene

Color / Finish

Clear

Features

Pressure Relief

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

3/4"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1 psi @10 Gallons Per Minute
