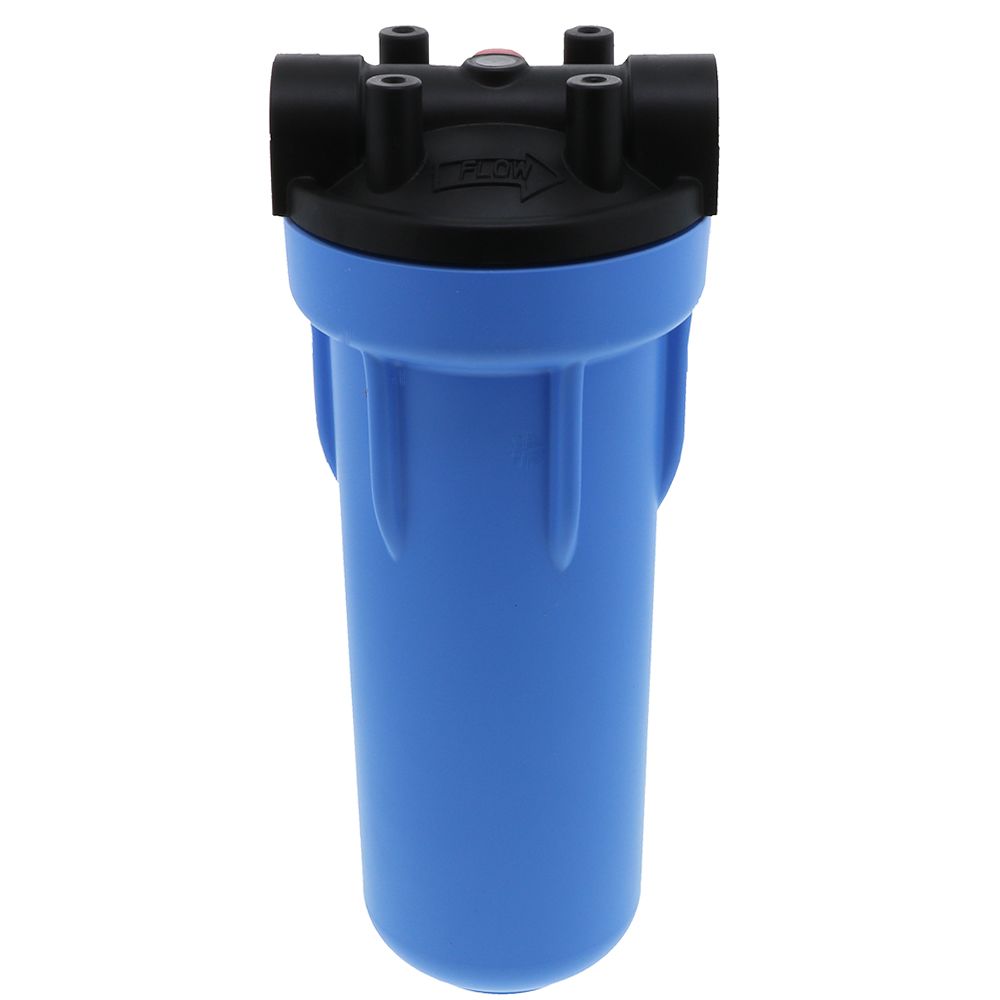

Pentek 150542 10" 3G Standard Filter Housing Black/Blue MB w/ PR - 3/4" FPT
Part Number: 150542
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Ideal for a wide range of applications, including residential, commercial and industrial
- Buttress threads for additional strength and easier cartridge changes
- Thick walls for increased strength
- Leak-proof sealing with top-seated 151120 Buna-N O-ring
- Excellent chemical resistance

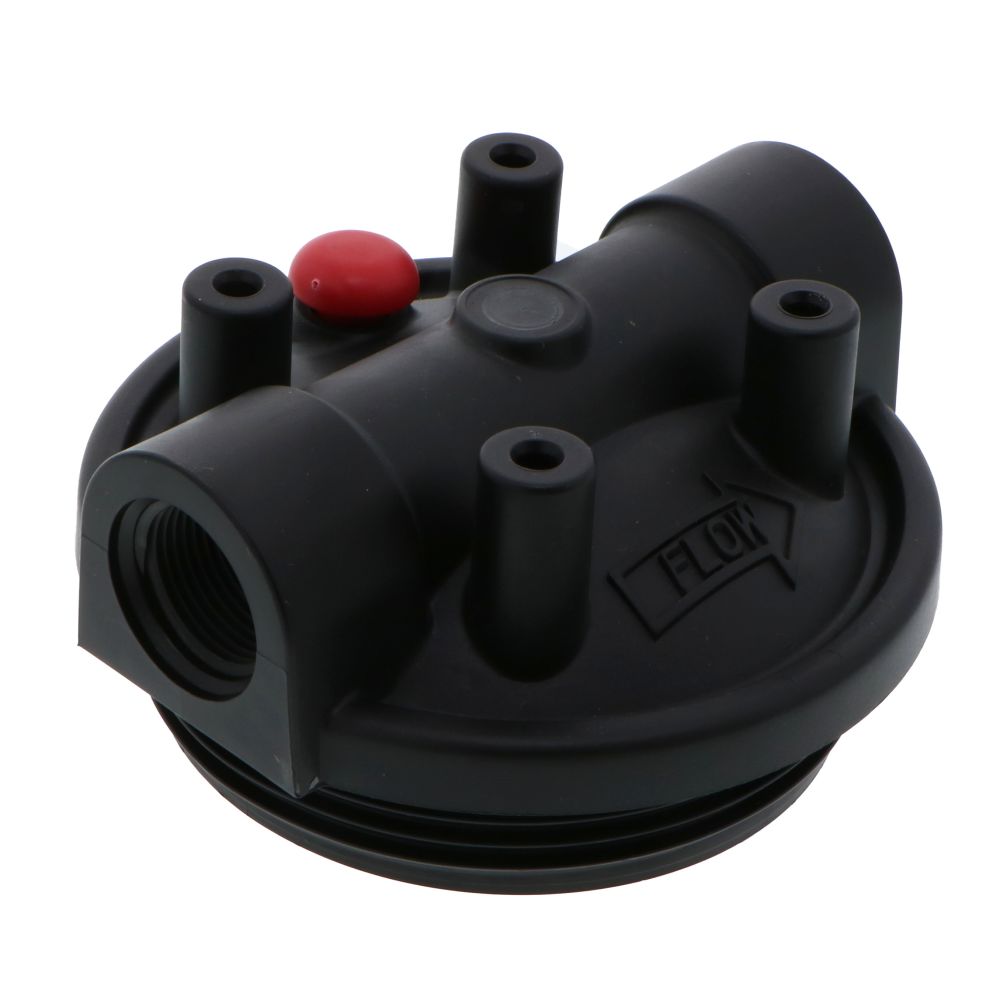

- Cap features mounting bosses for bracket (not included)
- Filter cartridge sold separately
Refer to this chart for Filter Cartridge recommendations:
Size | Contaminant | Chlorine Reduction | VOC Reduction | Advanced* | Chloramine Reduction** |
---|---|---|---|---|---|
10" | Standard | CTO1-2510 | CTOV-2510 | CTOX-2510 | CHLM-2510 |
*Advanced: CTO/Cyst/Lead/VOC; also available in 20", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40"
Product Details | |
---|---|
Button Assembly | 300 Stainless Steel-EPDM-Polypropylene |
Cap Color | Black |
Features | Pressure Relief |
Housing Material | Polypropylene |
Inlet Connection | 3/4" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 125 |
Mounting Options | Mounting Bosses |
O-Rings | Buna-N |
Outlet Connection | 3/4" FPT |
Psid@Flow Rate | 1 PSI @ 10 GPM |
Size | 10" |
Cap Material | Polypropylene |
Color / Finish | Blue |
Connection Type | Female (FPT) |
Flow Rate | 15 GPM @ 60 PSI |
Type | Standard |
Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Height | 5.125 |
Product Length | 12.75 |
Product Width | 5.125 |
Product Weight (lbs) | 3 |
Product Details | |
---|---|
Button Assembly | 300 Stainless Steel-EPDM-Polypropylene |
Cap Color | Black |
Features | Pressure Relief |
Housing Material | Polypropylene |
Inlet Connection | 3/4" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 125 |
Mounting Options | Mounting Bosses |
O-Rings | Buna-N |
Outlet Connection | 3/4" FPT |
Psid@Flow Rate | 1 PSI @ 10 GPM |
Size | 10" |
Cap Material | Polypropylene |
Color / Finish | Blue |
Connection Type | Female (FPT) |
Flow Rate | 15 GPM @ 60 PSI |
Type | Standard |
Shipping Dimensions | |
Shipping Length | 22 in. |
Shipping Width | 16.5 in. |
Shipping Height | 14 in. |
Product Weight & Dimensions | |
Product Height | 14 |
Product Length | 22 |
Product Width | 16.5 |
Product Weight (lbs) | 33.584 |
Features:
- Ideal for a wide range of applications, including residential, commercial and industrial
- Buttress threads for additional strength and easier cartridge changes
- Thick walls for increased strength
- Leak-proof sealing with top-seated 151120 Buna-N O-ring
- Excellent chemical resistance
- Cap features mounting bosses for bracket (not included)
- Filter cartridge sold separately
Refer to this chart for Filter Cartridge recommendations:
Size | Contaminant | Chlorine Reduction | VOC Reduction | Advanced* | Chloramine Reduction** |
---|---|---|---|---|---|
10" | Standard | CTO1-2510 | CTOV-2510 | CTOX-2510 | CHLM-2510 |
*Advanced: CTO/Cyst/Lead/VOC; also available in 20", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40"
