Pentek

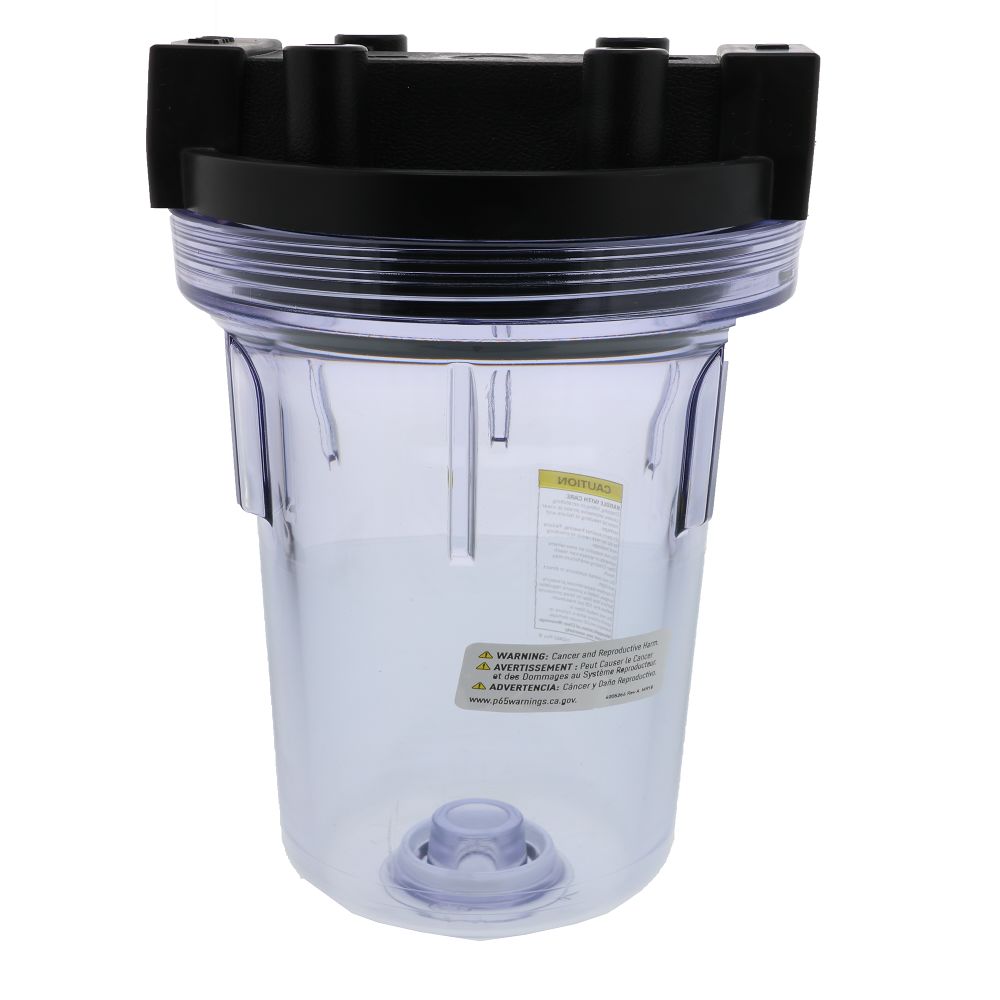

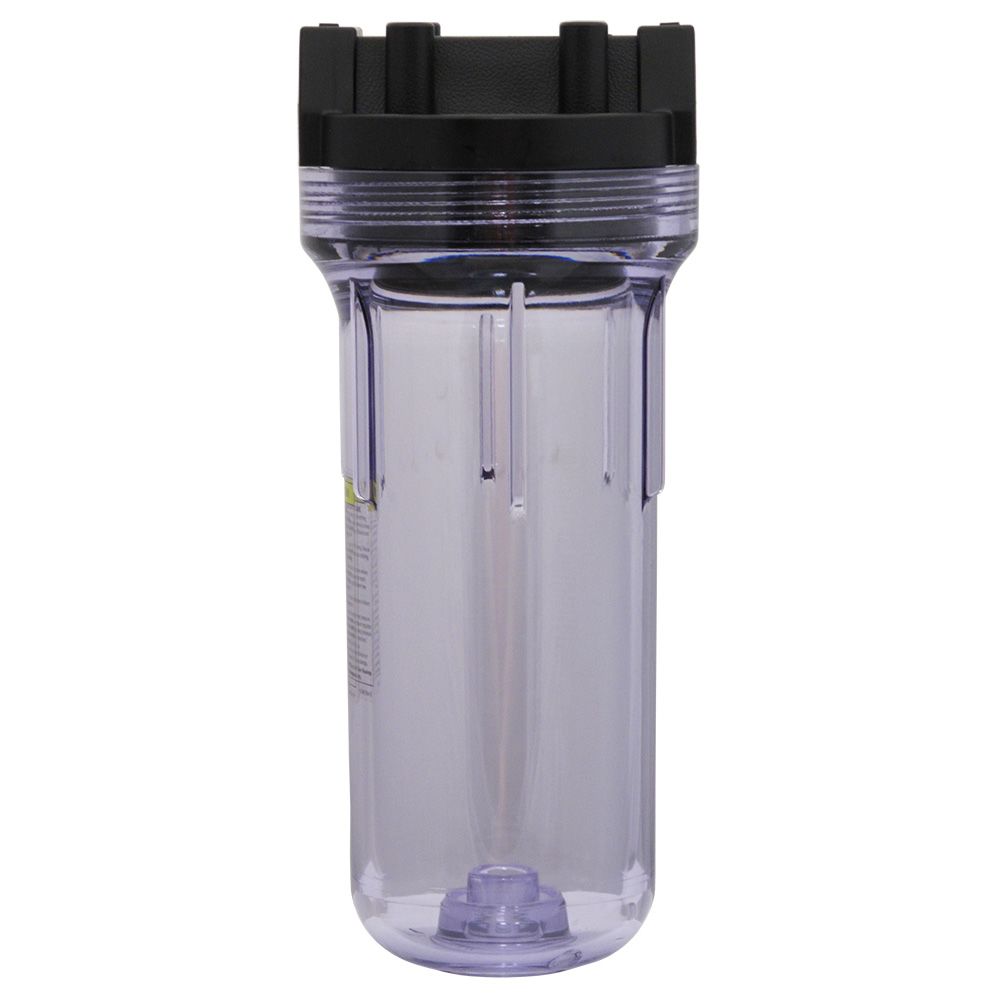

Pentek 150436 10" Standard Water Filter Housing Black/Clear No PR - 3/4" FPT

Part Number: 150436

In Stock

out of stock

In Stock

$27.05


Pentek Standard Water Filter Housings are made of durable reinforced polypropylene cap and a styrene acrylonitrile (SAN) sump and come equipped with 3/4" NPT inlet and outlet ports. The housings offer flow, performance and cartridge life and accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges making them ideal for use in a variety of low-flow applications. The clear sumps are annealed to relieve stress and to add clarity and strength.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Cap features mounting bosses for a bracket (not included)
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance

Notes:
* Filter & Mounting Bracket NOT Included

** Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


Weight & Dimensions

Approx Height (Inches)

12-5/8 Inches

Approx Width (Inches)

5-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Clear

Flow Rate

10 Gallons Per Minute

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

3/4"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Psid@Flow Rate

1

Warranty & Certifications

Certifications

NSF/ANSI 42


Pentek





Pentek Standard Water Filter Housings are made of durable reinforced polypropylene cap and a styrene acrylonitrile (SAN) sump and come equipped with 3/4" NPT inlet and outlet ports. The housings offer flow, performance and cartridge life and accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges making them ideal for use in a variety of low-flow applications. The clear sumps are annealed to relieve stress and to add clarity and strength.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Cap features mounting bosses for a bracket (not included)
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance

Notes:
* Filter & Mounting Bracket NOT Included

** Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Weight & Dimensions

Approx Height (Inches)

12-5/8 Inches

Approx Width (Inches)

5-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Clear

Flow Rate

10 Gallons Per Minute

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

3/4"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Psid@Flow Rate

1

Warranty & Certifications

Certifications

NSF/ANSI 42
