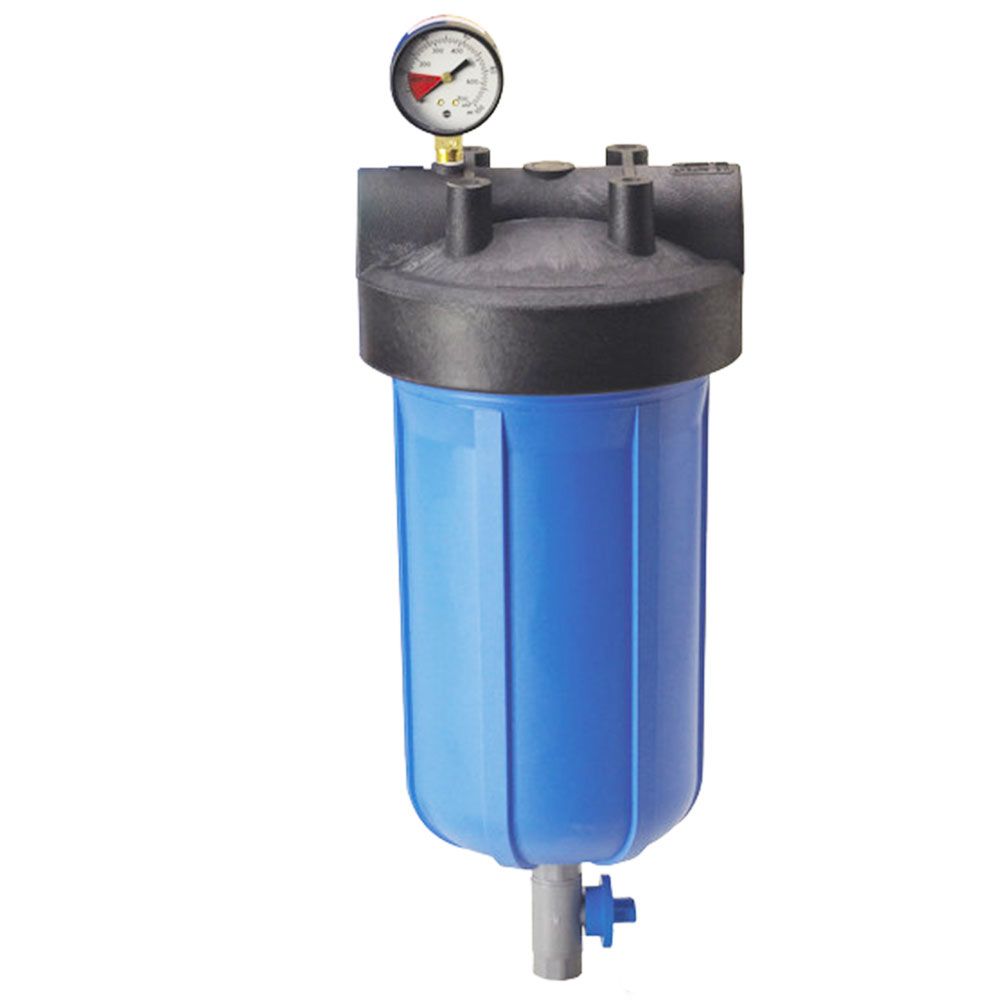

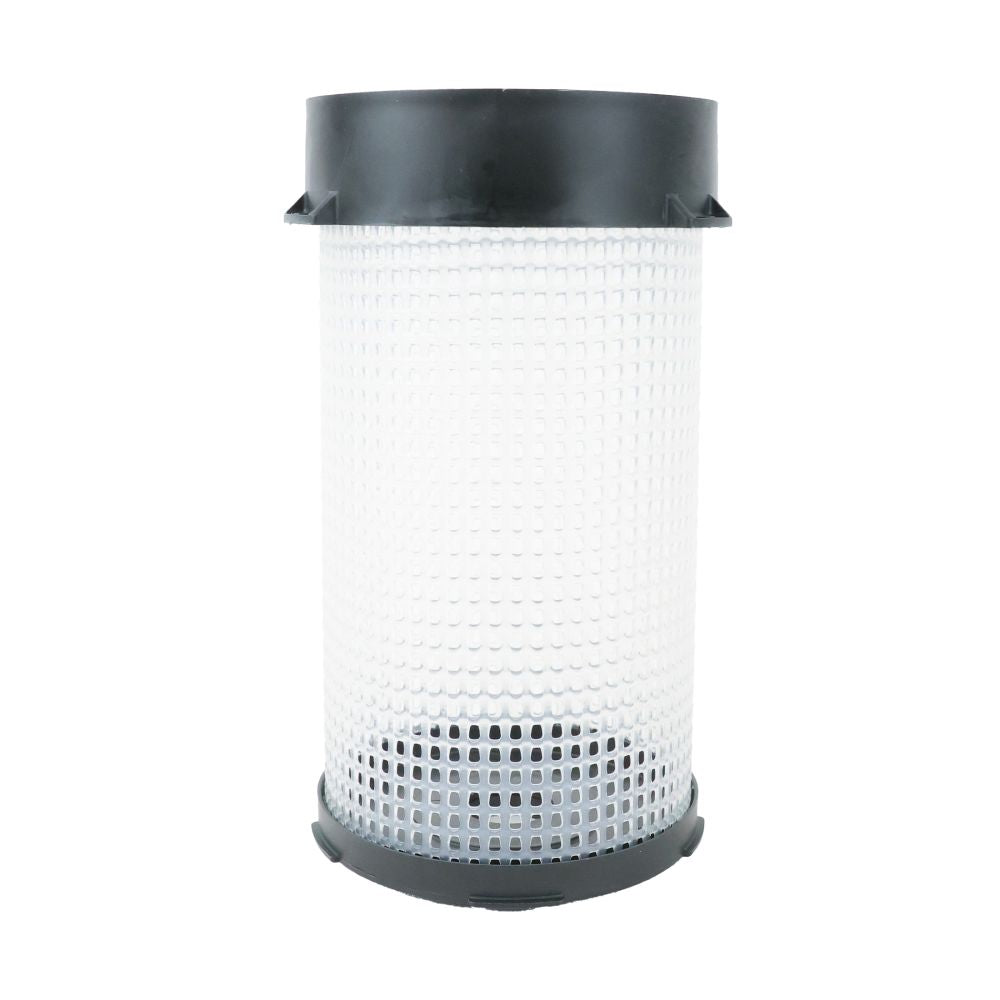

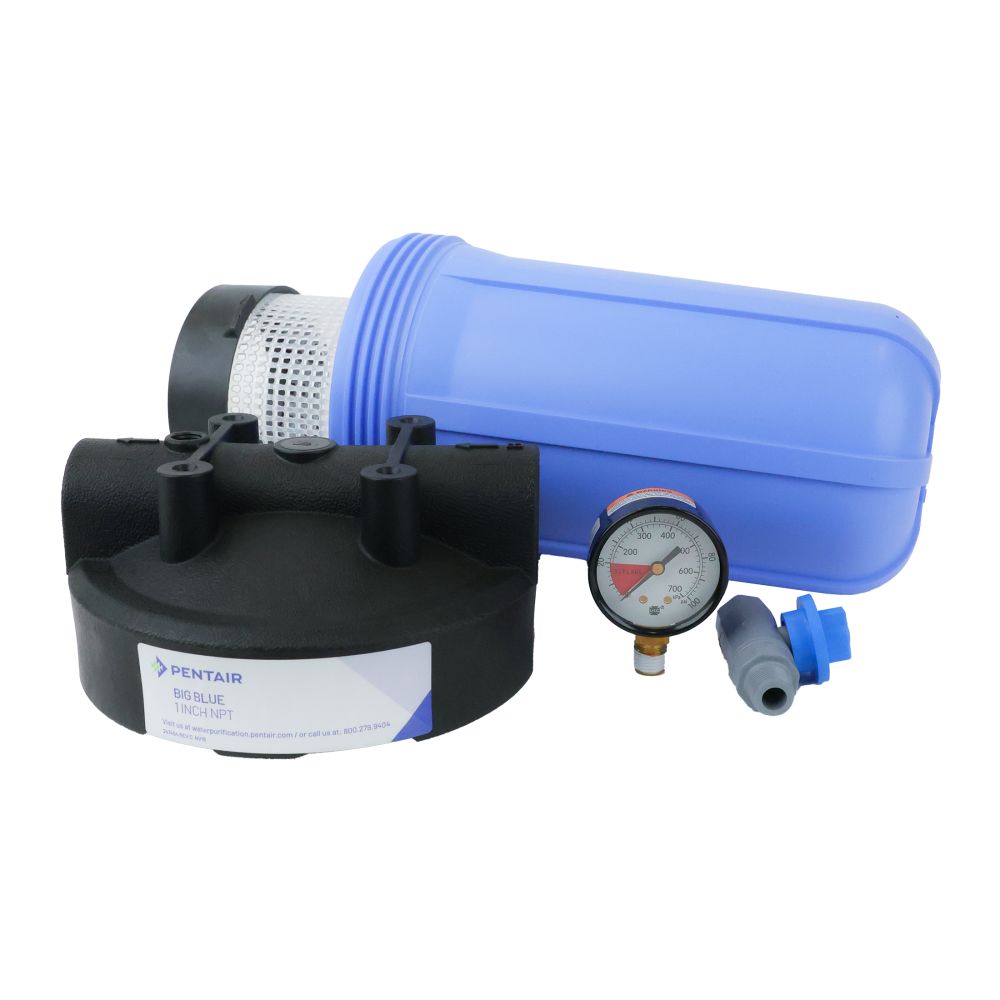

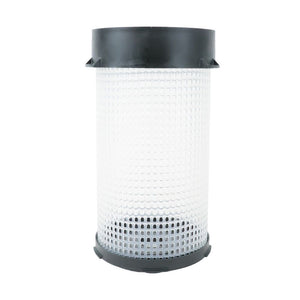

Pentek PBH-410-1 bag vessel assemblies reduce bag filter change time which minimizes down time for your system. They are made of corrosion resistant polypropylene so they give you all the strength you need without the weight. Pentek 150360 bag filter housings come complete with pressure gauge, wrench, filter basket and 3/8" drain valve.
Features:
Features:
- Accepts a standard 4" x 8.25" bag filter (#410)
- Inlet/outlet: 1" NPT
- Comes complete with pressure gauge and 3/8" drain valve

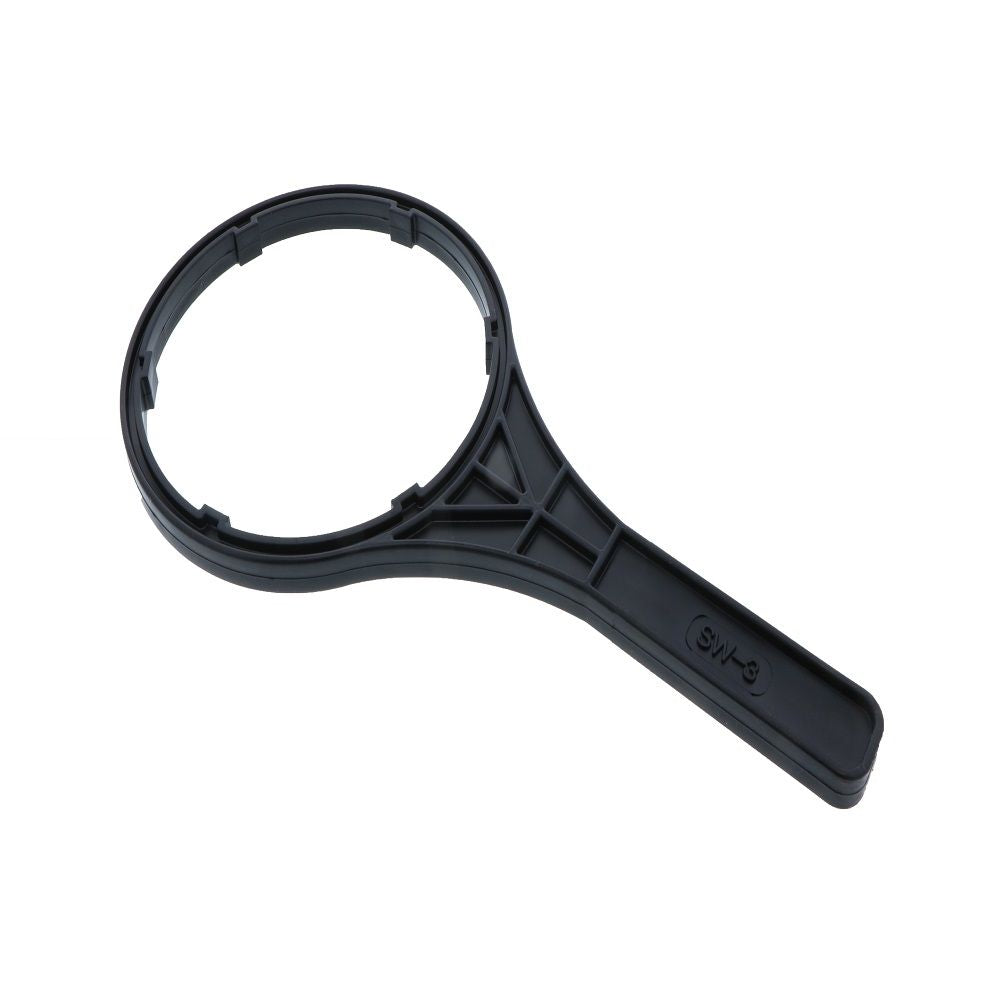

- Filter housing wrench included
- Outstanding chemical compatibility
- Use for residential, food service, commercial and industrial applications
Weight & Dimensions
Case Quantity | 1 |
Cube Measurement | 0.46875 |
Height (inches) | 14.4 |
Length (inches) | 7.5 |
Weight (lbs) | 6.25 |
Width (inches) | 7.5 |
Details
Cap Color | Black |
Drain Size | 3/8" OD |
Features | Pressure Gauge |
Housing Material | Polypropylene |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 100 |
Mounting Options | Mounting Bosses |
O-Rings | Buna-N |
Psid@Flow Rate | 1 PSI @ 15 GPM |
Size | 1" |
Cap Material | Polypropylene |
Color / Finish | Blue |
Connection Type | Female (FPT) |
Pentek PBH-410-1 bag vessel assemblies reduce bag filter change time which minimizes down time for your system. They are made of corrosion resistant polypropylene so they give you all the strength you need without the weight. Pentek 150360 bag filter housings come complete with pressure gauge, wrench, filter basket and 3/8" drain valve.
Features:
- Accepts a standard 4" x 8.25" bag filter (#410)
- Inlet/outlet: 1" NPT
- Comes complete with pressure gauge and 3/8" drain valve
- Filter housing wrench included
- Outstanding chemical compatibility
- Use for residential, food service, commercial and industrial applications
Weight & Dimensions
Case Quantity | 1 |
Cube Measurement | 0.46875 |
Height (inches) | 14.4 |
Length (inches) | 7.5 |
Weight (lbs) | 6.25 |
Width (inches) | 7.5 |
Details
Cap Color | Black |
Drain Size | 3/8" OD |
Features | Pressure Gauge |
Housing Material | Polypropylene |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 100 |
Mounting Options | Mounting Bosses |
O-Rings | Buna-N |
Psid@Flow Rate | 1 PSI @ 15 GPM |
Size | 1" |
Cap Material | Polypropylene |
Color / Finish | Blue |
Connection Type | Female (FPT) |
