Pentek

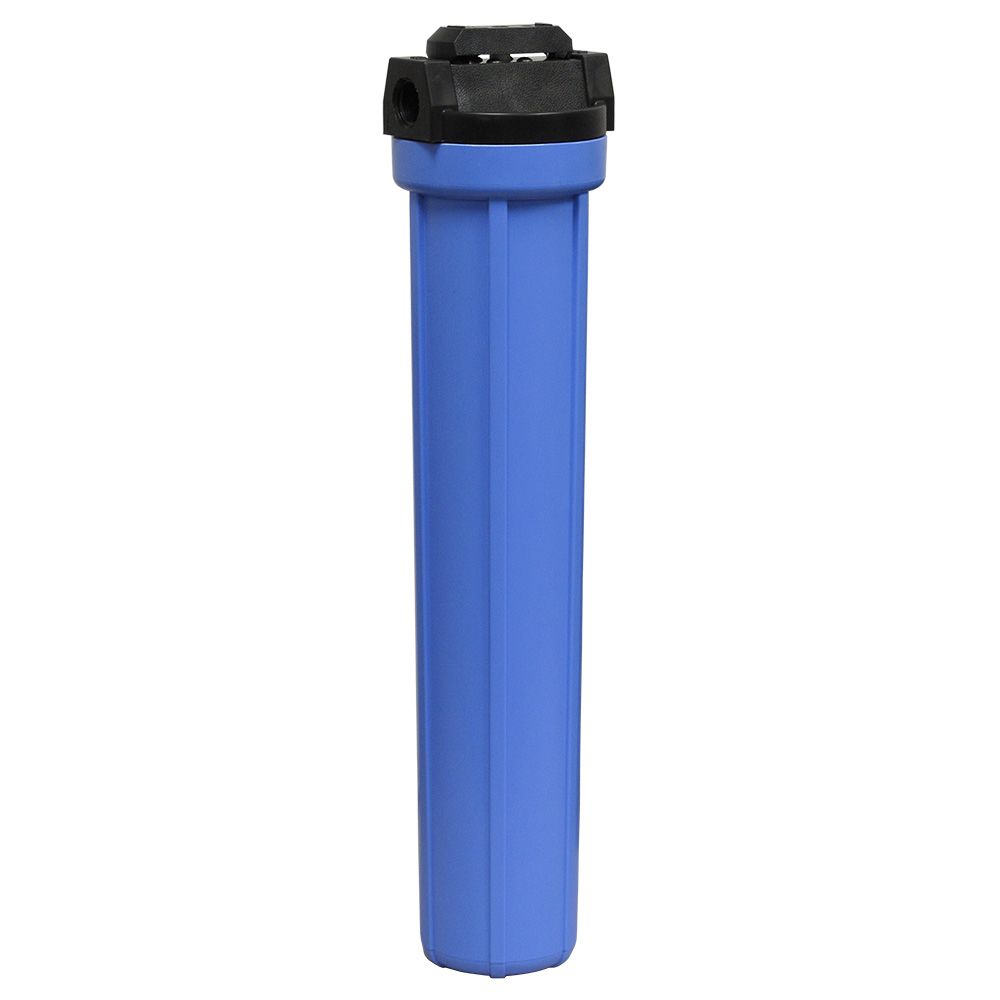

Pentek 150166 20" Standard Filter Housing Black/Blue VIH w/PR - 3/4" FPT

Part Number: 150166

In Stock

out of stock

In Stock

$44.15


Pentek Standard Water Filter Housings are made of durable polypropylene and come equipped with 3/4" FPT inlet and outlet ports. The housings offer outstanding chemical compatibility and accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges making them ideal for use in a variety of low-flow applications. The integrated shut-off valve supports ease of cartridge replacement.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Built-in shut-off valve for easy cartridge replacement

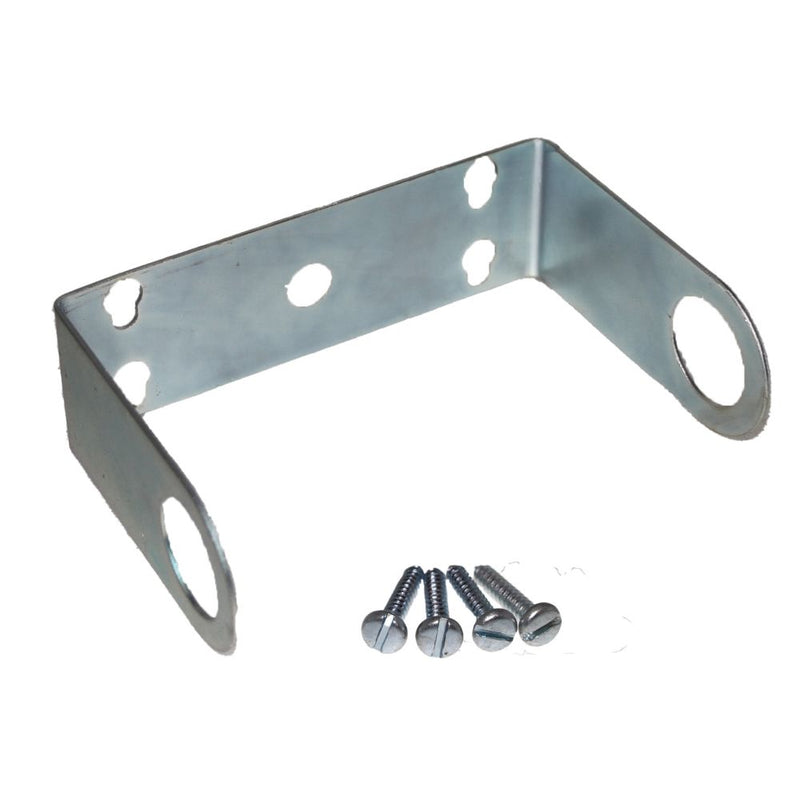

  • Cap features mounting bosses for a bracket (not included)
  • Pressure relief/bleed button on inlet side of cap
  • Thick walls for increased strength

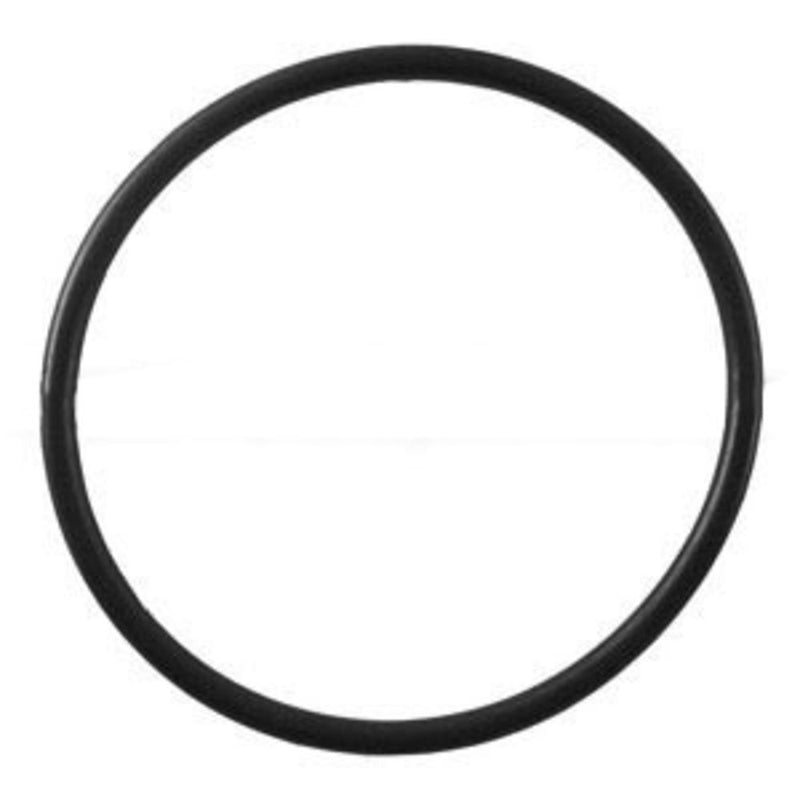

  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance

NOTE: Filter & Mounting Bracket NOT Included


Weight & Dimensions

Approx Height (Inches)

23 Inches

Approx Width (Inches)

5-3/8 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Blue

Features

Valve-In-Head

Housing Material

Polypropylene

Inlet/Outlet Size

3/4"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

O Rings

Buna-N

Origin

USA

Type

Standard

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1psi@10 Gallons Per Minute


Pentek





Pentek Standard Water Filter Housings are made of durable polypropylene and come equipped with 3/4" FPT inlet and outlet ports. The housings offer outstanding chemical compatibility and accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges making them ideal for use in a variety of low-flow applications. The integrated shut-off valve supports ease of cartridge replacement.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Built-in shut-off valve for easy cartridge replacement
  • Cap features mounting bosses for a bracket (not included)
  • Pressure relief/bleed button on inlet side of cap
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance

NOTE: Filter & Mounting Bracket NOT Included

Weight & Dimensions

Approx Height (Inches)

23 Inches

Approx Width (Inches)

5-3/8 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Blue

Features

Valve-In-Head

Housing Material

Polypropylene

Inlet/Outlet Size

3/4"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

O Rings

Buna-N

Origin

USA

Type

Standard

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1psi@10 Gallons Per Minute
