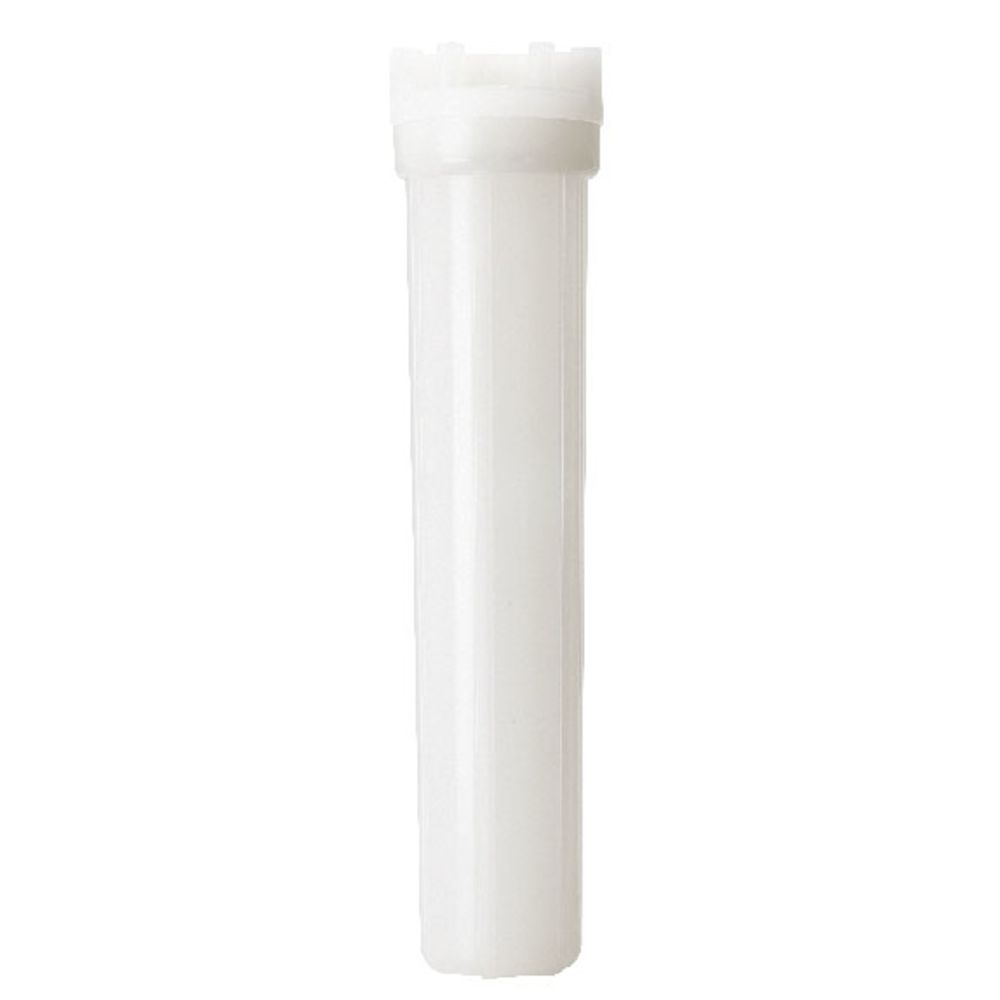

Pentek 150141 #20 All Natural Standard Housings help maintain the high standards of purity and performance required in critical contamination control systems and processes. These housings can be used for a variety of other applications where purity, quality, filtration and economy are required and have 3/4" NPT inlet and outlet threads.
Features:
Features:
- An economical solution to fluoropolymer, stainless steel, or Teflon housings
- Pure Polyproylene components - no fillers, colorants, plasticizers, or lubricants
- Ultra-smooth contact surfaces prevent bacterial adhesion and build-up
- Resists DI water and other inorganic solutions
- Resists stress cracking
- Viton O-rings provide dependable sealing
- Deionized and reagent grade water
- Electronic grade chemicals
- Reagent grade chemicals
- Pharmaceutical grade solvents
- Reaction solvents for cosmetics, pharmaceuticals, or polyester production
- Freon (TF, 113)
- Electronic etching solutions
- Magnetic coatings
- Reverse osmosis or ultrafiltration final filters
Weight & Dimensions
Approx Height (Inches) | 29-1/8" |
Approx Width (Inches) | 5-1/8" |
Case Quantity | 1 |
Cube Measurement | 0.413136574074074 |
Height (inches) | 23.6 |
Length (inches) | 5.5 |
Weight (lbs) | 4.4 |
Width (inches) | 5.5 |
Details
Cap Color | Natural |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 100 |
O-Rings | Viton |
Psid@Flow Rate | 1 PSI @ 10 GPM |
Size | 3/4" |
Color / Finish | Natural |
Connection Type | Female (FPT) |
Pentek 150141 #20 All Natural Standard Housings help maintain the high standards of purity and performance required in critical contamination control systems and processes. These housings can be used for a variety of other applications where purity, quality, filtration and economy are required and have 3/4" NPT inlet and outlet threads.
Features:
- An economical solution to fluoropolymer, stainless steel, or Teflon housings
- Pure Polyproylene components - no fillers, colorants, plasticizers, or lubricants
- Ultra-smooth contact surfaces prevent bacterial adhesion and build-up
- Resists DI water and other inorganic solutions
- Resists stress cracking
- Viton O-rings provide dependable sealing
- Deionized and reagent grade water
- Electronic grade chemicals
- Reagent grade chemicals
- Pharmaceutical grade solvents
- Reaction solvents for cosmetics, pharmaceuticals, or polyester production
- Freon (TF, 113)
- Electronic etching solutions
- Magnetic coatings
- Reverse osmosis or ultrafiltration final filters
Weight & Dimensions
Approx Height (Inches) | 29-1/8" |
Approx Width (Inches) | 5-1/8" |
Case Quantity | 1 |
Cube Measurement | 0.413136574074074 |
Height (inches) | 23.6 |
Length (inches) | 5.5 |
Weight (lbs) | 4.4 |
Width (inches) | 5.5 |
Details
Cap Color | Natural |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 100 |
O-Rings | Viton |
Psid@Flow Rate | 1 PSI @ 10 GPM |
Size | 3/4" |
Color / Finish | Natural |
Connection Type | Female (FPT) |
