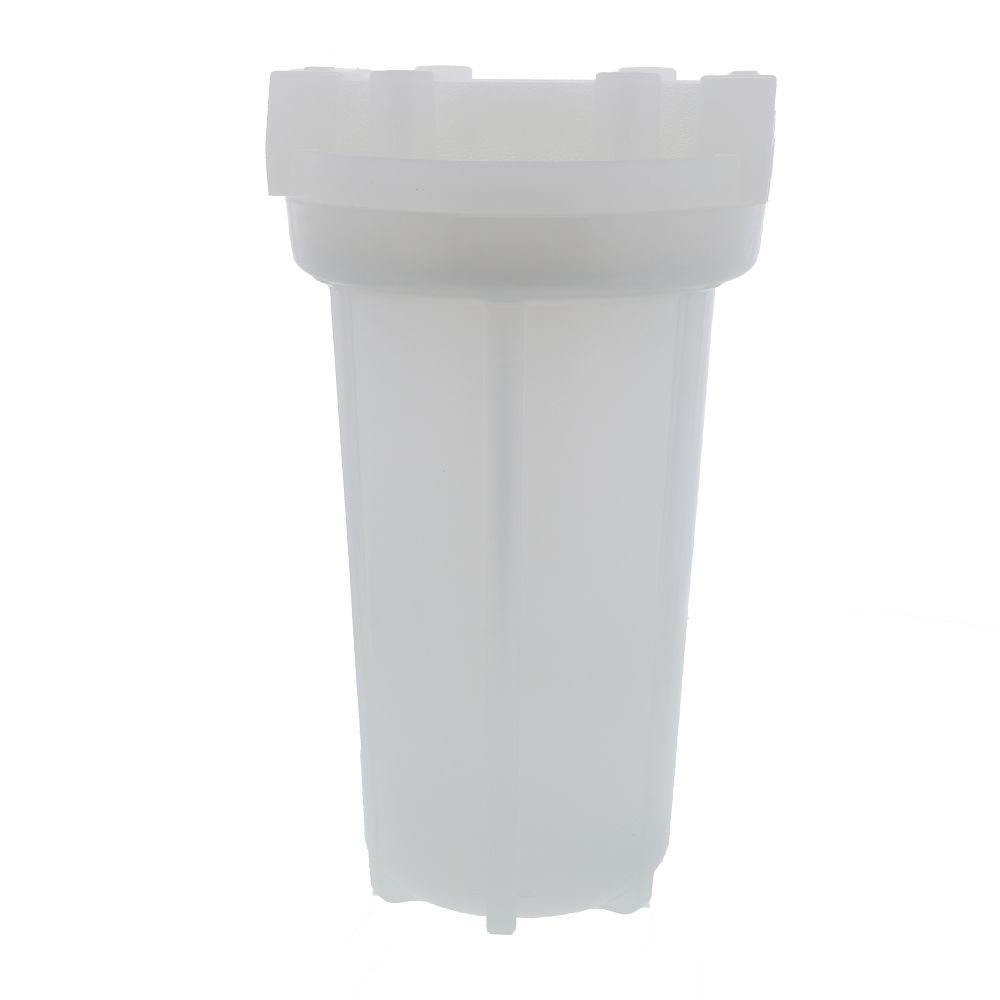

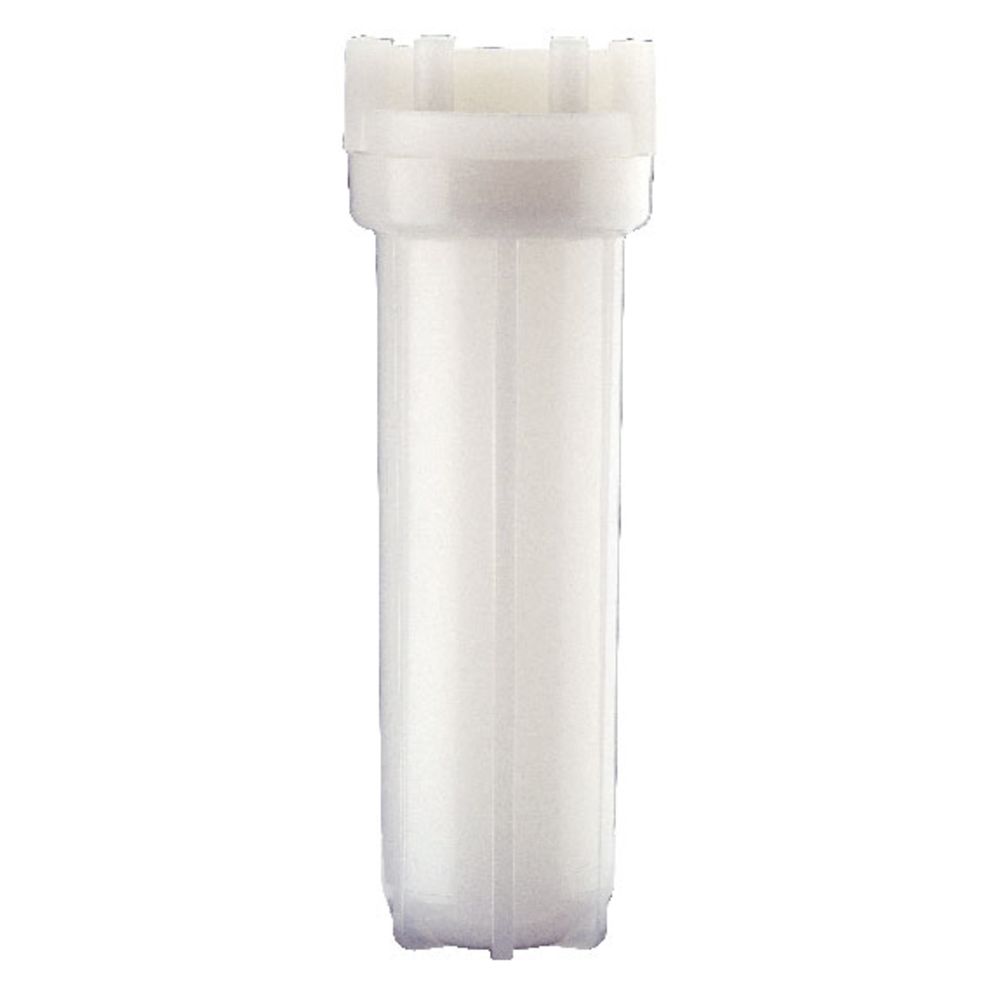

Pentek 150134 #12 All Natural Standard Housing 222 w/ Double Cap Plugs No V-Bead

Part Number: 150134

In Stock

out of stock

In Stock

$62.78


Pentek 150134 #12 All Natural Standard Housings help maintain the high standards of purity and performance required in critical contamination control systems and processes. These housings can be used for a variety of other applications where purity, quality, filtration and economy are required and have 3/4" NPT inlet and outlet threads.
Features:
  • Cartridge Sealing: 222 o-ring sealing
  • An economical solution to fluoropolymer, stainless steel, or Teflon housings
  • Pure Polyproylene components - no fillers, colorants, plasticizers, or lubricants
  • Ultra-smooth contact surfaces prevent bacterial adhesion and build-up
  • Resists DI water and other inorganic solutions
  • Resists stress cracking
  • Viton O-rings provide dependable sealing
Pentek 150134 #12 All Natural Standard Housing 222 w/ Double Cap Plugs No V-Bead Applications:
  • Deionized and reagent grade water
  • Electronic grade chemicals
  • Reagent grade chemicals
  • Pharmaceutical grade solvents
  • Reaction solvents for cosmetics, pharmaceuticals, or polyester production
  • Freon (TF, 113)
  • Electronic etching solutions
  • Magnetic coatings
  • Reverse osmosis or ultrafiltration final filters


Weight & Dimensions

Approx Height (Inches)

15-3/8 Inches

Approx Width (Inches)

5-1/8 Inches

Details

Cap Color

Natural

Cap Material

Polypropylene

Color / Finish

Natural

Housing Material

Polypropylene

Inlet/Outlet Size

3/4"

Max Operating Pressure

100 PSI

Max Operating Temperature

100 Degrees Fahrenheit

O Rings

Viton

Psid@Flow Rate

1 psi @ 10 Gallons Per Minute


Pentek





Pentek 150134 #12 All Natural Standard Housings help maintain the high standards of purity and performance required in critical contamination control systems and processes. These housings can be used for a variety of other applications where purity, quality, filtration and economy are required and have 3/4" NPT inlet and outlet threads.
Features:
  • Cartridge Sealing: 222 o-ring sealing
  • An economical solution to fluoropolymer, stainless steel, or Teflon housings
  • Pure Polyproylene components - no fillers, colorants, plasticizers, or lubricants
  • Ultra-smooth contact surfaces prevent bacterial adhesion and build-up
  • Resists DI water and other inorganic solutions
  • Resists stress cracking
  • Viton O-rings provide dependable sealing
Pentek 150134 #12 All Natural Standard Housing 222 w/ Double Cap Plugs No V-Bead Applications:
  • Deionized and reagent grade water
  • Electronic grade chemicals
  • Reagent grade chemicals
  • Pharmaceutical grade solvents
  • Reaction solvents for cosmetics, pharmaceuticals, or polyester production
  • Freon (TF, 113)
  • Electronic etching solutions
  • Magnetic coatings
  • Reverse osmosis or ultrafiltration final filters

Weight & Dimensions

Approx Height (Inches)

15-3/8 Inches

Approx Width (Inches)

5-1/8 Inches

Details

Cap Color

Natural

Cap Material

Polypropylene

Color / Finish

Natural

Housing Material

Polypropylene

Inlet/Outlet Size

3/4"

Max Operating Pressure

100 PSI

Max Operating Temperature

100 Degrees Fahrenheit

O Rings

Viton

Psid@Flow Rate

1 psi @ 10 Gallons Per Minute
