Pentek

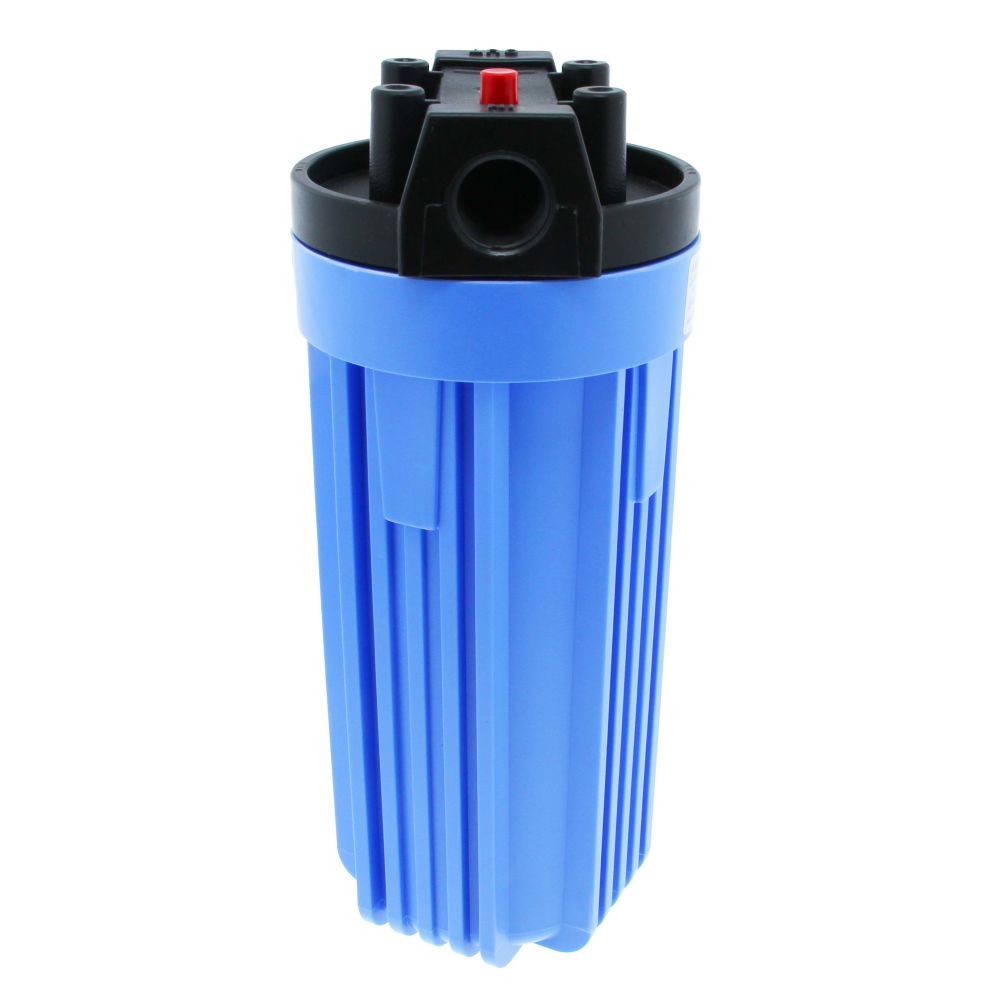

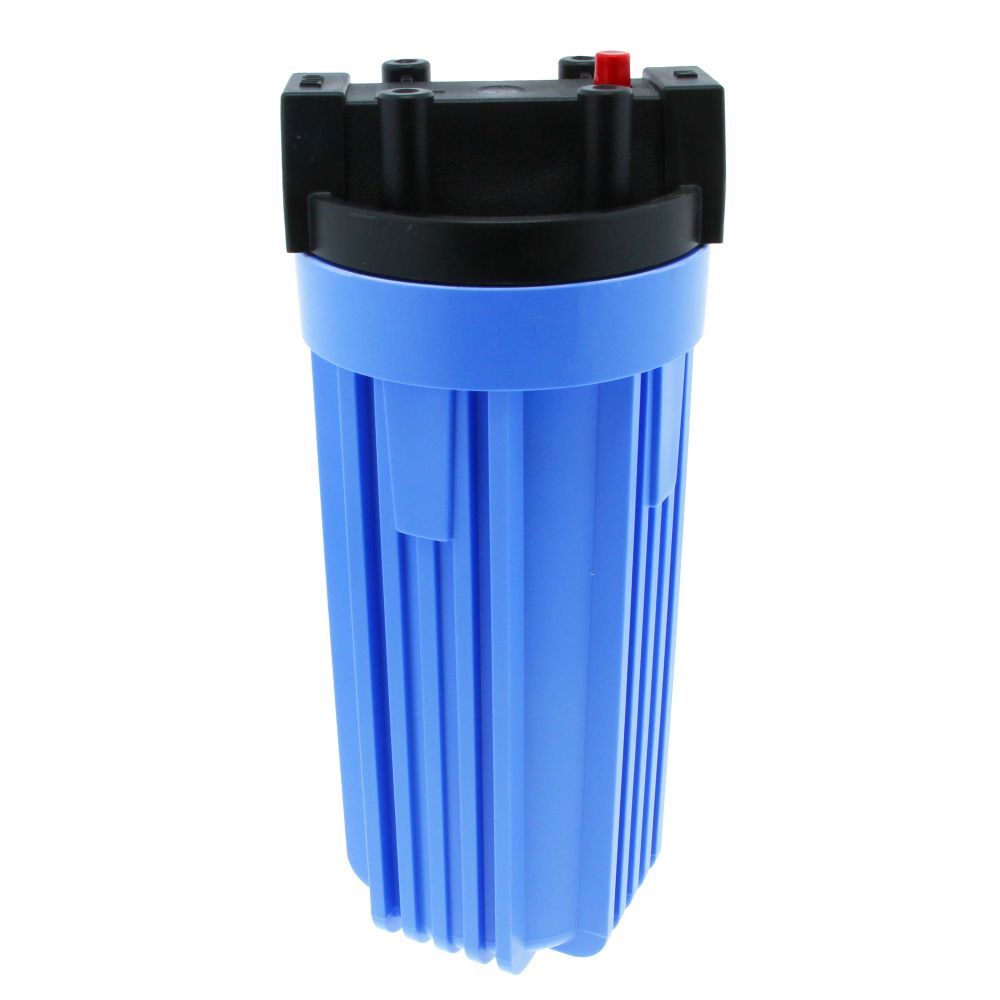

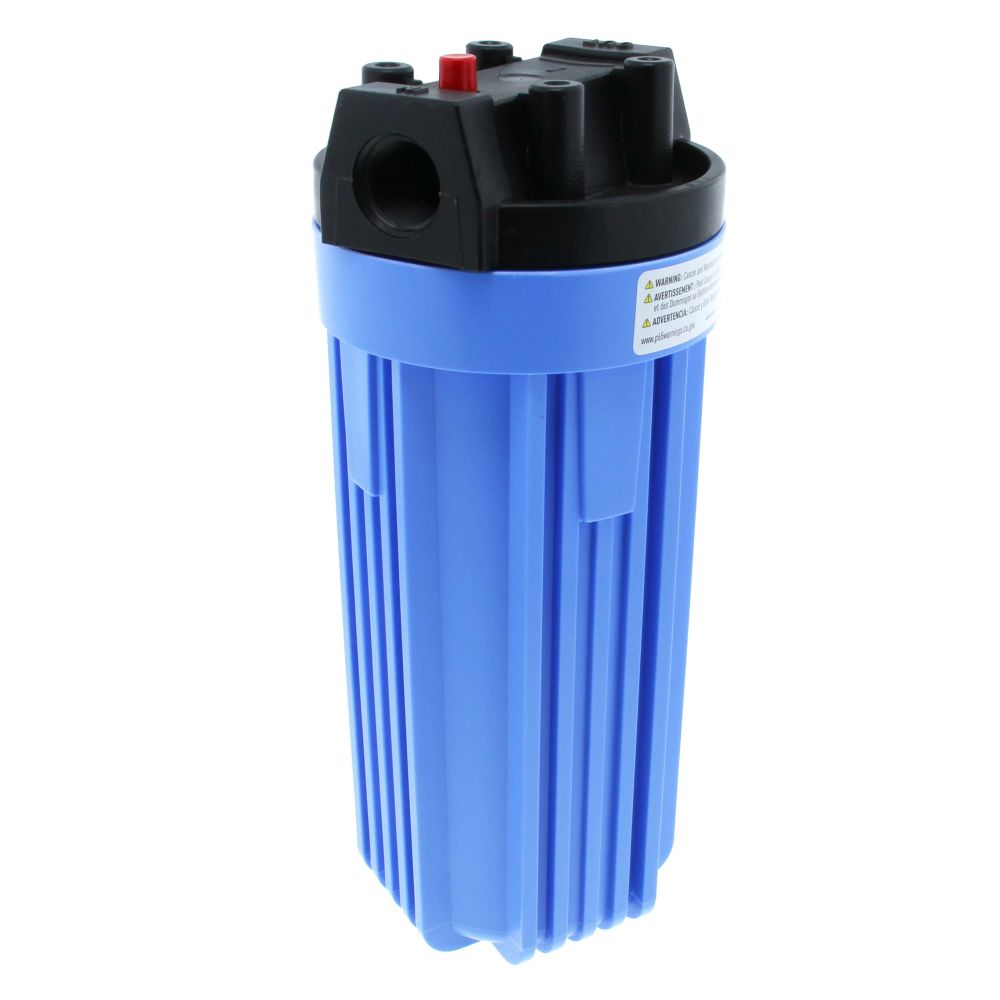

Pentek 150067 10" Standard Water Filter Housing Black/Blue w/ PR - 3/4" FPT

Part Number: 150067

Alt. Part Number: HF-150, W34-PR, 150542

In Stock

out of stock

In Stock

$21.65


Pentek Standard Water Filter Housings are made of durable polypropylene and come equipped with 3/4" NPT inlet and outlet ports. The housings offer outstanding chemical compatibility and accommodate a wide range of 2-1/2" to 2-7/8" diameter cartridges making them ideal for use in a variety of low-flow applications.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial

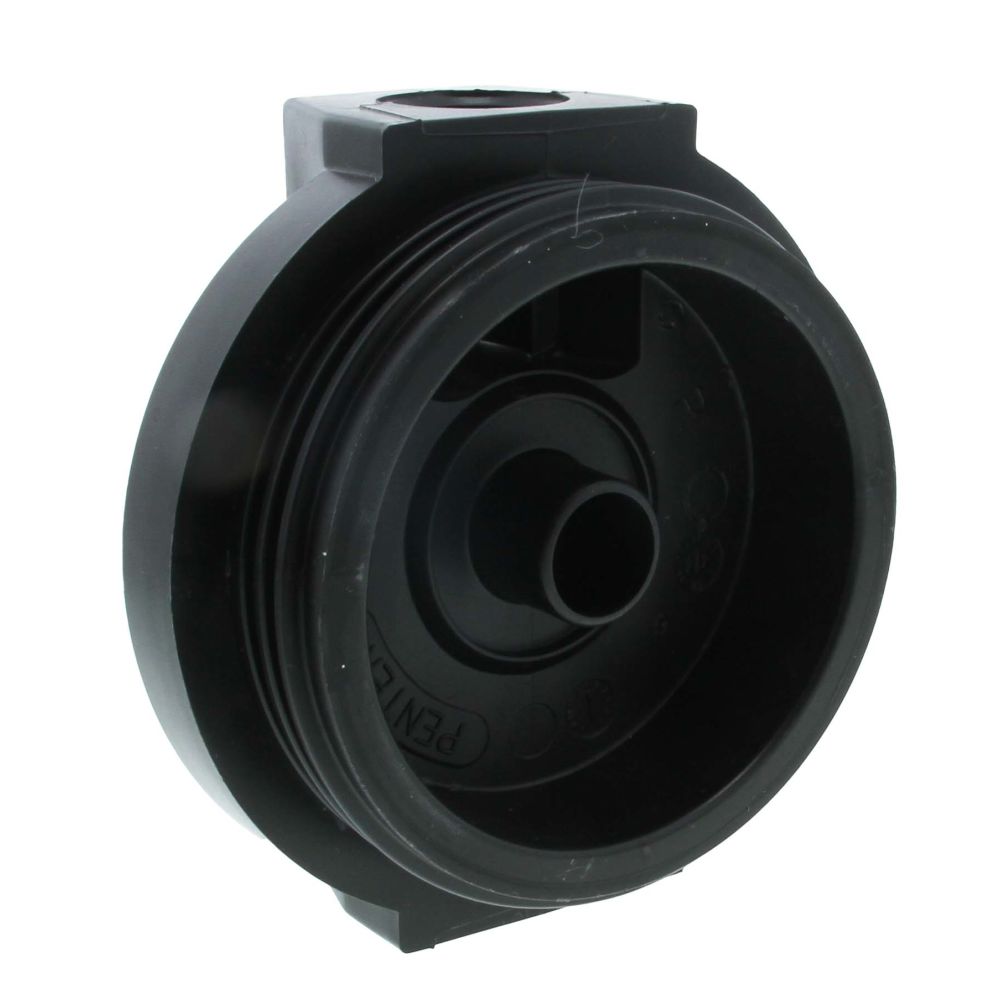

  • Cap features mounting bosses for a bracket (not included)
  • Pressure relief/bleed button on inlet side of cap
  • Thick walls for increased strength

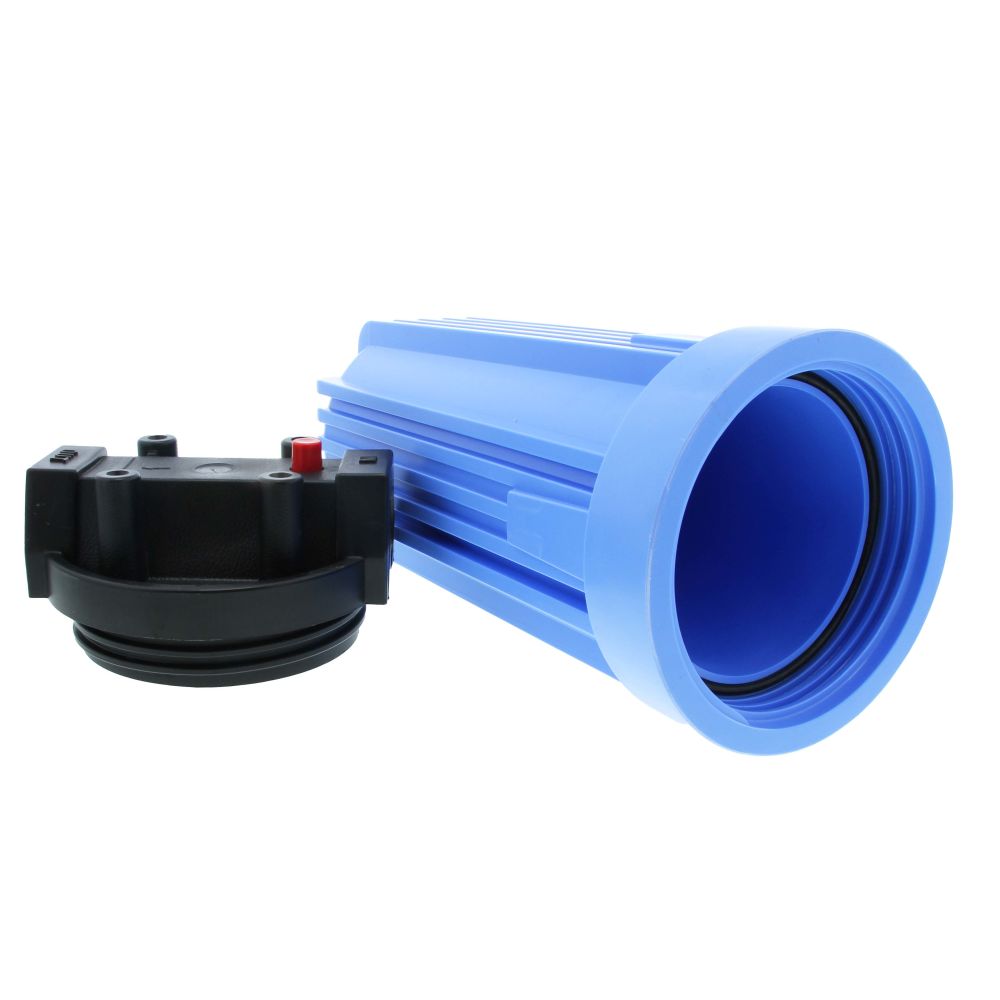

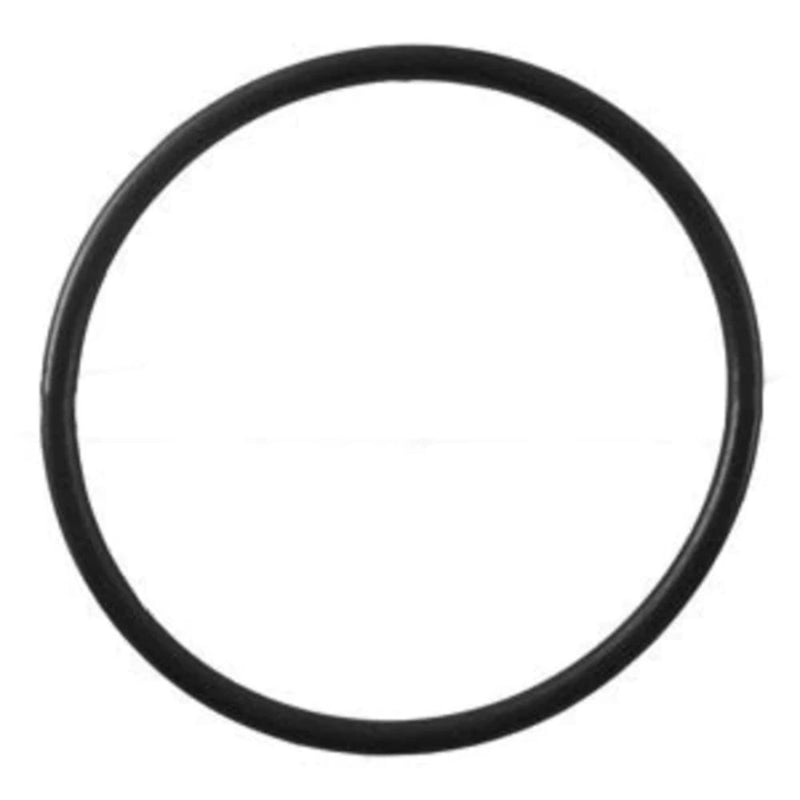

  • Leak-proof sealing with top-seated 151120 Buna-N O-ring
  • Excellent chemical resistance

Notes:
* Also known as Culligan HF-150, American Plumber W34-PR
** Filter & Mounting Bracket NOT Included

Compatible with: American Plumber | W34-PR


Weight & Dimensions

Approx Height (Inches)

13-1/4 Inches

Approx Width (Inches)

5-3/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Blue

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Size

3/4"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

O Rings

Buna-N

Origin

USA

Type

3G Standard

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

1 psi @ 10 gpm

Warranty & Certifications

Certifications

NSF/ANSI 42
