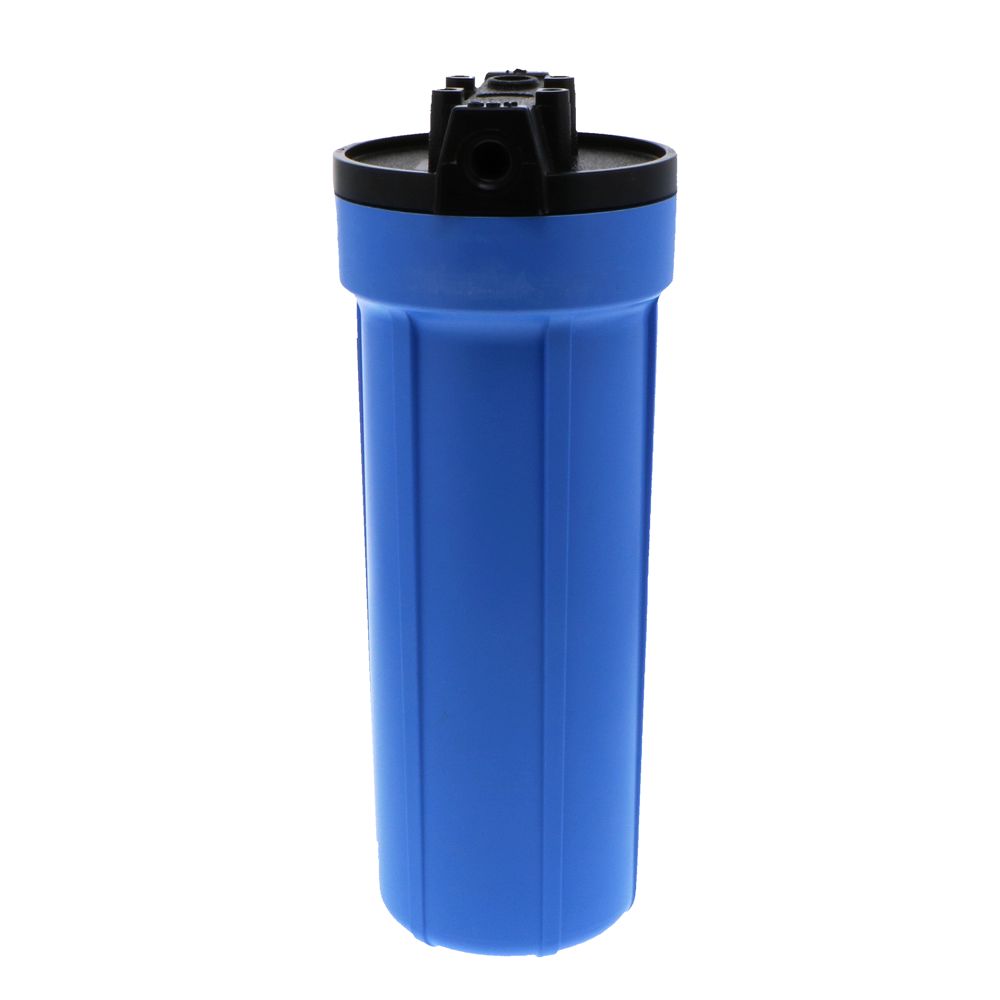

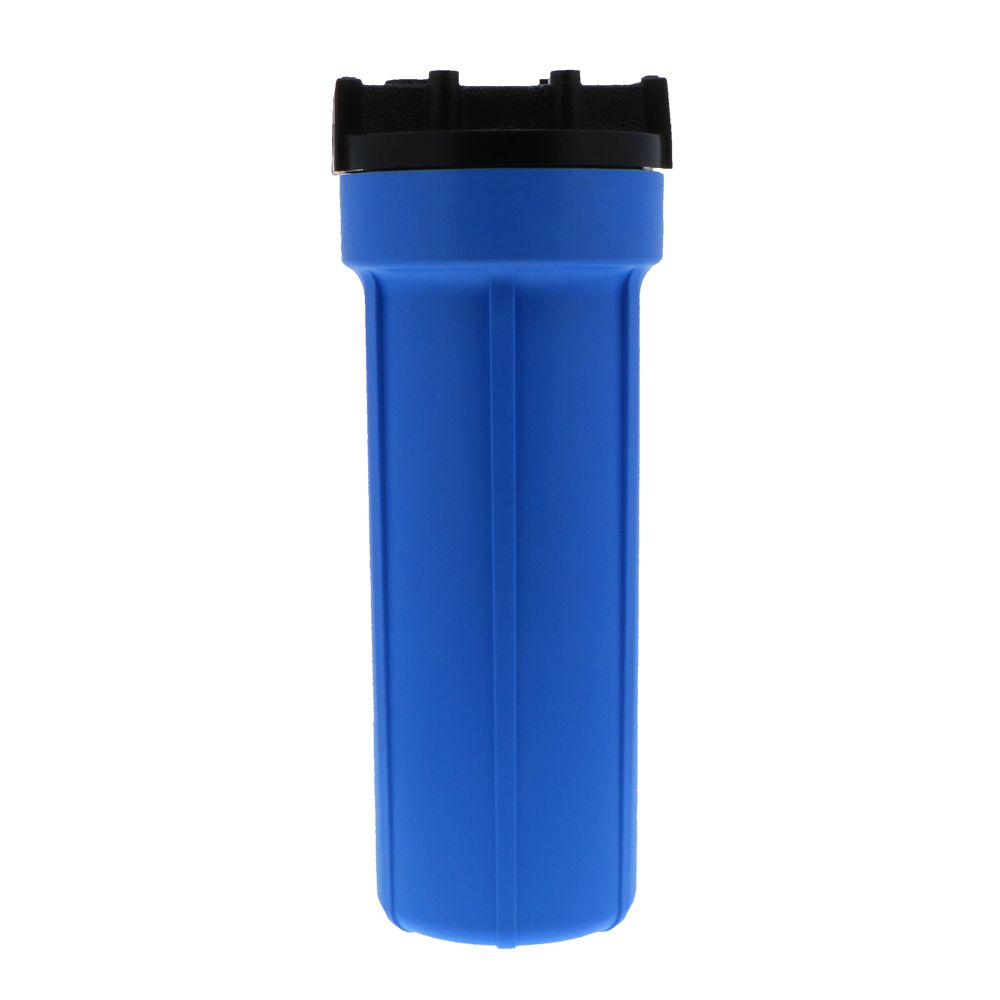

Pentek 10" Slim Line Water Filter Housing features a black reinforced polypropylene cap and a blue reinforced polypropylene sump. The housing offers outstanding chemical compatibility and is ideal for a variety of low-flow applications.
Features:
- High chemical compatibility
- Blue sump (bottom)
- Applications: Sinks, Filtration, Pre- and Post Reverse Osmosis Filtration, Humidifying systems
- Leak-proof sealing with top seated 151121 Buna-N O-ring
- Ideal for use in a variety of low-flow applications
Weight & Dimensions
Approx Height (Inches) | 11-3/4 Inches |
Approx Width (Inches) | 4-3/8 Inches |
Case Dimensions | 11.75" x 4.38" |
Details
Body Material | Reinforced Polypropylene |
Cap Color | Black |
Cap Material | Polypropylene |
Color / Finish | Blue |
Housing Material | Polypropylene |
Material Of Construction | Polypropylene |
Max Operating Pressure | 125 PSI |
Max Operating Temperature | 125 Degrees Fahrenheit, 40-125 Degrees Fahrenheit |
O Rings | Buna-N |
Size | 1/4" |
Vent Size | 1/4" NPT |
Button Assembly | 300 series stainless steel, EPDM, Polyproylene |
Psid@Flow Rate | 2psi@3gpm |
Inlet/Outlet Connection | 1/4" | FPT |
Warranty & Certifications
Certifications | NSF/ANSI 42 |
