Pentek

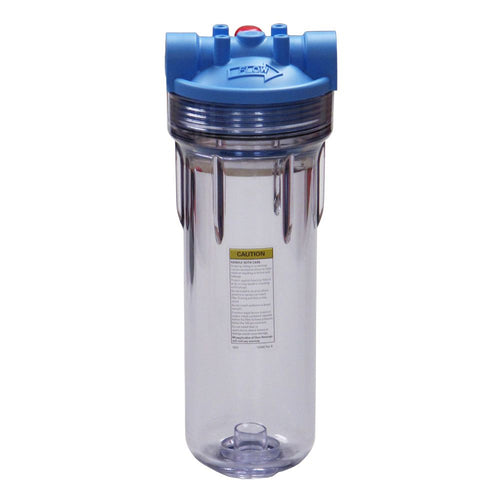

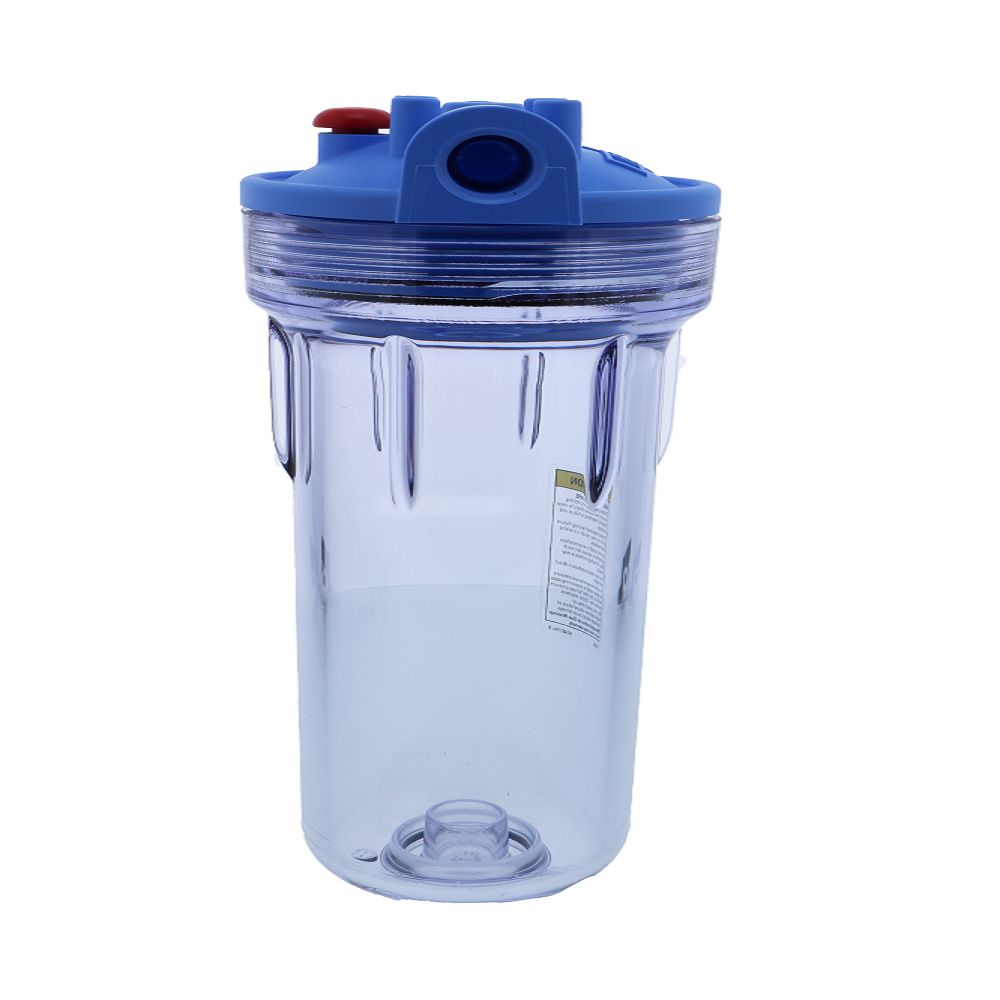

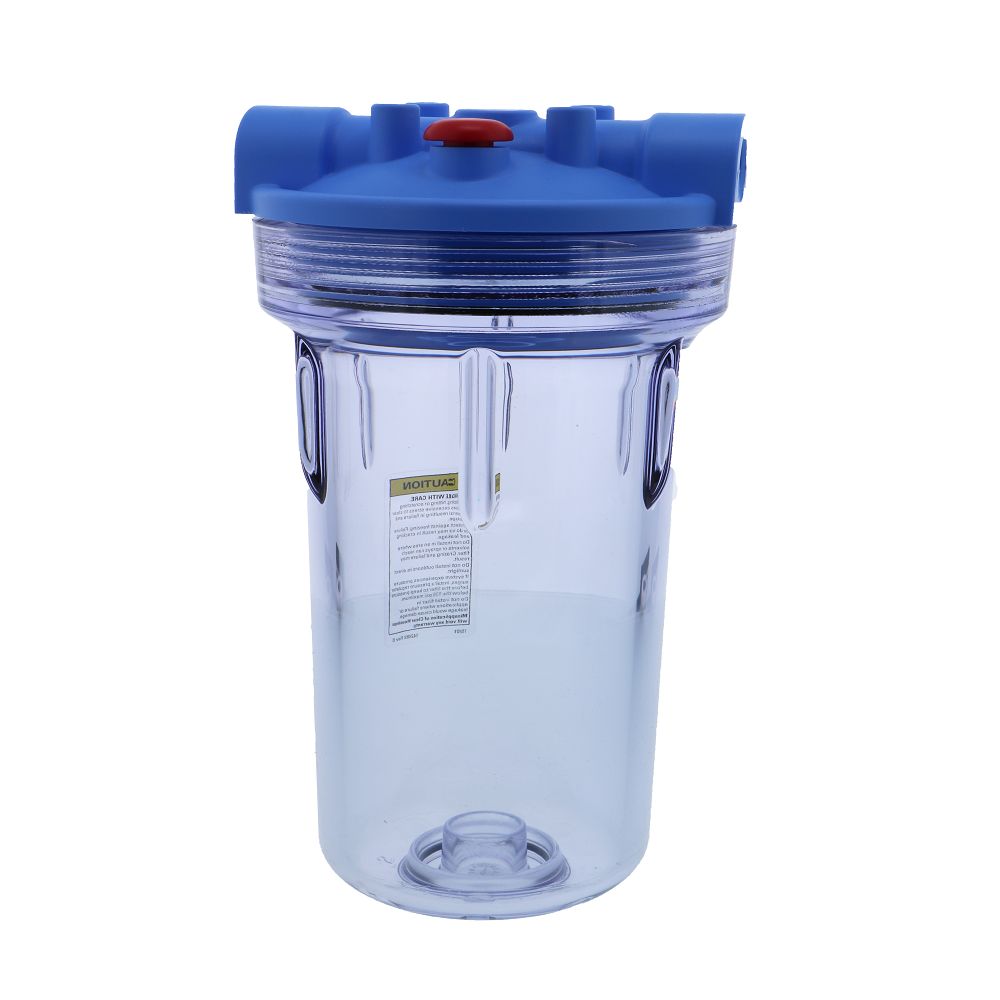

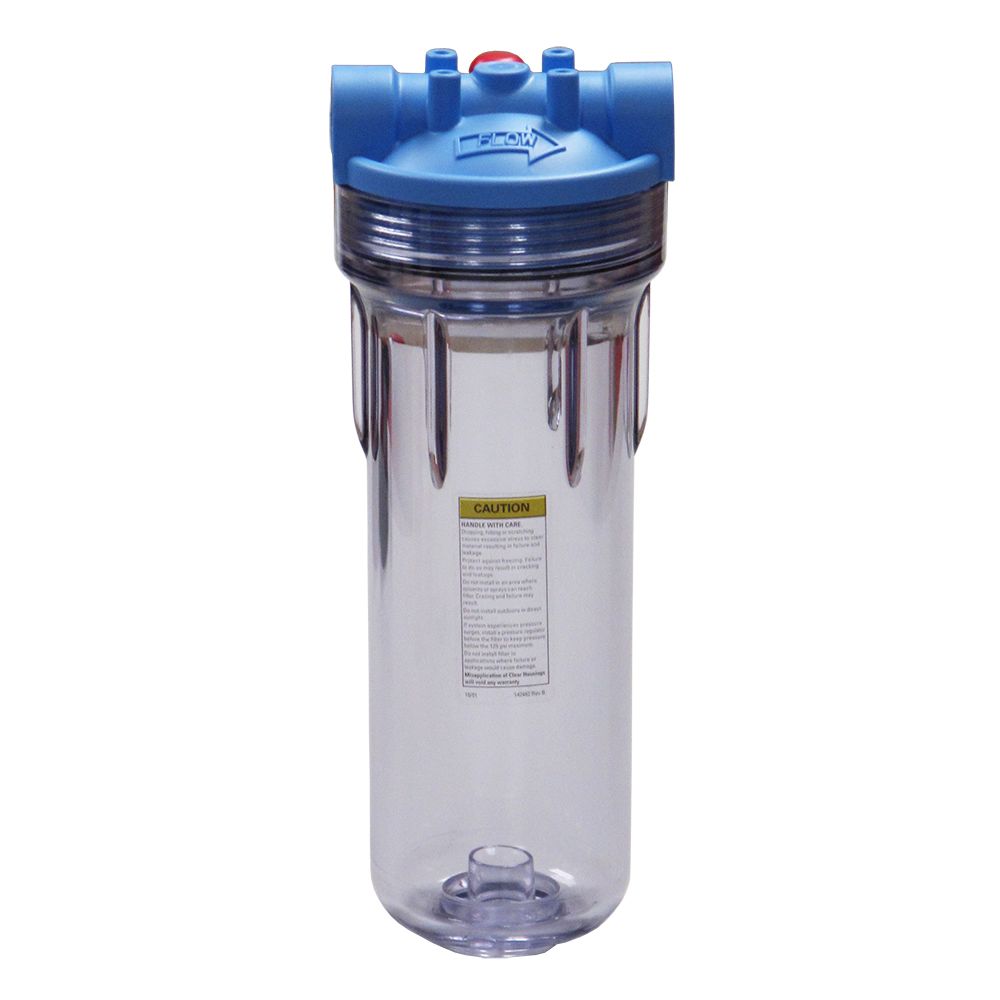

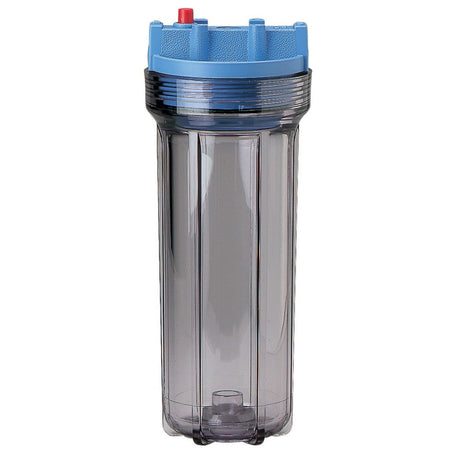

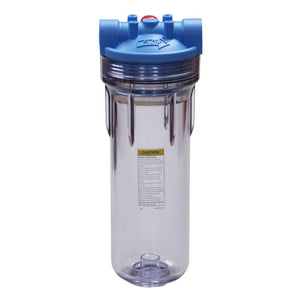

Pentek 10" 3G Slim Line Filter Housing Blue/Clear MB w/ PR - 1/2" FPT

Part Number: 158623

In Stock

out of stock

In Stock

$17.98


Pentek 10" 3G Slim Line Filter Housings are the perfect choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications.
Specifications:
  • Housing accepts our proprietary Seal-Safe double o-ring sealing cartridges
  • Also accepts standard size DOE (double open end) cartridges
  • Accepts variety of cartridges (2½ - 3 inches in diameter x 9 7/8" tall)
  • Buttress threads for additional strength and easier cartridge changes
  • Leak-proof sealing with top-seated 151121 Buna-N O-ring
  • Thick walls for increased strength
  • Excellent chemical resistance
  • Cap has mounting bosses for bracket (not included) and pressure relief button
Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


Weight & Dimensions

Approx Height (Inches)

11-3/4 Inches

Approx Width (Inches)

4-3/4 Inches

Details

Cap Color

Blue

Cap Material

Polypropylene

Color / Finish

Clear

Features

Pressure Relief

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

1/2"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Type

3G Slim Line

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

2 psi @ 5 Gallons Per Minute

Warranty & Certifications

Certifications

NSF/ANSI 42


Pentek

Pentek





Pentek 10" 3G Slim Line Filter Housings are the perfect choice for low-flow filtration applications. Their slim design and high chemical compatibility make them ideal for those challenging applications.
Specifications:
  • Housing accepts our proprietary Seal-Safe double o-ring sealing cartridges
  • Also accepts standard size DOE (double open end) cartridges
  • Accepts variety of cartridges (2½ - 3 inches in diameter x 9 7/8" tall)
  • Buttress threads for additional strength and easier cartridge changes
  • Leak-proof sealing with top-seated 151121 Buna-N O-ring
  • Thick walls for increased strength
  • Excellent chemical resistance
  • Cap has mounting bosses for bracket (not included) and pressure relief button
Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Weight & Dimensions

Approx Height (Inches)

11-3/4 Inches

Approx Width (Inches)

4-3/4 Inches

Details

Cap Color

Blue

Cap Material

Polypropylene

Color / Finish

Clear

Features

Pressure Relief

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

1/2"

Max Operating Pressure

125 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

Buna-N

Type

3G Slim Line

Button Assembly

300 series stainless steel, EPDM, Polyproylene

Psid@Flow Rate

2 psi @ 5 Gallons Per Minute

Warranty & Certifications

Certifications

NSF/ANSI 42
