Fresh Water Systems

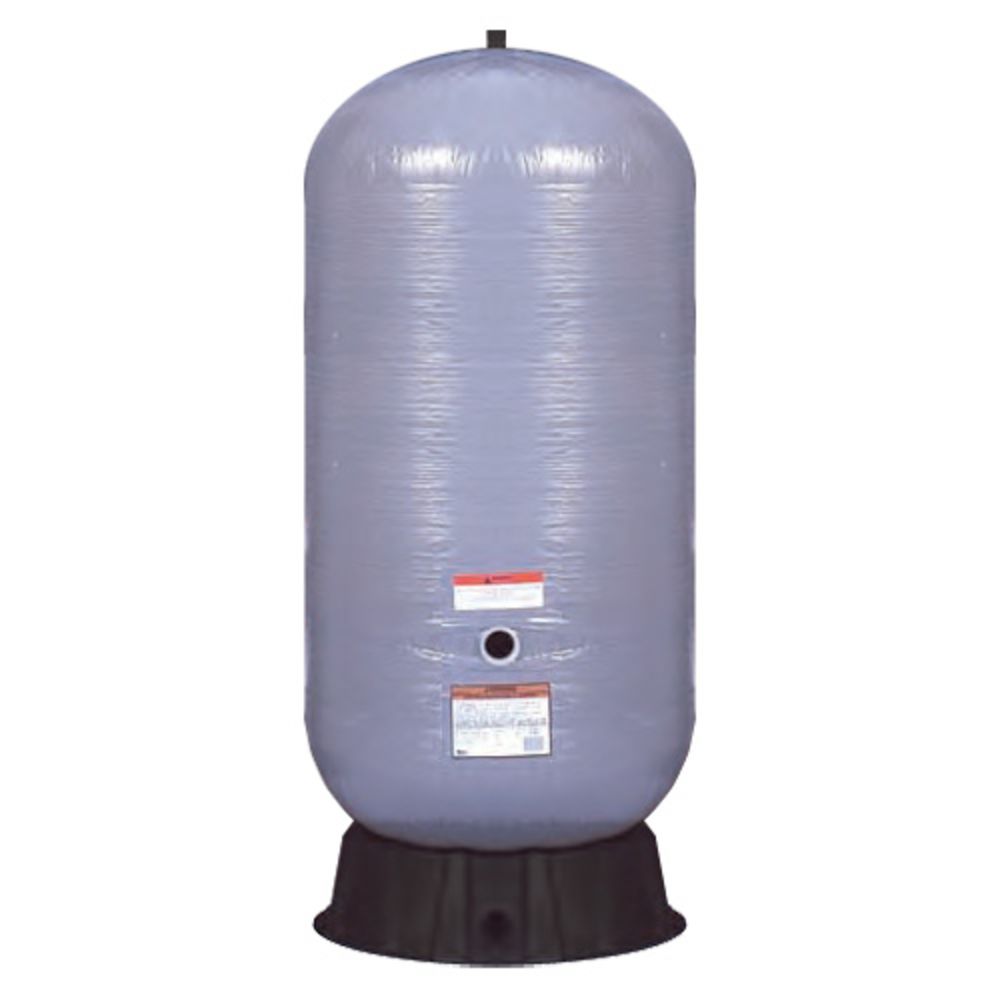

Pentair SidePort SP-18 Water Tank 80 gal

Part Number: SP-18

In Stock

out of stock

In Stock

$504.00

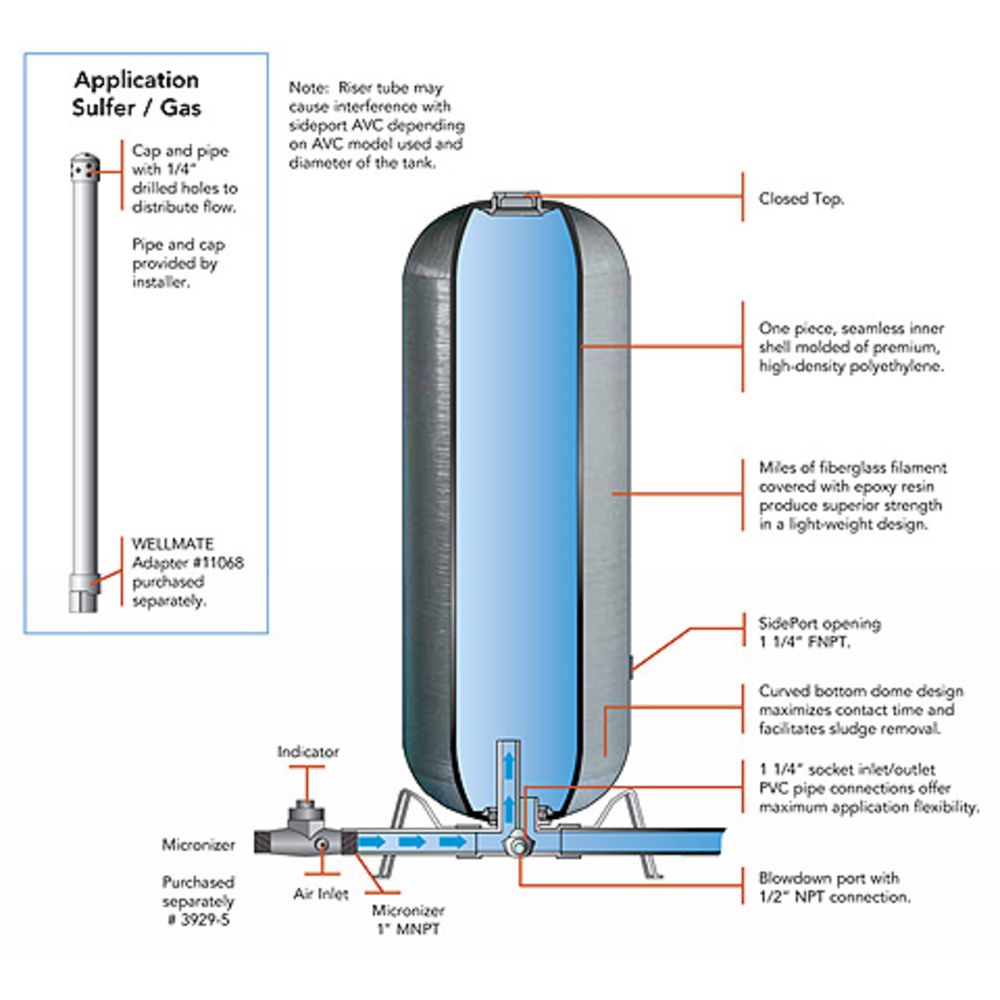

Pentair SidePort SP-18 Water Tank is made of all NSF/ANSI-61 certified material and contains no harmful traces of metal that could transfer into your water.  The outer shell is a composite of continuous fiberglass strands and is sealed with high-grade epoxy resin.  All SidePort tanks have an additional urethane coating for years of added UV protection.

Specifications:
  • Rust and corrosion-proof composite construction
  • Curved bottom dome design increases drawdown and maximizes contact time.
  • Ports are conveniently off the floor allowing the tank to be used in an area prone to high rains or water leaks
  • Made with blow molded, fiberglass wrapped, seamless construction (NSF/FDA listed materials)
  • 100% lead free
  • No maintenance required
  • High-impact resistance
  • Light-Weight
  • Five year limited warranty
Applications:
  • Consistent water pressure at peak times when running multiple sources (i.e. washing machine, bathtub, dishwasher, garden hose)
  • Ability to use full-flow shower heads
  • Longer pump life due to a more efficiently maintained pressure setting
  • Situations where high sulfur content is present
  • Environments where methane or other well gases are present


Weight & Dimensions

Approx Weight

44 Lbs

Height W/ Stand

62 Inches

Details

Drawdown Volume

18 Gallons @ 30/50 Setting

Diameter

21 Inches

Inlet/Outlet Size

1-1/4" MPT

Material Of Construction

Fiberglass

Max Operating Pressure

100 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Origin

USA

Inlet/Outlet Location

Side

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years


Pentair

Pentair





Pentair SidePort SP-18 Water Tank is made of all NSF/ANSI-61 certified material and contains no harmful traces of metal that could transfer into your water.  The outer shell is a composite of continuous fiberglass strands and is sealed with high-grade epoxy resin.  All SidePort tanks have an additional urethane coating for years of added UV protection.

Specifications:
  • Rust and corrosion-proof composite construction
  • Curved bottom dome design increases drawdown and maximizes contact time.
  • Ports are conveniently off the floor allowing the tank to be used in an area prone to high rains or water leaks
  • Made with blow molded, fiberglass wrapped, seamless construction (NSF/FDA listed materials)
  • 100% lead free
  • No maintenance required
  • High-impact resistance
  • Light-Weight
  • Five year limited warranty
Applications:
  • Consistent water pressure at peak times when running multiple sources (i.e. washing machine, bathtub, dishwasher, garden hose)
  • Ability to use full-flow shower heads
  • Longer pump life due to a more efficiently maintained pressure setting
  • Situations where high sulfur content is present
  • Environments where methane or other well gases are present

Weight & Dimensions

Approx Weight

44 Lbs

Height W/ Stand

62 Inches

Details

Drawdown Volume

18 Gallons @ 30/50 Setting

Diameter

21 Inches

Inlet/Outlet Size

1-1/4" MPT

Material Of Construction

Fiberglass

Max Operating Pressure

100 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Origin

USA

Inlet/Outlet Location

Side

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
