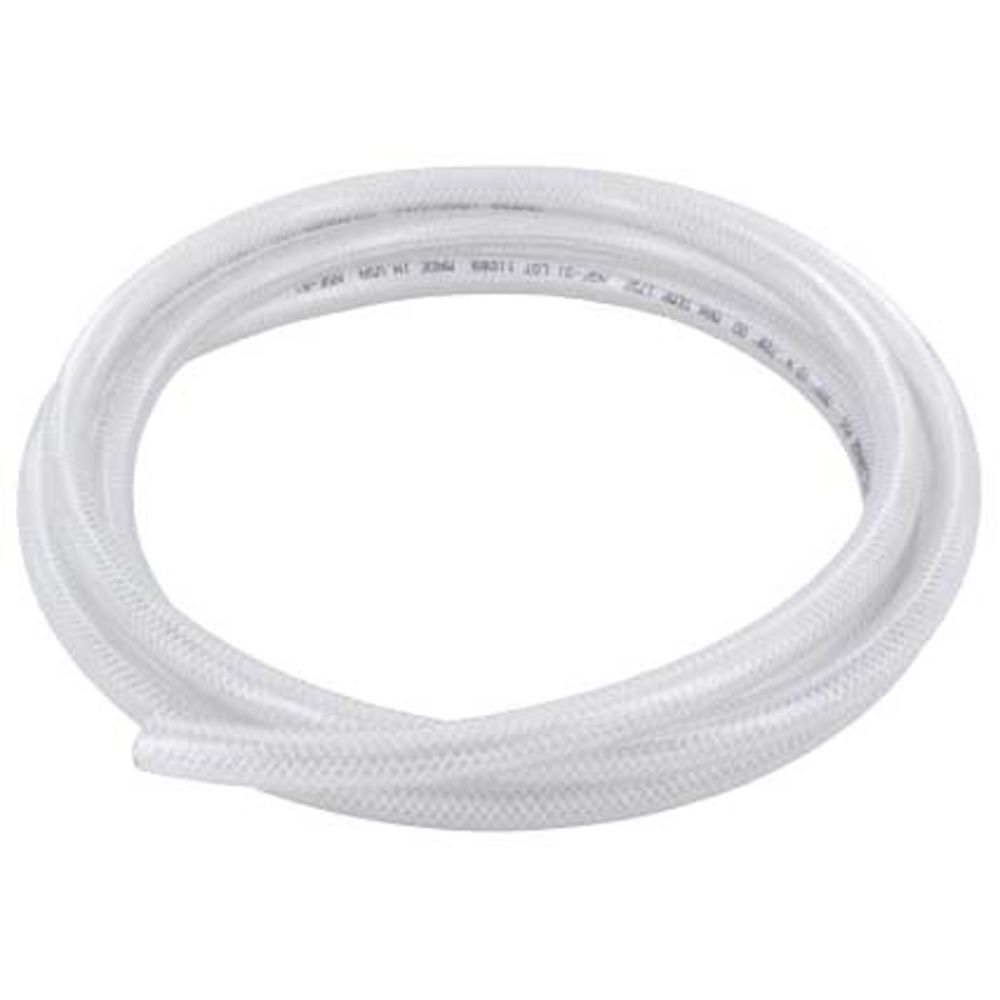

Parker Nexbraid Compatible Series 125 Braided Flexible PVC Tubing is NSF 61 certified and Phthalate Free purity, performance and reliability of Parker Nexbraid Compatible 125 makes it an ideal choice when handling liquids, compressed gases and semi-liquids. The tubing is reinforced with a polyester spiral yarn and is resistant to oxidation, chemicals and bacteria. This tubing is extremely flexible, making it easy to work with, and it can be sterilized by gas or radiation.
Parker Nexbraid Compatible Series 125 tubing is comparable to tubing from other manufacturers including Tygon B-44-4X I.B, New Age Industries Nylobrade, Boston Woven Hose H285, Goodyear Pliovic FG, Kentak K-9500 and Kuriyama K3150.
Specification:
-
Tubing ID: 3/4" (19.1mm)
-
Tubing OD: 1.03" (26.2mm)
-
Tubing Material: Clear PVC
-
Reinforcement: Polyester
-
Max Temperature: 150° F
-
Working Pressure: 150 psi @ 70° F
-
Certification: NSF 61 Certified for Direct Contact with Potable Water, Food & Beverage
-
Compliance: FDA, RoHS, REACH, USP Class IV
-
Coil Length: 100 Foot
- Lightweight and Flexible
- Phthalate Free
Applications:
- Beverages, potable water, pure water
- Dry abrasive materials, flour, grains, granules, pellets, powders, sugar
- Air, flexible conduit, light vacuum, wire harness
Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
* Orders for lengths greater than 100 feet will receive full coil(s). Any remaining length will be shipped as a separate segment.
California residents
Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause
cancer and birth defects or other reproductive harm.
www.p65warnings.ca.gov
Product Details |
---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Tubing Roll Length | 25 |
Diameter | 1-1/32" |
Inner Diameter | 3/4" |
Warranty & Certifications |
---|
Product Certification Standard | NSF/ANSI 61 |
Product Weight & Dimensions |
---|
Product Weight (lbs) | 0.55 |
Product Details |
---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Tubing Roll Length | 50 |
Diameter | 1-1/32" |
Inner Diameter | 3/4" |
Warranty & Certifications |
---|
Product Certification Standard | NSF/ANSI 61 |
Product Weight & Dimensions |
---|
Product Weight (lbs) | 27.5 |
Product Details |
---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Tubing Roll Length | 100 |
Diameter | 1-1/32" |
Inner Diameter | 3/4" |
Warranty & Certifications |
---|
Product Certification Standard | NSF/ANSI 61 |
Shipping Dimensions |
---|
Shipping Length | 14 in. |
Shipping Width | 14 in. |
Shipping Height | 16 in. |
Product Weight & Dimensions |
---|
Product Weight (lbs) | 24.05 |
Product Details |
---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Diameter | 1-1/32" |
Inner Diameter | 3/4" |
Warranty & Certifications |
---|
Product Certification Standard | NSF/ANSI 61 |
Product Weight & Dimensions |
---|
Product Weight (lbs) | 0.02 |
