Axeon

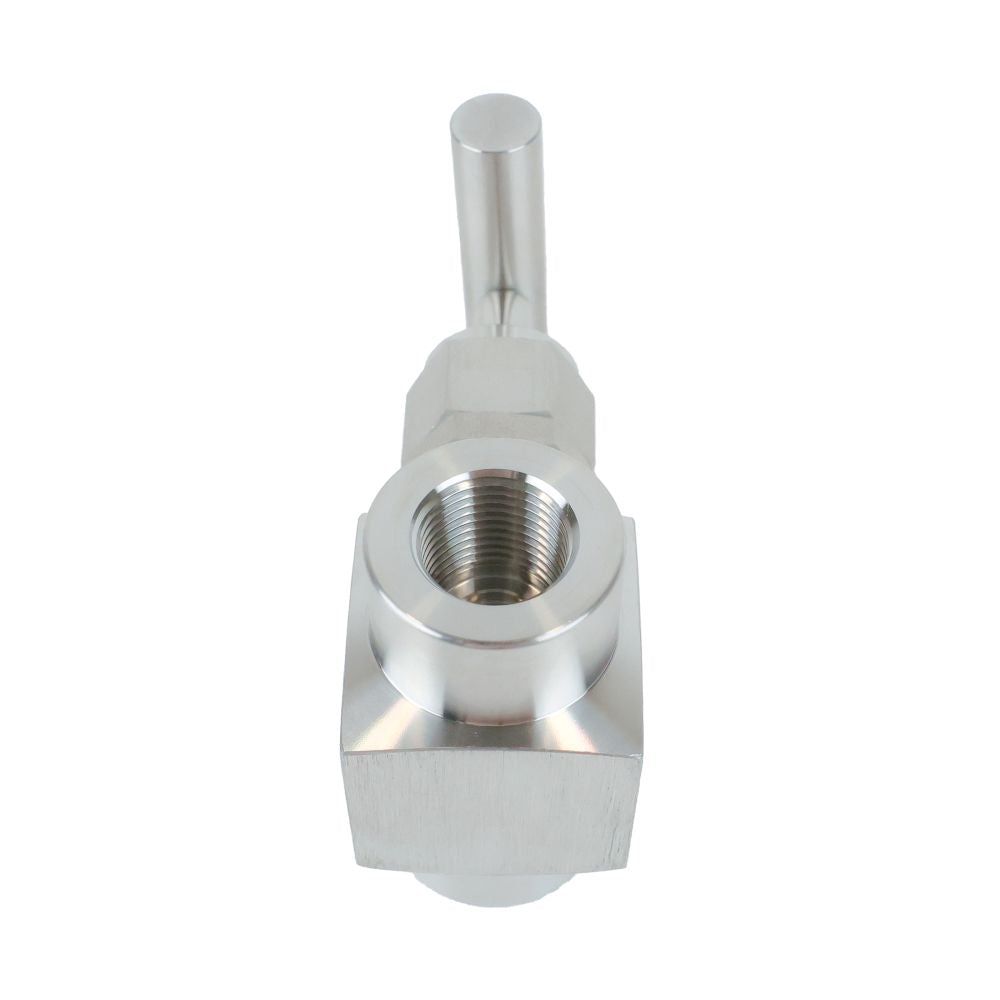

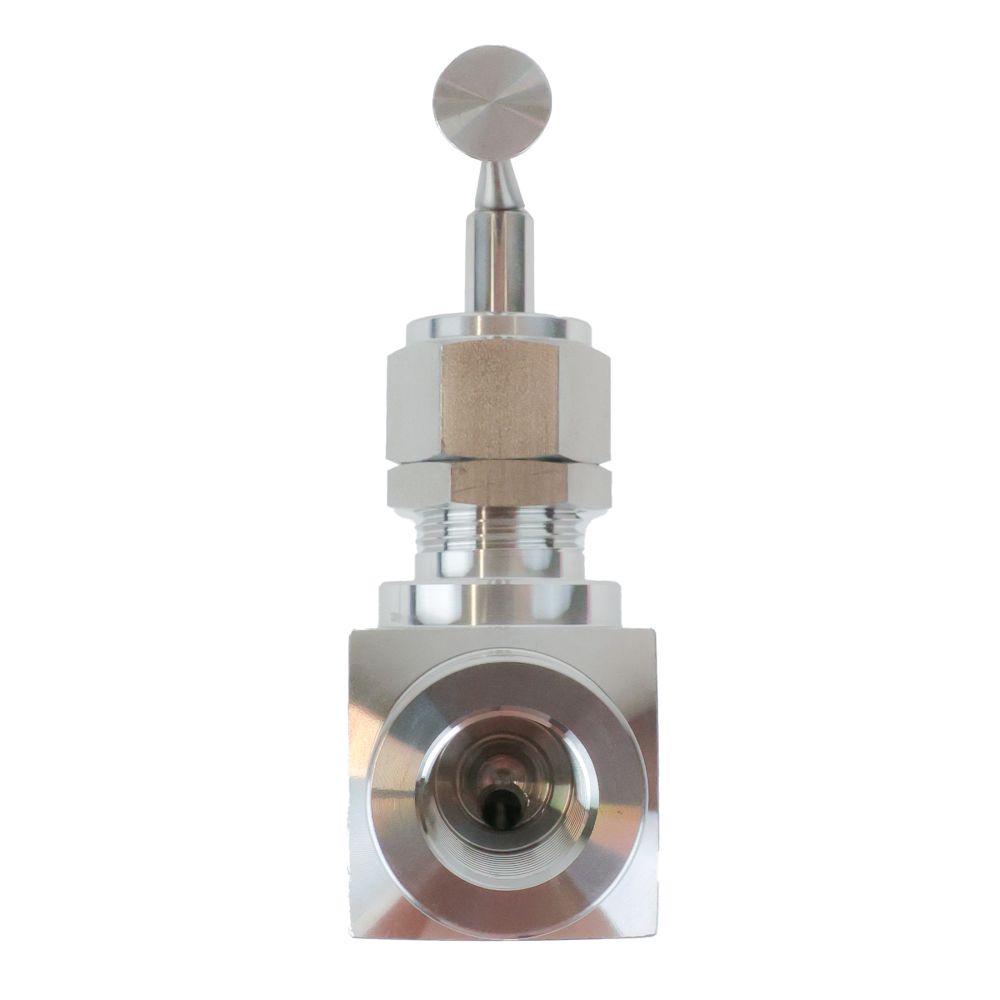

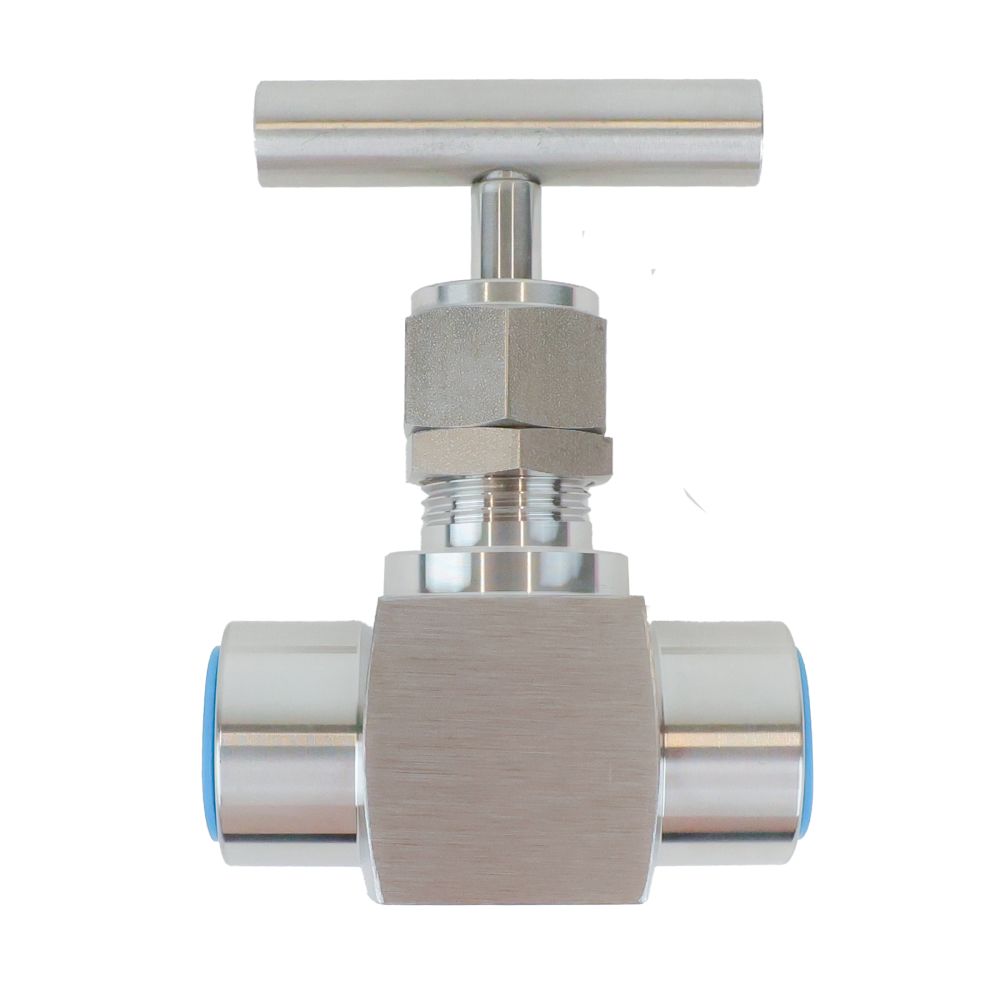

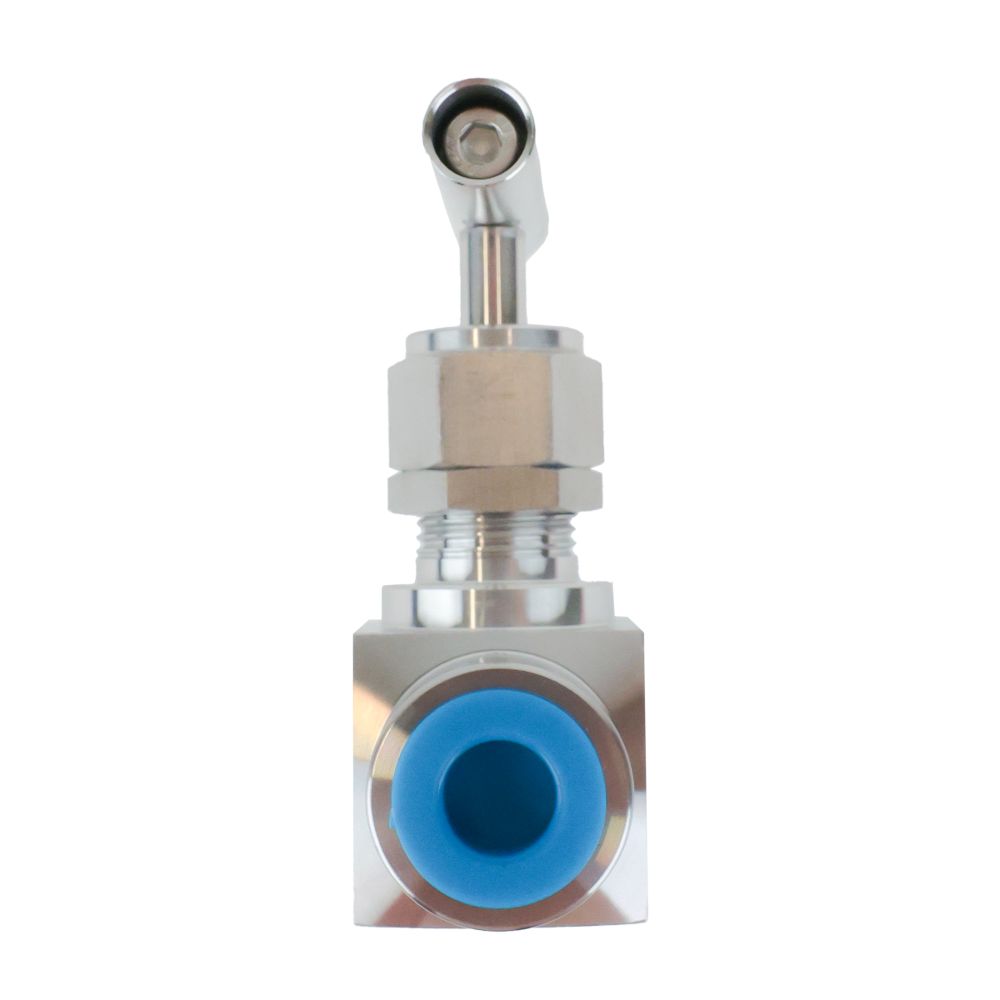

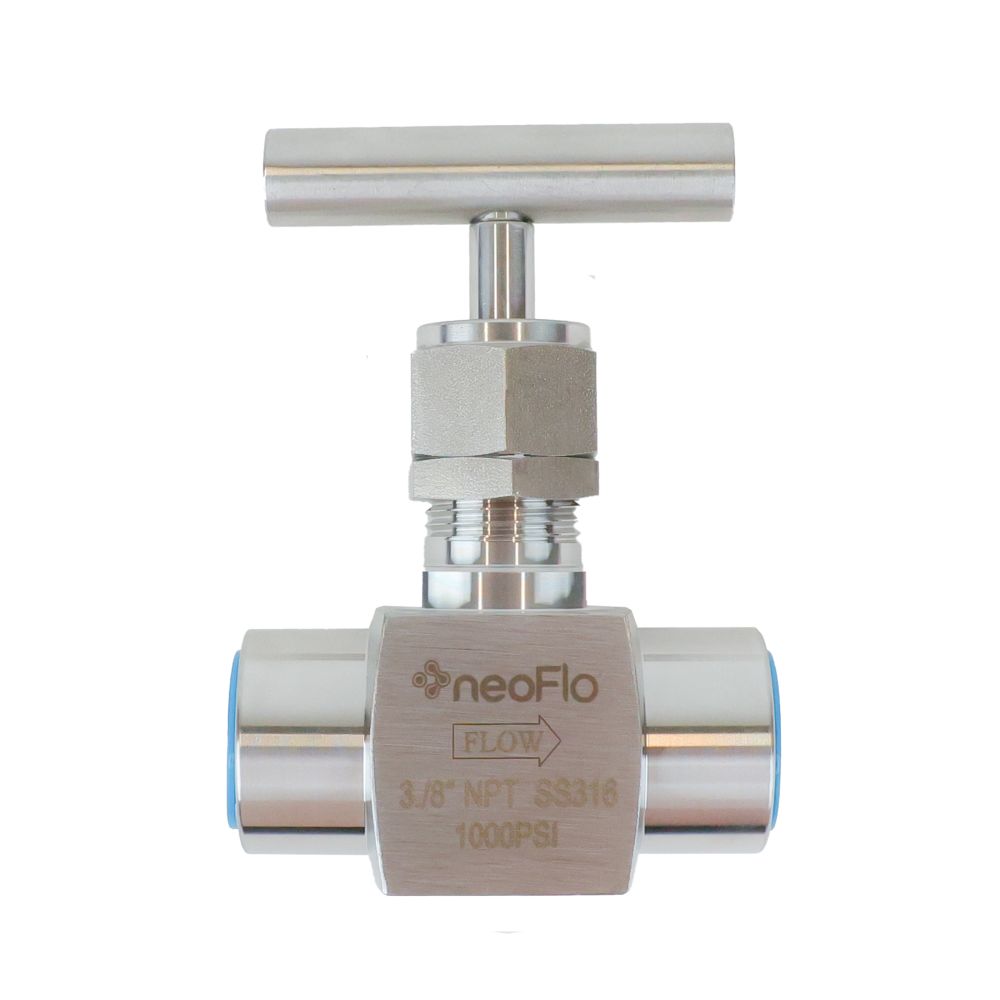

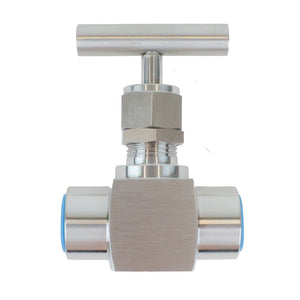

Panel Mount Needle Valve - 3/8" FNPT 316 SS

Part Number: NV-38SS316

Alt. Part Number: 201005

In Stock

out of stock

In Stock

$78.99

Features:
  • Soft seat design for bubble tight seal
  • replaceable delrin seat
  • high capacity flow and easy rod cleaning
  • Straight through porting for bi-directional
  • one piece bonnet with metal to metal seal to the valve body below the bonnet threads
  • polished finish
Specifications:
  • Material: 316 Stainless Steel stem
  • Operating Pressure: 6000 PSI @200°F MAXIMUM
  • Connection: 3/4" FNPT




Weight & Dimensions

Height (inches)

1.13

Length (inches)

3.5

Weight (lbs)

0.05

Width (inches)

2.63

Details

Body Material

Stainless Steel

Max Pressure (Psi)

6000

Max Temp (°F)

200



Features:
  • Soft seat design for bubble tight seal
  • replaceable delrin seat
  • high capacity flow and easy rod cleaning
  • Straight through porting for bi-directional
  • one piece bonnet with metal to metal seal to the valve body below the bonnet threads
  • polished finish
Specifications:
  • Material: 316 Stainless Steel stem
  • Operating Pressure: 6000 PSI @200°F MAXIMUM
  • Connection: 3/4" FNPT



Weight & Dimensions

Height (inches)

1.13

Length (inches)

3.5

Weight (lbs)

0.05

Width (inches)

2.63

Details

Body Material

Stainless Steel

Max Pressure (Psi)

6000

Max Temp (°F)

200
