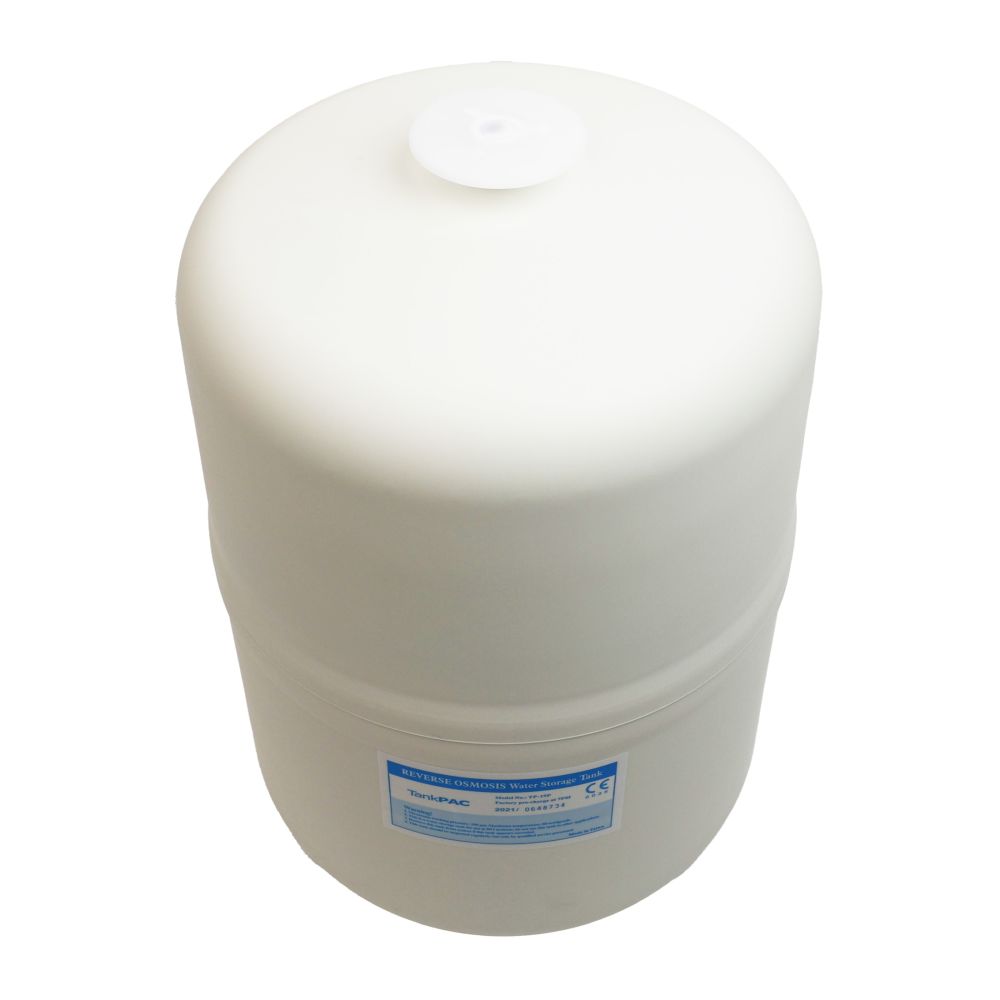

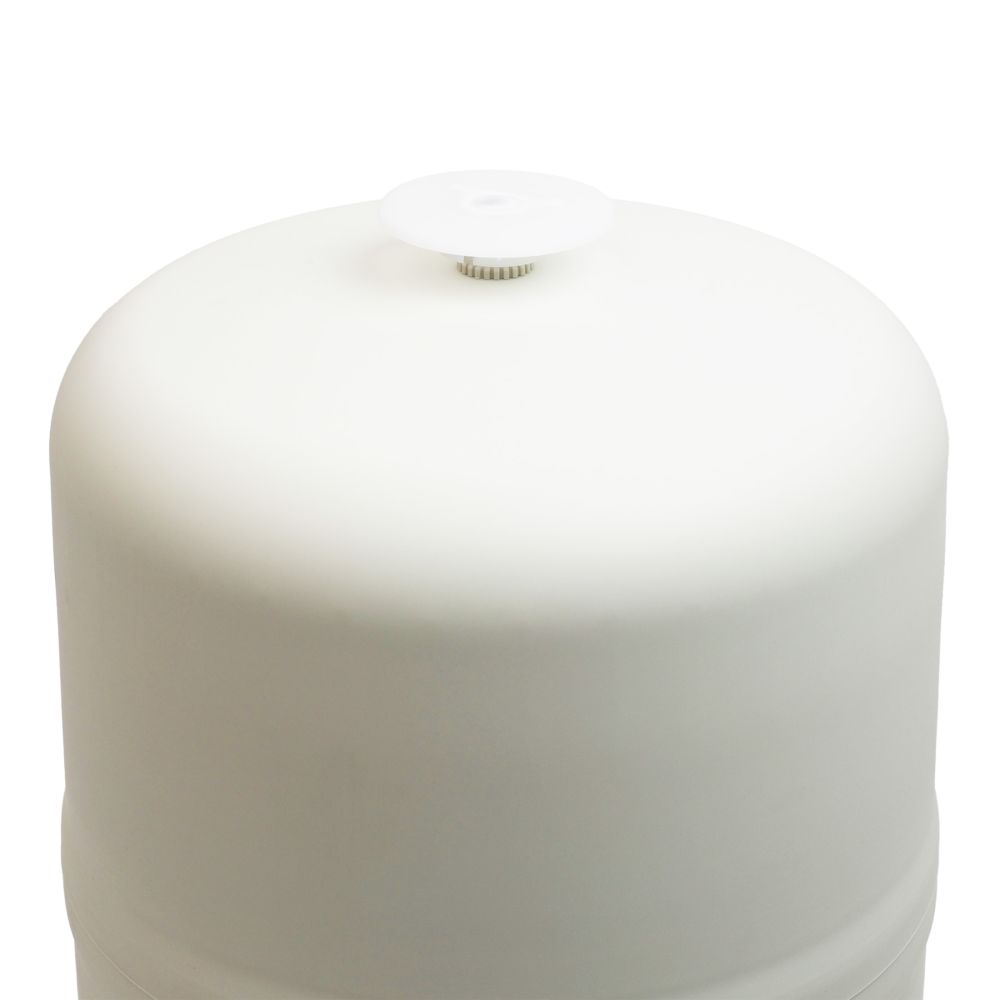

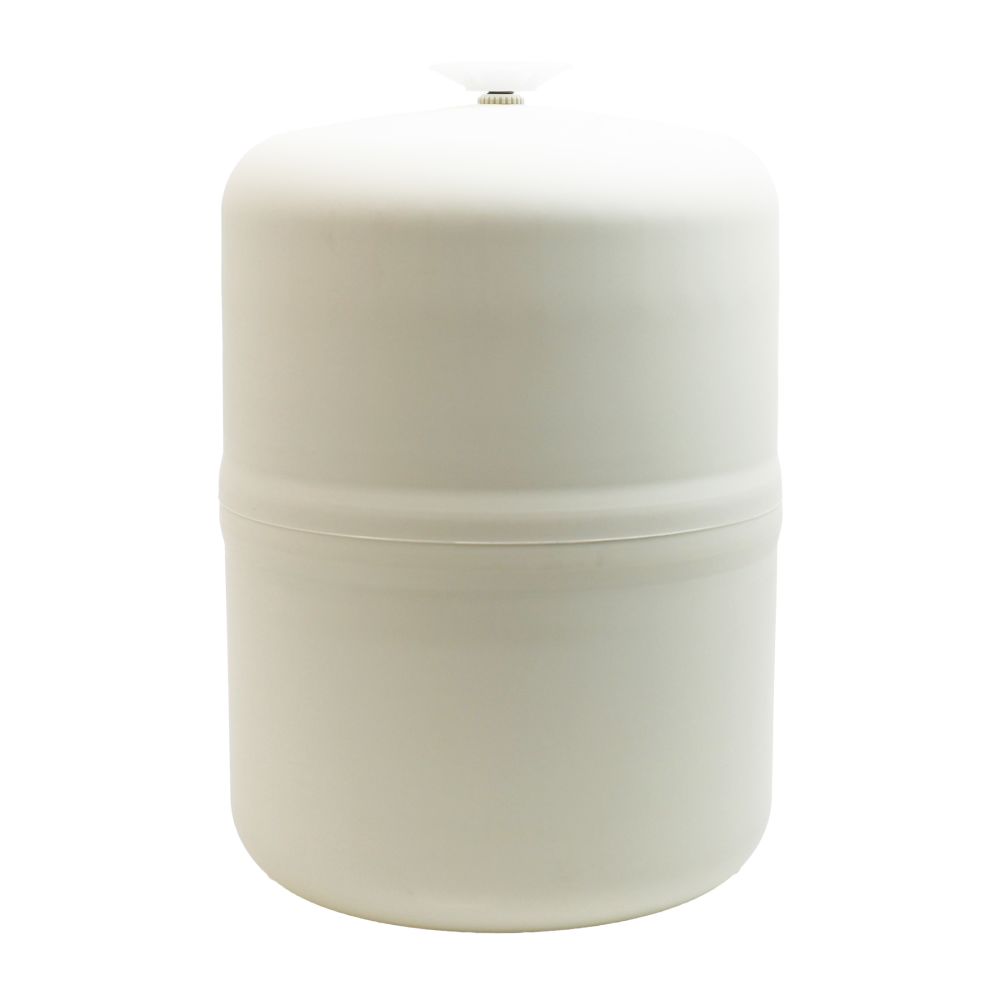

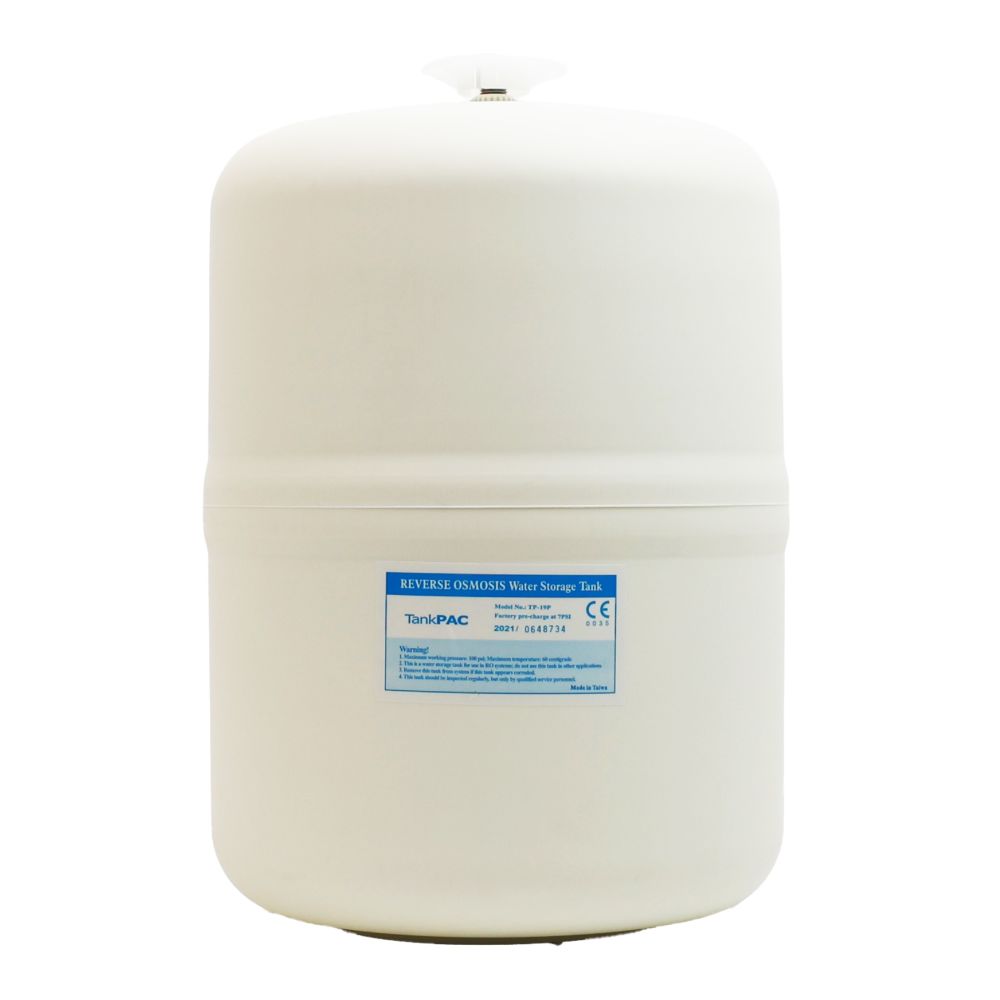

The PAE TP-19P RO Tank is a steel five-gallon reverse osmosis tank with a polypropylene outer and inner layer. The TP-19P is constructed using FDA approved materials and has been extensively tested to ensure quality. This tank is also known as the ROT-5P.
Specifications:
A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4 valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG valve.
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.
Specifications:
- Steel tank wrapped in a plastic polypropylene shell
- Post-cured butyl rubber diaphragm
- Inlet/Outlet size: 1/4" MPT
- Capacity: 5 gallons
- Maximum working pressure: 100 psi
- Pre-charged at 6 psi
- Max temperature: 104°F
A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4 valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG valve.
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.
Weight & Dimensions
Height W/O Stand | 15.8" |
Weight (lbs) | 9.52 |
Details

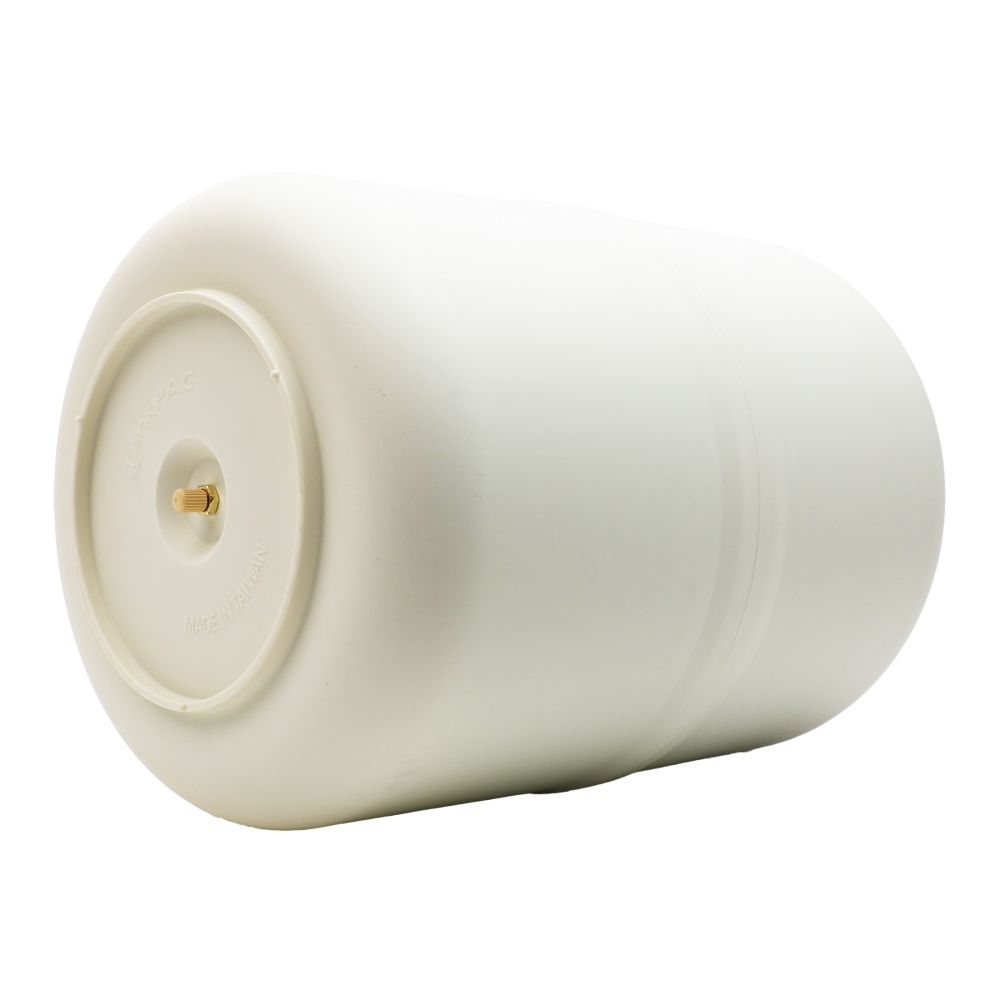

Air Valve Stem Location | Bottom |
Application | RO Water Storage |
Diameter | 11" |
Diaphragm Materials | Butyl Rubber |
Inlet/Outlet Connection | 1/4" MPT |
Inlet/Outlet Location | Top |
Material Of Construction | Polypropylene; Stainless Steel |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 104 |
Origin | Taiwan |
Size | 1/4" |
Tank Pre-Charge | 6 PSI |
Volume | 5 Gallons |
Warranty & Certifications
Certifications | NSF Certified to Standard 58 |
The PAE TP-19P RO Tank is a steel five-gallon reverse osmosis tank with a polypropylene outer and inner layer. The TP-19P is constructed using FDA approved materials and has been extensively tested to ensure quality. This tank is also known as the ROT-5P.
Specifications:
- Steel tank wrapped in a plastic polypropylene shell
- Post-cured butyl rubber diaphragm
- Inlet/Outlet size: 1/4" MPT
- Capacity: 5 gallons
- Maximum working pressure: 100 psi
- Pre-charged at 6 psi
- Max temperature: 104°F
A tank shut-off valve is necessary to connect the tank to your reverse osmosis system and control the flow of water into and out of the tank. The valve is also essential for performing system service or maintenance. If your RO system uses 1/4" OD tubing to connect to the tank, select the LFPP4VFE4 valve. If your system uses 3/8" OD tubing select the PP6VFE4-MG valve.
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.
Weight & Dimensions
Height W/O Stand | 15.8" |
Weight (lbs) | 9.52 |
Details
Air Valve Stem Location | Bottom |
Application | RO Water Storage |
Diameter | 11" |
Diaphragm Materials | Butyl Rubber |
Inlet/Outlet Connection | 1/4" MPT |
Inlet/Outlet Location | Top |
Material Of Construction | Polypropylene; Stainless Steel |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 104 |
Origin | Taiwan |
Size | 1/4" |
Tank Pre-Charge | 6 PSI |
Volume | 5 Gallons |
Warranty & Certifications
Certifications | NSF Certified to Standard 58 |
