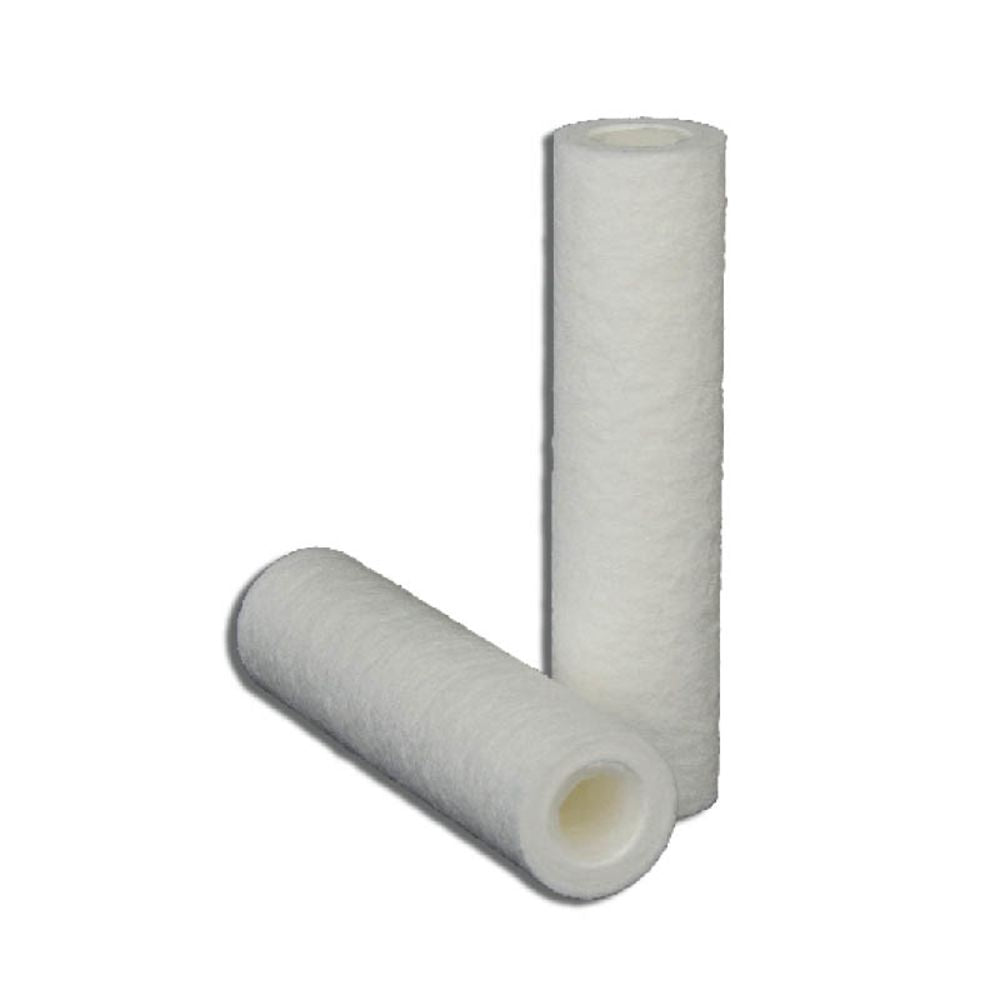

This Optipure 252-10810 PTS-10 PolyTrix Cartridge is a 10” Drop-In PolyTrix gradient density filter cartridge that reduces sediment down to 5.0-microns. The cartridge includes IsoNet®, OptiPure’s patented scale-inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

Features:

• PolyTrix gradient-density depth filtration reduces dirt, rust, and other debris as small as 5-microns to assure clean, clear water and protect solenoids, valves and other fittings against wear and plugging.
• Protects equipment from the damaging effects of scale and corrosion.
• 70 grams of scale inhibitor in IsoNet® provides consistent protection over the life of the cartridge.
• Generates less waste, only the drop-in cartridge is replaced. No discarding of metal or plastic quick change filters.
• Replacement cartridge cost per gallon is much less than proprietary quick-change filters.
• NSF Certified under Standard 42 for material requirements only.

Specifications:

• Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
• Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
• Service Flow Rate: 2.5 gpm (9.5 lpm)
• Sediment Reduction: 5 microns (nominal)
• Scale & Corrosion Inhibitor: IsoNet (70 grams)

Installation Tips:

• Ensure cartridge is designed to replace the existing cartridge.
• Do not exceed cartridge specifications for temperature and pressure.
• Allow 3” clearance below system for filter cartridge removal and replacement.
• No activation procedure or flushing is required for cartridge to perform as specified.
• Feed-water connection to system should be COLD only

NOTE: Drop-in style cartridge used in OptiPure FXTS Systems and secondary treatment in combination systems. Can be used as a retrofit cartridge with most standard 10” drop-in style housings
