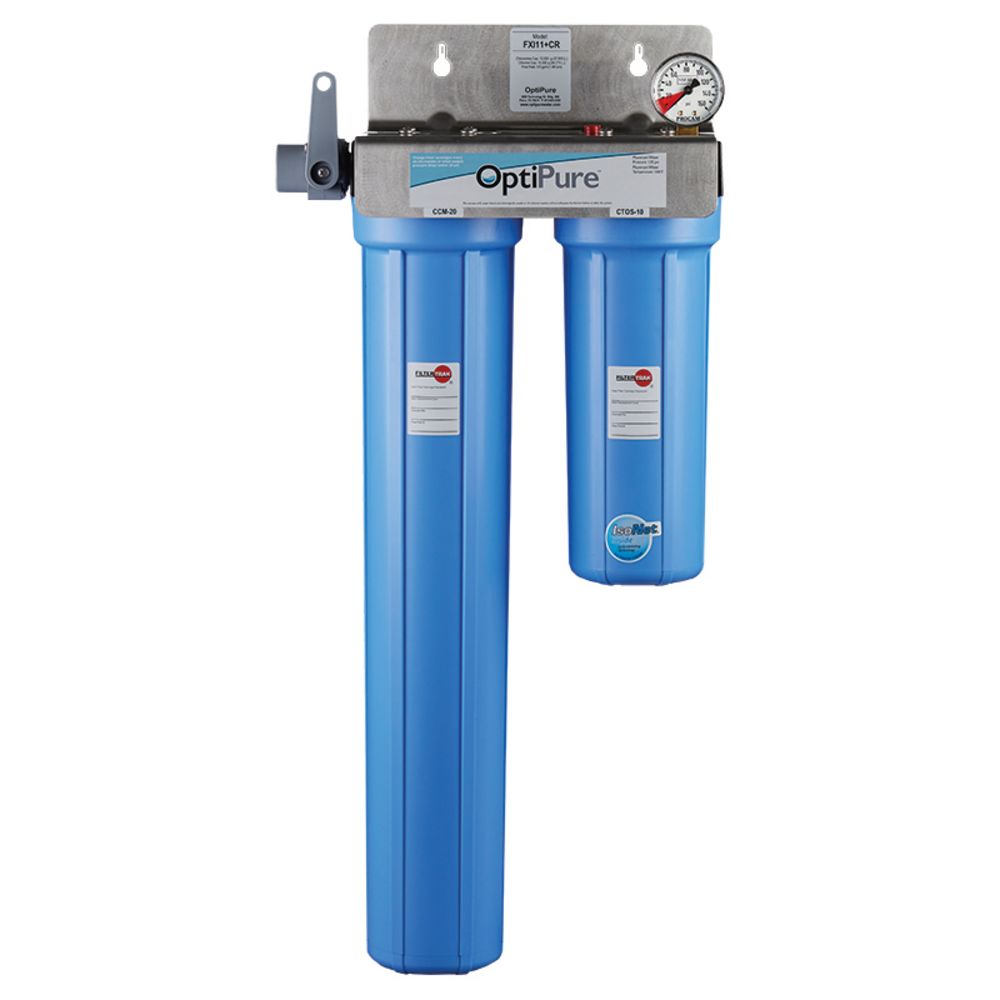

This Optipure 160-50185 FXI11+CR Dual System is a dual-housing water treatment system with drop-in cartridges that reduces sediment down to 0.5-microns and reduces chlorine up to 20,000-gallons at 3.0 gpm and chloramine at a flow rate of 0.5 gpm for 10,000-gallons. The system includes IsoNet®, OptiPure’s patented scale inhibiting technology, which minimizes the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

Features:

• IsoNet®, OptiPure’s patented scale-inhibiting technology, helps protect equipment against scale and corrosion for the rated capacity of the system.
• Reduces maintenance frequency and cost, and extends equipment life.
• Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
• Catalytic-carbon filtration provides added protection against chloramines that may be present in water supplies.
• High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
• Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
• Built-in pressure gauge allows visual monitoring of when filters need to be changed.
• Inlet shut-off and depressurization valves make filter replacement quick and simple.
• Minimizes waste by only replacing drop-in cartridges and reusing filter sumps.

Specifications:

• Connection: Inlet & Outlet 1/2” NFPT
• Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
• Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
• Service Flow Rate: 3.0 gpm (11.4 lpm)
• Sediment Reduction: 0.5 microns (nominal)
• Chlorine Reduction Capacity at 3.0 gpm (11.4 lpm): 20,000 gals. (75,708 L)
• Chloramine Reduction Capacity at 0.5 gpm (1.9 lpm): 10,000 gals. (37,800 L)
• Scale & Corrosion Inhibitor: IsoNet (70 grams)

Installation Tips:

• Feed-water connection to system should be COLD only.
• Do not exceed system specifications for temperature and pressure.
• Allow 3” clearance below system for filter housing removal and cartridge replacement.
• Connect filtered water line to ice and steam production connections only. Do not use for condenser water.
• Detailed installation, operation and maintenance manual included with each system.
• No activation procedure or flushing
