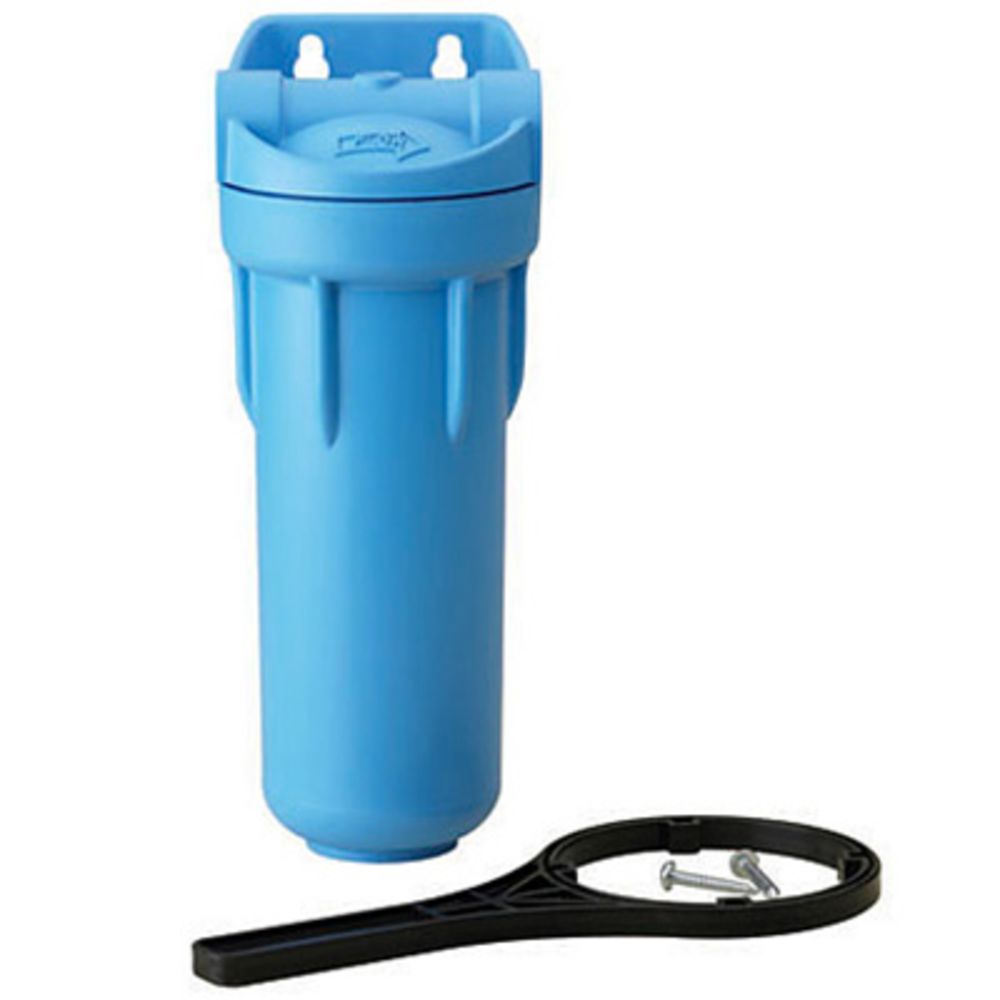

Omnifilter OB1 10" 3G Standard Filter Housing Blue/Blue IB w/ PR - 3/4" FPT

Part Number: OB1

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


The Omnifilter OB1 10" 3G Standard Filter Housing is made of durable polypropylene and features 3/4" inlet and outlet ports. Polypropylene housings offer excellent chemical resistance and accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges making them ideal for residential, commercial and industrial applications.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Buttress threads for additional strength and easier cartridge changes
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated Buna-N O-ring
  • Excellent chemical resistance
  • Integrated Mounting Bracket with Pressure Relief Button
  • Includes a filter wrench and two mounting screws
  • Filter cartridge sold separately




Weight & Dimensions

Approx Height (Inches)

13-1/4"

Approx Width (Inches)

5-1/8"

Weight (lbs)

4.1

Details

Button Assembly

300 Stainless Steel-EPDM-Polypropylene

Cap Color

Blue

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Connection

3/4" FPT

Max Pressure (Psi)

125

Max Temp (°F)

125

Mounting Options

Integral Bracket

O-Rings

EPDM

Psid@Flow Rate

1 PSI @ 10 GPM

Size

3/4"

Cap Material

Polypropylene

Color / Finish

Blue

Connection Type

Female (FPT)

Flow Rate

15 GPM @ 60 psi GPM

Origin

USA


Omnifilter





The Omnifilter OB1 10" 3G Standard Filter Housing is made of durable polypropylene and features 3/4" inlet and outlet ports. Polypropylene housings offer excellent chemical resistance and accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges making them ideal for residential, commercial and industrial applications.

Features:
  • Ideal for a wide range of applications, including residential, commercial and industrial
  • Buttress threads for additional strength and easier cartridge changes
  • Thick walls for increased strength
  • Leak-proof sealing with top-seated Buna-N O-ring
  • Excellent chemical resistance
  • Integrated Mounting Bracket with Pressure Relief Button
  • Includes a filter wrench and two mounting screws
  • Filter cartridge sold separately



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Height (Inches)

13-1/4"

Approx Width (Inches)

5-1/8"

Weight (lbs)

4.1

Details

Button Assembly

300 Stainless Steel-EPDM-Polypropylene

Cap Color

Blue

Features

Pressure Relief

Housing Material

Polypropylene

Inlet/Outlet Connection

3/4" FPT

Max Pressure (Psi)

125

Max Temp (°F)

125

Mounting Options

Integral Bracket

O-Rings

EPDM

Psid@Flow Rate

1 PSI @ 10 GPM

Size

3/4"

Cap Material

Polypropylene

Color / Finish

Blue

Connection Type

Female (FPT)

Flow Rate

15 GPM @ 60 psi GPM

Origin

USA
