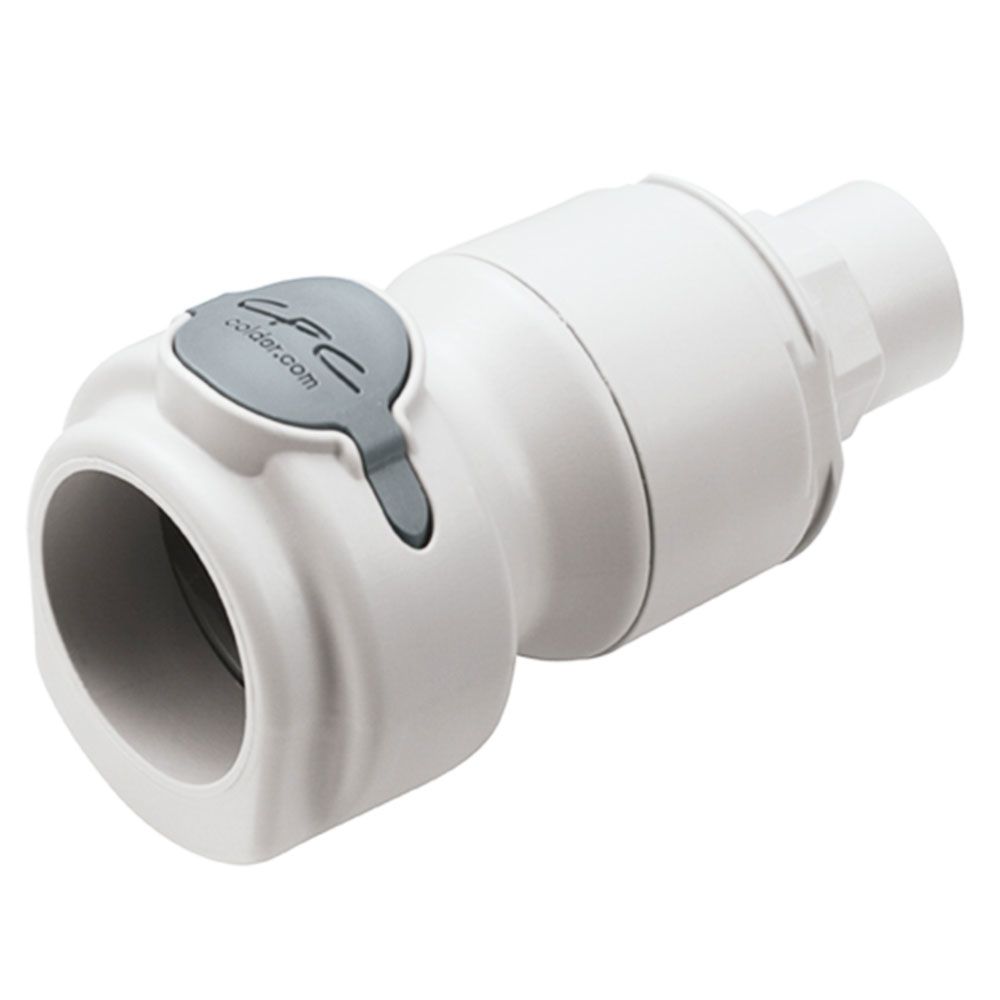

NSHD19006 Valved In-Line Coupling Body 3/8" FNPT

The NSH Series Couplings are constructed out of polypropylene and come with a non-spill design to protect users from chemicals and fumes. These couplings are economically priced, general purpose versions of the Colder ChemQuik CQG06 couplings. NSH Series couplings are resistant to a broad range of chemicals, provide a high flow capacity, and allow for a instant disconnections and re-connections, even under pressure.

Specifications:

Material: Polypropylene
Material Finish: Molded Gray
Color: Gray with dark gray accent
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Valved
Temperature Range: 32ºF to 120ºF
Seal Options: EPDM
Valve Spring: 316 Stainless Steel

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	3/8" FPT
Max Pressure (Psi)	120
Max Temp (°F)	120
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" FPT
Seal Material	EPDM
Series	NSH
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Glass-filled polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Female (FPT)
Type	Coupling Body

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	3/8" FPT
Max Pressure (Psi)	120
Max Temp (°F)	120
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" FPT
Seal Material	EPDM
Series	NSH
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Glass-filled polypropylene
Valve Type	Valved
Color / Finish	Gray
Connection Type	Female (FPT)
Type	Coupling Body
